Devices Covered By This Document

This Hardware Reference includes information on the following Network

Service Modules (NSMs):

■AT-AR040, four Port Interface Card (PIC) expansion bays

■AT-AR041, eight ISDN Basic Rate S/T interfaces

■AT-AR042, four ISDN Basic Rate S/T interfaces

■AT-AR048, one unchannelised DS3 interface

You can download the complete document set for NSMs, and for your switch

or router, from www.alliedtelesis.com/support/software. For more

information about the document set and other resources, see “Obtaining

Documentation and Resources” on page 23.

Compatible Switches and Routers

The following table shows which NSMs are appropriate for different models of

switch and router.

AT-AR048 Support

Maximum DS3 packet forwarding rates are achieved only when the AT-AR048

is installed in a Rapier 48w switch, or a Rapier 24iswitch whose serial number

ends with the letter N or higher. If maximum DS3 performance is not required,

you can install the AT-AR048 in any Rapier 24iwhose serial number ends in J

or later. You can find the serial number on the underside of the switch (Figure 1

on page 5).

Table 1: Compatible switches and routers for Network Service Modules (NSMs)

Model(s) AR040 AR041 AR042 AR048

Rapier 8/8 (MT & SC) switch !!!

Rapier 16F-FX (MT-RJ & SC) switch !!!

Rapier 16Fi-FX (MT-RJ & SC) switch !!!

Rapier 24 switch !!!

Rapier 24iswitch !!!!

Rapier 48w switch !!

AR816F-FX (MT-RJ & SC)

modular switching router

!!!

AR824 modular switching router !!!

AR740 router !!!

AR745 router !!!

Hardware Reference 5

C613-03022-00 REV K

Figure 1: Serial number label on the underside of a Rapier 24i

Made in Singapore

Model : AT-RP241-10

Part Number: 990-11934-10

Product Serial Number: S03K225N

Quantity With Unit of

Measure:

1 EA 7 67035 14875

N or higher for maximum DS3

performance

J, K, L, or M for less demanding

DS3 applications

6Network Service Module

C613-03022-00 REV K

Hardware Overview

This section provides an overview of the hardware features of NSMs. NSMs are

expansion options for switch and router models with an NSM bay. NSMs slot

into a base-unit switch or router and either directly provide additional WAN

interfaces, or provide expansion slots for Port Interface Cards (PICs).

Hardware descriptions for your switch or router, Uplink Modules, and PICs

can be found in their respective Hardware References. These documents can be

downloaded from www.alliedtelesis.com/support/software.

Safety and conformance information can be found in the Installation and Safety

Guide or Safety and Statutory Information booklet for your switch or router,

which can be downloaded from www.alliedtelesis.com/support/software.

Common Features

The following hardware features are common to all NSM models.

Environmental

conditions

■Operating temperature range: 0 ºC to 40 ºC (32 ºF to 104 ºF)

■Storage temperature range: -25 ºC to 70 ºC (-13 ºF to 158 ºF)

■Relative humidity range: 5 to 95% non-condensing

Regulatory

Standards

AT-AR040

■Listing: UL, cUL, TUV

■Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1,

AS/NZS60950.1

■EMC: Radiated: EN55022 class A, FCC class A, VCCI class A,

AS/NZS CISPR22 class A

■Immunity: EN55024

AT-AR041 and AT-AR042

■Listing: TUV

■Safety: EN60950-1, AS/NZS60950.1

■EMC: Radiated: EN55022 class A, AS/NZS CISPR22 class A

■Immunity: EN55024

■Network interface: TBR3, ACA TS031, iDA ISDN 1

AT-AR048

■Listing UL, cUL

■Safety: UL60950-1, CAN/CSA-C22.2 No. 60950-1-03

■EMC: Radiated: FCC Part 15 class A, IC-03 class A

■Network interface: ANSI T1.102, ANSI T1.404, ANSI T1.107, ANSI T1.231

Hardware Reference 7

C613-03022-00 REV K

AT-AR040 NSM

The AT-AR040 provides four Port Interface Card (PIC) expansion bays for

installing PICs. The front panel of the AT-AR040 NSM is shown in Figure 2.

The AT-AR040 NSM does not have LEDs.

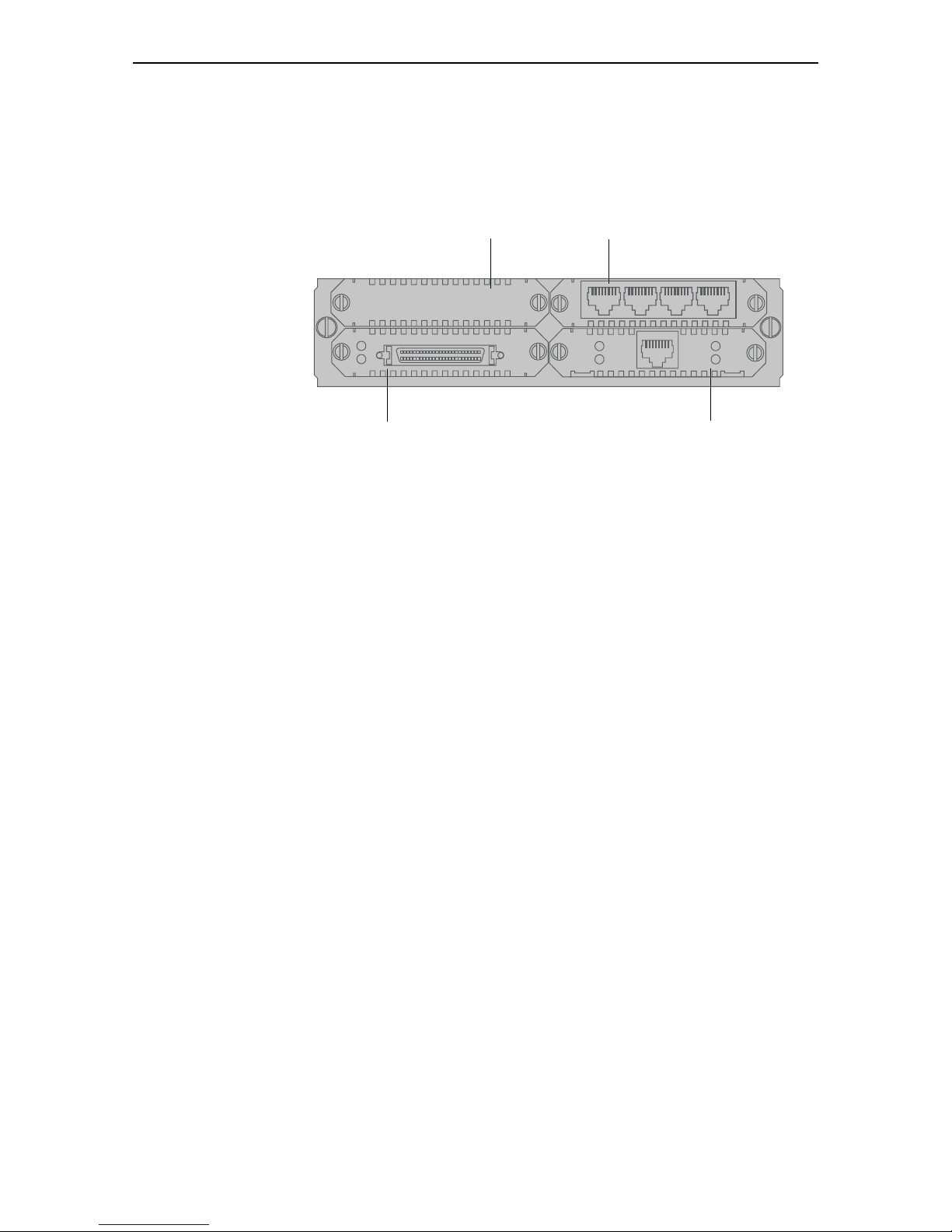

Figure 2: AT-AR040 NSM with three PICs installed

Supported Port Interface Cards (PICs)

The following PICs can be installed in an AT-AR040 NSM:

■AT-AR020 PRI E1/T1, a single ISDN Primary Rate E1/T1 interface

■AT-AR021(S) BRI-S/T, a single ISDN Basic Rate S/T interface

■AT-AR021(U) BRI-U, a single ISDN Basic Rate U interface

■AT-AR023 SYN, a single 2Mbps synchronous interface supporting RS-232,

X.21, and V.35 in DTE and DCE modes

■AT-AR024 ASYN4, four asynchronous ports

■AT-AR027 VoIP-FXS, two Foreign Exchange Voice over IP ports

For more information about installing PICs, see the Port Interface Card

Installation and Safety Guide, which is included with every PIC or can be

downloaded from www.alliedtelesis.com/support/software.

For more information about the hardware features of PICs, constructing data

cables, and verifying installation, see the Port Interface Card Hardware Reference,

which can be downloaded from www.alliedtelesis.com/support/software.

Guidelines and limits for installing PICs

Observe the following guidelines and limits when installing PICs:

■Use the PIC bays on the switch or router first, before installing PICs into an

AT-AR040 NSM.

■Fill any PIC bays in the base router starting at bay 0.

■Fill the PIC bays in the AT-AR040 NSM starting at bay 0.

■You can install a maximum of two AT-AR020 PRI E1/T1 PICs into an

AT-AR040 NSM, and maximum of four total in a switch or router.

■If two AT-AR020 PICs are installed in an AT-AR040 NSM, PIC one must be

installed in the lower row (bay 0 or 1) and the other PIC must be installed

in the upper row (bay 2 or 3).

nsm4pic3

ASYN

SYN

AT- A R 023 SYN PIC

Blank face-plate

AT- A R 020 PRI E1/T1PIC

AT- A R 024 ASYN4PIC

Active

D Data

B Data

PRI E1/T1

8Network Service Module

C613-03022-00 REV K

■If an AT-AR020 PIC is installed in an AT-AR040 NSM, and operating in E1

mode, you can not install an AT-AR021(S) or AT-AR021(U) PIC in the same

row of the NSM.

■You can install a maximum of four AT-AR027 PICs in an AR745 router

fitted with an AT-AR040 NSM.

■Avoid installing an AT-AR022 or AT-AR026 PIC in an AT-AR040 NSM.

Performance of these interfaces may be reduced and packet loss may occur.

Interface numbering

For each interface type (e.g. BRI, PRI, SYN, ETH, PORT), interfaces are

numbered starting at 0, in the following sequence:

1. interfaces on the base switch or router

2. interfaces on PICs installed in PIC bays on the base switch or router, starting

with PIC bay 0

3. interfaces on PICs installed in PIC bays on the AT-AR040 NSM, starting

with NSM PIC bay 0, and ending with NSM PIC bay 3.

Hardware Reference 9

C613-03022-00 REV K

AT-AR041 and AT-AR042 NSMs

The AT-AR041 NSM provides eight ISDN Basic Rate S/T interfaces. The front

panel of the AT-AR041 is shown in Figure 3.

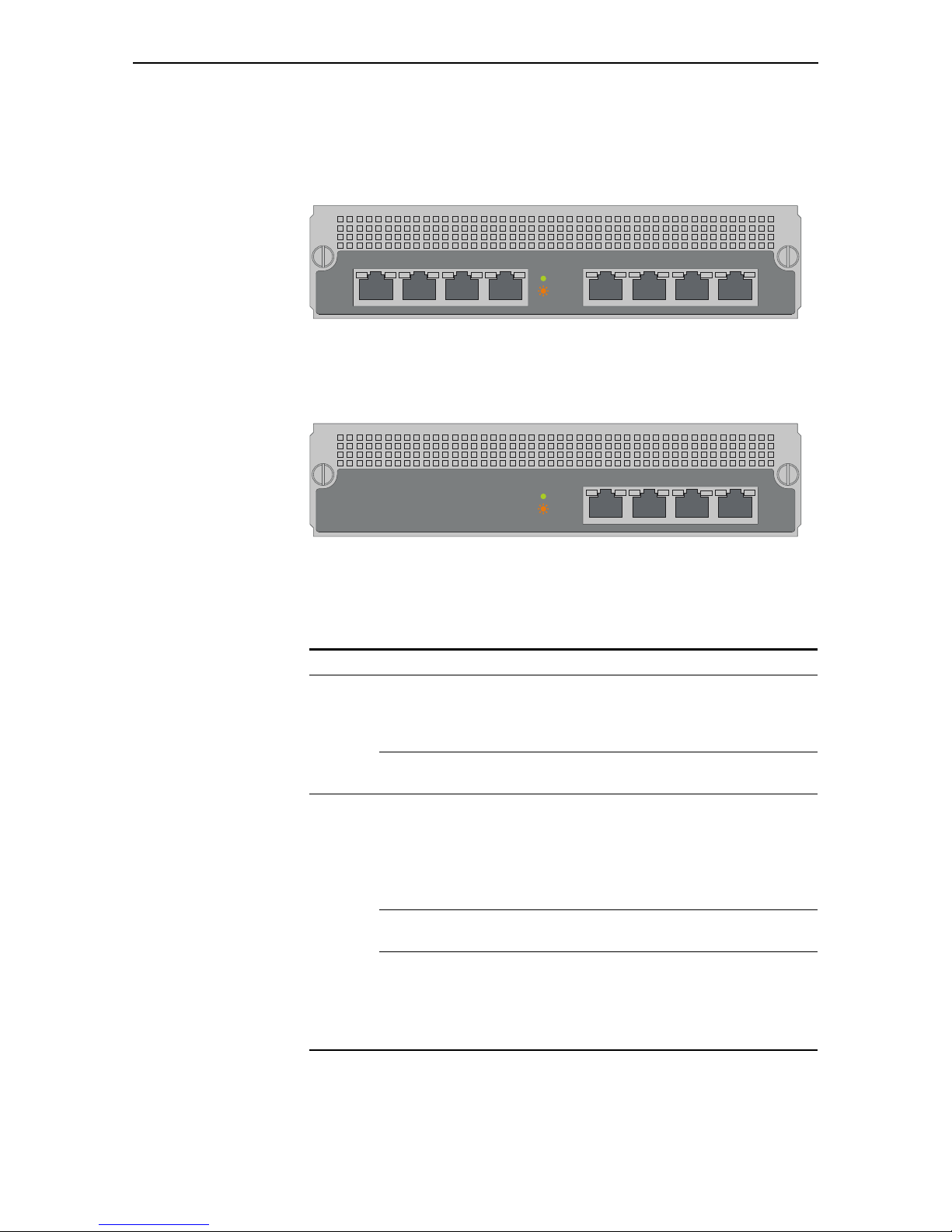

Figure 3: AT-AR041 NSM

The AT-AR042 NSM provides four ISDN Basic Rate S/T interfaces. The front

panel of the AT-AR042 is shown in Figure 4.

Figure 4: AT-AR042 NSM

The BRI ports use RJ-45 connectors and provide TE interfaces. There are two

status LEDs per port. The functions of the LEDs are listed in Table 2.

The AT-AR041 and AT-AR042 support point-to-point links. Point to multi-

point links are not supported.

Table 2: AT-AR041 and AT-AR042 LEDs

LED State Function

Active Green Lit when the BRI has successfully completed the exchange

of INFO 1 and INFO 2 signals, and INFO 3 and INFO 4

signals are present on the link. This means the ISDN

interface is correctly connected to a working NT device.

Off There is no connection to the ISDN, or the ISDN has

deactivated the connection.

Data Amber For on-demand ISDN, lit when there is a call up over the

respective B channel.

For permanent circuits, lit when HDLC packets are being

exchanged between the switch or router and another TE

end system device (normally another switch or router)

over the respective B (data) channel.

Flashing Amber For on-demand ISDN, flashing when data is being

exchanged.

Off For on-demand ISDN, Off when there is no active

connection or when continuous data exchange is

occurring.

For permanent ISDN circuits, Off when no data exchange

is occurring.

6754 2310

Data

Active

2310

Data

Active

Other manuals for AT-AR040

This manual suits for next models

Table of contents

Other Allied Telesis Network Hardware manuals

Allied Telesis

Allied Telesis AT-2916T User manual

Allied Telesis

Allied Telesis AT-TN109-A User manual

Allied Telesis

Allied Telesis iMAP 9400 User manual

Allied Telesis

Allied Telesis AT-TN127-A User manual

Allied Telesis

Allied Telesis AT-XEM-12S User manual

Allied Telesis

Allied Telesis AT-SPEX User manual

Allied Telesis

Allied Telesis SwitchBlade x8106 User manual

Allied Telesis

Allied Telesis CentreCOM 3600 Series User manual

Allied Telesis

Allied Telesis AT-TN123-B User manual

Allied Telesis

Allied Telesis AT-TN136-A User manual

Allied Telesis

Allied Telesis AT-TN128-A User manual

Allied Telesis

Allied Telesis AT-TN129-A User manual

Allied Telesis

Allied Telesis CentreCOM AT-3606F User manual

Allied Telesis

Allied Telesis AT-TN121-A User manual

Allied Telesis

Allied Telesis ADSL8S User manual

Allied Telesis

Allied Telesis AT-A14 User manual

Allied Telesis

Allied Telesis AT-x230-10GP User manual

Allied Telesis

Allied Telesis AT-SPFX/40 User manual

Allied Telesis

Allied Telesis iMAP Express 7112 User manual

Allied Telesis

Allied Telesis AT-TN408-A User manual

Allied Telesis

Allied Telesis AT-TN125-A User manual

Allied Telesis

Allied Telesis SwitchBlade x8112 User manual

Allied Telesis

Allied Telesis AT-AR040 Application guide

Allied Telesis

Allied Telesis AR440S User manual

Popular Network Hardware manuals by other brands

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL product manual

B&B Electronics

B&B Electronics ZXT9-IO-222R2 product manual

Yudor

Yudor YDS-16 user manual

D-Link

D-Link ShareCenter DNS-320L datasheet

Samsung

Samsung ES1642dc Hardware user manual

Honeywell Home

Honeywell Home LTEM-PV Installation and setup guide

evertz

evertz 7700 Series manual

D-Link

D-Link ShareCenter DNS-343 Quick installation guide

Asante

Asante AsanteBridge 1012 user guide

FireBrick

FireBrick FB2700 user manual

Audiovox Electronics

Audiovox Electronics ARWH2T user manual

ADC

ADC DSX-1 Operational Procedures Guide

NetComm

NetComm NF2 user guide

Alcatel-Lucent

Alcatel-Lucent 5620 user guide

Dell EMC

Dell EMC XC6420 Series Solution guide

Lanner

Lanner NCA-1020A user manual

Arista

Arista CCA-ETM-Q12 quick start guide

Lanner

Lanner NCA-1525 user manual
