Alliance Laundry Systems 120 Pound Capacity Installation and operation manual

Operation/Maintenance

www.comlaundry.com

Drying Tumblers

120 Pound Capacity

170 Pound Capacity

Refer to Page 3 for Model Identification

NOTA: Para bajar una

copia de estas

instrucciones en

español, visite

www.comlaundry.com.

Part No. 70283501R6

August 2007

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

Installation must conform with local codes or in the absence of local codes with:

In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/

NFPA 54 “National Fuel Gas Code” and Standard ANSI/NFPA 70 “National Electric Code.”

In Canada, installation must comply with Standards CSA-B149.1 or Natural Gas and Propane Code CSA

C22.1, latest edition, Canadian Electric Code, Part I.

In Australia, installation must comply with the Australian Gas Association Installation Code for Gas

Burning Appliances and Equipment.

IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the

user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the

above safety information must be posted in a prominent location near the tumbler for customer use.

FOR YOUR SAFETY, the information in this

manual must be followed to minimize the

risk of fire or explosion or to prevent

property damage, personal injury or death.

W033

• Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do

not use any phone in your building.

– Clear the room, building or area of all

occupants.

– Immediately call your gas supplier from

a neighbor’s phone. Follow the gas

supplier’s instructions.

– If you cannot reach your gas supplier,

call the fire department.

• Installation and service must be

performed by a qualified installer, service

agency or the gas supplier. W052

•

FOR YOUR SAFETY

Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance. W053

WARNING

POUR VOTRE SÉCURITÉ, les informations

de ce guide doivent être respectées afin de

réduire les risques d’incendie, d’explosion

ou d’éviter les dommages matériels,

personnels ou blessures mortelles. W033R3QU

• Ne pas entreposer ou utiliser d’essence

ou toutes autres vapeurs et liquides

inflammables à proximité de cette

machine ou de tout autre appareil.

• QUE FAIRE EN CAS D’ODEUR DE GAZ :

– Ne pas mettre d’appareil en marche.

– Ne pas toucher aux interrupteurs

électriques ; ne pas utiliser le

téléphone des lieux.

– Évacuer la pièce, le bâtiment ou la zone

de tous les occupants.

– Appeler immédiatement le fournisseur

de gaz de la maison d’un voisin.

Respecter les instructions

communiquées par le fournisseur.

– Si vous ne pouvez pas joindre le

fournisseur de gaz, appeler le service

d’incendie.

• L’installation et l’entretien doivent être

effectués par un installateur, service

d’entretien qualifiés ou par le fournisseur

de gaz. W052R5QU

•

POUR VOTRE SÉCURITÉ

Ne pas entreposer ou utiliser d’essence ou

toutes autres vapeurs et liquides

inflammables à proximité de cette unité ou

de tout autre appareil. W053R2QU

MISE EN GARDE

means without the expressed written consent of the publisher.

270283501

Table of

Contents

Introduction......................................................................................... 3

Model Identification ............................................................................. 3

Customer Service.................................................................................. 3

Wiring Diagram .................................................................................... 3

Serial Plate Location............................................................................. 4

Safety Information.............................................................................. 5

Explanation of Safety Messages........................................................... 5

Important Safety Instructions ............................................................... 6

Operation............................................................................................. 8

Emergency Stop Button on CE Models................................................ 8

Operating Instructions .......................................................................... 8

Control Instructions .............................................................................. 9

Manual Timer Control ..................................................................... 9

Electronic OPL Control ................................................................... 10

Dual Digital Timer Control.............................................................. 12

Ignition Control Operation ................................................................... 14

Maintenance ........................................................................................ 16

Daily ..................................................................................................... 16

Monthly................................................................................................. 17

Quarterly ............................................................................................... 17

Bi-Annually .......................................................................................... 17

Before You Call for Service ............................................................... 20

Customer Service.................................................................................. 20

70283501

Introduction

Model Identification

Information in this manual is applicable to these models.

Includes models with the following control suffixes:

RM – reversing OPL Micro

RQ – reversing dual digital timer

RT – reversing manual timer

Customer Service

If literature or replacement parts are required, contact

the source from which the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

For technical assistance, call (920) 748-3121.

Wiring Diagram

The wiring diagram is located in the junction or

contactor box.

Models starting Serial No. 0309____ or later will have

the wiring diagram part number in the lower portion of

the electrical data on the serial plate.

Gas Steam/Thermal Oil

120 Pound

AT120L

AT120N

HA120L

HA120N

HT120L

HT120N

HU120L

HU120N

SA120L

SA120N

ST120L

ST120N

SU120L

SU120N

UA120L

UA120N

UT120L

UT120N

UU120L

UU120N

WT120L

WT120N

XT120L

XT120N

XU120L

XU120N

YT120L

YT120N

AT120S

HT120S

HT120T

HU120S

HU120T

ST120S

ST120T

SU120S

SU120T

UT120S

UT120T

UU120S

UU120T

WT120S

WT120T

XT120S

XT120T

XU120S

XU120T

YT120S

YT120T

YU120S

YU120T

170 Pound

AT170L

AT170N

HA170L

HA170N

HT170L

HT170N

HU170L

HU170N

SA170L

SA170N

ST170L

ST170N

SU170L

SU170N

UA170L

UA170N

UT170L

UT170N

UU170L

UU170N

WT170L

WT170N

XT170L

XT170N

XU170L

XU170N

YT170L

YT170N

AT170S

HT170S

HT170T

HU170S

HU170T

ST170S

ST170T

SU170S

SU170T

UT170S

UT170T

UU170S

UU170T

WT170S

WT170T

XT170S

XT170T

XU170S

XU170T

YT170S

YT170T

Introduction

70283501

Serial Plate Location

When calling or writing for information about your

product, be sure to mention model and serial numbers.

Model and serial numbers are found on serial plate on

rear of machine. Refer to Figure 1.

TMB1298N

1Serial Plate

Figure 1

TMB1298N

170 POUND TUMBLER120 POUND TUMBLER

70283501

Safety Information

Explanation of Safety Messages

Throughout this manual and on machine decals, you

will find precautionary statements (“DANGER,”

“WARNING,” and “CAUTION”) followed by specific

instructions. These precautions are intended for the

personal safety of the operator, user, servicer, and

those maintaining the machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

IMPORTANT: Warranty is void unless tumbler is

installed according to instructions in the

Installation Manual. Compliance with minimum

specifications and requirements detailed herein,

and with applicable local gas fitting regulations,

municipal building codes, water supply regulations,

electrical wiring regulations, and any other

relevant statutory regulations. Because of varied

requirements, applicable local codes should be

thoroughly understood and all pre-installation

work arranged for accordingly.

NOTE: The WARNING and IMPORTANT

instructions appearing in this manual are not

meant to cover all possible conditions and

situations that may occur. It must be understood

that common sense, caution and carefulness are

factors which CANNOT be built into this tumbler.

These factors MUST BE supplied by the person(s)

installing, maintaining or operating the tumbler.

Always contact your dealer, distributor, service agent

or the manufacturer on any problems or conditions you

do not understand.

Indicates an imminently hazardous

situation that, if not avoided, will cause

severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not

avoided, could cause severe personal

injury or death.

WARNING

Indicates a hazardous situation that, if not

avoided, may cause minor or moderate

personal injury or property damage.

CAUTION

Failure to install, maintain, and/or operate

this machine according to manufacturer’s

instructions may result in conditions which

can produce serious injury, death and/or

property damage. W051R1

WARNING

Safety Information

70283501

Important Safety Instructions

Save These Instructions

1. Read all instructions before using the tumbler.

2. Refer to the GROUNDING INSTRUCTIONS in

the Installation Manual for the proper grounding

of the tumbler.

3. Do not dry articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry cleaning solvents, or other

flammable or explosive substances as they give

off vapors that could ignite or explode.

4. Do not allow children on or in the tumbler. This

appliance is not intended for use by young

children or infirm persons without supervision.

Young children should be supervised to ensure

that they do not play with the appliance.

5. Before the tumbler is removed from service or

discarded, remove the door to the drying

compartment and the door to the lint

compartment.

6. Do not reach into the tumbler if the cylinder is

revolving.

7. Do not install or store the tumbler where it will

be exposed to water and/or weather.

8. Do not tamper with the controls.

9. Do not repair or replace any part of the tumbler,

or attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

10. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

11. To reduce the risk of fire, DO NOT DRY plastics

or articles containing foam rubber or similarly

textured rubberlike materials.

12. Always clean the lint filter daily.

13. Keep area around the exhaust opening and

adjacent surrounding area free from the

accumulation of lint, dust, and dirt.

14. The interior of the tumbler and the exhaust duct

should be cleaned periodically by qualified

service personnel.

15. If not installed, operated and maintained in

accordance with the manufacturer’s instructions

or if there is damage to or mishandling of this

product’s components, use of this product could

expose you to substances in the fuel or from fuel

combustion which can cause death or serious

illness and which are known to the State of

California to cause cancer, birth defects or other

reproductive harm.

16. Tumbler will not operate with the loading door

open. DO NOT bypass the door safety switch to

permit the tumbler to operate with the door open.

The cylinder will stop rotating when the door is

opened. Do not use the tumbler if the cylinder

does not stop rotating when the door is opened or

starts rotating without pressing or turning the

START mechanism. Remove the tumbler from

use and call the service person.

17. Tumbler will not operate with lint panel open.

DO NOT bypass lint panel safety switch to

permit the tumbler to operate with the lint panel

open.

18. Do not put articles soiled with vegetable or

cooking oil in the tumbler, as these oils may not

be removed during washing. Due to the

remaining oil, the fabric may catch on fire by

itself.

Hazardous Voltage. Can cause shock, burn

or cause death. Allow machine power to

remain off for two minutes prior to working

in and around AC inverter drive. W359

WARNING

Safety Information

70283501

19. To reduce the risk of fire, DO NOT put clothes

which have traces of any flammable substances

such as machine oil, flammable chemicals,

thinner, etc. or anything containing wax or

chemicals such as in mops and cleaning cloths, or

anything dry-cleaned at home with dry-cleaning

solvent in the tumbler.

20. Use the tumbler only for its intended purpose,

drying water-washed fabrics.

21. ALWAYS disconnect the electrical power to the

tumbler before servicing. Disconnect power by

shutting off appropriate breaker or fuse.

22. Install this tumbler according to the Installation

Manual. All connections for electrical power,

grounding, and gas supply must comply with

local codes and be made by licensed personnel

when required.

23. Remove laundry immediately after tumbler

stops.

24. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of reach of children at all times

(preferably in a locked cabinet).

25. Do not tumble fiberglass curtains and draperies

unless the label says it can be done. If they are

dried, wipe out the cylinder with a damp cloth to

remove particles of fiberglass.

26. Always follow the fabric care instructions

supplied by the garment manufacturer.

27. Never operate the tumbler with any guards and/or

panels removed.

28. DO NOT operate the tumbler if it is smoking,

grinding, has missing or broken parts.

29. DO NOT bypass any safety devices.

30. Solvent vapors from dry-cleaning machines

create acids when drawn through the heater of the

drying unit. These acids are corrosive to the

tumbler as well as to the laundry load being

dried. Be sure make-up air is free of solvent

vapors.

31. Failure to install, maintain, and/or operate this

machine according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

To reduce the risk of serious injury, install

lockable door(s) to prevent public access to

rear of tumblers. W055

WARNING

70283501

Operation

Emergency Stop Button on CE

Models

All CE approved OPL tumblers are factory equipped

with an emergency stop button located on the front

panel. Refer to Figure 2.

Figure 2

To operate emergency stop button:

a. Press red emergency stop button to stop all

action.

b. To restart machine, pull red emergency stop

button out and press START pad or button.

NOTE: Activation of the emergency stop button

stops all machine control circuit functions, but

DOES NOT remove all electrical power from

machine.

Operating Instructions

Step 1: Clean Lint Screen/Compartment

Remove any accumulated lint from the lint screen and

compartment. Close panel tightly against tumbler

frame and lock panel securely, if applicable.

IMPORTANT: Clean lint screen and lint

compartment daily. Failure to clean the lint screen

daily will result in higher than normal

temperatures that may damage laundry.

Step 2: Load Laundry

Open loading door and load cylinder with laundry. DO

NOT OVERLOAD.

NOTE: Overloading causes slow drying and

wrinkling.

Close loading door. Tumbler will not operate with the

door open.

Step 3: Determine Control Type and

Temperature Setting

Refer to the various controls, pages 9 - 13, follow

instructions for the appropriate control type.

The type of fabric being dried will determine the

temperature setting. Consult the fabric care label or

fabric manufacturer to determine proper temperature

setting.

IMPORTANT: Always follow the fabric care

instructions supplied by the garment manufacturer.

Step 4: Remove Laundry

When the cycle is complete, open door and remove the

laundry.

To reduce the risk of fire:

• DO NOT DRY articles containing foam rubber or similarly textured rubberlike materials.

• DO NOT DRY plastics, anything containing wax or chemicals such as mops and cleaning

cloths, or anything dry-cleaned at home with a dry-cleaning solvent.

• DO NOT TUMBLE fiberglass curtains and draperies unless the label says it can be done. If

they are dried, wipe out the cylinder with a damp cloth to remove particles of fiberglass. W076

To reduce the risk of serious injury, allow cylinder to stop before cleaning lint screen. W412

WARNING

TMB1666N

1Emergency Stop Button

This manual suits for next models

101

Table of contents

Other Alliance Laundry Systems Dryer manuals

Alliance Laundry Systems

Alliance Laundry Systems SFG109*F Guide

Alliance Laundry Systems

Alliance Laundry Systems 503806R1 User manual

Alliance Laundry Systems

Alliance Laundry Systems DCB30CG User manual

Alliance Laundry Systems

Alliance Laundry Systems 70223701R2 User manual

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers 175 Pound Capacity Operating instructions

Alliance Laundry Systems

Alliance Laundry Systems CHD25G2-CT025L Operating instructions

Alliance Laundry Systems

Alliance Laundry Systems DRY725C User manual

Alliance Laundry Systems

Alliance Laundry Systems DRY2024N User manual

Alliance Laundry Systems

Alliance Laundry Systems UA025L User manual

Alliance Laundry Systems

Alliance Laundry Systems DRY722C-SVG Guide

Alliance Laundry Systems

Alliance Laundry Systems TR3003WN User manual

Alliance Laundry Systems

Alliance Laundry Systems SE5130 Assembly instructions

Alliance Laundry Systems

Alliance Laundry Systems 512906 User manual

Alliance Laundry Systems

Alliance Laundry Systems DR5000WG User manual

Alliance Laundry Systems

Alliance Laundry Systems T463PE1A Operating instructions

Alliance Laundry Systems

Alliance Laundry Systems LES33AW User manual

Alliance Laundry Systems

Alliance Laundry Systems 70420801 User manual

Alliance Laundry Systems

Alliance Laundry Systems D0582 User manual

Alliance Laundry Systems

Alliance Laundry Systems LWS01M series User manual

Alliance Laundry Systems

Alliance Laundry Systems 510988R3 Guide

Alliance Laundry Systems

Alliance Laundry Systems JCD32DG User manual

Alliance Laundry Systems

Alliance Laundry Systems 70444901R3 Owner's manual

Alliance Laundry Systems

Alliance Laundry Systems 602004144 Troubleshooting guide

Alliance Laundry Systems

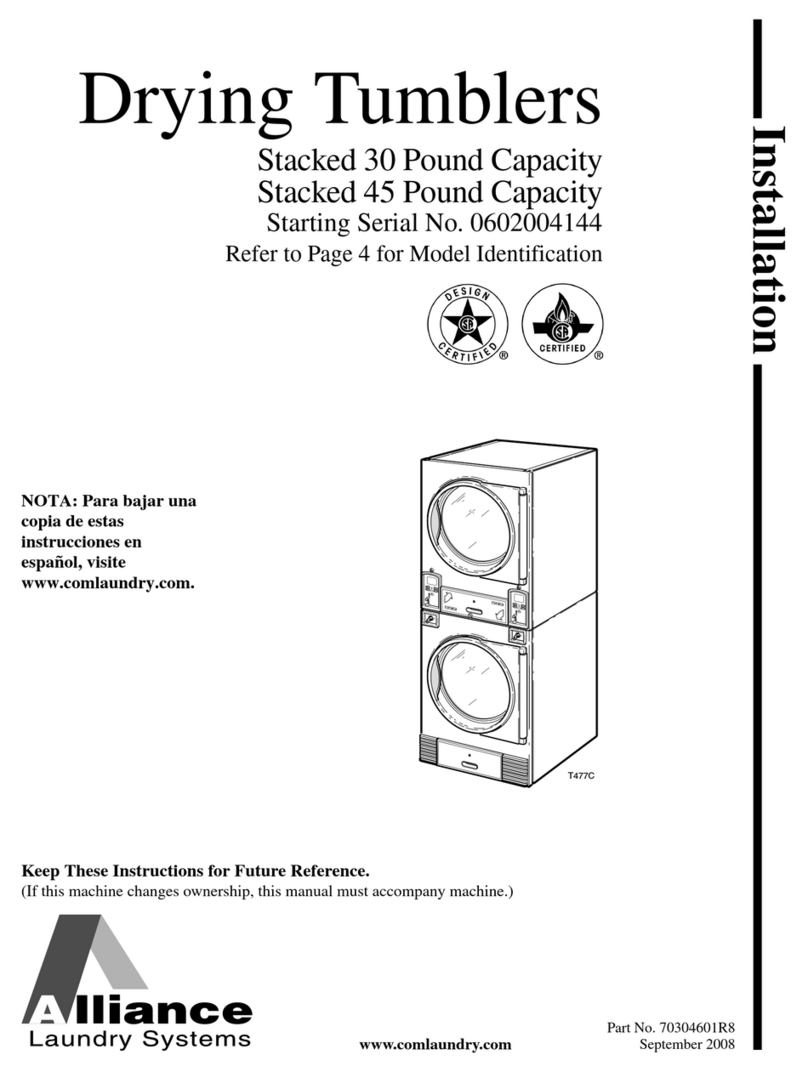

Alliance Laundry Systems T477C User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care

Bosch

Bosch WTX8HKM9SN User manual and installation instructions
