ALIGATOR R20 eXtremo User manual
Resistant mobile phone for 2 SIM cards with a
function of charging of other devices
R20 eXtremo
Quick Guide
Contents
Important instructions........................................................2
Your mobile phone............................................................
Insert SIM, memory card and battery................................7
Battery charging................................................................7
Switch On / Off..................................................................8
Making calls.......................................................................9
Keypad lock.......................................................................9
Function of Power bank.....................................................9
Volume...............................................................................9
Position of antennas........................................................10
Insert of text.....................................................................10
Telephone directory.........................................................11
Torchlight.........................................................................11
Abbreviations...................................................................12
Safety and ecology..........................................................12
Declaration of conformity No.30/0 /201 ........................13
We thank you for buying of this resistant mobile phone
ALIGATOR Before you start please read this quick guide with
important instructions.
Important instructions
Although the phone is durable, treat your phone and its
accessories with care, protect it from falling to the
ground, mechanical damage, dirt and extreme
2
temperatures. Especially protect the screen from bumps
and knocks! Never disassemble the phone or accessory!
Remember that even with a durable phone display can
crash damage!
Your phone is waterproof (not saltwater), provided that
all covers of holes are properly fitted and sealed. The
maximum length of contact with water is 30 min. and the
phone must not be submerged to depths greater than
1m. Yet it has to be completely protected against water.
In case of contact, respectively immersion in water,
remove it from the water as soon as possible and pat
dry.
When deploying all covers make sure that there is no dirt
on the seal caps , they seal properly and are fully
deployed.
When the phone or its part got into contact with water,
dry it thoroughly before operating it. Especially dry all
caps, folds, crevices and holes for the speaker,
earphone and microphone. Never open the cover on the
back of the phone or at the connector after the phone
came into contact with water without being properly dried
out before.
In case of contact with water, do NOT tamper with the
phone, press any buttons and tamper with hole caps.
3
Protect microphone, earphone and loud-speaker
openings from the dust of sharp objects
Do not switch on and do not use the mobile phone in the
prohibited areas
Do not use the mobile phone while driving the car
Do not use the mobile phone near the filling petrol station
Turn off the mobile phone always near explosives
Use always original batteries supplied by the producer
(danger of damage or explosion of the mobile phone)
SAR – mobile phone meets the prescription for maximal
emission of the electromagnetic radiation.
While making a call please keep the mobile phone at
least 2-3 cm away from the body to minimalise the
quantity of the el.magnetic radiation absorbed by your
body.
Handle your cell phone and accessories with care ,
protect it from mechanical damage and impurity
Protect the mobile phone and accessories from the
extremely high temperatures
Do not put the battery at the fire and do not expose it to
the temperature over + 0°C (danger of explosion or fire)
Protect the mobile phone and accessories from the fall to
the ground
Never put the mobile phone into parts !
Turn off the mobile phone near the sensitive medical
devices unless you are sure that the radio transmission
of the mobile phone does not influence its functions.
Mobile phone can affect the function of the electronic
cardiac pacemaker or other implanted apparatus –
4
please consult your medical doctor. In cases of
suspected violation turn off the phone immediately !
Switch off the cell phone always in the aicraft
Turn off the mobile phone always near explosives
Do not place the mobile phone or its holder in the car at
the place over the airbags
Keep it out of reach of the children and do not allow them
to play with. It contains small parts that can be
suffocated or may hurt !
Software and hardware of the mobile phone are
continuously updated. The importer reserves the right to
alter the instruction manual or mobile phone functions
without a prior notice.
5

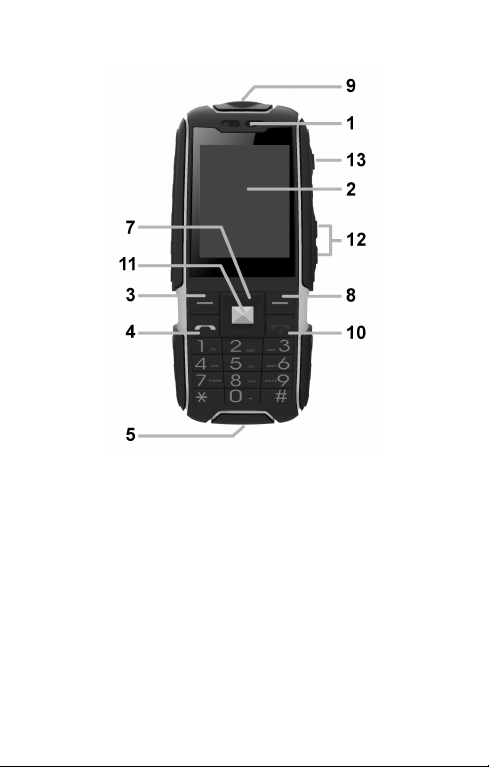

Your mobile phone
1. Earphone
2. Screen
3. Left functional button
4. Button for calling
5. Connector for
charger and USB
connector for function
of Power bank
. Numeric keypad
7. Right navigation
button
8. Right functional
button / contacts
9. Torchlight
10. Button to finish
call / Switch on
11. Button OK
12. Volume
13. Torchlight button

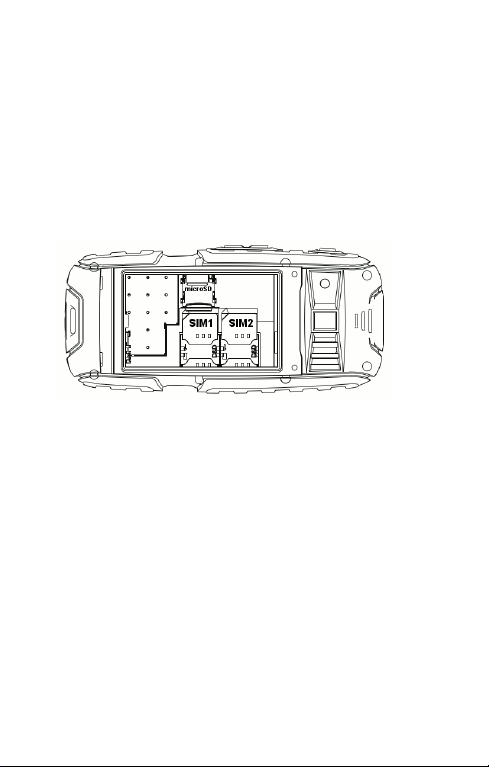

Insert SIM cards, memory card and battery
1 Remove the battery cover on the back side of the phone
2 Insert carefully one or two SIM cards at the slots under
the space for battery. Make sure that the SIM cards are
placed correctly with the contacts towards down. The
battery must be removed when placing of SIM cards.
3 Insert the MicroSD cards at the slot
4 Insert battery.ATTENTION! After inserting of the battery
the lamp lights on top of the phone. Make sure that the
light is not directed at anyone's eye while inserting a
battery! There is a danger of glare or eye damage!
5 Put the cover back and tighten the 2 supplied screws.
Screws must be tightened but make sure not to damage
the threads by an accessive force. You can use the
enclosed screwdriver (optional accessories).
Battery charging
The indicator of charging level is placed at the upper part of
the screen. In case the battery is discharged proceed as
follows :
7
1. Connect the charger with the electrical network
2. Open the cap of the connector on the side part of the cell
phone
3. Connect the charger with the mobil phone
4. When the battery is fully charged please disconnect the
charger from the mobile phone and from the electrical
network.
5. Very carefully close the cap of the connector and press it
on its place. In case you do not press it carefully and
control it the water can penetrate inside of the mobile
phone !
The mobile phone can be charged both in the switch on and
in switch off mode.
In case the battery is totally discharged (after a long time of
non-using), it can take even tens of minutes till the indicator of
charging level appears and till the mobile phone can be
switched on and started to be used.
Switch On and Switch Off
Press and hold the button (10) to switch on, to end call or to
switch off the mobile phone.
You can end the call or application event. you can return to
the main screen by a short press of this button.
In case the lock of the cell phone is activated please insert the
password. The default password is 1122
It is necessary to set the actual time and date after the first
switch on.
8
Making calls
Enter the tel.number with the use of the keypad buttons and
press the button (4). In case 2 SIM cards are inserted you will
be asked to choose which one will be used for calling.
Keypad lock
To set up the keypad lock choose in menu :
Settings > Telephone > Display > Keypad lock
You can lock the keypad by press of the left functional button
(3) followed by a press of the button *
To unlock the keypad please press first the left button (3) and
after activation of the display press the left functional button
(3) followed by a button *.
Function of Power bank
Built-in high-capacity battery can also be used to charge other
phones or devices. This phone has a standard USB socket on
the body. This socket is switched off from the production.
Select menu to Turn On / Off :
OrganizerPower BankUSB socketOn/Off
Volume
Volume level of the headphone can be adjusted during the
call by pressing of the side button on the phone.
9
For handsfree activation – during the call please press the
right functional button (8).
Warning : E posing to an e cessive noise can damage your
hearing. Listen to the music with reasonable volume level and
do not hold the device close to the ear, especially by using of
a loud-speaker !
Position of antennas
Device is provided with internal antennas for reception and
transmission. Antennas are placed at the upper and bottom
back part. Do not cover the places where the antennas are
placed.
While making a call please keep the mobile phone at least 2-3
cm away from the body to minimalise the quantity of the
el.magnetic radiation absorbed by your body.
Covered antennas may influence the intensity of transmission
and also the battery life.
Insert of text
Keypad of the cell phone enables to enter not only the digits
but also the letters/characters.
In case of inserting of the characters each button offers to
write several letters. For example the button „2“ can write the
letters A, B and C. A gap can be written with a button „0“.
You can insert the letter by repeated presses of a button,
everal times in quick succession till the correct letter on the
10
