Alcatel one touch 219C User manual
0
USER MANUAL
one touch 219C
1
Contents
Contents ..................................................................................................... 1
1. Your mobile ............................................................................................... 1
2. Getting started ........................................................................................... 4
3. Basic functions ........................................................................................... 5
4. Messages................................................................................................. 7
5. Contacts................................................................................................. 10
6. Recent Calls............................................................................................ 12
7. Profiles .................................................................................................. 13
8. Settings ................................................................................................. 13
9. Tools ..................................................................................................... 15
10. FM Radio .............................................................................................. 16
11. Entertainment ......................................................................................... 17
12. Alarm................................................................................................... 17
FAQ ......................................................................................................... 17
Safety and use ............................................................................................ 19
Friendly reminder:
This user manual applies to the 219C mobile phone. If there are minor differences in the description or
illustrations between the manual and the actual product，the actual product shall take precedence.
Customers will not be notified separately of any upgraded model of this mobile phone. Please contact our
Customer service.
We reserve the right to revise anytime the contents of this manual without prior notice.
1
1. Your mobile
1.1 Basic specifications
Item
Specifications
Mobile Phone
Size: 108mm[L]×46mm[W]×12.5mm[Thickness]
Weight: 85g (Battery included)
Screen resolution
128*160 pixels
Contacts
500 entries
Recent calls
60 entries
Messages
350 entries
Operating temperature
-20℃~50℃
Battery
Type: Lithium
Capacity: 850mAh
Talk time: 180 minutes(approx.)
Standby time: 120 hours (approx.)
Charging time: 3 hours (approx.)
Explanation:
Standby time refers to the time when the phone although in operating mode is not used for making calls
or remains idle. Standby time and call time are both related to the conditions of use, the network situation
and the environment.
Please make appropriate use of the product to reduce the effects of EMF.
1.2 Key pad indications
2
Number
Item
Function
0
Navigation Keys
Left: Alarm
Right: Profiles
Up: Messages
Down: Create message
OK: Menu/Confirm an option
1
Left Soft Key
Confirm
2
Right Soft Key
Contacts List
In Menu: Back/Delete
3
Send Key
Recent Call
Answer/Send a call
4
End Key
Power on/Power off
End a call
Back to the idle screen
5
1 Key
Long press 1 key in idle can make voice mail
6
5 Key
Long press 5 key in idle can make speed dial after
set 5 key as speed dial key
7
* Key
Short press Input symbol * ,long press input P in
idle
8
# Key
Long press # exchange profiles between Normal
and Silent in idle
1.3 Main Menu
From the main menu, use the navigation key to select the item you want. After selection,
press the left soft key to confirm.
3
FM
Contacts
Phone
Recent Calls
Contacts List
Call
Missed Calls
Search
Auto Power On
Dialed Calls
Add New
Auto Power Off
Call Time
Groups
Security
Last Call
Speed Dial
Profiles
Delete All
Contacts
Management
Normal
Entertainment
Messages
Silent
Tetris
Create
Meeting
Brick Attack
Inbox
Outdoor
Black Jack
Outbox
Tools
Alarm
Draft
UIM Toolkit
Contacts
Reserved Messages
Stopwatch
Contacts List
Templates
Schedule
Search
Settings
Calculator
Add New
Display
World Time
1.4 Screen Icons
Battery power indicator. More bars indicate a higher power level.
The more bars, the stronger signal
No service
You have received one or more text messages
Indicate the message box is full
You have received one or more voicemail messages
Indicate the phone is in meeting state
Indicate the phone is in silent state
Indicate the phone is in normal state
4
Indicate the phone is in outdoors state
Your phone is connected with a earphone
Indicate the phone is making a call
You have missed one or more calls
Alarm has been set
Indicate the phone have set Voice privacy
You are using FM radio
Indicate the phone is roaming
2. Getting started
2.1 Removing and installing the back cover
2.2 Inserting and removing the UIM card

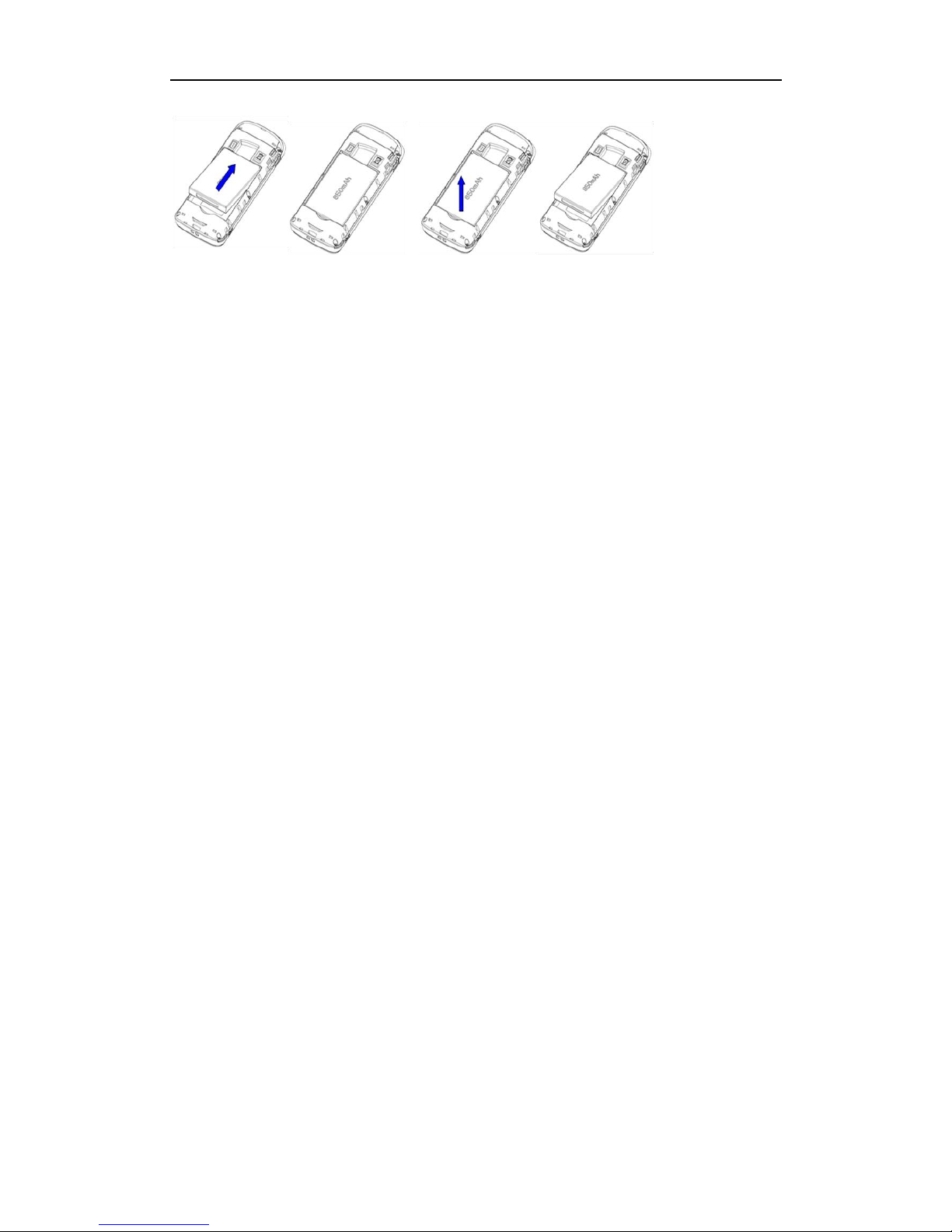

2.3 Installing and removing the battery
5
3. Basic functions
3.1 Power on/off
When power is sufficient, press and holds the end key to power on. If you have activated a
password, you will be prompted to enter it. Normally the phone is ready for use as soon as
you enter the password; please refer to Menu/Settings/Security settings. When the phone
is power on, press and holds the key end to turn it off.
3.2 Making a call
3.2.1 Enter the number directly
In the standby mode, use the number key to enter a phone number, and then press the
call key to make the call. You can long press 0 key to input “+” in idle screen, for extension
number, long press “*” key to input “P”, and long press “#” key to input “T”.
3.2.2 Dial a number in the Call Memory
In the standby mode, press the send key to access recent calls list, and press send key
again to dial the selected number.
3.2.3 Speed dial
In the standby mode, make a long key press on keys 2 to 9 to speed dial a number. You
also can press the number keys and then press the Send key to speed dials a number.
For details regarding speed dial setting. Please refer to “Contacts/Speed dial”. Key 1 is a
default setting for voice mail number.
3.2.4 Emergency call
6
Enter emergency number, and then press the send key. In any situation, with or without
phone lock activated, your phone can still make an emergency call.
3.3 Functions available during a call
During a call, access the Menu by pressing the left soft key.
3.4 Input mode
You may enter letters, numbers and symbols in the Contact, SMS, Note and other menu
functions.
3.4.1 Text input operating sequence
Select the Text input method.
Enter the text.
You can change the input mode while entering the text.
3.4.2 Changing the text input method
In the text input mode, press “#” key to change the input method. Press “*” key to turn the
upper case into the lower case characters when you need.
3.4.3 Text input methods
The phone includes three text input methods: Abc, En, 123.
3.4.4 Introduction to the input method
Inserting punctuations and special symbols
When you edit a text using the Abc and English input mode, press key “1” to select the
punctuation mark or a special symbol or long press “*” to access the symbol list. In the
number input mode, press “*” to insert a “*”, and press and hold the “*” key to access the
symbol list.
.
7
4. Messages
Press down key directly to access the message editing screen. Press upper key or press
the left soft key to select Messages to access the Messages menu.
4.1 Create new message
Select Menu/Messages/Create to access the message editing screen. Please refer to
“Input mode” section for instructions on message editing.
In the message editing screen, press the left soft key for the following options: Send,
Insert contacts, Insert Templates, Insert emotion Symbol.
Send: access recipients, you can input up to 100 recipients.
Insert Contacts: Add contact details to a message.
Insert Templates: Add commonly-used terms to a message.
Insert Emotion Symbol: Add an expression to a message.
Settings：Set the send mode, priority，delivery report and Message Validity..
4.2 Inbox
Select Menu/Messages/Inbox to access the list of messages in this box. Press the left soft
key for the following options: View, Reply, Forward, Delete, Copy to UIM Card/Copy to
Phone, Move to UIM Card/Move to Phone.
View: Review the contents of the current messages. From the contents, press the left soft
key for the following options: Reply, Forward, Delete, Extract details, Copy to UIM Card
/Copy to Phone, Move to UIM Card/Move to Phone.
Reply: Send a message to the sender of the current message.
Forward: Modify the contents of a message and send it.
Delete: Delete a message.
Copy to UIM Card/Copy to Phone: Copy a phone message to UIM card or copy a UIM
card message to phone.
Move to UIM Card/Move to Phone: Move a phone message to UIM card or move a UIM
8
card message to phone.
4.3 Outbox
Select Menu/ Messages/Outbox to access the list of messages in this box. Press the left
soft key for the following options: View, Resend, Forward and Delete. About the
operations, please refer to the related options in the “Inbox”.
4.4 Drafts
Select Menu/ Messages/Drafts to access the list of messages in the drafts box. Press the
left soft key for the following options: View, Forward and Delete. About the operations,
please refer to the related options in the “Inbox”.
4.5 Reserved Message
Select Menu/ Messages/Reserved Message to access reserved message submenu with
below options: Create, Reserved Messages, Failed Messages.
Create: Create a new reserved message. Different from common message, when you
create a reserved message, you can only input one recipient and you have to set the
sending date and time for it.
Reserved Messages: When you create a new reserved message, it will be saved here.
Failed Messages: if reserved messages can’t be sent successfully, they will be saved
here.
4.6 Templates
Select Menu/ Messages/Templates to access the list of messages template. Press the
up/down key to select the message you want.
Press the left soft key for the following options: Send, Edit, Add and Delete (Edit and
Delete options will be visible for new templates).
It has 10 message templates in factory reset mode, and you may edit it optionally or add
more templates accordingly.
