Alarm Lock LEKTROLOK 103 User manual
1
LEKTROLOK--MODELS 103 & 104RA
DEADBOLT ELECTRIC LOCKS
INSTALLATION INSTRUCTIONS
345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
© ALARM LOCK 2003 WI1192 4/03
The LEKTROLOK Models 103 and 104RA Deadbolt Electric
Locks are compact units designed to fit narrow stile doors. Both
models come complete with "keepers" (deadbolt holes) which
make it simple to install on all types of doors or windows includ-
ing single, pairs, double acting or overhead, either in-swinging or
out-swinging. When the lock is aligned with the keeper, the
deadbolt projects into the keeper thus locking the door. The
deadbolt is retracted (and the door unlocked) by means of a re-
mote switch, a key switch, time programmer or other electrical
contact which interrupts the power. Both models are ideally
suited to programmed locking and unlocking of laundromats,
lobby doors, or other unattended areas. Use of a lighted push
button switch at the door (Alarm Lock Model 191) assures that
people inside the building can exit after Iock-up time; the door
will relock automatically after exit. May be wired with smoke
detectors and/or fire alarm systems for automatic unlocking in a
fire emergency.
MODELS AVAILABLE
Model 103 is a standard "fail safe" unit which projects the dead-
bolt only while power is "on". When the power is off, the dead-
bolt retracts. Model 104RA ("Reverse Action") unlike the stan-
dard unit is "fail secure" and will project the deadbolt only when
the power is "off". When the power is "on", the deadbolt re-
tracts.

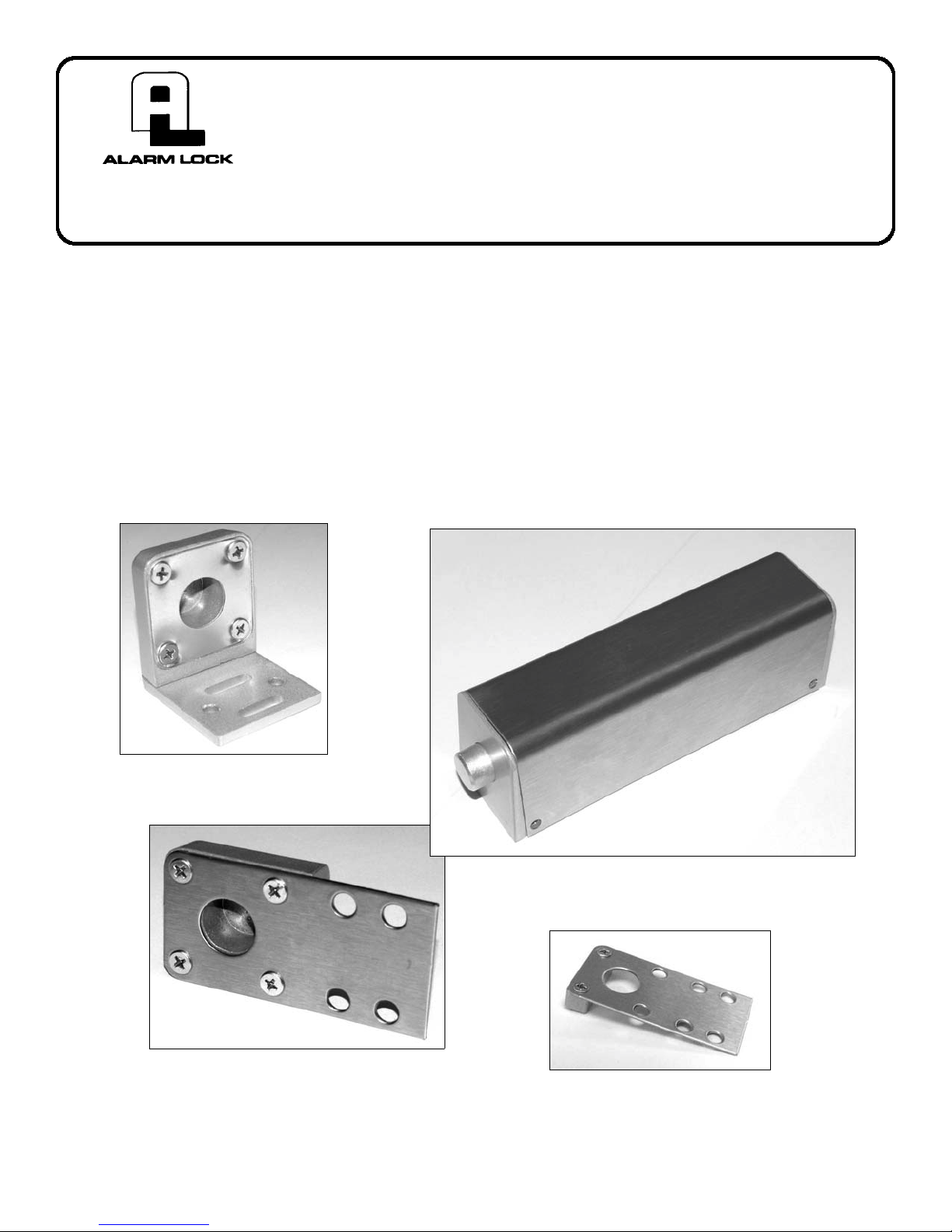

LEKTROLOK--MODEL 103/104RA
ELECTRIC DEADBOLT
FLUSH KEEPER
ANGLED KEEPER
MORTISE KEEPER. INSTALLED FLUSH
(INSIDE THE DOOR FRAME). FOR USE
WITH WOOD DOOR FRAMES ONLY.
2
Note: The deadbolt will not project unless the magnet is opposite the reed switch. The template supplied
serves the majority of installations. If your installation is different, always maintain a 1/8” gap between the face of the
lock and the keeper. The lock should be mounted on the door frame (rather than the door) for ease of wiring. If in-
stalling the lock with the plunger facing down, see special installation instructions on the next page.
Before mounting the lock, provide for the electric wires to the lock. After the lock and keeper are installed, place the
magnet onto the keeper slot which faces the reed switch in the lock as shown in figure 1. After the magnet is in
place, affix the aluminum plate into the keeper recess.
INSTALLATION INSTRUCTIONS
SPECIFICATIONS
DIMENSIONS: 1¾" W x 6¾" L (including keeper). Bolt diameter is 5/8" and projects 5/8".
FINISH: Lock and keeper--painted aluminum.
WEIGHT: 3 lbs., including keepers.
POWER REQUIREMENTS: 600mA@24VAC or VDC (103). 12V version available a extra cost.
LOCKING BOLT: Actuated by a continuous-duty solenoid.
LOCK
24-VOLT AC/DC
TRANSFORMER
MODEL 221
NORMALLY OPEN SWITCH
(ES)
BLACK
RED
LOCK
24-VOLT AC/DC
TRANSFORMER
MODEL 221
NORMALLY CLOSED
SWITCH(ES)
BLACK
BLACK
MODEL 103 CONNECTIONS MODEL 104RA CONNECTIONS
Follow the above schematics for one or more switches as required. Note: Model 103 requires switches to be installed
in series. It is normally energized and normally runs hot to the touch. Model 104RA Reverse Action requires switches to
be installed in parallel.
FIGURE 1
KEEPER HOLE
REED SWITCH
The magnet inside the keeper hole assembly must be mounted op-
posite the reed switch or the deadbolt will not work properly.
MAGNET
DEADBOLT
MAGNET and REED
SWITCH must be
mounted opposite
each other
3
WHEN INSTALLING THE LOCK WITH PLUNGER FACING DOWN
When installing the lock in a vertical position with the plunger facing down, we suggest replacing the colored spring (7
coils) with a stronger one (not colored, 5 coils) included in the box. To replace the spring, refer to the diagram below and
replace it as follows:
1. Remove the lock cover.
2. Remove the screws holding the solenoid to the base.
3. Slide the solenoid out of the base.
4. Remove the colored spring (7 coils) and replace it with the spring (not colored, 5 coils) included in the box.
5. Slide the solenoid back into the base.
6. Fasten and tighten the screws holding the solenoid to the base.
7. Fasten the lock cover.
Replacing the spring on Model 103/104 Lock
4

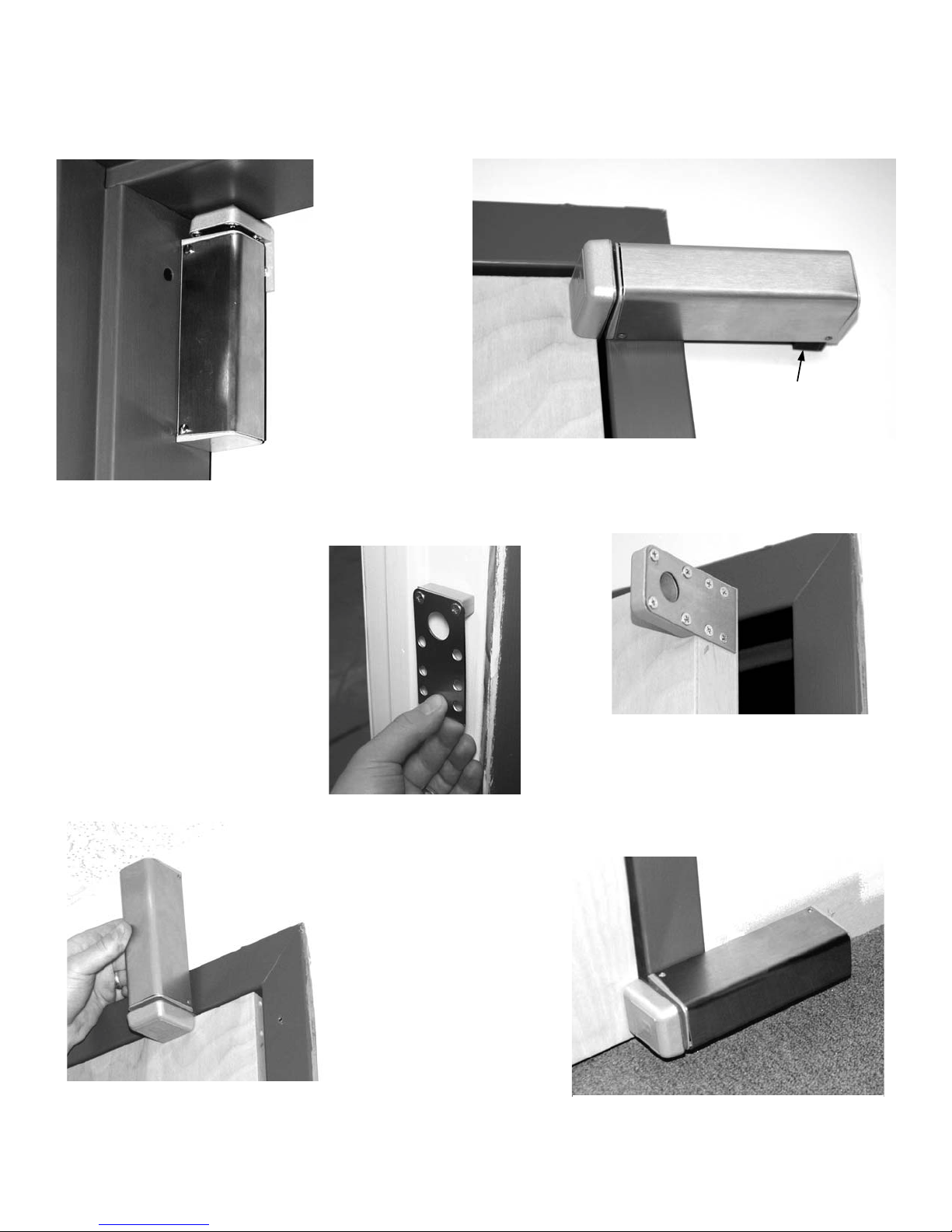

APPLICATION EXAMPLES
OUTSWINGING VERTICAL INSTALLATION.
DEADBOLT ON FRAME,
ANGLED KEEPER ON DOOR
INSWINGING HORIZONTAL
INSTALLATION NEAR FLOOR
SEE ABOVE IMAGE
INSTALL KEEPER BEFORE DEADBOLT.
INSWINGING VERTICAL INSTALLATION.
DEADBOLT ON FRAME
FLUSH KEEPER ATTACHED TO TOP
EDGE OF DOOR
Mount lock on door frame (rather than the door) for ease of wiring. Examples are shown below:
INSWINGING HORIZONTAL INSTALLATION.
DEADBOLT ON FRAME (WITH SPACER) AND A FLUSH KEEPER
SCREWED INTO DOOR (SEE BELOW IMAGE).
SPACER
MORTISE KEEPER. MAGNET IS MORTISED
(EMBEDDED) INSIDE THE DOOR FRAME AND
KEEPER IS INSTALLED FLUSH. FOR USE WITH
WOOD DOOR FRAMES ONLY. (METAL FRAMES
WILL DISSIPATE MAGNET STRENGTH).
