AirLive N.TOP User manual
N.TOP
Wireless Acess Point
Quick Installation Guide
Support
You can download the
complete guides and
supporting programs from
<http://www.airlive.com/pro
duct/n.top/download>, or
scan the QR code here.
Please consult with the FAQs
<http://www.airlive.com/pro
duct/n.top/faq> before writing
to OvisLink Tech Support
Team for further assistance
For any other question, please read the user
manual in the CD or mail to [email protected]
for technical support.
N.TOP Package Contents
Please check the package contents and contact
your distributor if any part is missing.
N.TOP
Quick Installation Guide User Manual CD
5V DC adapter
VER.20130601
802.11n Ceiling Mount
Long Range PoE AP
N.TOP
T
h
e
T
o
t
a
l
N
e
t
w
o
r
k
i
n
g
S
o
l
u
t
i
o
n
s
Declaration of Conformity
We, Manufacturer/Importer
Declare that the product
802.11n Ceiling Mount Long Range PoE AP
AirLive N.TOP
is in conformity with
In accordance with 2004/108/EC Directive and 1999/5 EC-R & TTE Directive
Clause Description
OvisLink Corp.
5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist.,
New Taipei City 231, Taiwan
■
■
■
■
■CE marking
EN 300 328 V1.7.1:2006
EN 301 489-1 V1.8.1:2008
EN 301 489-17 V2.1.1:2009
EN 50385:2002
Electromagnetic compatibility and Radio spectrum matters (ER
M
transmission equipment operating in the 2.4GHz ISM band And
spectrum modulation techniques; Part 1: technical Characteristi
c
conditions Part2：Harmonized EN covering Essential requirem
article 3.2 of the R&TTE Directive
Electromagnetic compatibility and Radio spectrum Matters (ER
M
Electromagnetic compatibility(EMC) standard for radio equipme
Part 17：Specific conditions for Wideband data and HIPERLA
N
■EN 60950-1:2006+ A11:2009 Safety for information technology equipment including electrical
equipment
Product standard to demonstrate the Compliance of radio base
Fixed terminal stations for wireless Telecommunication System
restrictions or the reference levels related to human exposure t
o
Frequency electromagnetic fields ( 110 MHz – 40 GHz ) - Gene

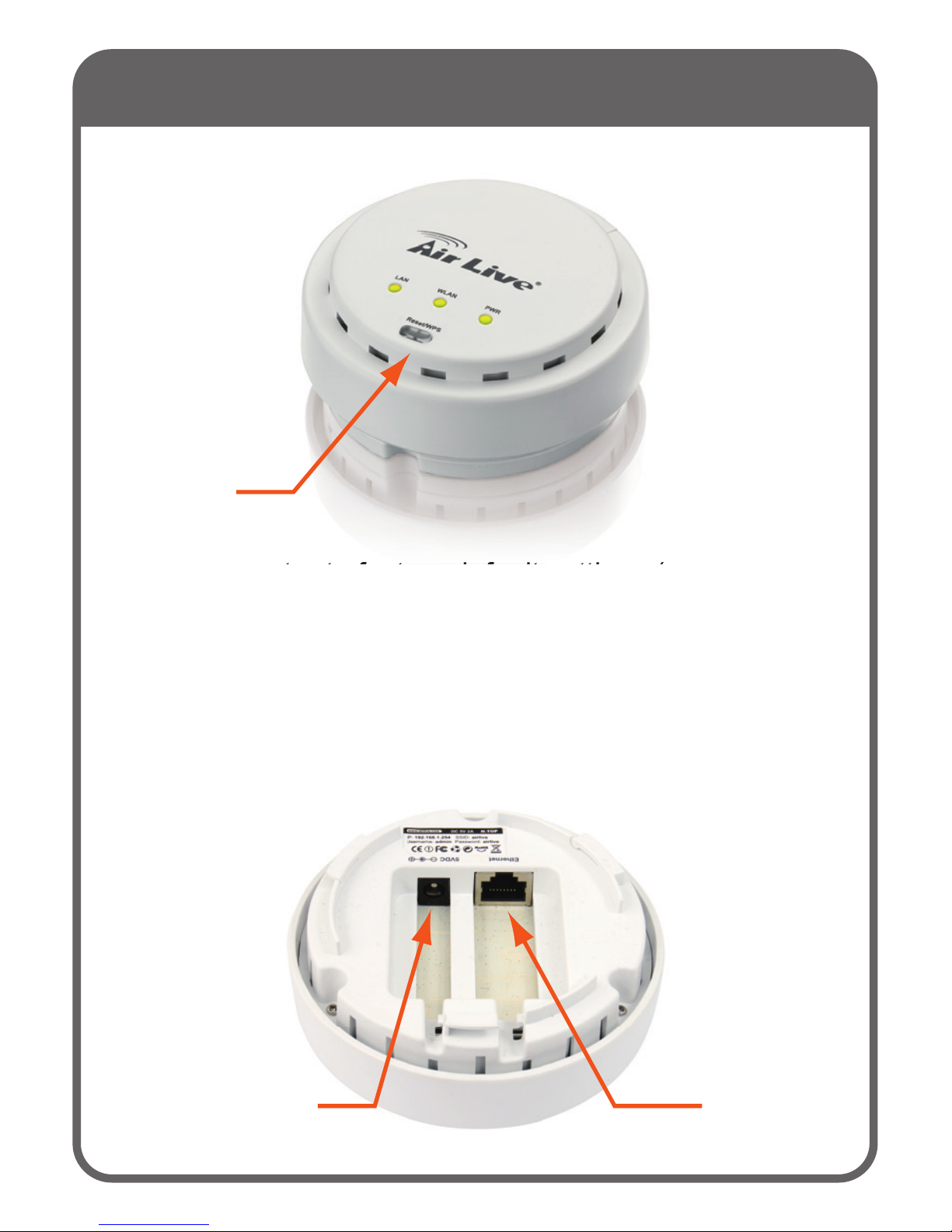

Reset the router to factory default settings (clear all
settings) or start WPS function.
Reset: Press this button and hold for 10 seconds to
restore all settings to factory defaults.
WPS: Press this button for less than 5 seconds to start
WPS function.
I/O Interface
ttf
t
t
d
f
f
lt tti
(
Power Adapter
Connector
Reset / WPS
Button
LAN Port,
PoE Port
N.TOP Installation
1. Screw the bottom case into the wall.
01
Ceiling
Ceiling
2. There are two ways to power up N.TOP
(1) Connect N.TOP to 802.3at/af PoE switch via
RJ45 Cable
(2) Connect the 5V/1A adapter to power up
N.TOP
N.TOP Installation
02
Power
Adapter
PoE Siwtch
LAN
Link / Act
System
Speed
PoE
Mode
123456789101112 131415161718192021 22 23 24 21 22 23 24
20-Port Gigabit + 4-Port UTP/SFP Combo Active PoE Web Smart Switch
POE-GSH2004L-370
3. Put the case screws back.
N.TOP Installation
03
a. Connect N.TOP to the LAN port of the switch.
b. Connect switch to the LAN port of the router.
c. Connect the PC/NB to the LAN port of the
switch.
Connect N.TOP to Network
04
N.TOP
Switch
PC/NB Router
7531
8642
8-port POE + 2 Combo Gigabit 802.3at
Device Guard Web Smart Switch
POE-FSH1008AT
7531
8642
G2
LNK
LNK
PoE
LNK/ACT
PoE
LNK/ACTPWRRST
G1 G1 G2
The default IP address of N.TOP is
192.168.1.254. Please set your PC/NB to the
same subnet
Enter the N.TOP IP address into browser to visit
the N.TOP UI
The default username/password is admin/airlive
Set up the Network Environment
05
Management N.TOP
via AirLive Central Wireless
Central Wireless
