Air King AIDB4Y User manual

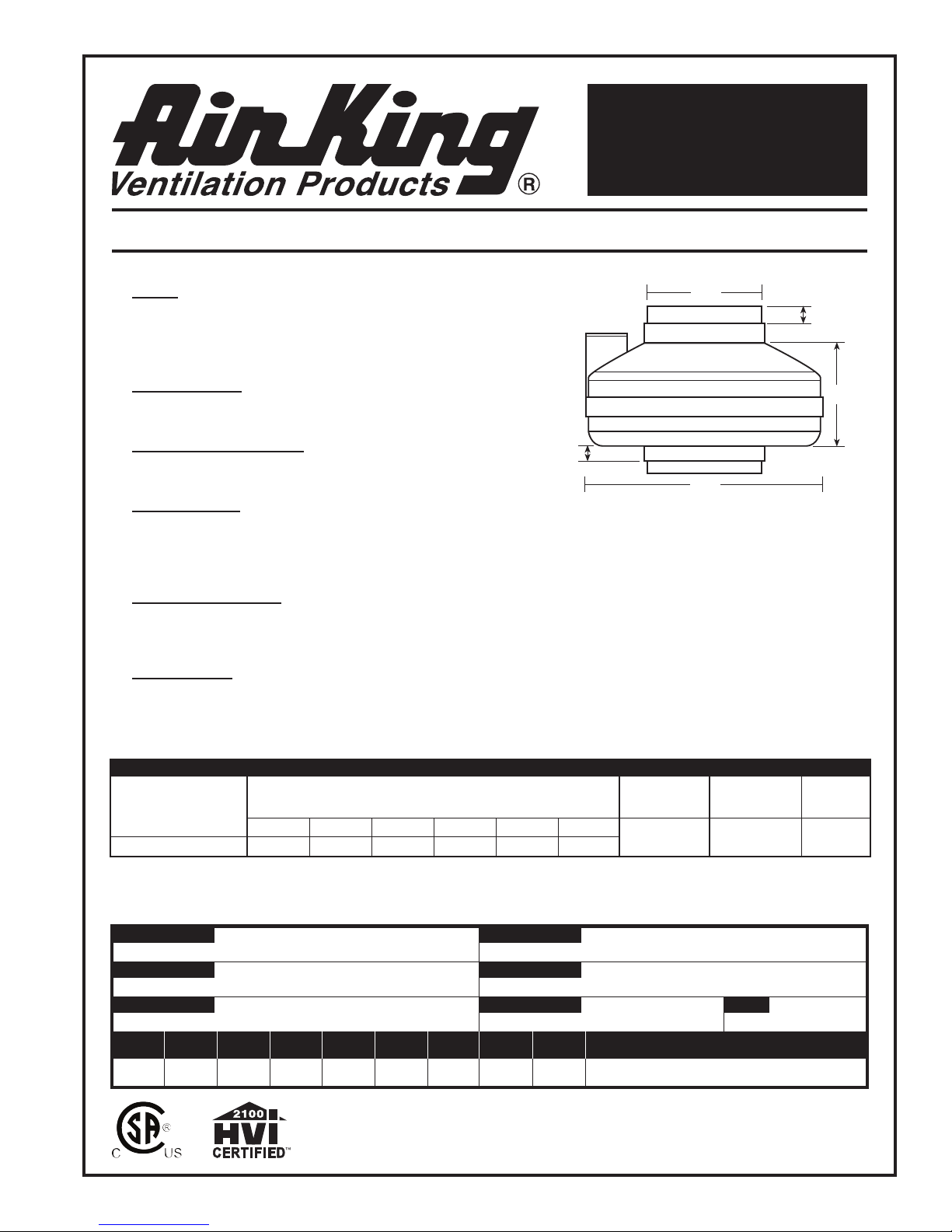

SPECIFICATIONS

DRYER BOOSTER FAN

AIDB4Y

DRYER BOOSTER FAN

• Motor

Enclosed 2 pole, life time lubrication, ball bearing motor.

Suitable for continuous operation. Maximum air temperature

140°F. 115 Volt, 60 Hz, .72 Amps

• Blower Wheel

Backward inclined, balanced polymeric single inlet blower wheel.

• Electrical Connections

1/2" electrical knockouts provided with internal terminal block.

• Unit Mounting

Suitable for most dryer boosting applications and can generally

be used for a maximum of 60 linear feet of ducting with a

maximum of six elbows using 4" rigid ducting.

• Automated Controls

Fully automatic fan control operates the booster fan whenever

the dryer is operating.

• Shipping Info

UPC Code: 0-83162-24021-7

Canada: 110 Glidden Road

Brampton, Ontario L6T 2J3

Tel: (905) 456-2033

Fax: (905) 456-1015

U.S.: 820 Lincoln Drive

West Chester, Pennsylvania 19380-4466

Tel: (877)-304-3785

Fax: (610) 696-8048

Updated 9-07Specifications subject to change without notice.

PROJECT

LOCATION

CONTRACTOR

ARCHITECT

ENGINEER

SUBMITTED BY DATE

FAN MODEL CFM IN RPM WATTS AMPS SONES QTY OPTIONAL EQUIPMENT

NUMBER NUMBER W.G. & REMARKS

PERFORMANCE

HVI CFM Fan Speed Power

Static Pressure (inches of w.g.) @ .2 SP RPM Watts

0 0.2 0.4 0.6 0.8 1.0

Air Flow - CFM

167 150 133 113 88 63 150 2761 78

PLEASE NOTE:

The Home Ventilation Institute (HVI) does not currently have a sound test standard for remote mounted fans.

As a result sound levels (sones) are not listed. In most cases, a remote fan will be quieter than one mounted within the living area.

7/8"

9 1/2"

7/8"

5 1/2"

3 7/8"
