air choice AP-528 User manual
2
IMPORTANT SAFEGUARDS:
Please read the entire instruction manual before using the
product and then save it for future reference.
1. Recommend to use individual electric supply socket and
not to use an extension socket, in order to avoid the danger
of overheating in the outlet. Using inappropriate voltage
and power outlet will damage and harm others.
2. Do not immerse the appliance or the electrical cord or plug
in liquids.
3. Place the product on a flat, firm and safe place. Do not
put it on the table edge or the tilted area, in order to avoid
dropping or damaging the product accidentally.
4. Do not operate the product without filters or with
damaged filters.
5. Not to place it where the product is exposed to
condensation, due to big temperature changes.Operate it
under room temperature between 00-350.
6. Always switch off the product before attempting to open
the cover and take the filter.
7. Do not block the air inlet and outlet to avoid damage due
to overheating. Place away from soft objects such as curtains.
Please make sure there’s a 30cm distance between the object
and the product which including a top side, front and back
3
side
as well.
8. To avoid shortening life span or damaging your product,do
not use the machine with parts or accessories that are not
original. Otherwise, the warranty of the product will be
invalid.
9. Never operate the product without supervision. Children
should be supervised by a responsible adult to ensure that
they do not play with the product.
10. Do not put your fingers or other objects into the air outlet,
to avoid injury and damage the product.
11. Periodically check the electric cable of the product. If the
electric cable is damaged, it must be replaced by after-sales
service in order to avoid danger.
12. Do not operate the product in the area where gasoline,
painting or flammable liquids are around. Keep the product
away from heat or hot units, as it may cause an explosion.
13. This product is not intended to use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
14. Before cleaning, repairing or moving the product,
4
you must unplug it. Do not use volatile liquids or hard cloth to
clean the product, as to prevent the product from scratching.
15. Do not use this appliance when you have used indoor
smoke-type insect repellents or in places with oily residues,
burning incense or chemical fumes.
16. Always unplug the appliance after use. When unplugging
the power cord, hold the plug top, not the power cord.
Specifications
Rated voltage:120V 60Hz
Power: 42W
Recommend coverage: 35-45 ㎡
Noise level: 34~50dB
Product size: 32.7 x 22 x 55.8cm
Weight: 5.0 KGS
5

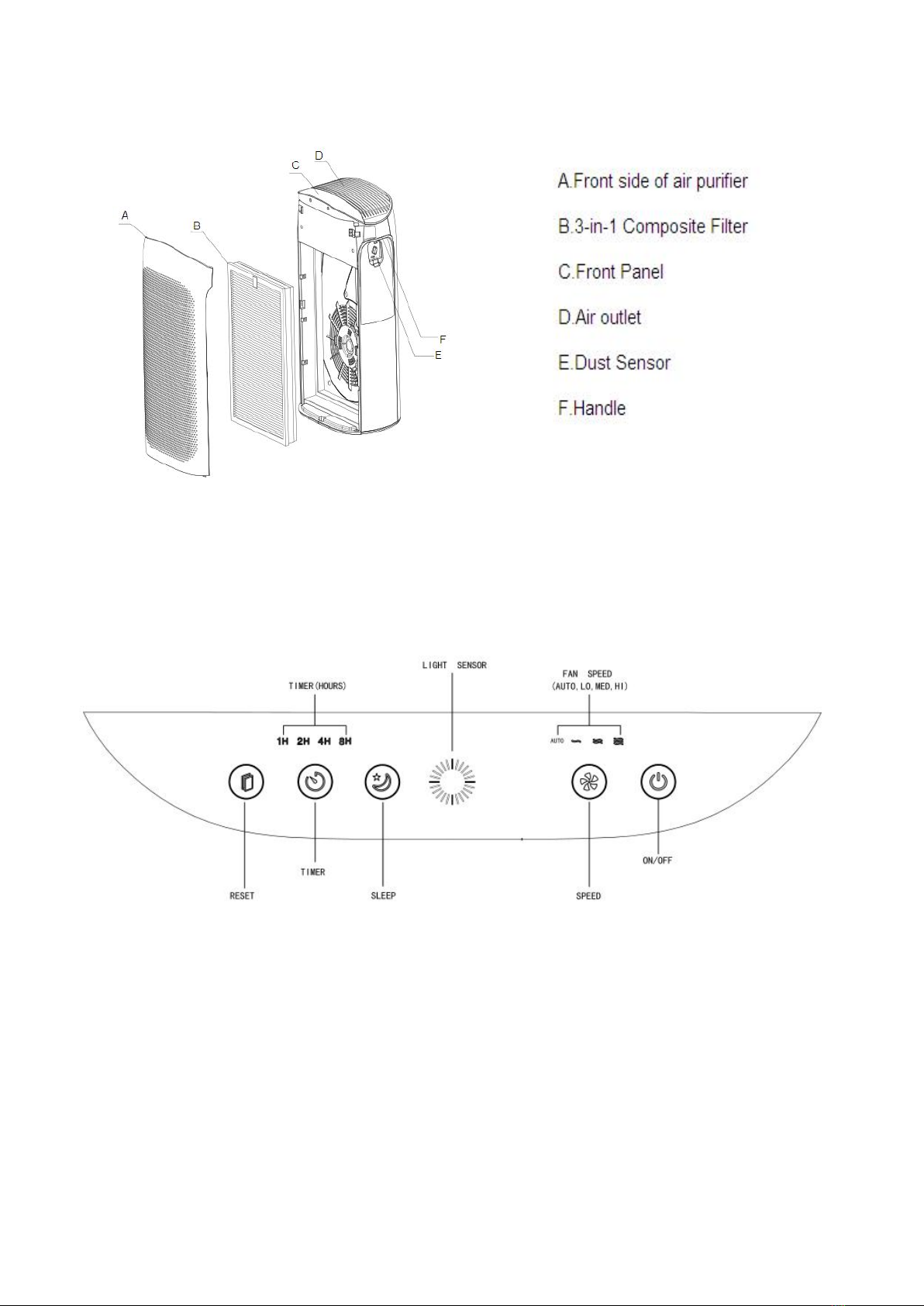

Parts Description
Control panel and functions
1. On/Off Button
When plug in the socket, press the Power On/Off on the top
of the purifier to turn on. The purifier will begin on default of
AUTO fan speed.
6
Press the “On/Off” button once to turn it off. All lights are off
and the product in standby mode again.
Turning On the Machine:
The first time to plug in the socket, the air quality indicator
light flashes red,green and blue for 1 second then stop.
After completion, air quality indicator light stops flashing. The
product is operating at auto mode with the corresponding
color of the light is on to represent the quality of the air.
Appropriate fan speed is adjusted according to the quality of
the air.
2. Fan Speed Button
Press ----------- “Fan Speed” button to select the level of fan
speed (auto mode/low/mid/high).
Please press – or – to adjust the fan speed. There is light
indication for corresponding fan speed.
Auto mode:
If select auto mode, the product automatically detect the air
quality. Adjust appropriate fan speed according to the quality
of air in the room.
7
Air quality
indicator light
Blue
Green
Red
Fan Speed
Low
Mid
High
3.Sleeping Mode
Press -----“Sleep” button to turn on the night mode and
corresponding light is on. Press once again to turn it off.
4.Timer
Press -----“Timer” button to set the time (1 /2 /4/ 8 hours).
5.Air Quality Indicator Light
Air quality indicator light has 3 colors to represent the quality
of the air.
Air quality
indicator light
Blue
Green
Red
Air Quality
Good
Neither good nor bad
Bad
Fan Speed
Low
Mid
High
6.Reset Button
When the light for reset button is flashing, it reminds you that
replace the filter.
8
After replacing the filter,hold the “RESET” button for 3
seconds to turn off the light.After that, the calculation of
operation time restarts again.
Assume the product is operated for 12 hrs a day, the light for
reset button is on after 6 months.
Installation of Filters
Please be reminded to take away the plastic bag before
putting the filters in the air purifier.

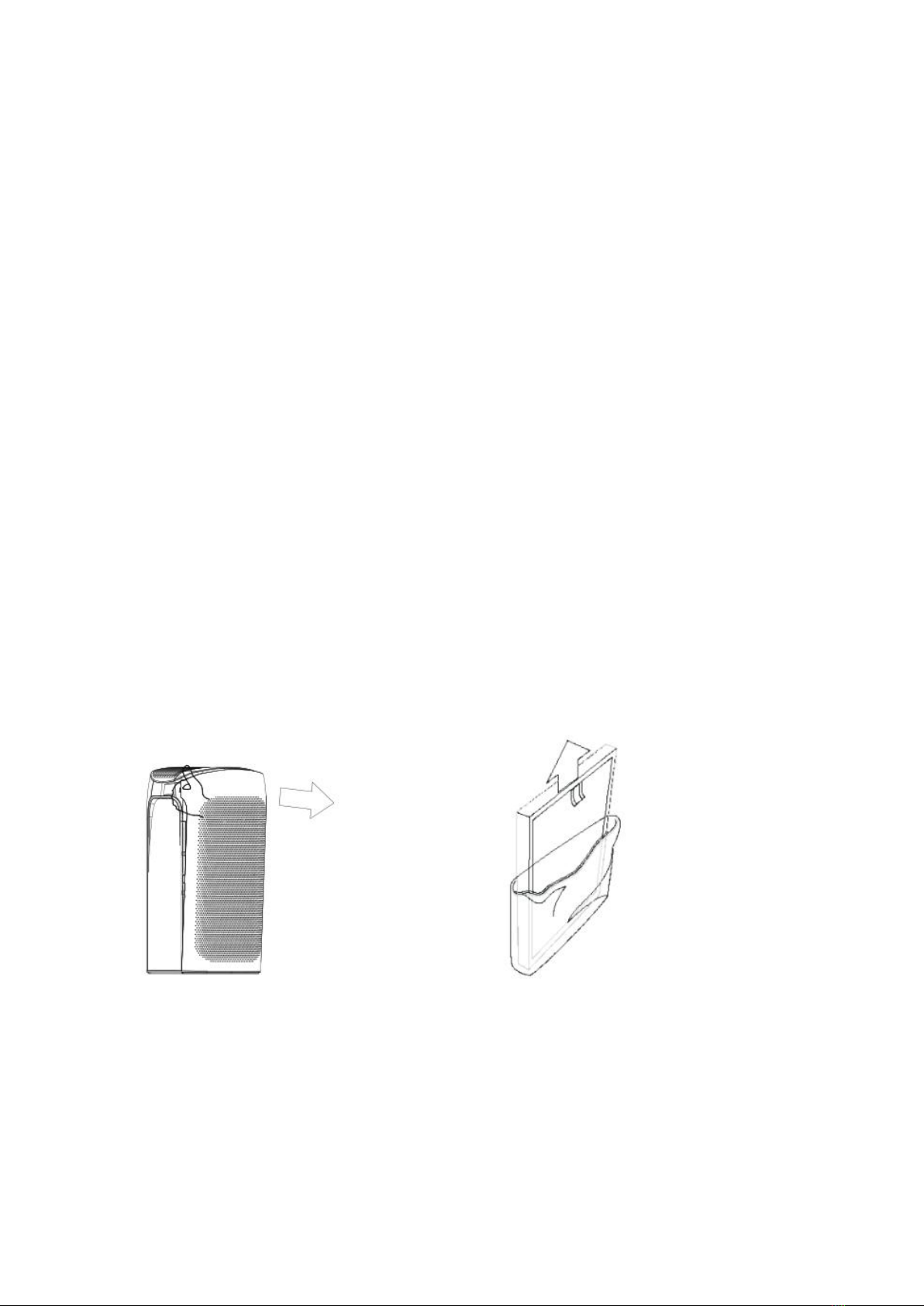

1.Take away the front panel board by holding your hands on
the top two sides and pull it out. (Fig 1)
2.Take the 3-in-1composite filter out of the plastic bag. (Fig 2)
Fig 1 Fig 2
9

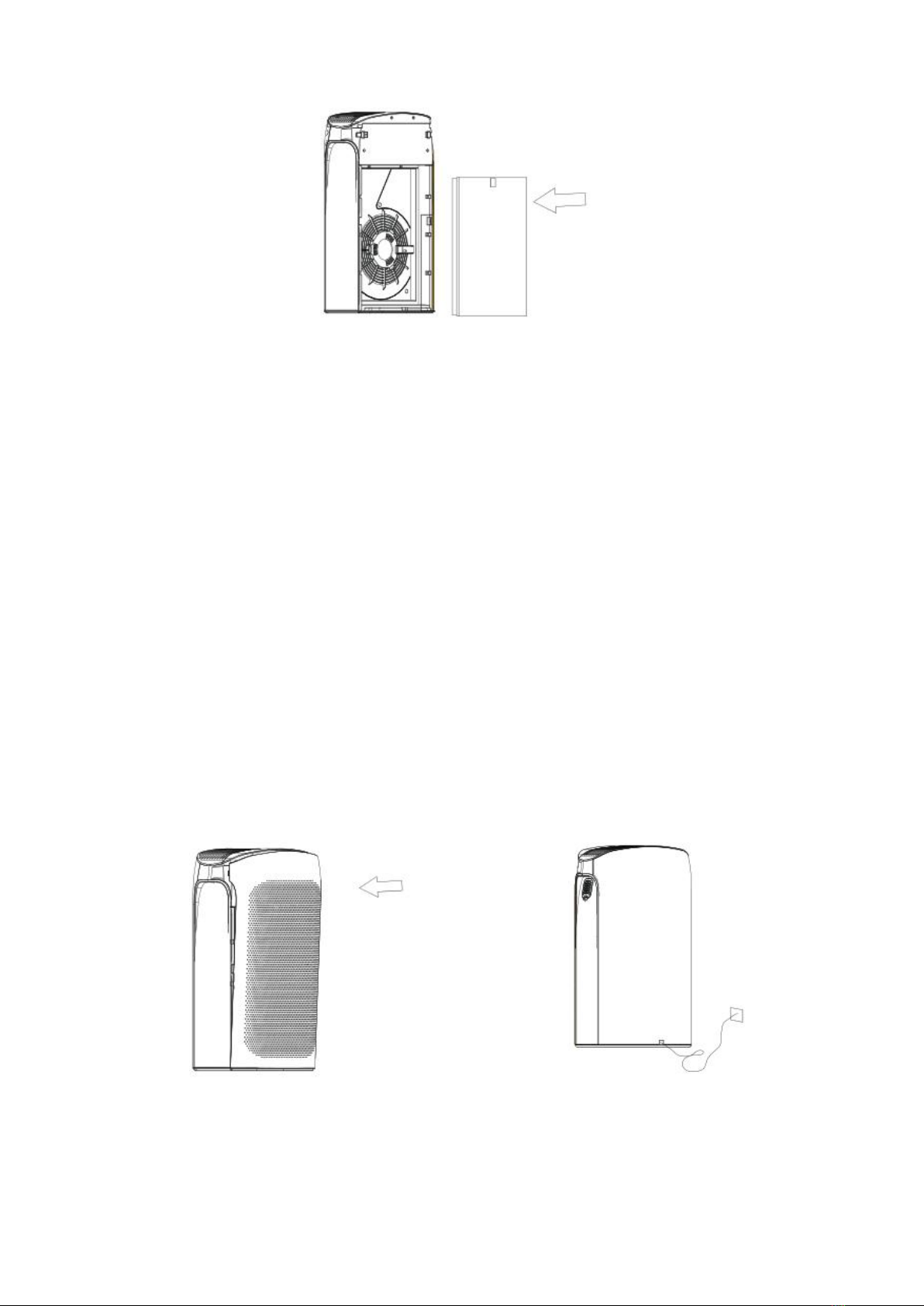

Fig 3
3.Then putting the 3-in-1 composite filter into the machine.
Please note the wrong installation of filters will be result in
abnormal operation. (Fig 3)
4.Next, put back the front panel board to the machine.
Hold your hands on the top two sides and push it. Make
sure the feet of the front panel board is inserted into the
hole of the machine. (Fig 4)
5.Last,plug the purifier power cord into the outlet.(Fig 5)
Fig 4 Fig 5
10
CAUTION
Always be sure the purifier is switched OFF and unplugged
before cleaning or attempting to store the item.
DO NOT immerse purifier in water or allow water to drip
into the interior of the purifier,as this could create an
electric shock hazard.
Cleaning & Care
-Please unplug the product before clean or move it.
-Do not immerse the cord and the whole in water or
liquid.
-Do not use detergent, metal cleaning brush, petrol,
alcohol, or flammable liquids to clean the products.
-Please do regular cleaning or replacement of filters to
ensure filtration efficiency.
-Please turn off the machine and unplug it. Leave the
product for 15 minutes before cleaning starts.
- When the product is not in use, put it back in the gift box
and store it in a safe, cool and dry place that avoid direct
sunlight.
