AEG LAVAMAT W 1220 User manual

LAVAMAT W 1220

Washing machine

Instruction book

Dear customer,

Please read these user instructions carefully.

Above all, observe the "Safety" section in the first pages. Keep these

user instructions in a safe place for future reference. Please pass them

along to future owners of the appliance.

1 Important information concerning your safety and proper functioning

of the appliance is highlighted with the warning triangle or the signal

words (Warning!, Caution!, Attention!). Please observe carefully.

0 1. This symbol guides you step by step when operating the appliance.

2. ...

3 Next to this symbol you receive additional information and practical

tips on using the appliance.

2 Tips and information about the economical and environmentally

friendly use of the machine are marked with the clover.

These user instructions include tips for the correction of possible mal-

functions by the user. See the section "What to do when...".

Our customer service department is at your disposal should technical

problems occur. See also the "Service" section.

Printed on paper manu

actured with environmentally sound processes.

He who thinks ecologically acts accordingly ...

Contents

CONTENTS

Operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Environmental protection tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Drawer for Detergent and Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Program Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Temperature Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

M(ON/OFF) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Consumption Data and Time Required . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Before Washing for the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Prepare washing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Sort washing and prepare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Washing Types and Care Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Detergent and conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Which detergent and conditioner? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

How much detergent and conditioner? . . . . . . . . . . . . . . . . . . . . . . . . . 15

Using Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Performing a Washing Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Brief Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Loading the Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Adding Detergent/Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Setting the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Starting the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Changing the Spin Speed or Selecting Rinse Hold . . . . . . . . . . . . . . . . . . . . 19

During the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Washing Cycle Complete/Removing the Washing . . . . . . . . . . . . . . . . . . . . 20

Contents

Program Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Washing with a Pre Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Separate Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Separate Conditioning/Starching/Treatment . . . . . . . . . . . . . . . . . . . . . . . 22

Separate Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Cleaning and Caring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Detergent drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Washing drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Fill-in door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

What to do when… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

If the washing results are not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Perform emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Clean the circulating pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Installation and Connection Instructions . . . . . . . . . . . . . . . . 30

Installation Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Dimensions of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Front and Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Installation of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Transporting the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Remove transportation protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Prepare the installation place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Installation on a concrete base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Installation on vibrating floors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Levelling on uneven floors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Contents

Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Water connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Permissible water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Water feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Water drain-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Operating instructions

OPERATING INSTRUCTIONS

1 Safety

The safety standards of AEG electric appliances are in keeping with the

recognised rules of technology and the law governing the safety of

appliances. Nevertheless as a manufacturer we are committed to famil-

iarise you with the following safety instructions:

Prior to initial start-up

• Observe the "Installation and Connection Instructions" below in

these user instructions.

• If the appliance is delivered during the winter and temperatures are

below freezing, allow the appliance to stand at room temperature for

24 hours before operation

Intended use

• The washing machine is intended exclusively for the washing of nor-

mal household washing in the home. If the appliance is used for pur-

poses other than those intended, or if it is improperly operated, the

manufacturer can assume no liability for damages which may occur.

• Additions or modifications to the washing machine are strictly for-

bidden due to safety reasons.

• Use only those detergents which are suitable for the washing

machine. Observe instructions provided by the detergent manufac-

turer.

• Laundry to be washed may not contain any flammable solvents. This

must also be taken into consideration when washing pre-washed

laundry.

• Do not use the washing machine for dry-cleaning.

• Dyes and bleaches may only be used in the washing machine if such

use has been expressly endorsed by the manufacturer of these prod-

ucts. We can assume no liability for damages which may occur.

• Use tap water only. Rain water and industrial water may only be used

if they fulfil requirements in accordance with DIN1986 and DIN1988.

• Damage due to frost is not covered by the guarantee! If the washing

machine is located in a room in which below freezing temperatures

might occur, emergency draining must be carried out if danger of

freezing occurs (see "Emergency Draining"). Furthermore, the inlet

hose must be disconnected from the tap and laid on the floor.

Operating instructions

Safety of children

•Packaging materials (e.g. sheet and Styrofoam) can be dangerous for

children. Danger of asphyxiation! Keep packaging materials at a safe

distance from children.

•Children are often unable to recognise the dangers involved with

electrical appliances. Provide for proper supervision during operation,

and do not allow children to play with the washing machine –the

danger exists that a child might lock itself into the appliance.

•Make certain that children or small animals do not climb into the

drum of the washing machine.

•If the washing machine needs to be disposed of, remove the mains

plug, destroy the door lock, cut off the electrical cable and dispose of

the plug and remaining cable separately. In this way children are pre-

vented from locking themselves in and are not exposed life threate-

ning danger.

General Safety

•Repairs to the washing machine may only be carried out by trained

personnel. Improper repairs can give rise to significant hazards. If

repairs are required, contact customer service or your dealer.

•Never use the washing machine if the mains cable is damaged or the

control panel, the work surface, or the plinth are damaged to such an

extent that components inside the machine are openly accessible.

•Switch off the washing machine before cleaning, maintenance and

servicing. In addition, unplug from the mains or –in the case of per-

manent connection –pull the circuit breaker, or completely remove

screw type fuses.

•Never remove the mains plug by pulling on the cable. Always grip the

plug.

•Multi-way plugs / connectors and extension cables must not be used.

This could constitute a safety hazard!

•Do not clean the washing machine with a jet of water. There is a risk

of electric shock!

•When high temperature washing programs are selected, the glass in

the door becomes hot. Do not touch!

•Leave the water in the machine to cool down before performing an

emergency drain or cleaning the circulation pump.

•Small animals may gnaw at electrical power cables and water hoses.

There is a risk of electric shock and damage from water leaks! Keep

small animals away from the washing machine.

Operating instructions

2 Disposal

Dispose of the packaging!

Dispose of washing machine packaging materials properly. All packag-

ing materials are environmentally sound and can be safely disposed of,

or burned in a refuse incineration plant.

The plastic parts can be reused:

•The external plastic cover and the bags inside are made of polyethyl-

ene (marking >PE<).

•The padding is made of CFC free expanded polystyrene

(marking >PS<).

Corrugated components are made from recycled paper and should be

disposed of at a paper recycling station.

Dispose of your old appliance!

If, at some point in time, the service life of the appliance has expired,

please take it to your nearest recycling centre, or to your appliance

dealer, who will accept the old appliance for a minimal fee.

2 Environmental protection tips

•No pre-wash is required for normally soiled washing. This saves you

detergent, water and time (and is good for the environment!).

•If the indicated load capacities are taken full advantage of, the wash-

ing machine is especially efficient.

•For small loads, use only one half to one third of the recommended

detergent quantity.

•Stains and soiling confined to given areas can be removed by means

of appropriate pre-treatment. You can then wash at lower tempera-

tures.

•Wash lightly to medium soiled cottons with the energy saving pro-

gram.

•Softeners are often not required. Try it! If you use a dryer, your wash-

ing will be soft and fluffy, even without softeners.

•A water softener should be used for water within a hardness range of

mid to high (as of hardness level II, see "Detergents and Conditio-

ners"). Detergent can then always be dosed for water hardness level I

(= soft).

Operating instructions

Description of the Appliance

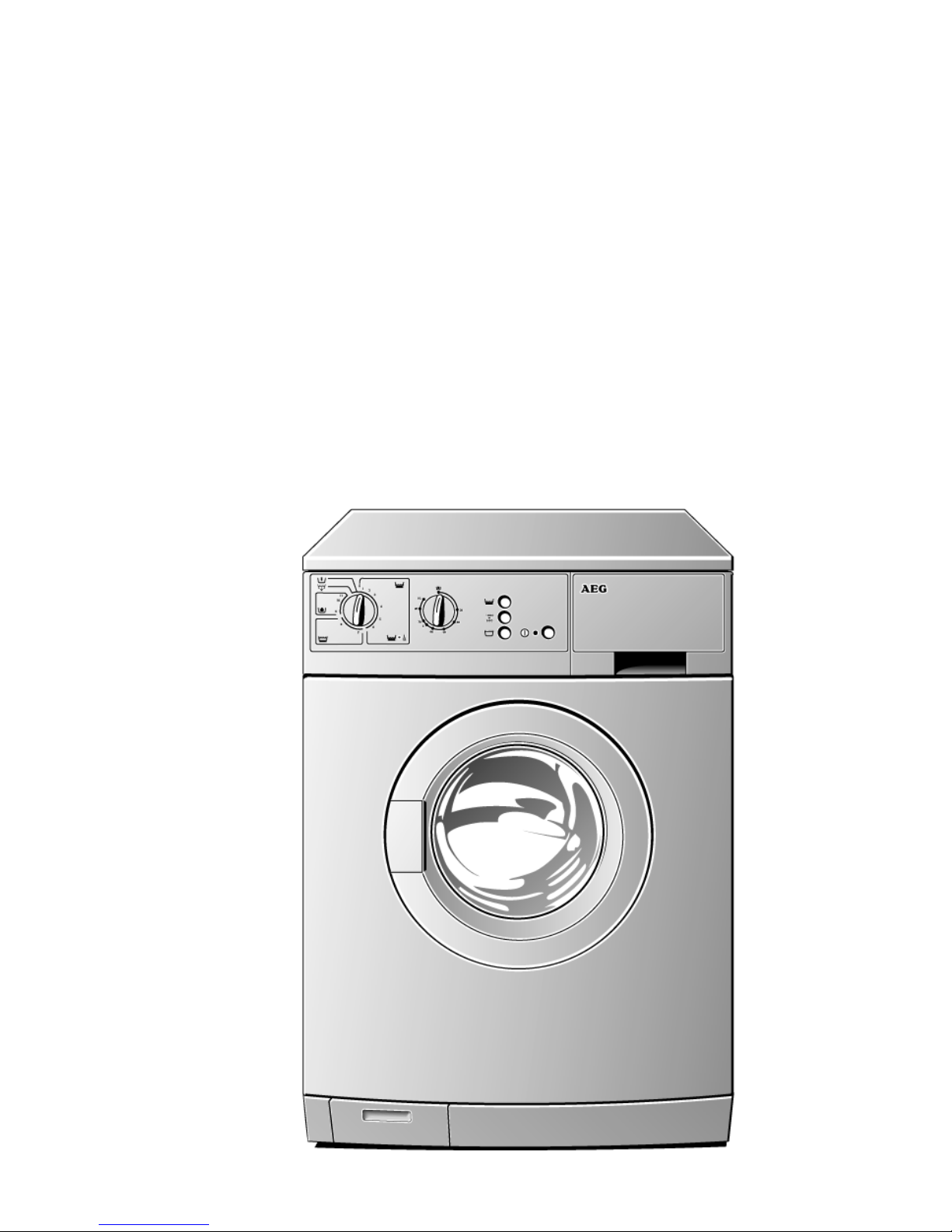

Front View

Drawer for Detergent and Conditioner

Drawer for

detergent and

softener

Control Panel

Door with

handle

Flap in front of the

circulation pump Threaded feet

(height adjustable)

Rating plate

(behind door)

kPre wash detergent

or in-wash stain

treatment

lMain wash deter-

gent

(powder) and water

softener if required

wLiquid conditioner

(softener, finisher,

starch)

Suction cap

(must be firmly

fitted)

Operating instructions

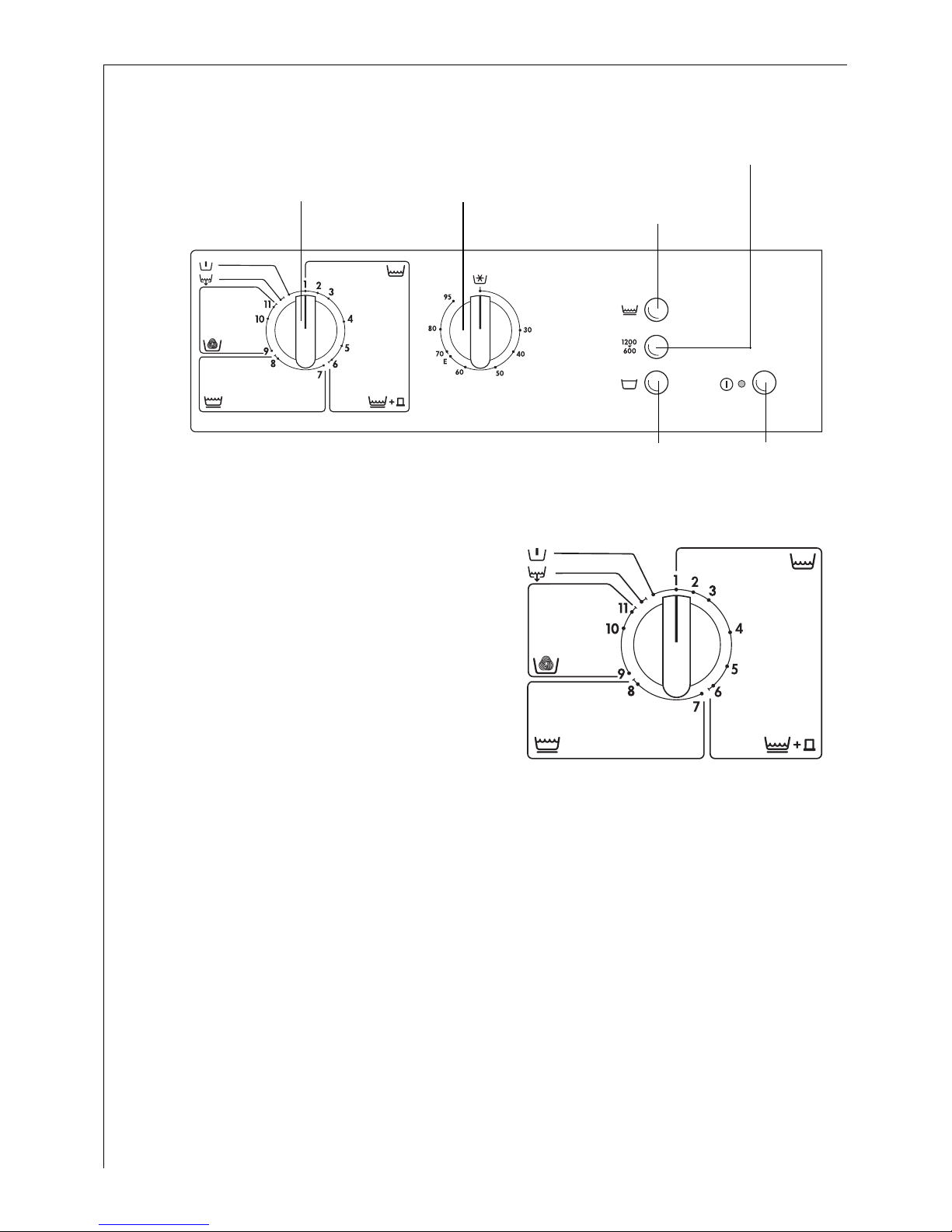

Control panel

Program Selector

You define the type of washing

cycle using the program selector.

Important! Only turn the program

selector clockwise!

The various positions have the fol-

lowing effect:

t/ ÆProgram Group

For cottons/linen: You only need to set the program selector to the

desired programme.

For easy-care washing: Set the program selector to the desired

programm and then also press the }(EASY-CARES) button.

•Position 1 (STAIN)

Stain program for treating heavily soiled or stained washing with in-

wash stain treatment.

•Position 2 (MAIN WASH)

Main washing cycle for normally soiled washing.

t(COTTONS/LINEN),

Æ(EASY-CARES WITH BUTTON)

Program Selector

pee

Button

RINSE HOLD

Button

Temperature Selector EASY-CARES

Button

ON/OFF

Button

This manual suits for next models

Table of contents

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
