1. SAFETY INFORMATION

Before the installation and use of the appliance, careful-

ly read the supplied instructions. The manufacturer is

not responsible if an incorrect installation and use cau-

ses injuries and damages. Always keep the instructions

with the appliance for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the appliance door

when it is open.

• If the appliance has a child safety device, we recom-

mend you activate it.

• Cleaning and user maintenance shall not be made by

children without supervision.

1.2 General Safety

• Before maintenance, deactivate the appliance and

disconnect the mains plug from the mains socket.

• Do not change the specification of this appliance.

• Obey the maximum load volume of 7 kg (refer to the

“Programme chart” chapter).

ENGLISH 3

• If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly quali-

fied persons in order to avoid a hazard.

• The operating water pressure (minimum and maxi-

mum) must be between 0,5 bar (0,05 MPa) and 8 bar

(0,8 MPa)

• The ventilation openings in the base (if applicable)

must not be obstructed by a carpet.

• The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Keep the transit bolts. When you

move the appliance again you must

block the drum.

• Do not install or use a damaged appli-

ance.

• Do not install or use the appliance

where the temperature is less than 0

°C or where it is exposed to the

weather.

• Obey the installation instruction sup-

plied with the appliance.

• Make sure that the floor where you in-

stall the appliance is flat, stable, heat

resistant and clean.

• Do not install the appliance where the

appliance door can not be fully

opened.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Make sure that there is air circulation

between the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the

carpet.

Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical informa-

tion on the rating plate agrees with

the power supply. If not, contact an

electrician.

• Always use a correctly installed shock-

proof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

Should the appliance power supply

cable need to be replaced, this must

be carried out by our Service Centre.

• Connect the mains plug to the mains

socket only at the end of the installa-

tion. Make sure that there is access to

the mains plug after the installation.

• Do not pull the mains cable to discon-

nect the appliance. Always pull the

mains plug.

• Do not touch the mains cable or the

mains plug with wet hands.

• This appliance complies with the

E.E.C. Directives.

4www.aeg.com

Water connection

• Make sure not to cause damage to the

water hoses.

• The appliance is to be connected to

the water mains using the new sup-

plied hose-sets. Old hose sets must

not be reused.

• Before you connect the appliance to

new pipes or pipes not used for a long

time, let the water flow until it is clean.

• The first time you use the appliance,

make sure that there is no leakage.

2.2 Use

WARNING!

Risk of injury, electrical shock,

fire, burns or damage to the ap-

pliance.

• Use this appliance in a household en-

vironment.

• Do not change the specification of this

appliance.

• Obey the safety instructions on the

detergent packaging.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Do not touch the glass of the door

while a programme operates. The

glass can be hot.

• Make sure that you remove all metal

objects from the laundry.

• Do not put a container to collect pos-

sible water leakage under the appli-

ance. Contact the Service to ensure

which accessories can be used.

2.3 Care and Cleaning

WARNING!

Risk of injury or damage to the

appliance.

• Before maintenance, deactivate the

appliance and disconnect the mains

plug from the mains socket.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal ob-

jects.

2.4 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

ENGLISH 5

3. PRODUCT DESCRIPTION

1 2 3

1Worktop

2Detergent dispenser

3Control panel

4Door handle

5Rating plate

6Drain pump filter

7Feet for the appliance level

3.1 Fixing plate kit

(4055171146)

Use this special accessory, when you in-

stall the appliance on a plinth.

It prevents the movements of the appli-

ance when it operates.

Read carefully the instructions supplied

with this accessory.

You can buy it in all approved Service.

4. CONTROL PANEL

Ontkreuk

Opfrissen

Katoen

Eco

1 2 3

45678910

1On/Off button ( Aan/Uit)

2Programme knob

3Display

4Start Pause button (Start/Pauze)

5Delay start button ( Startuitstel)

6Time save button (Tijd Besparen)

7Extra rinse button (Extra Spoelen)

8Stain button (Vlekken)

9Spin reduction button (TPM)

10 Temperature button (Temp. °C)

6www.aeg.com

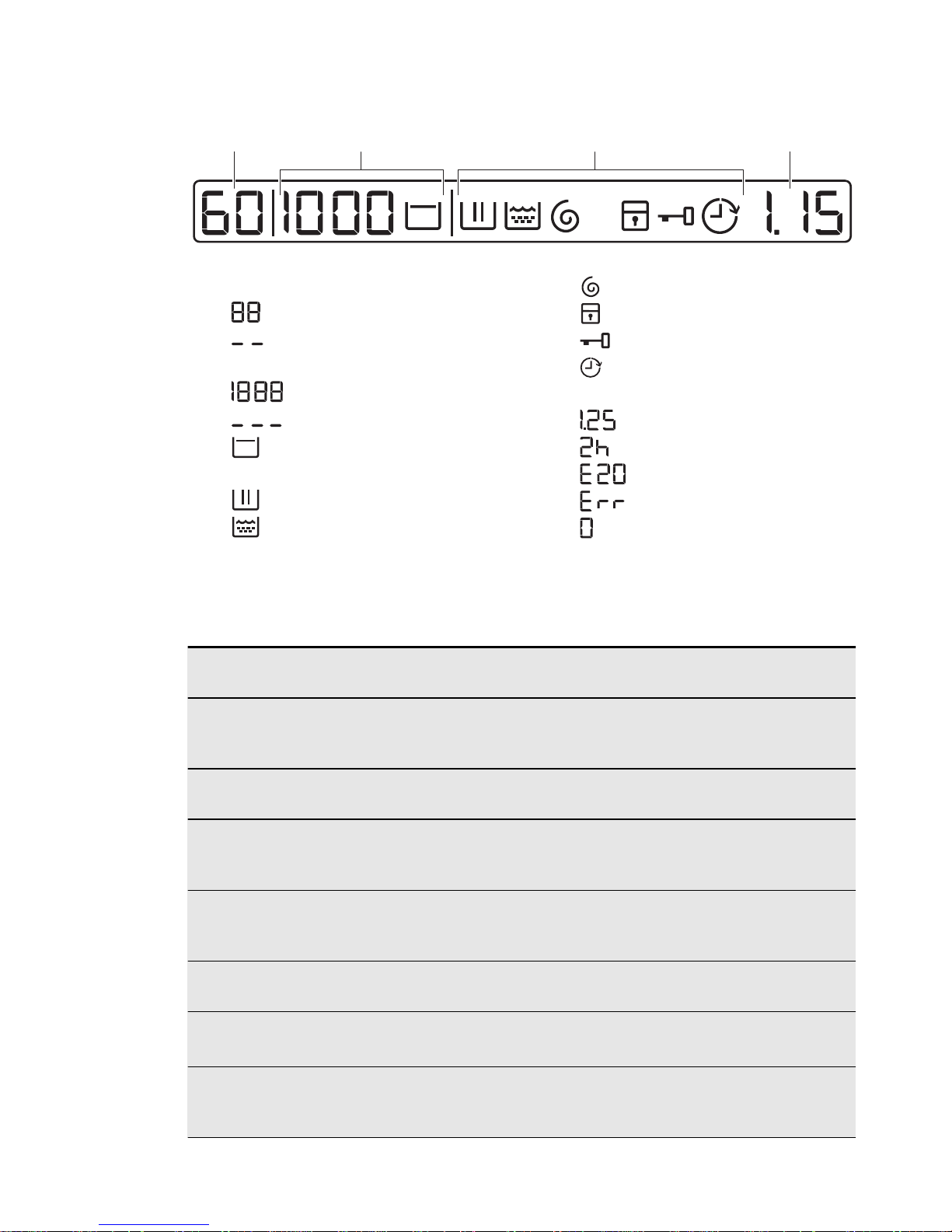

4.1 Display

A B C D

A) The temperature area:

–: Temperature indicator

–: Cold water indicator.

B) The spin area:

–: the Spin speed indicator

–: the No Spin indicator1)

–: the Rinse Hold indicator.

C) The display indicators:

–: the washing phase

–: the rinses phase

–: the spin phase

–: the child safety lock

–: the Door locked

–: the delay start.

D) The time area:

–: the programme duration

–: the delay start

–: the alarm codes

–: the message of error

–: Programme is completed.

5. PROGRAMMES

Programme

Temperature range

Type of load and soil

Maximum load, Maximum spin

Katoen

95°C - Cold

White cotton and coloured cotton. Normal soil

and light soil.

7 kg, 1600 rpm

Kateon + Voorwas

95°C - Cold

White and coloured cotton. Heavy soil.

7 kg, 1600 rpm

Extra Stil

95°C - Cold

White and coloured cotton. Normal soil and

light soil.

7 kg, 1600 rpm

Synthetica

60°C - Cold

Synthetic or mixed fabric items. Normal soil and

light soil.

3.5 kg, 1200 rpm

Synthetica + Voorwas

60°C - Cold

Synthetic or mixed fabric items. Heavy soil.

3.5 kg, 1200 rpm

Strijkvrij

60°C - Cold

Synthetic fabric items. Normal soil and light soil.

3.5 kg, 1000 rpm

Fijne Was

40°C - Cold

Delicate fabrics as acrylics, viscose, polyester

items. Normal soil and light soil.

3.5 kg, 1200 rpm

1) Only available for Spin/Drain programme.

ENGLISH 7

Programme

Temperature range

Type of load and soil

Maximum load, Maximum spin

Wol/Zijde

40°C – Cold

Machine washable wool, hand washable wool

and delicate fabrics with «hand washing» care

symbol.

2 kg, 1200 rpm

Centrifugeren/Pompen To spin the laundry and to drain the water in the

drum. All fabrics.

7 kg, 1600 rpm

Spoelen

Cold

To rinse and spin the laundry. All fabrics.

7 kg, 1600 rpm

Jeans

60°C - Cold

Items in denim and jersey. Also for items in dark

colours.

3.5 kg, 1200 rpm

Kort Intensief

60°C - 40°C

Quick washing programme, to be used for light-

ly soiled white/fast coloured cottons and mixed

fabrics.

5 kg, 1200 rpm

20 Min. - 3 kg

40° - 30°

Cotton and synthetic items with light soil or

worn only one time.

Katoen Eco

60 °C - 40 °C

White cotton and colour-fast cotton. Normal

soil.

7 kg, 1600 rpm

1) The wash and spin phase is soft to prevent the creases of the laundry. The appliance

adds some rinses.

2) Standard programmes for the Energy Label consumption values

According to regulation 1061/2010, these programmes are respectively the «standard 60

°C cotton programme» and the «standard 40 °C cotton programme». They are the most

efficient programmes in terms of combined energy and water consumption for washing

normally soiled cotton laundry.

The water temperature of the washing phase may differ from the temperature de-

clared for the selected programme.

STEAM PROGRAMMES

Programme

Type of load Max. load

Steam – Opfrissen

This cycle removes odours

from the laundry.

Steam does not re-

move animal odours.

Cotton and synthetic items. up to 1.5 Kg

Steam – Ontkreuk

This programme helps to dew-

rinkle the laundry.

Cotton and synthetic items. up to 1.5 Kg

8www.aeg.com

Programme

Type of load Max. load

Steam can be used for dried, washed or worn once laundry. These pro-

grammes can reduce creases and odours and make your laundry more

smooth.

Do not use any detergent. If necessary, remove stains by washing or us-

ing localized stain removal.

Steam programmes do not perform any hygienic cycle.

Do not set the Steam programme for this type of clothes:

• Clothes which is not specified on the care label as being suitable for tumble-

drying.

• Clothes with inclusion of plastic, metal, wooden parts or alike.

1) If you set a Steam programme with dried laundry, at the end of the cycle the laundry

feels humid. It is better to expose clothes to the fresh air for about 10 minutes to let the

humidity dry. Laundry should be removed from the drum as quick as possible. After a

steam cycle, clothes may to be ironed anyway, but with less effort!

Programme options compatibility

Programme

Vlekken

Extra Spoelen

Tijd Besparen

Startuitstel

Katoen ■■ ■ ■ ■ ■

Kateon + Voorwas ■■ ■ ■ ■ ■

Extra Stil ■ ■ ■ ■

Synthetica ■■ ■ ■ ■ ■

Synthetica +

Voorwas

■■ ■ ■ ■ ■

Strijkvrij ■■■■■

Fijne Was ■■ ■ ■ ■ ■

Wol/Zijde ■■■

Centrifugeren/

Pompen

■ ■ ■

Spoelen ■■■■

Jeans ■■■■■

Kort Intensief ■■■■

20 Min. - 3 kg ■■

Katoen Eco ■■ ■ ■ ■ ■

1) If you set No Spin option the only drain phase is available.

ENGLISH 9

6. CONSUMPTION VALUES

At programme start the display shows the duration programme for the max-

imum load capacity.

During the washing phase the programme duration is automatically calcula-

ted and can greatly be reduced if the laundry load is lower than the maxi-

mum load capacity (e.g. Cotton 60°C, maximum load capacity 7 kg, the pro-

gramme duration exceeds 2 hours; real load 1 kg, the programme duration

don’t reach 1 hour).

When the appliance is calculating the real programme duration a dot blinks

in the display.

The data of this table are approximate. Different causes can change the da-

ta: the quantity and type of laundry, the water and ambient temperature.

Programmes Load

(Kg)

Energy con-

sumption

(kWh)

Water con-

sumption (li-

tre)

Approxi-

mate pro-

gramme

duration

(minutes)

Remaining

moisture

(%)

Cottons 60

°C 71.30 62 157 44

Cottons 40

°C 70.80 62 154 44

Synthetics 40

°C 3.5 0.53 45 127 35

Delicates 40

°C 3.5 0.57 53 100 35

Wool 30 °C 20.25 45 56 30

Standard cotton programmes

Standard 60

°C cotton 70.86 52 240 44

Standard 60

°C cotton 3.5 0.74 41 215 44

Standard 40

°C cotton 3.5 0.52 41 210 44

Off Mode (W) Left On Mode (W)

0.48 0.48

The information given in the chart above are in compliance with the EU Com-

mission regulation 1015/2010 implementing directive 2009/125/EC.

1) At the end of spin phase.

10 www.aeg.com

Table of contents

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
