AEG PERFEKT GLIDE 24-1 User manual
PERFEKT GLIDE 24-1
24” Built-in Telescopic Range Hood
Specifications are subject to change without notice
V1.4
RANGE HOOD FEATURES
•24” (60cm) stainless steel built-in glide-out range hood
•LED lighting (3,200 Lumens)
•2 speed adjustment
•2 x dishwasher safe honey comb filters
•Electronic switch controls
•Quiet (7 sones/56dB) 300 CFM motor
PERFEKT GLIDE 24-1
24” Built-in Telescopic Range Hood
•115 Volt, 60Hz, 15AMP
•AEG Range Hoods are supplied with a
Canadian cord and plug
•Electrical cord located 31/8” (79mm)
from the top right corner of the unit at
the rear
ELECTRICAL REQUIREMENTS
•6” Duct Adapter Included
DUCT SIZE
Specifications are subject to change without notice
V1.4
Specifications
PERFEKT GLIDE 24-1
FRONT PANEL - DUCTED
D: 11” x W: 239/16”
D: 280mm x W: 598mm
RANGE HOOD DIMENSIONS
Specifications are subject to change without notice
V1.4
Specifications
PERFEKT GLIDE 24-1
CABINET BOX DESIGN
FRONT VIEW SIDE VIEW
69/16”
166mm
235/8”
600mm
Shelf Supports
Range hood
81/4”
210mm
External Gable
External Gable
Specifications are subject to change without notice
V1.4
Specifications
PERFEKT GLIDE 24-1
•1. Pull the glide forward
•2. Remove the 4 screws holding the glide to the panel
•3. Install the matching front panel using the 4 screws
*Custom panel provided by customer*
NOTE: Removing the front stainless steel trim
69/16”
166mm

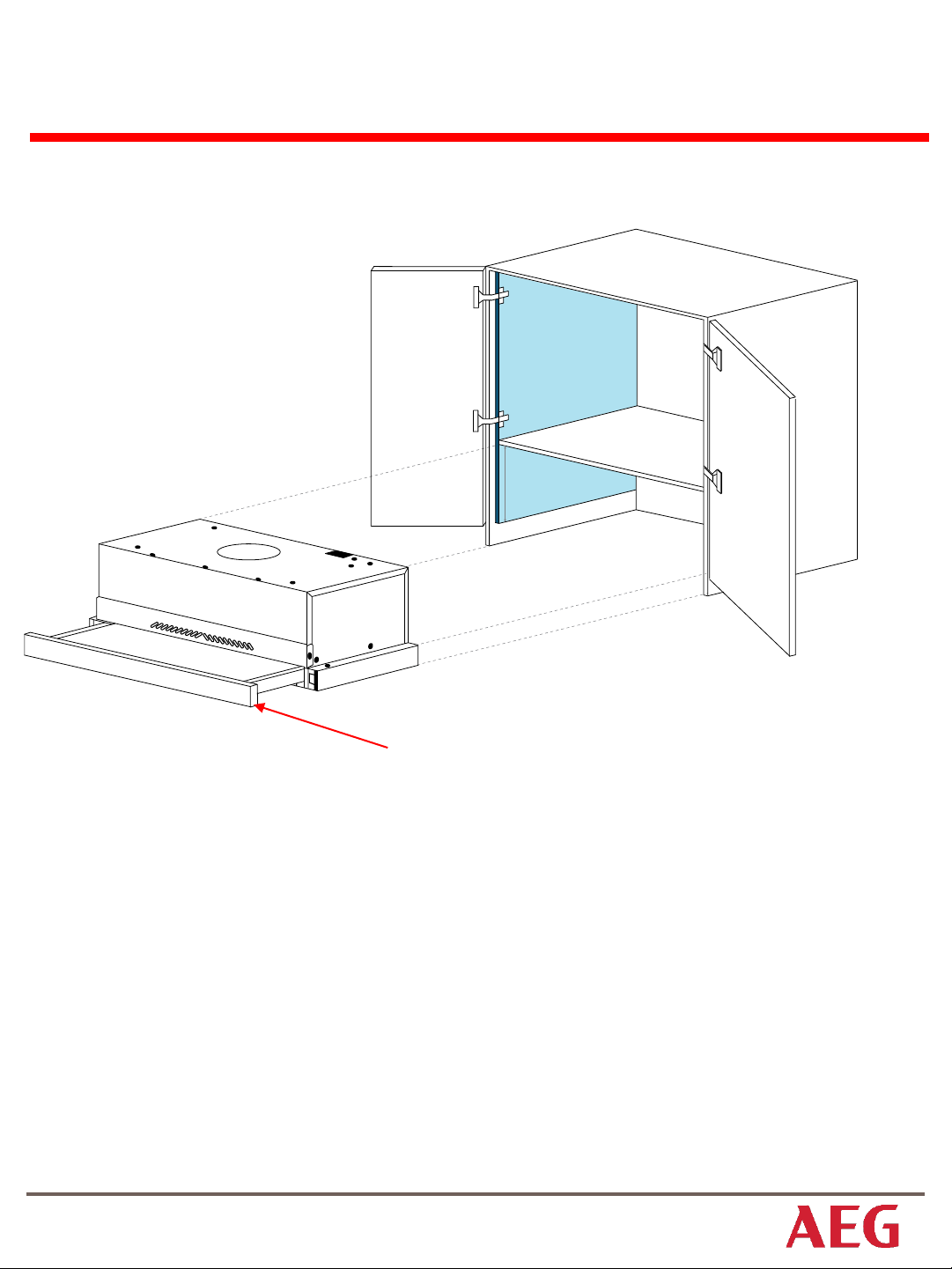

FRONT PANEL INSTALLATION
Specifications are subject to change without notice
V1.4
Specifications
PERFEKT GLIDE 24-1
•Ensure that the cabinet door panel is
lengthened to accommodate the
smaller sized Range Hood Front
Panel
NOTE: Cabinet Door Panel Height
Specifications are subject to change without notice
V1.4
Specifications
PERFEKT GLIDE 24-1
•Drill (1/8”) at the points located
•Secure the damper to the motor
housing using the screws supplied
with the range hood
SECURING THE DAMPER
201.5mm
715/16”
100mm
315/16”
120mm
43/4”
191.5mm
79/16”
168.5mm
65/8”
DAMPER INSTALLATION
139.7mm
51/2”
Specifications are subject to change without notice
V1.4
Specifications
PERFEKT GLIDE 24-1
•W: 220mm x D:175mm
W: 811/16” x 67/8”
•Shelf depth MUST BE a minimum of 11” deep

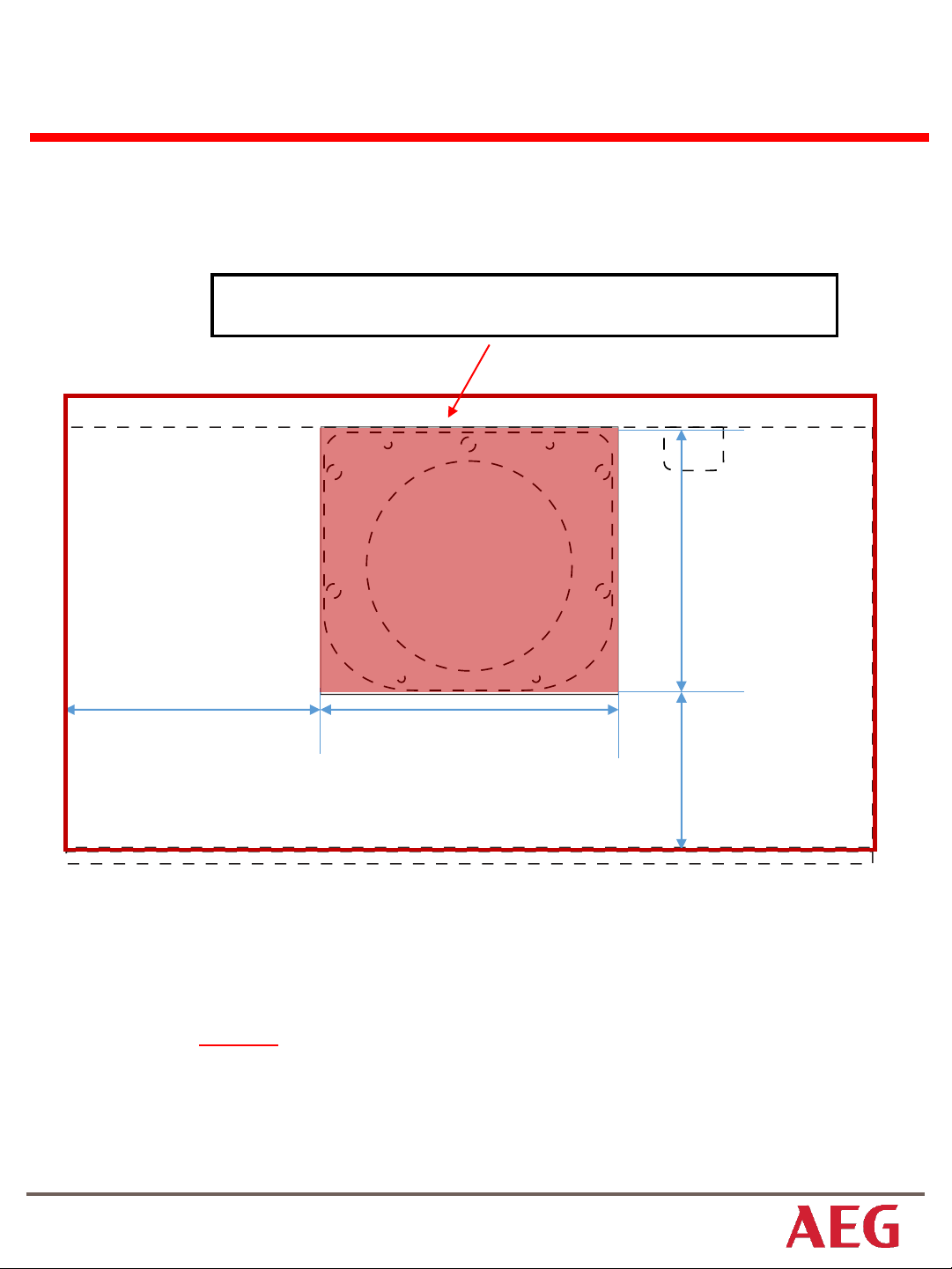

DAMPER CUT-OUT
220mm
811/16”
175mm
67/8”
141mm
59/16”100mm
315/16”
•Shelf with less than 1” of shelf extension MUST HAVE a support
brace in place
DAMPER INSTALLATION (SHELF CUT-OUT)
Specifications are subject to change without notice
V1.4
Specifications
PERFEKT GLIDE 24-1
•W: 220mm x D:175mm
W: 811/16” x 67/8”
•Shelf depth MUST BE a minimum of 11” deep
DAMPER CUT-OUT
220mm
811/16”
175mm
67/8”
141mm
59/16”100mm
315/16”
•Shelf with 1” or more extension does not require a support brace.
DAMPER INSTALLATION (SHELF CUT-OUT)
Specifications are subject to change without notice
V1.4
Specifications
PERFEKT GLIDE 24-1

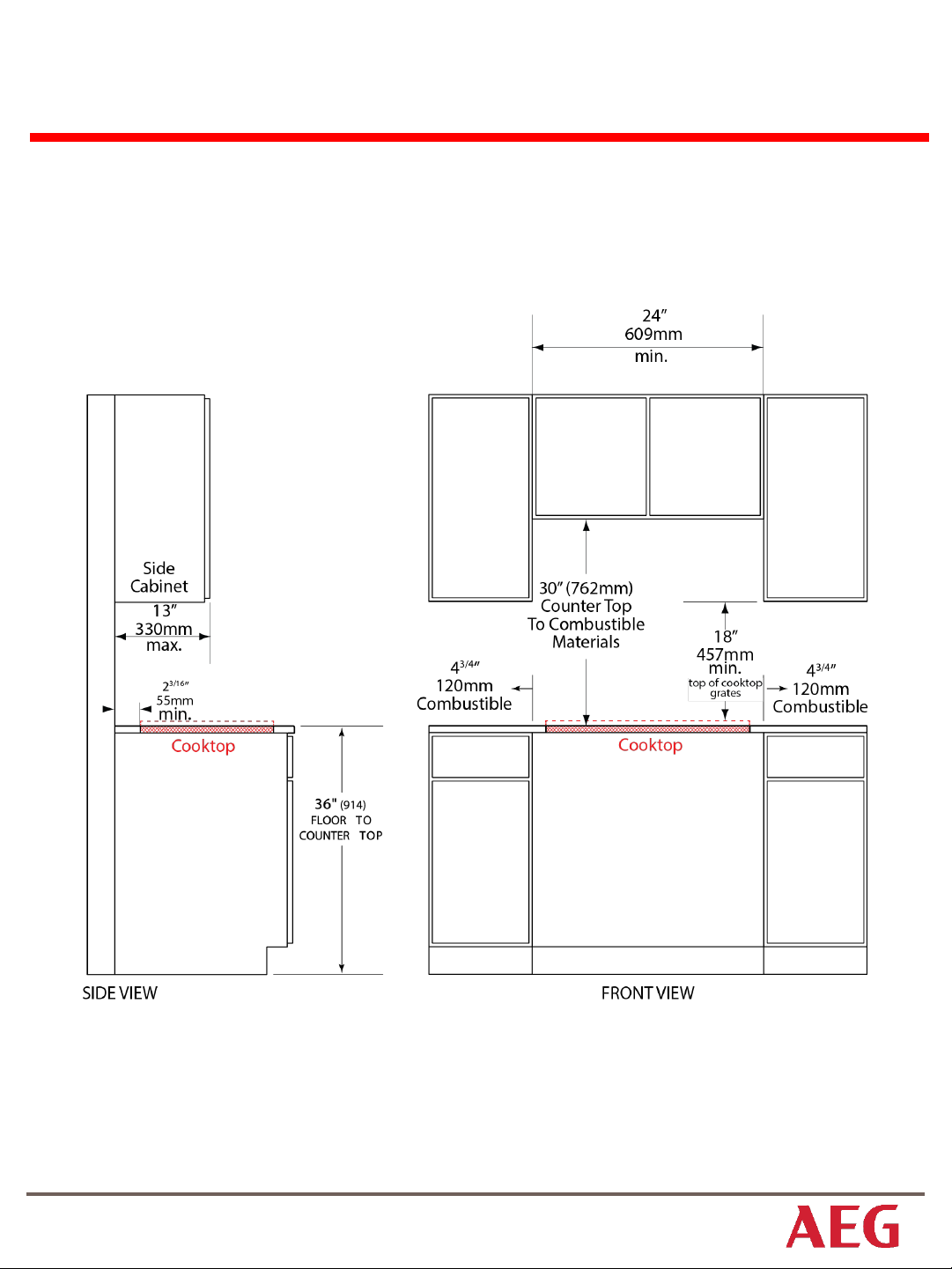

RECOMMENDED CABINET MINIMUM CLEARANCE
(GAS COOKING SURFACE)
