Dear Customer

Thank you for choosing one of our high-quality products.

With this appliance you will experience the perfect combination of functional

design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best per-

formance and control - indeed we are setting the highest standards of excel-

lence.

In addition to this you find environmental and energy saving aspects as an inte-

gral part of our products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfect-

ly and most efficiently.

To refer to this manual any time you need to, we recommend you to keep it in a

safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

ng sym

s are use

n t

s user

ormat

on:

Warning! This must be read! Important advice for the safety of persons and

information on avoiding damage to the appliance

3General information and advice

2Information on environmental protection

zDangerous voltage

3Contents

Contents

Operating Instructions 4

Safety instructions 4

Description of the Appliance 6

Cooking surface layout 6

Control panel layout 6

Touch Control sensor fields 7

Displays 8

Residual heat indicator 8

Operating the appliance 9

Switching the appliance on and off 9

Setting the heat setting 9

Switching the outside ring on and off 10

Locking/unlocking the control panel 10

Switching the STOP+GO function on and off 11

Using the automatic warm-up function 11

Using the child safety device 13

Using the timer 14

Automatic switch off 17

Tips on Cooking and Frying 18

Cookware 18

Energy saving 18

Examples of cooking applications 19

Cleaning and Care 20

What to do if … 21

Disposal 22

Installation Instructions 23

Safety instructions 23

Assembly 25

Rating Plate 28

Guarantee/Customer Service 29

Service 31

Operating Instructions4

Operating Instructions

1Safety instructions

Please comply with these instructions. If you do not, any damage resulting is not

covered by the warranty.

Correct use

•This appliance is not intended for use by children or other persons whose

physical, sensory or mental capabilities or lack of experience and knowledge

prevents them from using the appliance safely without supervision or instruc-

tion by a responsible person to ensure that they can use the appliance safely.

•Do not leave the appliance unattended during operation.

•This appliance should be used only for normal domestic cooking and frying of

food.

•The appliance must not be used as a work surface or as a storage surface.

•Additions or modifications to the appliance are not permitted.

•Do not place or store flammable liquids, highly inflammable materials or fusi-

ble objects (e.g. plastic film, plastic, aluminium) on or near the appliance.

Children’s safety

•Small children must be kept away from the appliance.

•Only let bigger children work on the appliance under supervision.

•To avoid small children and pets unintentionally switching the appliance on,

we recommend activation of the child safety device.

General safety

•The appliance may only be installed and connected by trained, registered

service engineers.

•Built-in appliances may only be used after they have built in to suitable built-

in units and work surfaces that meet standards.

•In the event of faults with the appliance or damage to the glass ceramic

(cracks, scratches or splits), the appliance must be switched off and discon-

nected from the electrical supply, to prevent the possibility of an electric

shock.

•Repairs to the appliance must only be carried out by trained registered service

engineers.

5Safety instructions

Safety during use

•Overheated fats and oils can ignite very quickly. Warning! Fire hazard!

•There is the risk of burns from the appliance if used carelessly.

•Remove stickers and film from the glass ceramic.

•Cables from electrical appliances must not touch the hot surface of the appli-

ance or hot cookware.

•Switch the cooking zones off after each use.

Safety when cleaning

•For cleaning, the appliance must be switched off and cooled down.

•For safety reasons, the cleaning of the appliance with steam jet or high-pres-

sure cleaning equipment is not permitted.

How to avoid damage to the appliance

•The glass ceramic can be damaged by objects falling onto it.

•The edge of the glass ceramic can be damaged by being knocked by the cook-

ware.

•Cookware made of cast iron, cast aluminium or with damaged bottoms can

scratch the glass ceramic if pushed across the surface.

•Objects that melt and things that boil over can burn onto the glass ceramic

and should be removed straightaway.

•To avoid damaging cookware and glass ceramics, do not allow saucepans or

frying pans to boil dry.

•Do not use the cooking zones with empty cookware or without cookware.

Description of the Appliance6

Description of the Appliance

Cooking surface layout

Control panel layout

Triple cooking zone 800/1600/2300 W

Multi-purpose zone 1500/2600 W

Single cooking zone 1200 W

Control panel Single cooking zone 1200 W

On/Off

with power indicator

Timer display

Cooking zone indicators

Timer function

Child lock with pi-

lot light

Timer

Multi-purpose zone

switch with pilot light

Triple ring cooking zone switch with

pilot lights

STOP+GO

with pilot light

Heat setting selection

Automatic warm-

up function

Heat setting indicator

7Description of the Appliance

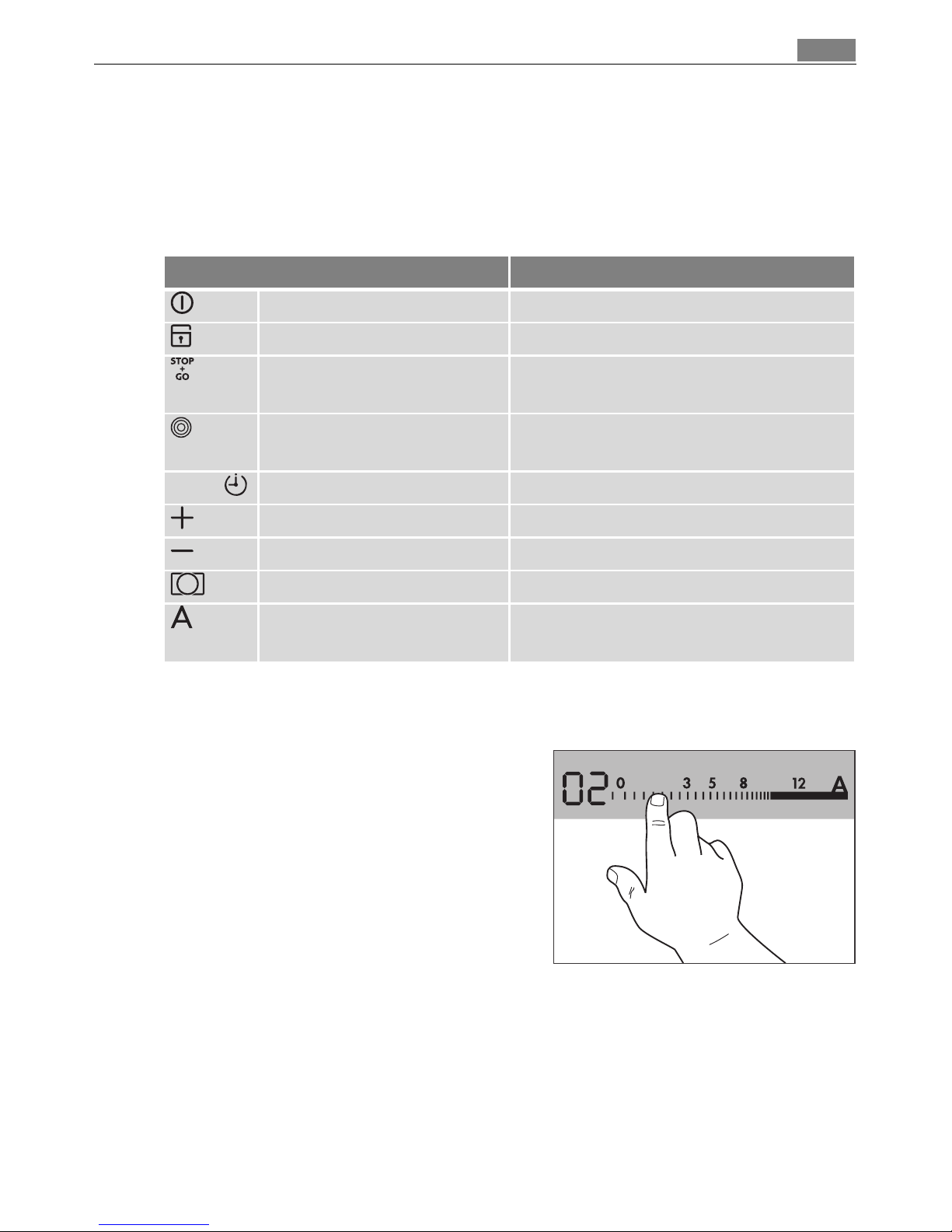

Touch Control sensor fields

The appliance is operated using Touch Control sensor fields. Functions are con-

trolled by touching sensor fields and confirmed by displays and acoustic signals.

Touch the sensor fields from above, without covering other sensor fields.

Control bar

The control bar is a special Touch Control field.

The control bar is touched where the de-

sired heat setting is positioned. The heat

setting is shown in the display. Correct to

the left or the right, if necessary.

Do not release before the desired heat set-

ting is reached.

3If the control bar is touched for longer

than 6 seconds, a signal sounds and the

appliance switches itself off.

Sensor field Function

On / Off To switch the appliance on and off

Child lock Locking control panel for children

Stop+Go To switch the Keep Warm setting on/

off

Triple ring switch To switch outer rings

on and off

TIMER Timer Timer selection

Increase settings To increase Timer time

Reduce settings To reduce Timer time

Multi-purpose zone switch To switch the outside ring on and off

Automatic warm-up func-

tion

To switch automatic warm-up func-

tion on/off

Description of the Appliance8

Displays

Residual heat indicator

1Warning! Risk of burns from residual heat. After being switched off, the cook-

ing zones need some time to cool down. Look at the residual heat indicator .

3Residual heat can be used for melting and keeping food warm.

Display Description

Cooking zone is switched off

/ Keep Warm setting STOP+GO function / Keep Warm

setting is set

- Heat settings Heat setting is set

Automatic warm up func-

tion

Automatic warm-up function is acti-

vated

Fault Malfunction has occurred

Residual heat Cooking zone is still hot

Child safety device Child safety device is engaged

Automatic switch off Switch off is active.

9Operating the appliance

Operating the appliance

Switching the appliance on and off

3After switching on, within approx. 10 seconds a heat setting or a function must

be set, otherwise the appliance automatically switches itself off.

Setting the heat setting

Control panel Display Pilot light

Switch on Touch for 1 second / lights up

Switch off Touch for 1 second / none goes out

Control bar Display

To set the heat

setting

Touch the desired heat setting, if

necessary, correct to the left or the

right

to /

To switch off Touch 0

Operating the appliance10

Switching the outside ring on and off

By switching the outside rings on or off, the effective heating surface can be

matched to the size of the cookware.

3Before an outside ring can be switched on, the inside ring must be switched on.

Locking/unlocking the control panel

The control panel, with the exception of the “On/Off” sensor field, can be locked

at any time in order to prevent the settings being changed e.g. by wiping over

the panel with a cloth.

3When you switch the appliance off, the locking function is automatically

switched off.

Triple ring cooking

zone

Sensor field Pilot light

To switch on the central

ring

Touch 1-2 seconds Second pilot light lights

To switch on the outer

ring

Touch for 1-2 seconds Third pilot light lights up

To switch off the outer

ring

Touch for 1-2 seconds Third pilot light goes out

To switch off the central

ring

Touch for 1-2 seconds Second pilot light goes

out

Multi-purpose zone Sensor field Pilot light

To switch on the outer

ring

Touch 1-2 seconds Second pilot light lights

To switch off the outer

ring

Touch for 1-2 sec-

onds

Second pilot light goes

out

Control panel Display

Switch on Touch (for 4 seconds)

Switch off Touch previously set heat setting
