AEG Electrolux 61371 M and User manual

61371 M

Ceramic glass hob

Installation and Operating Instructions

Dear Customer,

Please read these user instructions carefully and keep them to refer to

later.

Please pass the user instructions on to any future owner of the appli-

ance.

The following symbols are used in the text:

1Safety instructions

Warning! Information that affects your personal safety.

Important! Information that prevents damage to the appliance.

3Useful tips and hints

2Environmental information

Contents

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Description of the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Cooking surface layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Digital display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Residual heat indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Operating the hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Switching the outside ring on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Tips on Cooking and Frying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Rating Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Guarantee/Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Operating Instructions

1Safety instructions

3Please comply with these instructions. If you do not, any damage re-

sulting is not covered by the warranty.

5This appliance conforms with the following EU Directives:

–73/23/EEC dated 19.02.1973 Low Voltage Directive

–89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending

Directive 92/31/EEC

–93/68/EEC dated 22.07.1993 CE Marking Directive

Correct use

•This appliance should be used only for normal domestic cooking and

frying of food.

•The appliance must not be used as a work surface or as a storage sur-

face.

•Additions or modifications to the appliance are not permitted.

•Do not place or store flammable liquids, highly inflammable materials

or fusible objects (e.g. plastic film, plastic, aluminium) on or near the

appliance.

Children’s safety

•Small children must be kept away from the appliance.

•Only let bigger children work on the appliance under supervision.

General safety

•The appliance may only be installed and connected by trained, regis-

tered service engineers.

•Built-in appliances may only be used after they have built in to suita-

ble built-in units and work surfaces that meet standards.

•In the event of faults with the appliance or damage to the glass ce-

ramic (cracks, scratches or splits), the appliance must be switched off

and disconnected from the electrical supply, to prevent the possibility

of an electric shock.

•Repairs to the appliance must only be carried out by trained regis-

tered service engineers.

Safety during use

•Remove stickers and film from the glass ceramic.

•There is the risk of burns from the appliance if used carelessly.

•Cables from electrical appliances must not touch the hot surface of

the appliance or hot cookware.

•Overheated fats and oils can ignite very quickly. When cooking with

fat or oil (e.g. chips) do not leave the appliance unattended.

•Switch the cooking zones off after each use.

•Do not cover the oven’s steam outlet.

•When the oven is working, there is the danger of scalds from the

steam outlet.

Safety when cleaning

•For cleaning, the appliance must be switched off and cooled down.

•For safety reasons, the cleaning of the appliance with steam jet or

high-pressure cleaning equipment is not permitted.

How to avoid damage to the appliance

•The glass ceramic can be damaged by objects falling onto it.

•The edge of the glass ceramic can be damaged by being knocked by

the cookware.

•Cookware made of cast iron, cast aluminium or with damaged bot-

toms can scratch the glass ceramic if pushed across the surface.

•Objects that melt and things that boil over can burn onto the glass

ceramic and should be removed straightaway.

•To avoid damaging cookware and glass ceramics, do not allow sauce-

pans or frying pans to boil dry.

•Do not use the cooking zones with empty cookware or without cook-

ware.

Description of the Appliance

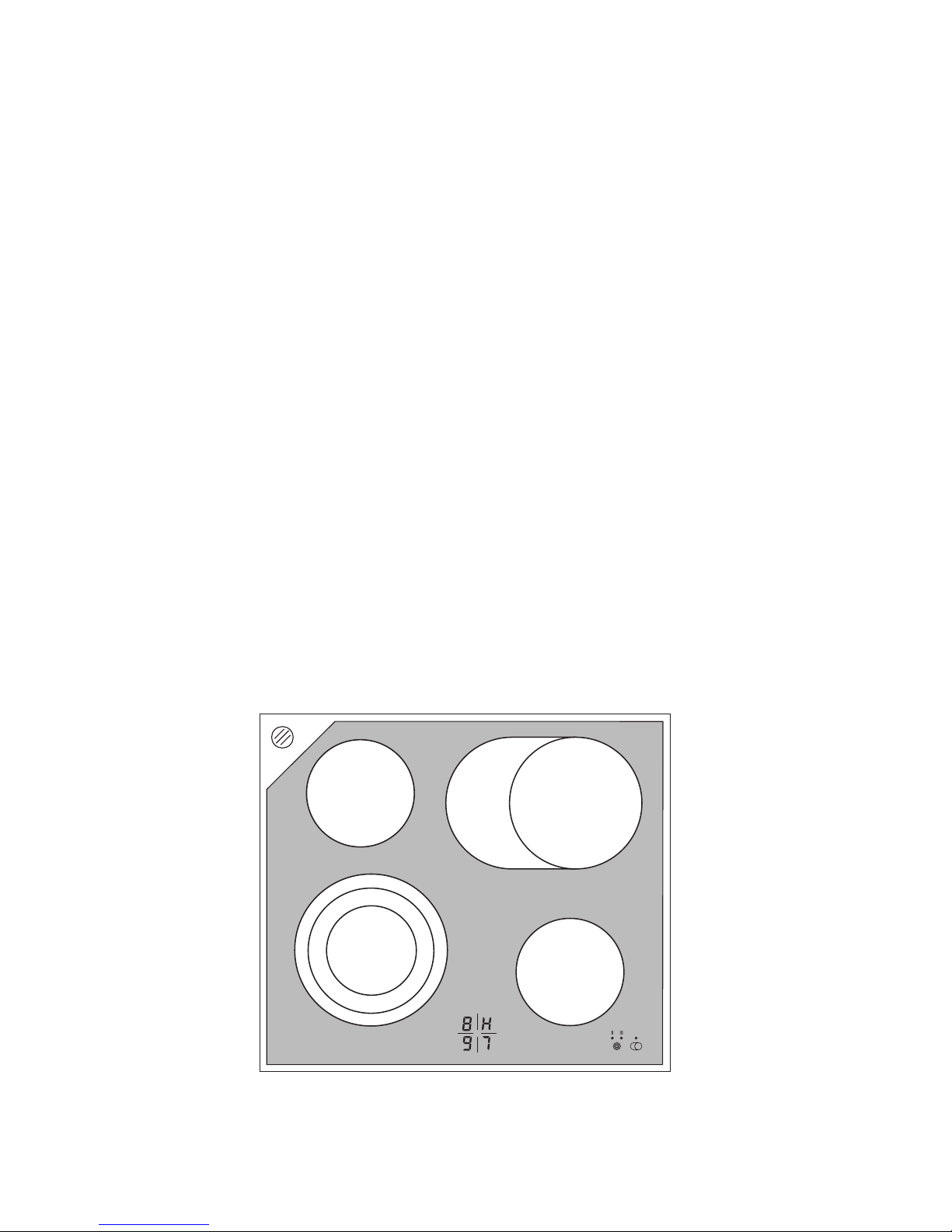

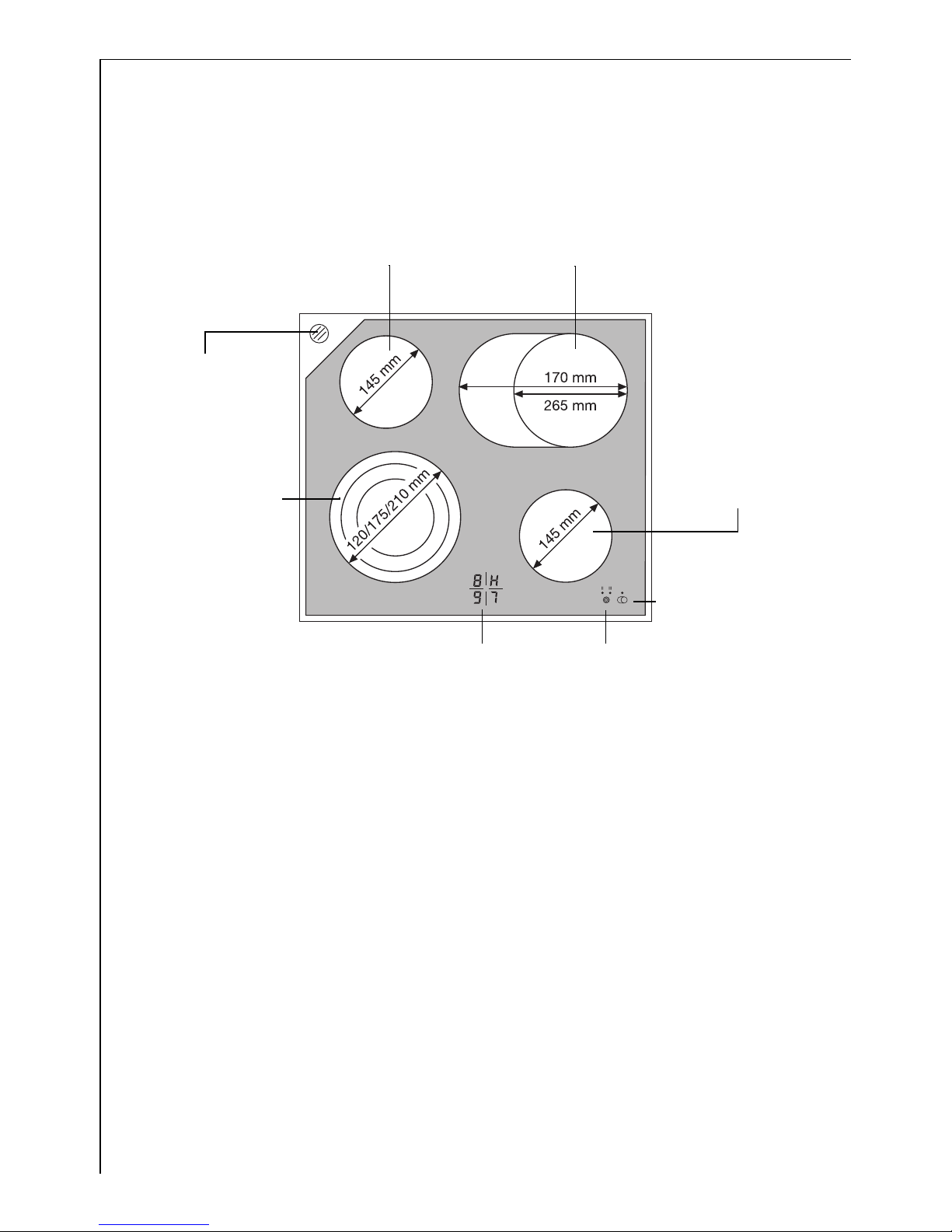

Cooking surface layout

Triple cooking zone

800/1600/ 2300W

Single cooking zone

1200W

Digital display

Multi-purpose zone

1500/2400W

Single cooking zone

1200W

Oven steam outlet

Multi-purpose zone

switch

with power indicator

Triple cooking zone

switch

with power indicator

Digital display

Residual heat indicator

1Warning! Risk of burns from residual heat. After being switched off,

the cooking zones need some time to cool down. Look at the residual

heat indicator h.

3Residual heat can be used for melting and keeping food warm.

Display Description

¾Cooking zone is switched off

uKeep warm setting Keep warm setting is set

¿- ÇHeat settings Heat setting is set

2- 6Heating setting plus

decimal point Intermediate heat setting is set

aAutomatic warm up

function Automatic warm-up function is

activated

hResidual heat Cooking zone is still hot

_Safety cut-out Safety cut-out has been activated

Display for

cooking zone rear left

Display for

cooking zone front left

Display for

cooking zone rear right

Display for

cooking zone front right

Operating the hob

You operate the appliance with the combination appliance’s ring

switches. The operation and the function of the ring switches is de-

scribed in the Operating Instructions for the combination appli-

ance.

3When a cooking zone is switched on, it may hum briefly. This is a char-

acteristic of all ceramic glass cooking zones and does not impair either

the function or the life of the appliance.

3Please follow the instructions from the manufacturer of the combina-

tion appliance as well.

Switching the outside ring on and off

By switching the outside rings on or off, the effective heating surface

can be matched to the size of the cookware.

3Before an outside ring can be switched on, the inside ring must be

switched on.

Triple cooking zone Sensor panel Power indicator

To switch on middle ring Touch for 1-2 seconds.One power indicator is lit.

To switch on outside ring Touch for 1-2 seconds.Two power indicators are

lit.

To switch off outside ring Touch for 1-2 seconds.Second power indicator

goes out.

To switch off middle ring Touch for 1-2 seconds.First power indicator goes

out.

Roasting zone Sensor panel Power indicator

To switch on outside ring Touch for 1-2 sec-

onds is lit

To switch off outside ring Touch for 1-2 seconds goes out

Tips on Cooking and Frying

Cookware

•You can recognise good cookware from the bottoms of the pans. The

bottom should be as thick and flat as possible.

•Cookware made of enamelled steel or with aluminium or copper bot-

toms can leave discolorations on the glass ceramic surface which are

difficult or impossible to remove.

Energy saving

2Always place cookware on the cook-

ing zone before it is switched on.

2If possible, always place lids on the

pans.

2Switch cooking zones off before the

end of the cooking time, to take ad-

vantage of residual heat.

2Bottom of pans and cooking zones

should be the same size.

Cleaning and Care

1Take care! Risk of burns from residual heat.

1Warning! Sharp objects and abrasive cleaning materials will damage

the appliance. Clean with water and washing up liquid.

1Warning! Residues from cleaning agents will damage the appliance.

Remove residues with water and washing up liquid.

Cleaning the appliance after each use

1. Wipe the appliance with a damp cloth and a little washing up liquid.

2. Rub the appliance dry using a clean cloth.

Removing deposits

1. Place a scraper on the glass ceramic surface at an angle.

2. Remove residues by sliding the blade over the surface.

3. Wipe the appliance with a damp cloth and a little washing up liquid.

4. Rub the appliance dry using a clean cloth.

*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops

3Remove stubborn residues with a cleaner for glass ceramic or stainless

steel.

3Scratches or dark stains on the glass ceramic that cannot be removed

do not however affect the functioning of the appliance.

Remove

Type of dirt imme-

diately

when the appliance has

cooled down using

sugar, food containing sugar yes --- a scraper*

plastics, tin foil yes ---

limescale and water rings --- yes cleaner for glass ce-

ramic or stainless

steel*

fat splashes --- yes

shiny metallic discolouration --- yes
