Advantech FWA-3033-00A1R Installation and operation manual

1U Rackmount Network Appliance with 10 GbE LAN ports and 2NMC

Slots based on Intel Coffee Lake CPU Xeon® E family and 8th/9th gen.

Intel® Core™ i7/i5/i3 processors

Before installation, ensure that the following materials have been received:

One Internet Security Platform

One box of accessories

One warranty certificate

FWA-3033-00A1R

FWA-3033L-00A1S

Main Board Functions

CPU: Intel® XeonTME-2226GE/ E-2278GE/ E-2124G/ E-2176G, 8/9th Gen Intel® CoreTM Processors I7-8700, I5-8500, I3-8100, I7-9700E,

I5-9500E, I3-9100E, Intel® Pentium® Processor G5400, Intel® Celeron® Processor G4900

Chipset: Intel® C246

Memory: 4 x DDR4 UDIMMs, 2400/2666 MHz, up to 128GB memory capacity

PCI-Express: 2 PCIe x8 Size slots for HL/FL PCIE card, one slot bandwidth is PCIEx4 Gen3, another is PCIEx2 Gen3; 1 Mini-PCIE

reserved on Riser

Network Connectivity:

NMC Modules: 2 NMC slots, with PCIe Gen3 x8 Connectivity

Management: 6-8 LAN ports onboard by 10/100/1000 Base-T Ethernet, 4 SFP ports onboard (SKU option)

Mass Storage: 2 x 3.5" internal SATA HDD/SSD, 1 x M.2 2260/2280 Slot, M-Key

Peripherals:

LCD Module: 16 x 2 graphic display, 5 buttons

Console:1 x RJ45 Console port

USB: 2 x USB3.0 Type A on Front

LAN: 6-8 x Intel i210-AT 10/100/1000 Base-T Ethernet

Power supply: 300W FSP AC and DC redundant, or 250W Delta AC single

Dimensions (W x H x D): 438 x 44 x 550 mm

Weight:15KG

Environment: Operating / Non-operating

Temperature: 0 ~ 40℃/ -40 ~ 60℃

(32 ~ 104°F) / (-40 ~ 140°F)

Humidity: 40°C @ 5 ~ 95% RH Non-Condensing

Startup manual

Part Number List

Specification

FWA-3033 Internet Security Platform

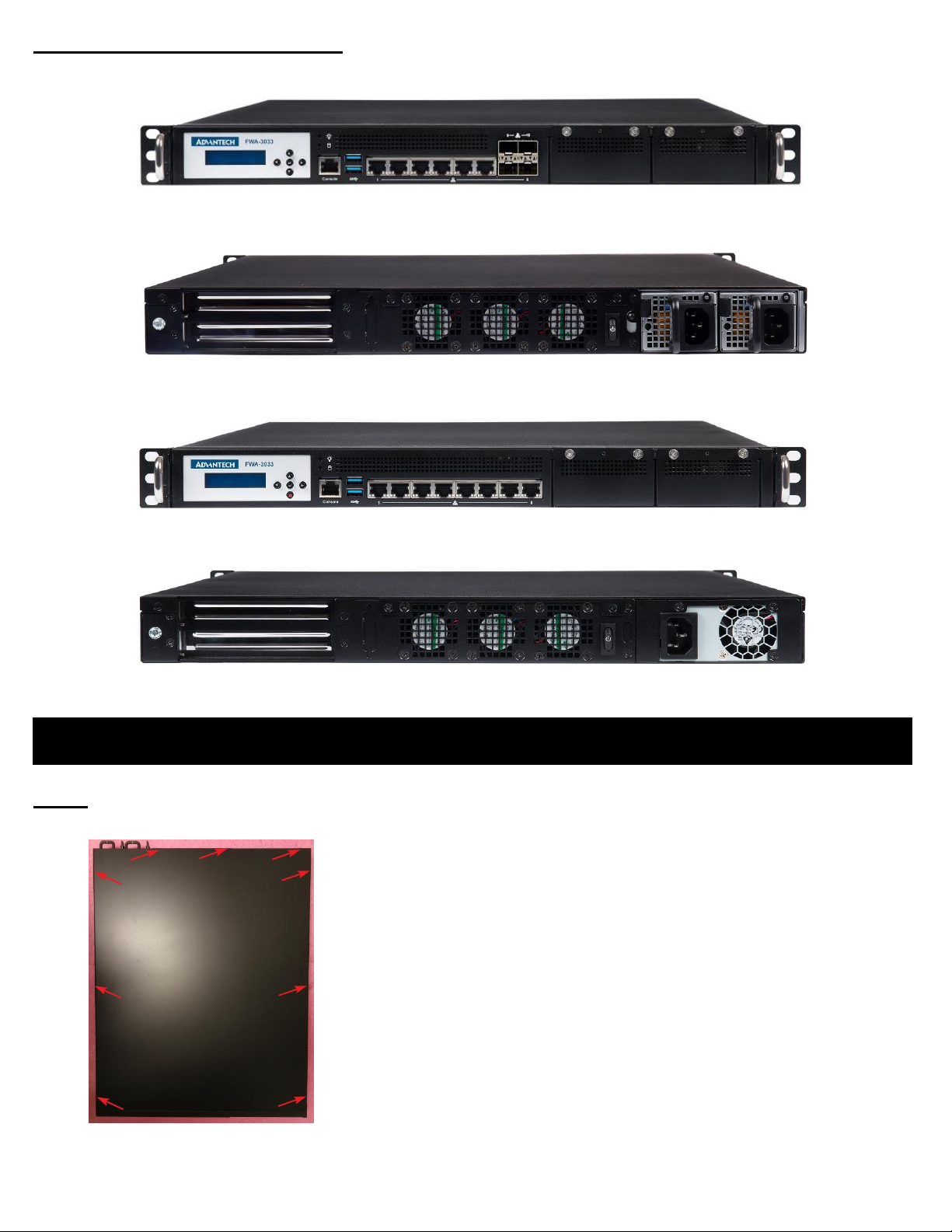

FWA-3033-00A1R Front view

FWA-3033-00A1R Back view

FWA-3033L-00A1S Front view

FWA-3033L-00A1S Back view

Set up

1. To unpack, first remove 9 screws on the side of the machine by referring to the arrows below.

Installation

Installing the CPUs

1. Taking one CPU at a time, remove the protective shield, if present, and press the load lever and move it out till it is clear of the

retention tab, and raise it.

2. Make sure that alignment triangle on the CPU lines up with the correct corner on the socket, and ease the CPU into place.

3. Close the load plate and push the load lever back down until it engages the retention tab.

Installing the heatsink and air scoop

1. Take out Heatsink, Fan cover and 4 screws from the accessory box, and attach the Fan cover and Heatsink lock together according

to the position shown by the arrow in the figure below.

2. Refer to the figure below to attach the four screws diagonally on the Heatsink to the CPU bracket, and then take out three screws

from the accessory box to attach the Fan cover to the chassis (2 silver locks on both sides, 1 black lock in the middle).

Installing the RAM

1. Insert the prepared memory into the DIMM slot, and make sure that the card hook is in place.

Installing the HDD

-The following HDD assembly model can only choose one of them

3.5’HDD Assembly

1. Remove the screw at the position shown by the arrow in the figure below and reserve it, and then remove the HDD bracket.

2. Take out the 4 teeth screws in the accessory box, and refer to the figure below to attach the 3.5 ’HDD to the bracket.

3. After installing the HDD bracket on the base, confirm that the cables at the arrows in the figure below can be pulled.

4. Use the removed 4 screws to lock the HDD bracket, and plug the SATA cable and the Power cable from the power supply to the

HDD.

2.5’HDD Assembly

If this HDD bracket needs to assemble a 2.5 ’HDD, proceed as follows.

1. Take out four yellow anti-vibration pads from the accessory box and install them in the position shown in the figure below.

2. Take out 4 screws from the accessory box and attach the HDD to the bracket with reference to the figure below.

3. Confirm that the wire at the yellow circle in the figure below can be pulled, and then fix the bracket with 4 screws removed.

4. Plug the SATA cable and the power cable from the power supply into the HDD.

Two layers of the 2.5’ HDD installation.

1. Take out and install the HDD bracket and shockproof rubber pad from the accessory box.

2. The SATA port of the HDD is placed towards the bracket without a beveled edge, as shown in the red frame below, and then

attached to the bracket with 8 screws which are taken out of the accessory box.

3. Adjust 4pin cable to the edge of the chassis (the yellow box in the figure below), and then attach the bracket to the base.

4. Connect the SATA cable and the Power cable from the power supply to the HDD.

Install M.2

1. Take out one screw from the accessory box and fix the installed M.2 lock on the silver pillar of the motherboard.

The expansion of the riser card

1. This card has a Mini PCIE and PCIE slots can be used in the extension

Mini-PCIE extension

1. Remove three screws indicated by the arrows in the figure below and pull out the card.

2. Take out the copper pillar lock from the accessory box and attach it to the riser card.

Here you can expand the half card and the full card. The half card needs to be locked with a copper post, and the long card doesn’t

need.

3. Use 1 screw taken from the accessory box to attach the half-size mini-PCIE lock to the riser card.

4. Then use three removed screws to attach the riser lock back to its original position.

PCIE extension

1. Remove 4 screws at the arrow below and remove the blanking module.

2. Remove one of the screws on the blanking module shown by the arrow in the figure below, and remove the blanking plate.

Only one PCIE card is attached here, so you only need to remove one blank.

Ful

3. Insert the expansion card (take NMC card for example) into the bracket as shown in the figure below, and lock it with the removed

screws.

4. Insert the processed network card module into the PCI-E slot, and then use the removed four screws to lock the bracket in the

position shown by the arrow in the figure below.

If you install two expansion cards, you need to confirm whether the pins of the lower expansion card touch the base. If so, you need

to do insulation treatment before installing.

Installing HDD

-If the riser card position need to install the HDD, you need to remove the riser card first

1. Refer to the figure below to remove three screws at the arrow and pull out the card.

2. Remove the copper post from the accessory box and lock it on the base chassis.

3. Take out six anti-vibration washers and HDD brackets from the accessory box, and install them in the positions shown by the arrows

in the figure below.

4. Take out six screws from the accessory box, and attach the 3.5 ’HDD to the bracket with reference to the arrow position in the figure

below.

5. Take out 4 screws from the accessory box and lock the HDD bracket in the chassis.

6. Take out two cables from the accessory box. Refer to the figure below, connect the SATA power cable to the power 4pin connector

pointed by the arrow, and connect the cable along the dotted line to the HDD; One end of the SATA data cable is connected to the

motherboard, and another end connect to the HDD.

7. Attach the Fan cover to the base, and arrange the extra SATA Power cable.

Installing the NMC

1. Remove the NMC blank by turning the screw in the direction of the arrow as shown below.
