Advantech IPC-622MS User manual

IPC-622MS

Industrial PC Chassis

All manuals and user guides at all-guides.com

This document is copyrighted, January 1999 , by Advantech Co., Ltd. All rights are reserved. Advan-

tech Co., Ltd. reserves the right to make improvements to the products described in this manual at any

time without notice.

No part of this manual may be reproduced, copied, translated or transmitted in any form or by any

means without the prior written permission of Advantech Co., Ltd. Information provided in this manual

is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its

use, nor for any infringements of the rights of third parties which may result from its use.

Acknowledgments

IPC-622MS, PCA-6119P17 is a trademark of Advantech Co., Ltd.

NOTE:

The information in this document is provided for reference only. Advantech does not assume any liability arising

out of the application or use of the information or products described herein. This manual is subject to change

without notice.

Part No. 2002062200 1st Edition

Printed in Taiwan 1 February 1999

All manuals and user guides at all-guides.com

Contents

Chapter 1 General Information .................................................... 1

1.1 Introduction................................................................................................................. 1

1.2 Specifications ............................................................................................................ 1

1.3 Dimensions................................................................................................................ 2

Chapter 2 System Setup ............................................................................3

2.1 Remove thecover ...................................................................................................... 3

2.2 Removing thehandles ................................................................................................ 4

2.3 Replacing thefilter...................................................................................................... 4

2.4 Installing thediskdrives.............................................................................................. 5

2.5 Cable wiring schematic .............................................................................................. 6

2.6 Cable wiring schematic .............................................................................................. 7

2.7 Therubber forcard vibrationdamped......................................................................... 8

Chapter 3 Fault Resilient Function ...........................................................9

3.1 Introduction................................................................................................................. 9

3.2 Faultdetection andalarmnotification ......................................................................... 9

3.3 Visible alarm and audible alarm ............................................................................... 10

3.4 Overheating sensor .................................................................................................. 10

Appendix A. Passive Backplane .................................................................................... 11

Appendix B. Exploded Diagram..................................................................................... 12

AppendixC. Safety Instructions...................................................................................... 14

AppendixC. Safety Instructions...................................................................................... 15

All manuals and user guides at all-guides.com

IPC-622MS User's Manual 1

Chapter 1 General Information

1.1 Introduction

The IPC-622MS is a 20-slot, 19" rackmount industrial PC chassis with 400-watt AC-DC power supply.

IPC-622MS features an advanced fault detection and alarm notification system to monitor its own

hardware status, including overheating and fan-failure problems. It is dangerous and will cause a lot of

loss if your PC system shuts down without any warning in advance. IPC-622MS , the fault resilient IPC,

is designed to prevent from this situation to be more relibile.

The IPC-622MS will withstand shock, vibration, dust and a wide range of operating temperatures in

harsh environments. The chassis is positively pressurized by six filtered push-pull cooling fans to exclude

dust and dirt. A lockable door protects drives and switches from tampering and particles.

1.2 Specifications

General

Construction: Heavy-duty steel

Disk drive capacity: Six 3.5" disk drives

Cooling system: Four 49 CFM cooling fan (flow in) in front and two 49CFM coolomg fans (flow

out) in rear panel with an air filter

Controls: Power On/Off switch, CPU reset and alarm reset button are protected by a lockable door

Indicators: LEDs for power On/Off and HDD activity. Bi-color LEDs(green and red) for fan failure

failure and overheating

Speaker: One 8 ohm / 0.2Watt speaker, volumn control on board

Dimensions: 19" (W) x 10.5" (H) x 18" (D)

482mm(W) x 267mm(H) x 457 mm(D)

Weight: 66 lb (30 Kg)

Paint color: Pantone 414U

Passive Backplane (PCA-6119P17)

Slots: 17PCI / 1PICMG -slot

PC board: 4-layer PCB with ground and power planes for reduced noise and lower power

supply impedance

Indicators: LEDs for +5 V, -5 V, +12 V and -12 V

All manuals and user guides at all-guides.com

2IPC-622MS User's Manual

1.3 Dimensions Unit = mm

400-watt AC-DC Power Supply

Output rating: 400 watts (Max.)

Input voltage: 100 to 130 VAC or 200 to 260 VAC @ 47~63 Hz, switchable

Output voltages: +5 V @ 40 A, +12 V @ 20 A, -5 V @ 0.5 A, -12 V @ 1 A

Maximun power output of all outputs combined must not exceed 400watts

Minimum load: +5 V @ 3 A, +12 V @ 0.5 A

MTBF: 150,000 hours

Safety: UL/CSA Approved

Environmental Specifications

Operating temperature: 41 to 95oF (5 to 35oC), Relative humidity : 10 to 85% @ 35oC

Storage Temperature : -13 to 140oF (-25 to 60oC), 0 to 95% relative humidity

Safety: UL / C-UL Listed

EMI: FCC Class A

Fault Detection and Alarm Notification

Fan failure: If either of the four cooling fans fails, the FAN LED changes color from green to red

also audio alarm. The dedicated LED remains red for failed fan set until it fixed.

High Temperature: If the chassis interior temperature exceeds 55oC(131oF)(standard setting), the

LED changes color from green to red also audio alarm.

All manuals and user guides at all-guides.com

IPC-622MS User's Manual 3

2.1 Remove the cover

Chapter 2 System Setup

Setting up your IPC-622MS requires only a screwdriver and a small amount of time. Before you begin,

you should also gather together all of the cards you plan to install, as well as the disk drives you plan

to use.

The lockable door is located on the lower chassis front cover providing access to the control panel. This

offers protection and for disk drive and air filter against damage and easily access. The control panel

functions include Power on/off switch , CPU reset switch and alarm reset switch and five LED

indicators to assist in monitoring system status. On the rear panel there is a Ground point (earthing point)

located on the bottom right hand corner. This provides an earth for the whole system and is attached via

a screw.

WARNING:Disconnect all power from the chassis before you install

the CPU cards. Unplug the power cord from the wall,

don't just turn off the power switch. If you are not sure

what to do, take the job to an experienced professional.

CAUTION:When pull-out the disk drive, it will cause the IDE / SCSI drives'

cable wiring disconnected. Be sure all the cables are well-con-

nected before slide back the disk drive bay.

2.1 Remove the cover

There are screws near the top along the sides secure the cover to the chassis. Remove them, and then

slide the cover toward the rear chassis. See figure 2.1 below:

All manuals and user guides at all-guides.com

4IPC-622MS User's Manual

2.2 Remove the handles

The handles and mounting ears for the front panel can be removed as follows. Please see figures 2.2

below

2.2 Removing the handles

2.3 Replacing the filter

The filter is located on the front upper chassis. Under continuous use, the filter should be replaced

about once a month. To replace the filter, refer to figure 2.4 below and do as the following steps :

1. Unscrewing the four thumb screws.

2. Take out the old filter and replace it with a new filter.

3. Fix it by thumb screw.

2.3 Replacing the filter

All manuals and user guides at all-guides.com

IPC-622MS User's Manual 5

2.4 Removing the disk drive bay

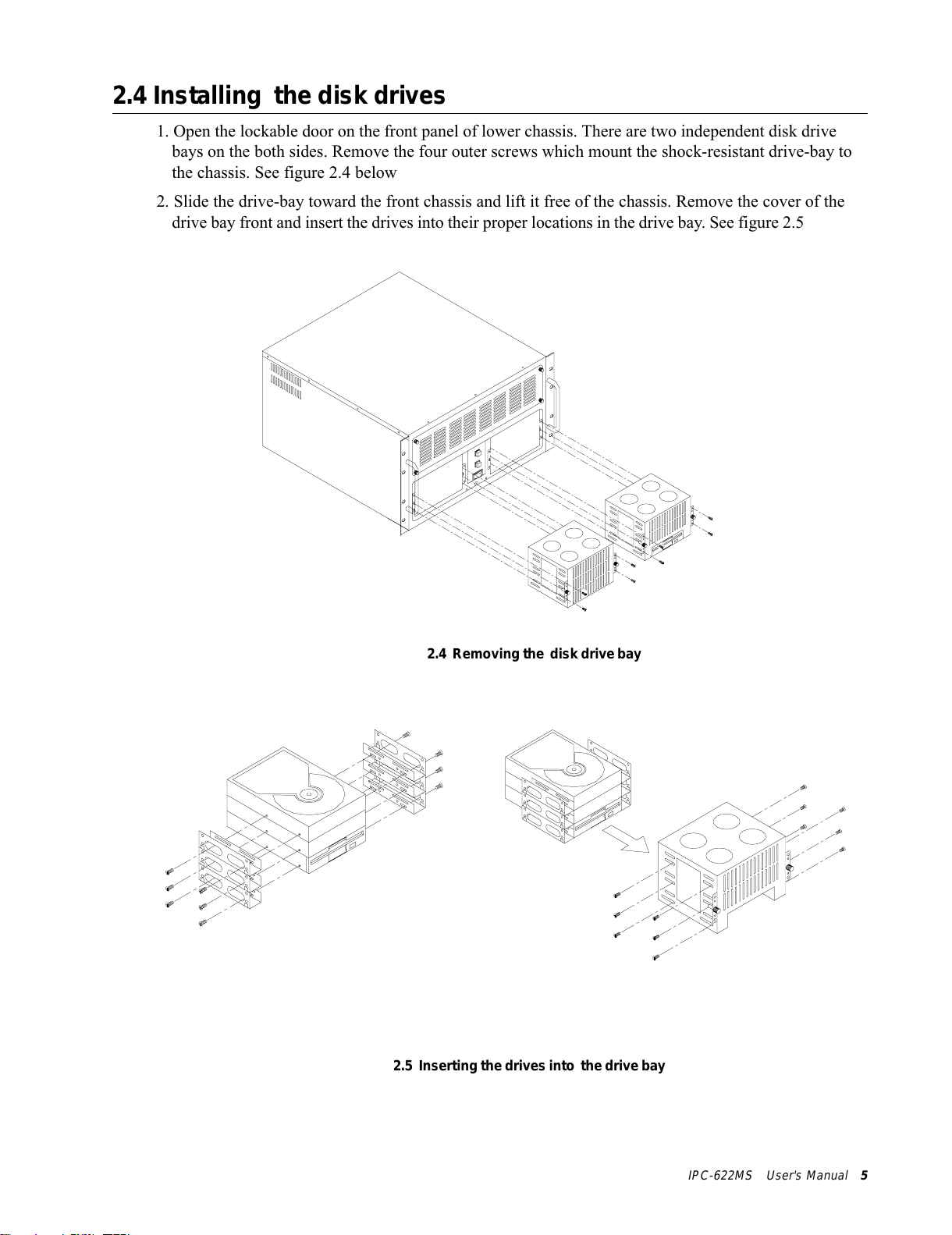

2.4 Installing the disk drives

1. Open the lockable door on the front panel of lower chassis. There are two independent disk drive

bays on the both sides. Remove the four outer screws which mount the shock-resistant drive-bay to

the chassis. See figure 2.4 below

2. Slide the drive-bay toward the front chassis and lift it free of the chassis. Remove the cover of the

drive bay front and insert the drives into their proper locations in the drive bay. See figure 2.5

2.5 Inserting the drives into the drive bay

All manuals and user guides at all-guides.com

6IPC-622MS User's Manual

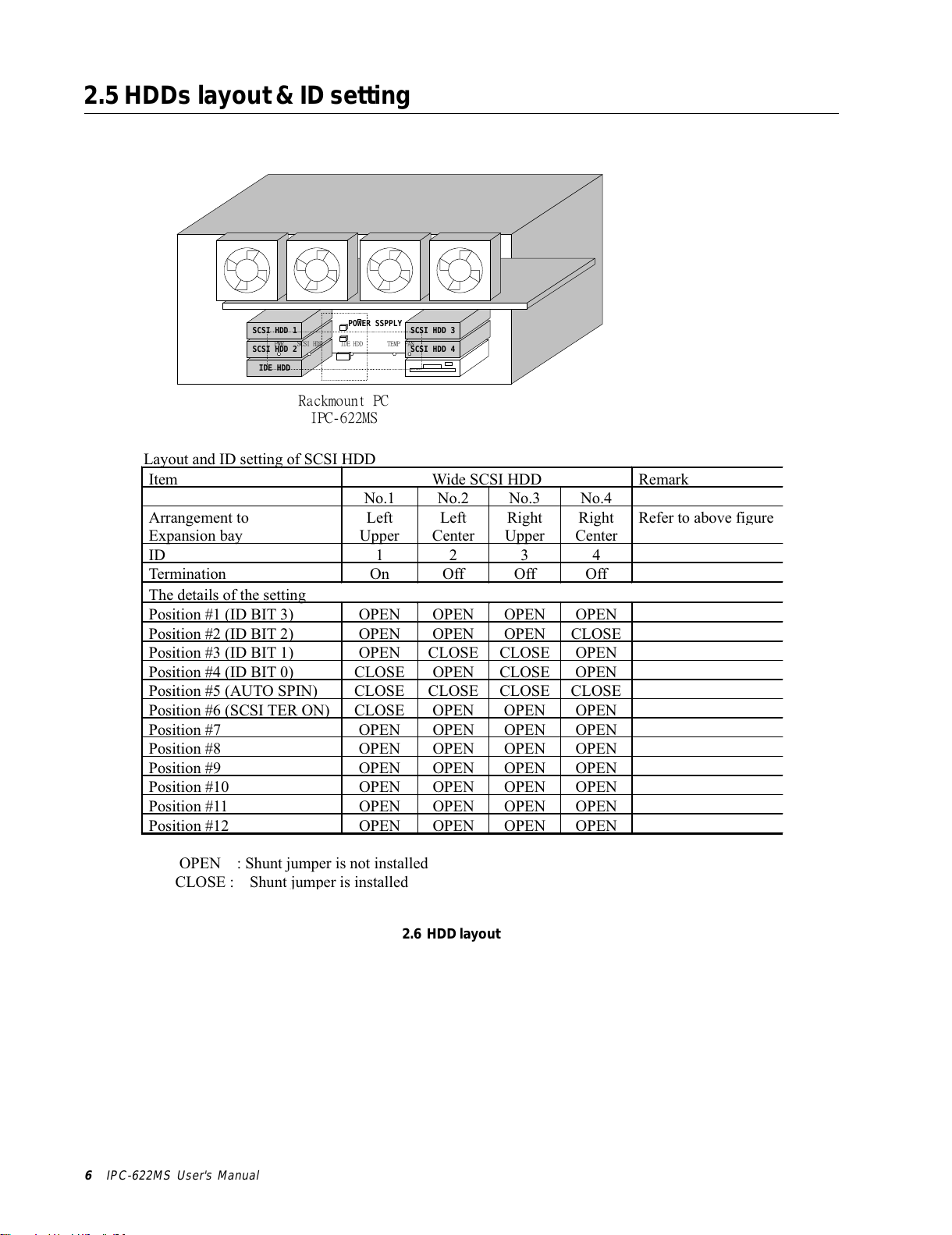

2.5 HDDs layout & ID setting

POWER SSPPLY

IDE HDD

SCSI HDD 2

SCSI HDD 1

SCSI HDD 4

SCSI HDD 3

FANTEMPPWR IDE HDDSCSI HDD

Rackmount PC

IPC-622MS

Layout and ID setting of SCSI HDD

Item Wide SCSI HDD Remark

No.1 No.2 No.3 No.4

Arrangement to

Expansion bay

Left

Upper

Left

Center

Right

Upper

Right

Center

Refer to above fi

ure

ID 1 2 3 4

Termination On Off Off Off

The details of the setting

Position #1 (ID BIT 3) OPEN OPEN OPEN OPEN

Position #2 (ID BIT 2) OPEN OPEN OPEN CLOSE

Position #3 (ID BIT 1) OPEN CLOSE CLOSE OPEN

Position #4 (ID BIT 0) CLOSE OPEN CLOSE OPEN

Position #5 (AUTO SPIN) CLOSE CLOSE CLOSE CLOSE

Position #6

(

SCSI TER ON

)

CLOSE OPEN OPEN OPEN

Position #7 OPEN OPEN OPEN OPEN

Position #8 OPEN OPEN OPEN OPEN

Position #9 OPEN OPEN OPEN OPEN

Position #10 OPEN OPEN OPEN OPEN

Position #11 OPEN OPEN OPEN OPEN

Position #12 OPEN OPEN OPEN OPEN

OPEN : Shunt jumper is not installed

CLOSE : Shunt

er is installed

2.6 HDD layout

All manuals and user guides at all-guides.com

IPC-622MS User's Manual 7

2.6 Cable wiring schematic

The following picture is the cable schematic for IPC-622MS.

2.7 Cable schematic
