Advantech IPC-601-SCA User manual

IPC-601-SCA

1Ue-ServerChassis

This document is copyrighted, November 2000, by Advantech Co.,

Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to

make improvements to the products described in this manual at any

time without notice.

No part of this manual may be reproduced, copied, translated, or

transmitted in any form or by any means without the prior written

permission of Advantech Co., Ltd. Information provided in this

manual is intended to be accurate and reliable. However, Advantech

Co., Ltd. assumes no responsibility for its use, nor for any infringe-

ments of the right of third parties which may result from such use.

Acknowledgments

IPC-601 and PCA-6102P1V are trademarks of Advantech Co., Ltd.

Note: The information in this document is provided for

reference only.Advantech does not assume any

liability arising out of the direct or indirect use of the

informationor productsdescribedherein.This

manual is subject to change without notice.

PartNo.2002060100

1st Edition Printed in Taiwan Nov. 2000

Contents

Chapter 1 Introduction..........................1

1.1 Introduction.....................................................................2

1.2 Specifications..................................................................2

1.3 Dimensions......................................................................4

Chapter 2 System Setup.......................5

2.1 Removing the Cover........................................................6

2.2 Installing CPU and Add-on Cards.................................7

2.3 Replacing the Fan...........................................................8

2.4 Adding Disk Drives.........................................................8

Appendix A Passive Backplane.......13

Appendix B Alarm Board...................15

Appendix C SCA-2 Backplane..........17

Appendix D Exploded Diagram........19

Appendix E Safety Instructions........21

E.1 English............................................................................21

E.2 German - Wichtige Sicherheishinweise.................... 22

Introduction

This chapter gives background informa-

tionon theIPC-601-SCA.

Sections include:

• Introduction

• Specifications

• Dimensions

CHAPTER

2IPC-601-SCA User's Manual

1.1 Introduction

The IPC-601-SCA is a 1U high, rack-mount e-Server chassis for high-

density internet services. Engineered for service providers and

enterpirses, the IPC-601-SCA's rack-mount 1U form factor is best for

stacking servers as services grow. The IPC-601-SCA is designed to

accommodate PICMG passive backplane and full-sized CPU card

configurations to provide flexibility with high reliability. With various

CPU cards configuration options, the IPC-601-SCA provides flexibility

and high performance at the same time.

1.2 Specifications

•Construction:Heavy-duty steel

•Disk drive capacity: Three optional hot-swap hard disc drive space

and one slim-type CD-ROM disk drive and one slim-type floppy disk

drive.

•Indicators:LEDs for powerOn/Off,HDD and alarm

•Controls: Momentary power switch and alarm reset switch on front

panel

•Coolingfan: Three 7 CFM cooling fans, 21 CFM in total

•Weight: 8kg (17.6 lbs)

•Dimensions(WxDxH): 482x610x44mm(19"x 24" x 1.7")

•Interiorpaintcolor: Black2U2X; Fabric Texture

Passive backplane (PCA-6102P1V)

•Slots:One PICMG slot for full-sized CPU card, and one PCI slot for

expansion

•PCboard: 4-layer PCB with ground and power planes for reduced

noise and low power-supply impedance

•Dimensions:313x38mm(12.3"x1.5")

Chapter 1 Introduction 3

Power supply

•Outputrating:320wattsmax.

•Inputrating:115/230VAC,50/60Hz,auto-switch

•Outputvoltage:+3.3V@ 20 A,+5V@32A,+12 V @12A,-5V@

0.5A, -12V @0.5 A, +5 Vsb @2 A

•Minimumload:+5V@1.0A

•MTBF:50,000 Hours @70% load

•Safety:UL/CUL/CE

Environmental specifications

•Operatingtemperature:0~45° C (32~113°F)

•Relativehumidity: 10~ 95% @40° C,non-condensing

•Safety:UL /CE approved

•CE compliant

4IPC-601-SCA User's Manual

1.3 Dimensions

Unit: mm

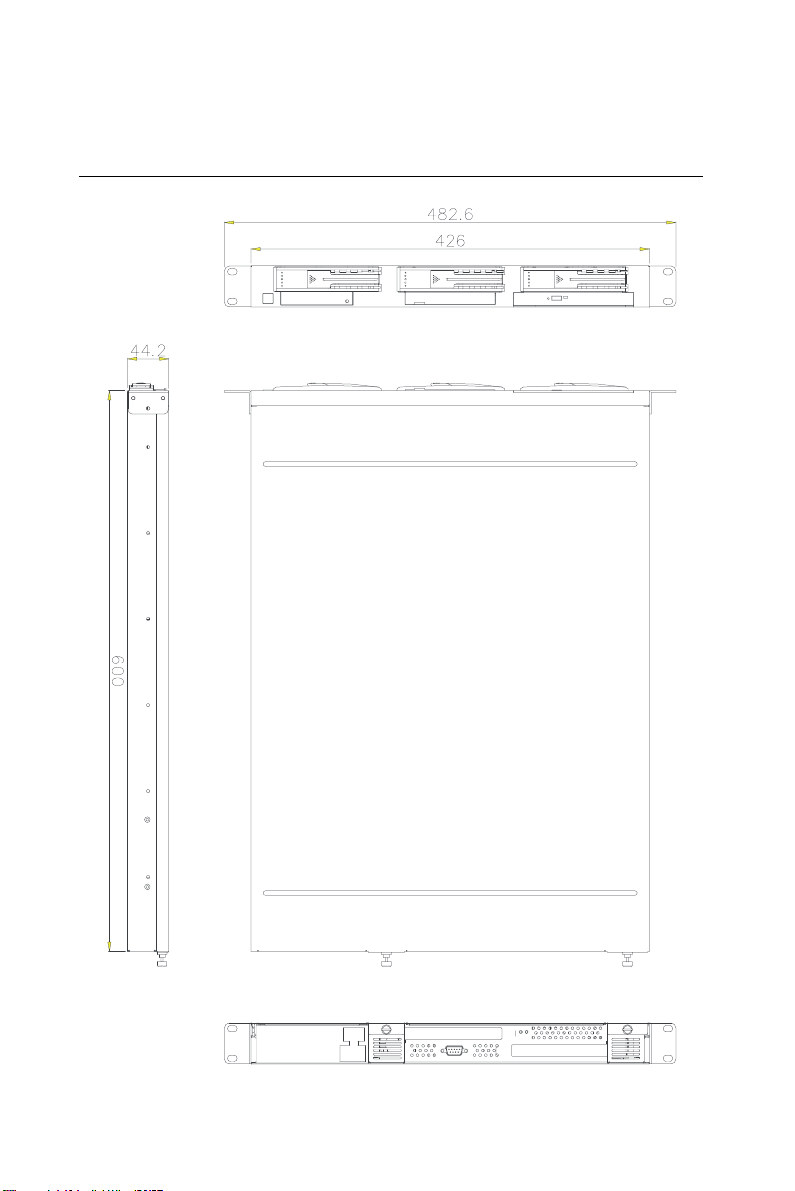

Figure 1-1: IPC-601-SCA dimensions

Chapter 2 System Setup

CHAPTER

System Setup

The following procedures are provided

to assist you in setting up the IPC-601-

SCA

IPC-601-SCA User's Manual

2.1 Removing the Cover

1. Unscrew the screws at the rear side of the upper cover.

2. Slide the upper cover backwards.

3. Lift up the upper cover.

Please refer to the Figure 2-1 below for illustration.

Figure 2-1: Upper cover removing
