ADTRAN NetVanta 950 IAD User manual

Technical Support 1-888-4ADTRAN (1-888-423-8726)

NetVanta 950 IAD

(with Octal FXS/FXO, Octal Ethernet, and T1/V.35 Modules)

Quick Configuration Guide 61200788L1-42A November 2004

• A PC with a web browser and network connection and/or VT100 terminal software for

connecting to the unit.

• DB-9 (male) to DB-9 (female) straight-through serial cable for configuring the unit.

• Appropriate cable(s) for connecting the system to the existing network

Equipment Required

The configuration sections of this quick configuration guide are formatted to provide both

step-by-step text descriptions and screen shots. The configuration scripts for the command

line interface are available on the ADTRAN OS Documentation CD.

The configuration parameters used in the example outlined in this document are for

instructional purposes only. Please replace all bold underlined entries (example) with your

specific parameters to configure your application.

Network Diagram

NetVanta 950

Battery Backup

2 T1s

10/100BaseT

Analog Phones

and Fax

2 Technical Support 1-888-4ADTRAN (1-888-423-8726) 61200788L1-42A

You can access your NetVanta 950 IAD in two ways in order to configure it:

(1) through the web-based GUI, or (2) through the ADTRAN Operating System Command Line

Interface (AOS CLI). Refer to the AOS CLI on page 15.

The web-based GUI is an online configuration tool that allows you to easily configure and view

the main settings and the status of your system. However, use of the AOS CLI may be necessary

for more advanced operations. Access the CLI via the CONSOLE port or a Telnet session. Refer

to the AOS CLI on page 15.

1. Connect the PC with a web browser to the NetVanta 950 IAD ETHERNET 0/1 port on the

front panel of the controller module.

2. Insert the connector of the provided power cord into the power interface on the side panel of

the unit, and plug the cord into a standard electrical outlet.

3. Change the IP address of the PC to 10.10.10.2. The Netvanta 950 IAD default IP address is

10.10.10.1.

4. Enter the IP address in your Internet browser Address field. The default IP address is

10.10.10.1.

5. Once you are connected, you will be prompted to enter the username and password. The

default settings are admin and password.

Connect to the NetVanta 950 IAD

Web-Based GUI

You may use a straight-through cable since the NetVanta 950 supports auto MDI-MDIX

crossover.

If you cannot change the PC’s IP address, refer to Configure the Ethernet Interface on page

15 to change the IAD’s IP address.

61200788L1-42A Technical Support 1-888-4ADTRAN (1-888-423-8726) 3

6. The initial GUI screen appears.

4 Technical Support 1-888-4ADTRAN (1-888-423-8726) 61200788L1-42A

1. Click on IP Interfaces on the left side of your screen.

2. Next, click on Default (located under IP Interfaces).

Configure the Ethernet Interface

61200788L1-42A Technical Support 1-888-4ADTRAN (1-888-423-8726) 5

3. Change the default IP address and subnet mask.

4. Click on Apply to accept the new settings.

You will lose your connection to the unit once you click Apply. The browser must be

reopened using the new IP address to access the unit.

You must click Save to write the new settings into NVRAM (refer to Save the

Configuration on page 19).

6 Technical Support 1-888-4ADTRAN (1-888-423-8726) 61200788L1-42A

1. Click on Physical Interfaces on the left side of you screen.

2. Click on t1 0/1 to select the T1 interface.

Connect to and Configure Interfaces

61200788L1-42A Technical Support 1-888-4ADTRAN (1-888-423-8726) 7

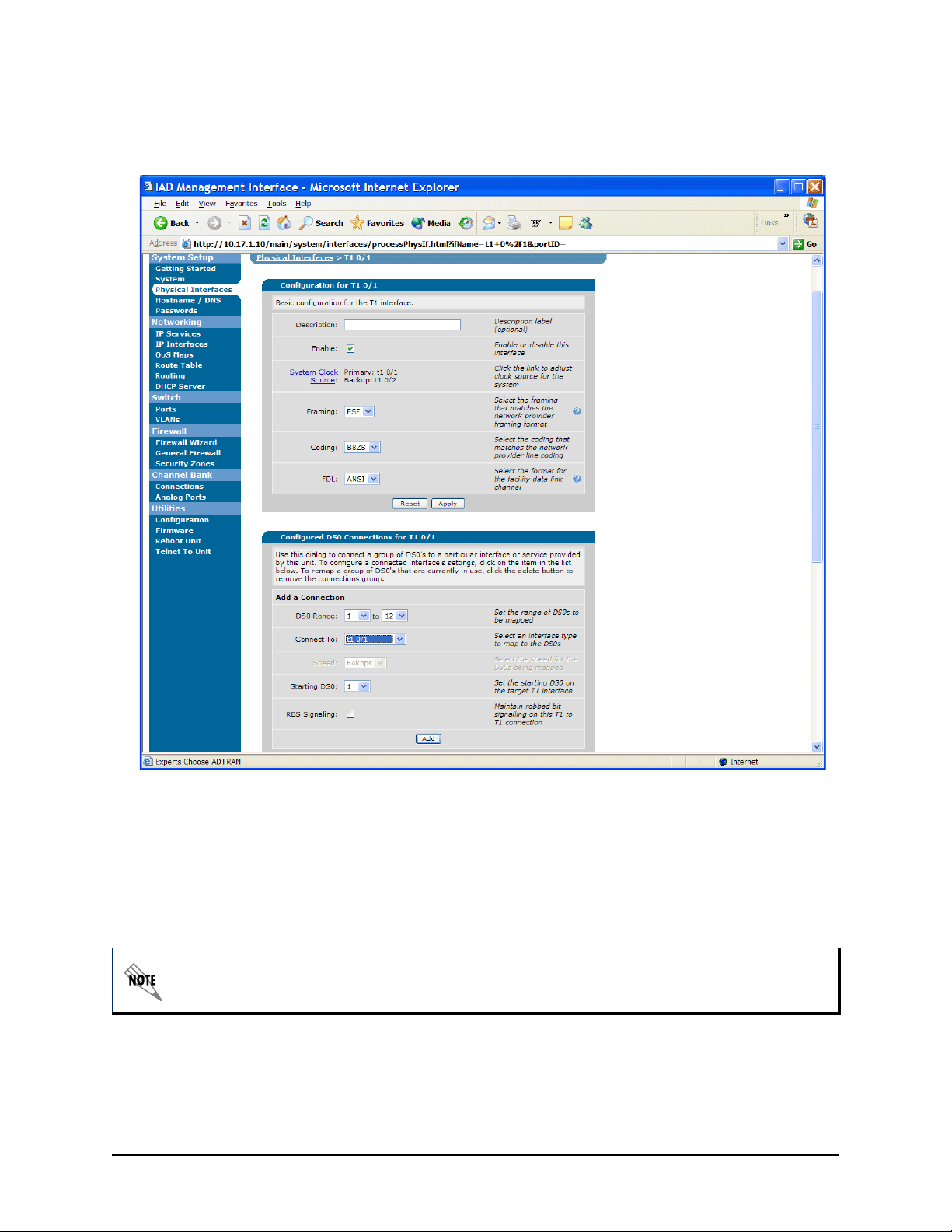

3. From this screen, you can use the Configured DS0 Connections box to create a connection

from any DS0 on this T1 port to a virtual or physical interface.

4. Select the range of DS0s and the destination interface from the pull-down menu.

5. Optional: Specifying the Starting DS0 and RBS Signaling (RBS is optional and is used for

robbed-bit signaling with voice applications).

6. Click on Add to create the connection.

7. Once the connection has been created, the Web GUI forwards you to the configuration page

for the selected interface (refer to the configuration examples on pages 8 through 14).

The new connection should appear at the bottom of the Configured DS0 Connections box. If

not, please refer to the error message and correct the settings.

8 Technical Support 1-888-4ADTRAN (1-888-423-8726) 61200788L1-42A

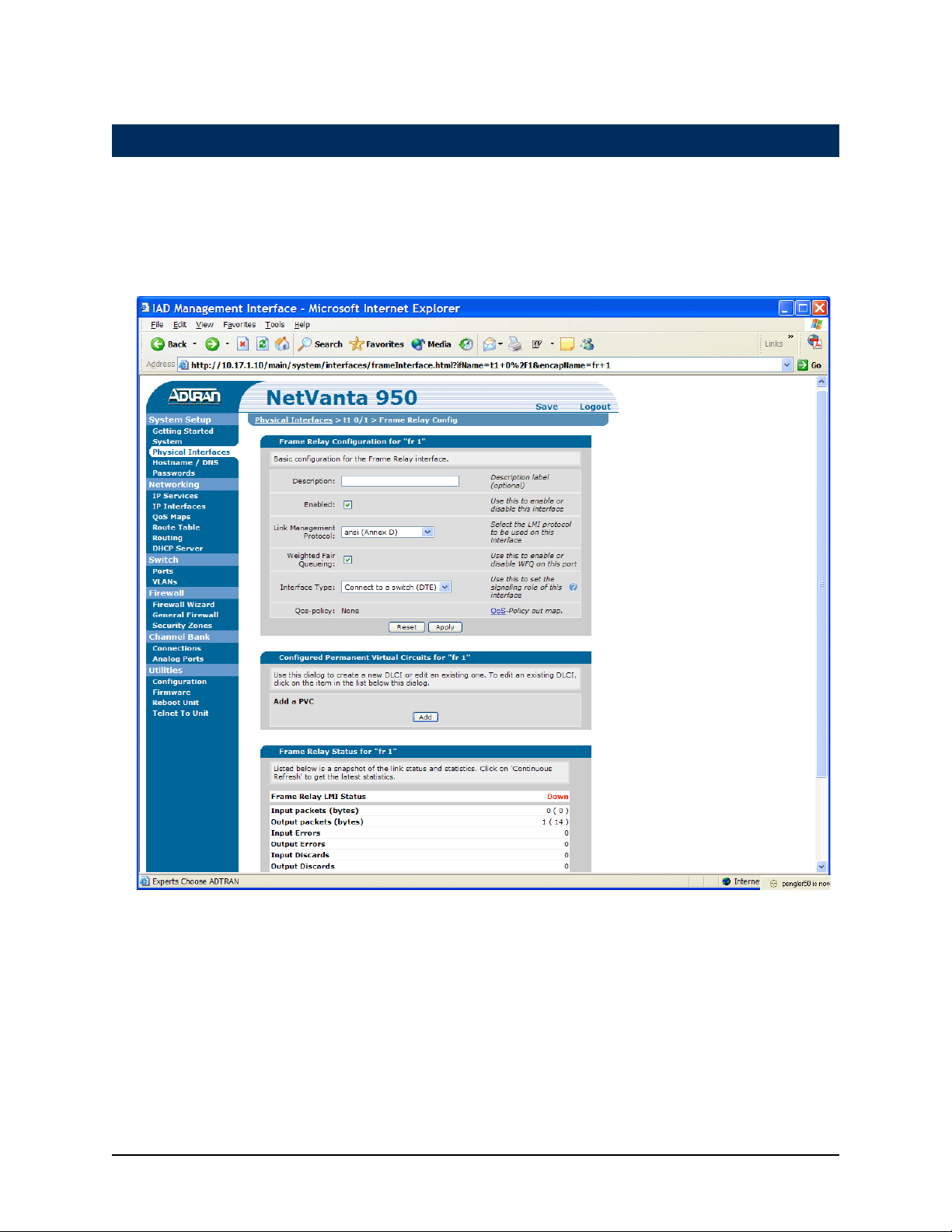

1. Use the screen below to edit the settings of your Frame Relay interface, add PVCs, and

check the status of the interface.

2. Click on Apply to accept the current configuration changes.

3. Click on Add at the bottom of this screen to access the PVC’s DLCI configuration.

Virtual Frame Relay Configuration

61200788L1-42A Technical Support 1-888-4ADTRAN (1-888-423-8726) 9

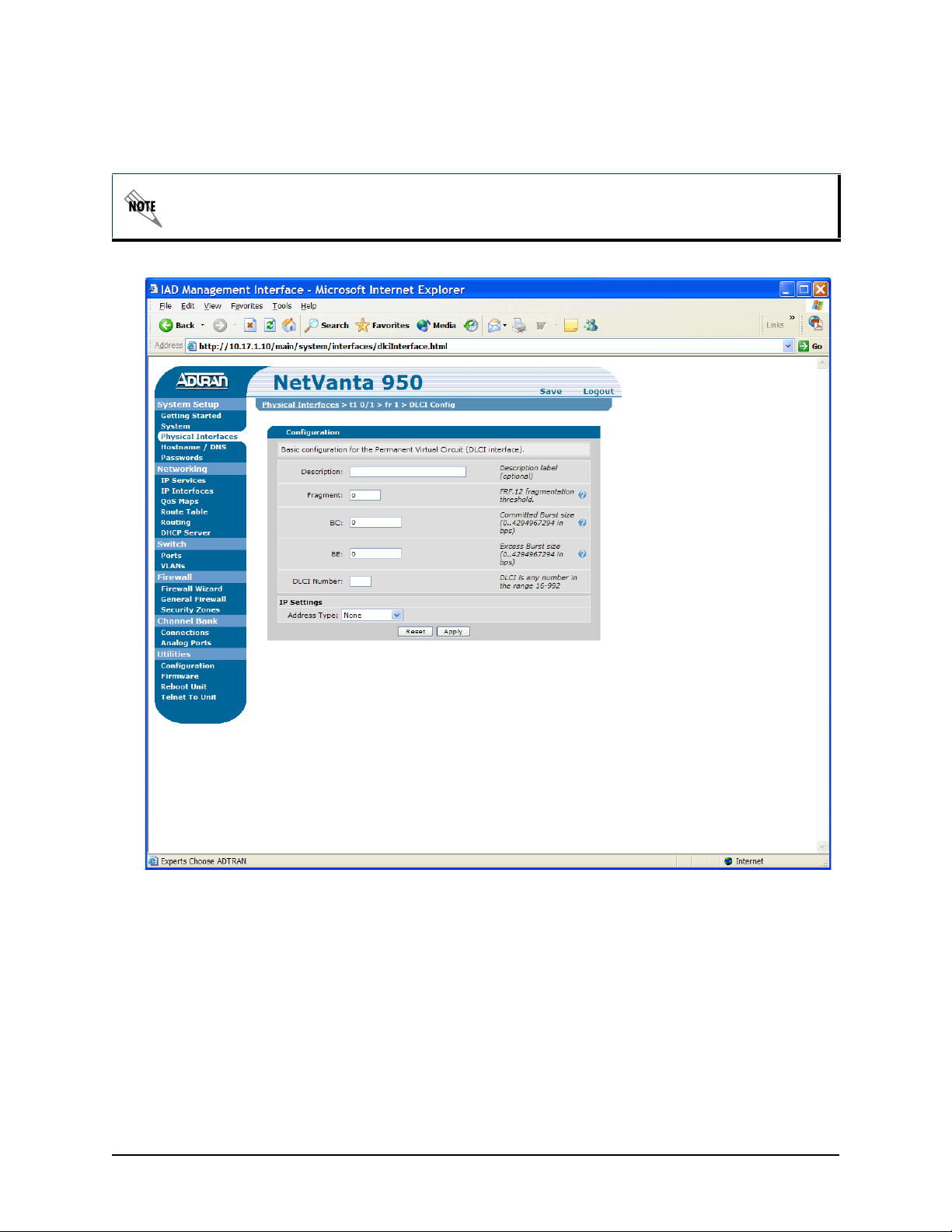

4. Use this page to edit the settings of a DLCI on a PVC.

5. Click on Apply to accept the current configuration changes.

Click Save to write the new settings into NVRAM (refer to Save the Configuration on

page 19).

10 Technical Support 1-888-4ADTRAN (1-888-423-8726) 61200788L1-42A

1. Use the screen below to edit the settings on an FXS interface.

2. Click on Apply to accept the current configuration changes.

FXS Interface Configuration

You must click Save to write the new settings into NVRAM (refer to Save the Configuration

on page 19).
