Configuring NetVanta 2054 for Internet Access

The NetVanta 2054 provides all of the functionality required for servicing Internet

Access to a private network, including Ethernet Connectivity, built-in Switch, Firewall,

and Network Address Translation (NAT).

Overview

The NetVanta 2054 is a standalone Internet Access device for small private networks.

The NetVanta 2054’s Public interface is connected to an Internet Access Ethernet

connection. The NetVanta 2054’s four port switch provides connectivity for the private

network. The four port switch can be directly connected to hosts in the private network,

or to an external switch (such as the NetVanta 1224) to expand the number of available

switch ports.

Requirements

The NetVanta 2054 requires an Ethernet interface connection; T1 and other non-Ethernet

interfaces cannot be connected directly to the NetVanta 2054.

Software Requirements

•Modern Web Browser for access to the Web Interface

oExamples: Internet Explorer 5 or Higher, Mozilla Fire-Fox 1.0 or Higher

Hardware Requirements

•NetVanta 2054 and Power Adapter

•Two Ethernet Straight Through Cables

•Ethernet Internet Access Point

oExample: ADSL Modem, Cable Modem or Ethernet Fiber Converter

oADSL Modems must be set to “Bridge Mode” before configuring the

NetVanta 2054; NetVanta 2054 will Terminate the PPPoE Connection

Information Requirements

•Public IP Type

oStatic or Dynamically Assigned?

•Private Network Subnet

oExample: 10.10.10.0/24

Network Diagram

This example uses an external ADSL Modem for Internet Access. The ADSL Modem is

set for “Bridge Mode”; please consult the ADSL Modem’s documentation or your service

provider for information explaining ADSL bridge mode. The ADSL Modem’s private

Ethernet interface is connected to the NetVanta 2054’s Public Interface. The NetVanta’s

first switch port (Eth 0/2) is connected to a computer that will be used for configuration.

The following settings will be used for this example. You should evaluate your own

needs, and apply your own settings as necessary.

Option Setting Note

Public IP Address (Mask) 5.5.5.5 (255.255.255.252) Your ISP Will Assign

Private IP Address (Mask) 10.10.10.1 (255.255.255.0) Your LAN Network

Public Interface Mode PPPoE Example for ADSL

Configuring via the Web Interface

The NetVanta 2054 has a Web Interface that can be used to complete Internet Access

configuration. The NetVanta 2054’s factory default configuration has an IP Address of

10.10.10.1 applied to its Private interface. You can connect a computer with an IP

Address of 10.10.10.2 to any of four switch ports. To access the Web Interface, connect a

computer with an IP Address of 10.10.10.2 to any of the four switch ports, and enter the

following URL in the address bar of a web browser.

Web Interface Access URL: http://10.10.10.1

Username: admin

Password: password

Resetting the NetVanta 2054:

If you are unable to connect to the Web Interface using the instructions above, the

NetVanta can be reset to its factory default configuration. To reset the NetVanta follow

these instructions:

1) Power on the NetVanta 2054 and let sit for 60 seconds

2) Using a Ball Point Pin, press the reset button

a. Located between the Eth 0/1 and Console Port

3) Hold the button for exactly 45 seconds

4) After 45 seconds the unit should reboot

a. Indicated by flashing all lights on the front of the unit

5) Release the button immediately after reboot

The NetVanta 2054 is now reset to its factory default configuration, with an IP Address

of 10.10.10.1 on its Private Interface.

Configuring the Public Interface:

1) Click ‘Public Interface’ to access the configuration page for the Public Interface.

2) Set ‘Speed/Duplex’ to ‘Auto’.

3) Set ‘Interface Mode’ as needed. If you are using an ADSL line, or your provider

informs you that the NetVanta 2054 will terminate a PPPoE connection, choose ‘PPPoE’.

Otherwise choose ‘IP Routing’.

a. For PPPoE, set ‘Sent Authentication Type’ as necessary. Only your

provider can tell you the correct type. Your provider may refer to this as

the “Authentication Method”. If your provider does not require

authentication for PPPoE, choose ‘None’.

b. For PPPoE, set ‘Sent Username’ and ‘Sent Password’ as necessary.

Only your provider can tell the correct settings.

4) Set ‘Address Type’ as necessary. Choose ‘Negotiated’ or ‘DHCP’ if your provider

will dynamically assign you an address. Choose ‘Static’ if your provider has given you a

Public IP address that will never change, and the provider is not going to dynamically

assign that address.

a. For Static, enter the appropriate ‘IP Address’ and ‘Subnet Mask’ as

given to you by your ISP.

b. For Static, enter the appropriate ‘Default Gateway’. Your provider may

refer this to as the ‘ISPs Address’.

c. For Negotiated, check the ‘Default Route’ option.

5) If you have multiple Public IP Addresses that you would like to use, add them as

Secondary IP Addresses. Click “Add a New Secondary IP Address” and enter the

settings for a single secondary address. Repeat for additional addresses.

6) Click ‘Apply’

Configuring the Private Interface:

If you are establishing a new private network, or you do not have a preference for the IP

Subnet used in your Private network, skip to “Configuring the Firewall and NAT”.

7) Click ‘Private Interface’.

8) Set ‘Address Type’ to ‘Static’.

9) Enter the appropriate ‘IP Address’ and ‘Subnet Mask’.

This IP Address will be the Default Gateway for all hosts on your Private Network.

10)Click ‘Apply’.

Configuring the Firewall and NAT

Note: running the ‘Firewall Wizard’ completely erases all prior Firewall and NAT

settings. Fore more information about ‘Port Forwarding’ please consult the guide titled

“Configuring Port Forwarding in AOS”.

11) Click ‘Firewall Wizard’. This wizard will establish all firewall and NAT settings

required to access the Internet from your Private LAN via the NetVanta 2054.

12) Read the ‘Welcome’ Message and click ‘Next’.

13)Select the ‘Public Interface’ and click ‘Next’.

14)Select ‘No, I do not …’ and click ‘Next’. For more information about Port

Forwarding, consult the guide “Configuring Port Forwarding in AOS”.

15)Review the ‘Confirm Settings’ page, and click ‘Finish’.

Saving the Configuration:

It is important that you save your configuration!

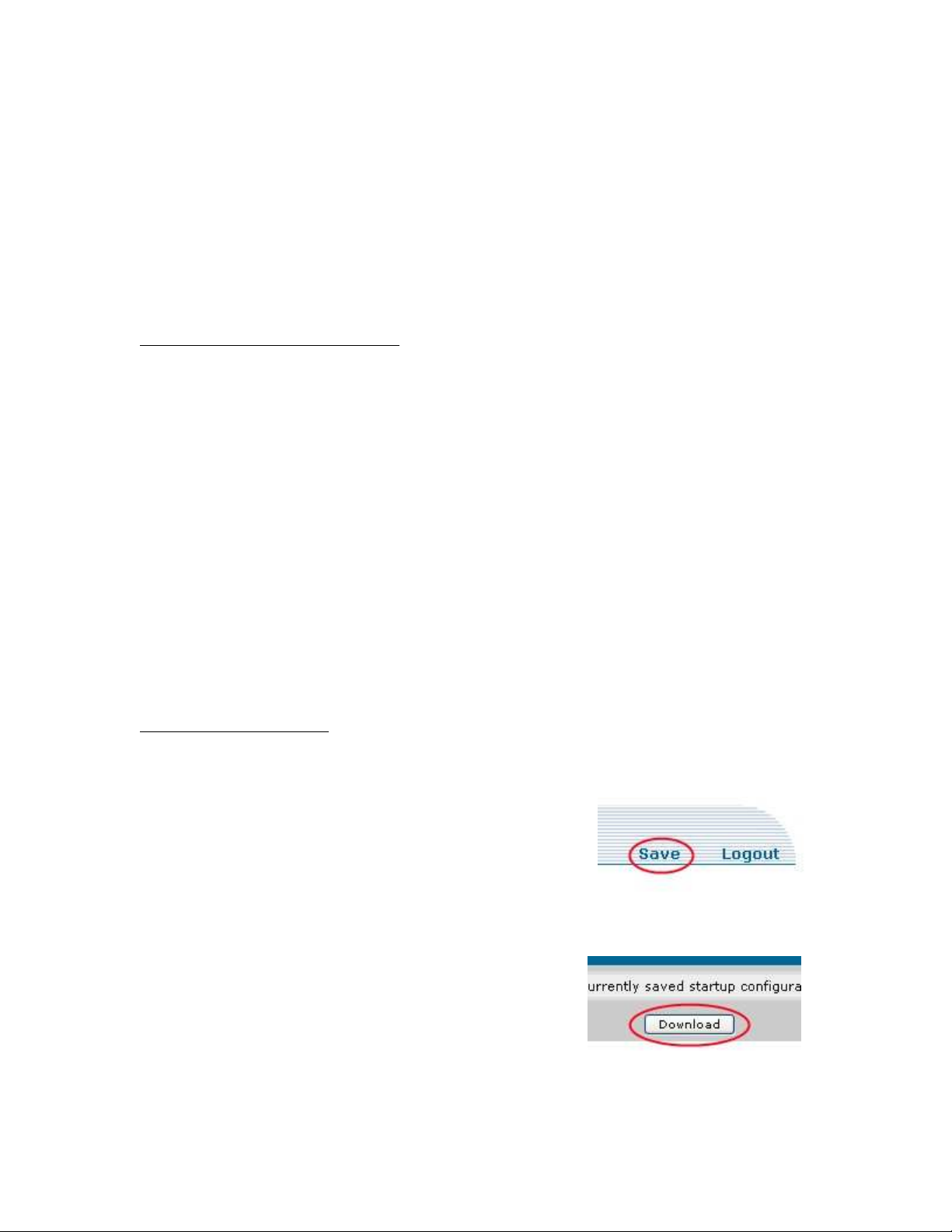

16) After you have completed configuring your AOS

router, click the ‘Save’ button in the top right corner.

17) You should also consider downloading the

configuration to your desktop. This ensures that you will

always have a backup copy of the configuration for your router.

18) Click ‘Configuration’ in the left hand menu.

19) Click ‘Download Configuration’. Save this file on

your computer, and create backup copies. You can use

this file to restore your router to its current settings.

Note: Your configuration is now complete. Please consult the section titled “Testing

Internet Access” if you experience difficulties accessing the Internet.

Configuring via the Command Line Interface:

Note: Please follow the instructions in the section ‘Resetting the NetVanta 2054’, before

following the command line interface instructions. This will ensure that the configuration

of your NetVanta 2054 is ready for the commands in this section.

Accessing the Command Line Interface:

The command line interface is available via the Console Port and via Telnet through the

Ethernet interface.

Using the Console Port

You will need a 9 Pin Male to 9 Pin Female straight through cable and a VT100 emulator

(Example: HyperTerminal) to access the Console Port. Use the following settings in the

VT100 emulator.

•9600 Baud

•8 Data Bits

•1 Stop Bit

•No Parity Bits

•No Flow Control

Using Telnet

Telnet is a service that can be accessed via an Ethernet connection to the NetVanta 2054.

Configure a computer with an IP Address in the same subnet as the NetVanta’s private

interface. From the factory the NetVanta uses 10.10.10.1; your computer can be

10.10.10.2. Use the section titled “Resetting the NetVanta 2054” to return your NetVanta

2054 to the factory default settings.

Gaining Administrative Access via the Command Line Interface:

1) Type ‘enable’ to gain access to privileged mode.

2) Type ‘configure terminal’ to access configuration mode.

Configuring the Public Interface:

3) Type ‘interface eth 0/1’ to access the Public Interface.

4) Type ‘no shutdown’ to enable the Public Interface.

5) If your connection will use PPPoE (Example: ASDSL), skip to step 8.

a. Type ‘ip address dhcp’ to set the interface to receive a dynamically

assigned address from your provider.

b. Type ‘ip address 5.5.5.5 255.255.255.252’ to set a statically assigned

address, given to you by your provider. You should use your own public

IP Address and Subnet Mask.

6) Type ‘access-policy Public’ to assign the Public policy-class to the Public Interface.

7) If your connection will not use PPPoE (Example: Fiber, Cable Modem or Metro

Ethernet), skip to the section titled ‘Configuring the Private Interface’.

8) Type ‘interface ppp 1’ to create the PPP interface.

9) Type ‘no shutdown’ to enable the PPP interface.

10)Type ‘cross-connect 1 eth 0/1 ppp 1’ to associate this PPP interface with the

Public Ethernet Interface.

11)Type ‘access-policy Public’ to assign the Public policy-class to the Public Interface.

12)Identify the correct Address Setting, and use the appropriate step below.

a. Type ‘ip address negotiated’ to set the interface to receive a dynamically

assigned address from your provider.

b. Type ‘ip address 5.5.5.5 255.255.255.252’ to set a statically assigned

address, given to you by your provider. You should use your own public

IP Address and Subnet Mask.

Configuring the Private Interface:

13) Type ‘interface vlan 1’ to access the Private Interface.

14) Type ‘no shutdown’ to enable the Private Interface.

15) Note: Perform this step only if you want to change the IP Address of the private

interface. Type ‘ip address 10.10.10.1 0.0.0.0’ to assign the Private Interface an IP

Address.

16) Type ‘access-policy Private’ to assign the Private Policy-Class to the Private

Interface.

17) Type ‘exit’ to leave the Private Interface configuration and return to global

configuration mode.

Configuring the Firewall and NAT:

18)Type ‘ip access-list standard MATCHALL’ to create an access-list that will match

all traffic. This will be referenced by the NAT rule in the Private Policy-Class.

19)Type ‘permit ip any’ to match all traffic.

20)Type ‘exit’ to exit the access list configuration.

21)Type ‘ip policy-class Private’ to create the Private Policy-Class. This is referenced

in the configuration of the private interface with ‘access-policy Private’.

22)The next statement will define what Public address to use in the NAT.

a. For non-PPP connections, where you entered the public IP Address on the

Public Ethernet Interface, type ‘nat source list MATCHALL interface

eth 0/1 overload’.

b. For PPP connections, where you entered the public IP Address on the PPP

interface, type ‘nat source list MATCHALL interface ppp 1 overload’.

23)Type ‘exit’ to exit the Private policy class configuration.

24)Type ‘ip policy-class Public’ to create the Public Policy class. This policy class will

remain empty. An empty policy class denies the initiating of sessions from that

interface.

25)Type ‘exit’ to leave the Public Policy-Class configuration.

Saving the Configuration:

It is important that you save the configuration!

26)Type ‘end’ to return to enable mode.

27)Type ‘write’ to permanently store the configuration on the NetVanta 2054.

Note: You can copy the output of the command “show run” into a text file and save that

file as a backup copy on your computer.

Testing Internet Access

Before testing Internet Access, verify the following information:

•Your computer’s IP Address should be in the same IP Subnet as the NetVanta’s

Private Interface

•Your computer’s default gateway should be the NetVanta’s Private IP Address.

•Your computer’s DNS settings should be set to those given by your ISP.

You should now be able to access the Internet. If you are unable to do so, please reset

your NetVanta 2054, using the instructions in “Resetting the NetVanta 2054” and re-

execute this document. If you are still unable to do so, follow these instructions to pre-

pare for calling your ISPs technical support.

1) Attempt to ping the NetVanta’s Private IP

2) Attempt to ping the ISPs Gateway IP Address from your computer.

3) If that works, attempt to ping 4.2.2.2 (a root internet server).

If you are able to ping 4.2.2.2, double check your computer’s DNS settings.

If you are able to ping your ISPs gateway, but unable to ping 4.2.2.2, please call your ISP

and report a network outage.

If you are unable to ping your ISPs gateway, please verify with your ISP that your

Internet Service has been activated, and then call AdTran Tech. Support.

If you are unable to ping the NetVanta’s Private IP, please Reset the NetVanta, and reuse

this guide. If you are still unable to ping the NetVanta, please call AdTran Tech. Support.

Note: AdTran Technical Support provides Walk Through and Remote Installation

assistance as a paid service through ACES Service Contracts. If you are interested in

having AdTran configure your NetVanta 2054, please call ACES at 1-888-874-ACES.

Table of contents

Other ADTRAN Wireless Access Point manuals

ADTRAN

ADTRAN NetVanta 900 Series User manual

ADTRAN

ADTRAN Bluesocket 2020 Series User manual

ADTRAN

ADTRAN BSAP 6040 User manual

ADTRAN

ADTRAN BLUESOCKET 1920 User manual

ADTRAN

ADTRAN NetVanta 100 Series Manual

ADTRAN

ADTRAN T400TAC Maintenance and service guide

ADTRAN

ADTRAN Total Access 612 User manual

ADTRAN

ADTRAN 2135 User manual

ADTRAN

ADTRAN NetVanta 160 Installation instructions

ADTRAN

ADTRAN Bluesocket 2020 Series User manual

ADTRAN

ADTRAN BLUESOCKET 3045 User manual

ADTRAN

ADTRAN 1700412E1 User manual

ADTRAN

ADTRAN NetVanta 150 User manual

ADTRAN

ADTRAN Bluesocket 2030 User manual

ADTRAN

ADTRAN NetVanta 950 IAD User manual

ADTRAN

ADTRAN Total Access 850 Instruction Manual

ADTRAN

ADTRAN SMART/RG SR506n User manual

ADTRAN

ADTRAN NetVanta 150 Series Manual

ADTRAN

ADTRAN BLUESOCKET 3040 User manual

ADTRAN

ADTRAN Bluesocket 3040 User manual

ADTRAN

ADTRAN BLUESOCKET 2135 User manual

ADTRAN

ADTRAN BLUESOCKET 1940 User manual

ADTRAN

ADTRAN BSAP 6120 User manual

ADTRAN

ADTRAN Total Access 5004 User manual

Popular Wireless Access Point manuals by other brands

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Quick installation guide

Ubiquiti

Ubiquiti NanoStation NSM2 quick start guide

Cisco

Cisco Aironet 1550 Series Getting started guide

Aruba

Aruba IAP-335 user guide

Advantek Networks

Advantek Networks AWN-AP-54MR user manual

IP-COM

IP-COM AP355 user guide

Buffalo

Buffalo AirStation WLA-L11G user manual

EnGenius

EnGenius EnStationACv2 user manual

D-Link

D-Link DAP-3662 Quick installation guide

xG Technology

xG Technology xMax CN1300 installation guide

Widelink

Widelink ezWave WAP-1100 Series user guide

Edimax

Edimax CAP1200 user manual

Ubiquiti

Ubiquiti LBE-5AC-Gen2 quick start guide

Aruba

Aruba AP-203R installation guide

LuXout Shades

LuXout Shades LUXSHADE MOTION manual

CreatComm

CreatComm TB5F user manual

SineDigital

SineDigital MW-1500AP(H) installation guide

TP-Link

TP-Link AP9650 V1 Quick installation guide
