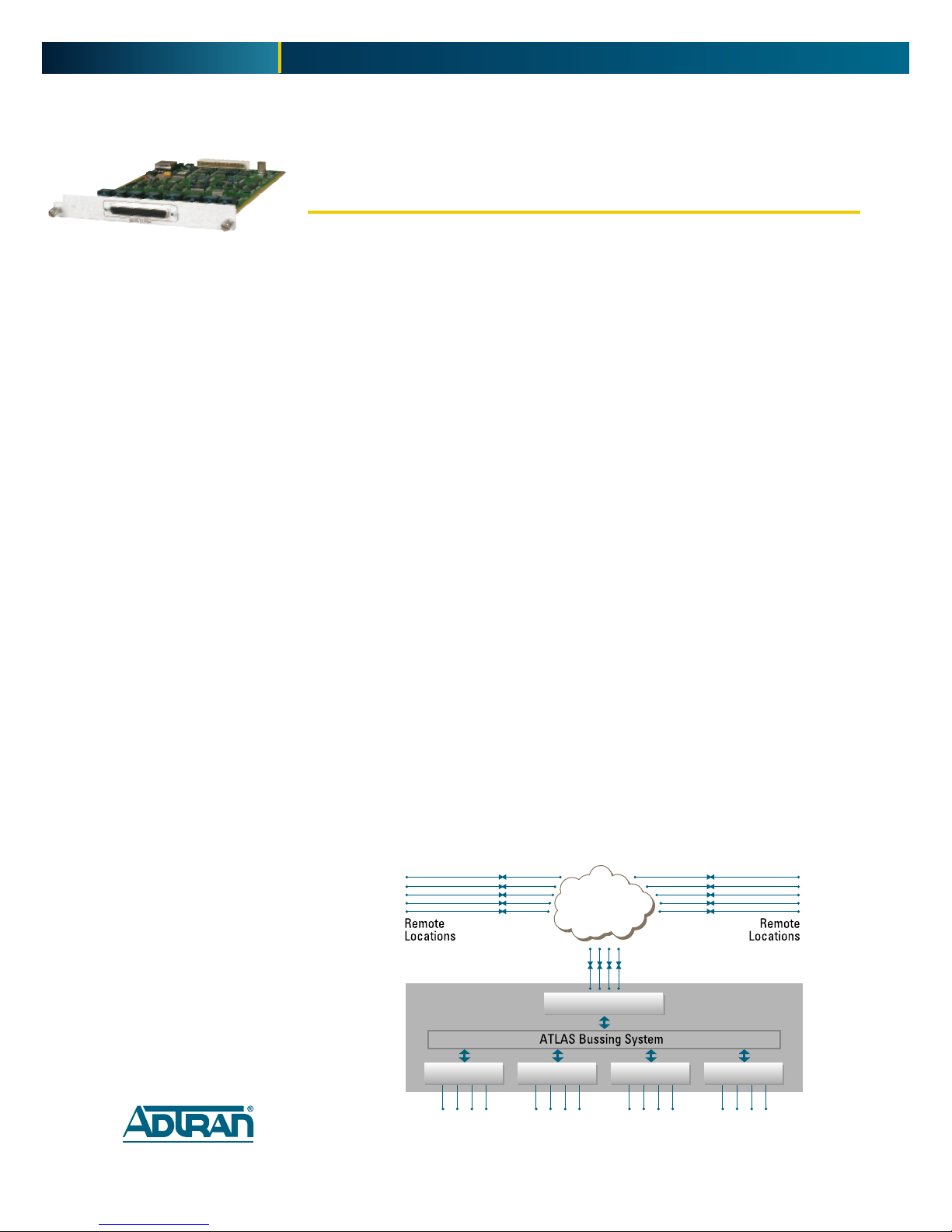

ADTRAN ATLAS 800 Series Module QUAD E1 User manual

QUAD E1

ATLAS 800 Series Module

Product Features

■Four E1 interfaces

■Built-in CSUs

■2.048 Mbps line rate

■Maximum distance

3,200 m

■G.703/G.704 compliant

■G.704 framing formats

(FAS, TS16 MF, CRC-4)

■HDB3 and AMI

line coding

■Local and remote

loopback support

■Generates and detects

QRSS test pattern

■Lightning protection

■Occupies a single slot in

an ATLAS 800 Series

chassis

■Industry-leading five-year

North American warranty

The ADTRAN®Quad E1 Module combines

with other ATLAS™components to imple-

ment a variety of WAN access solutions,

including serving as an E1 Bandwidth

Manager and Digital Access Cross-Connect

System (DACS). The module provides

four E1 ports, each of which can be

separately configured.

ATLAS has the ability to support time slot

interchange and to digitally cross-connect,

or DACS, up to 24 E1 circuits. Any TS0 of any

E1 can be groomed and mapped to any TS0

of any other E1 in the system.

With the E1 module, ATLAS can act as a

concentrator of 64/128 kbps leased lines.

The ATLAS Quad E1 module will work in

conjunction with the Octal BRI module and

allow users to map BRI ports to E1 DS0s in a

dedicated, leased line application.

The Quad E1 module can also be used

with the ATLAS to support public and private

Frame Relay solutions. The ATLAS 810PLUS and

ATLAS 890 includes a 10Base-T Ethernet port

and IP Router to encapsulate data into Frame

Relay packets. External routers can also be

connected to the ATLAS through one of the

many optional serial interfaces including:

V.35, EIA-232, EIA-530, EIA-449, X.21 and V.36.

Configuration of the Quad E1 Module can

be accomplished through Telnet or VT100

emulation. SNMP management is supported

for alarm and event reporting.

Extensive performance monitoring is

standard with the Quad E1 module to detect

and record loss of signal, loss of framing,

CRC4, AIS, REM, and REMF.

When testing the E1 circuit, the system

allows the user to select loopback commands

and test patterns, including All 1s and All 0s

as well as QRSS pattern.

TELCO

Quad E1

ATLAS 800 Series

Quad E1

G.703

Nx 56/64

V.35

USSI

X.21

Octal BRI

Leased Lines

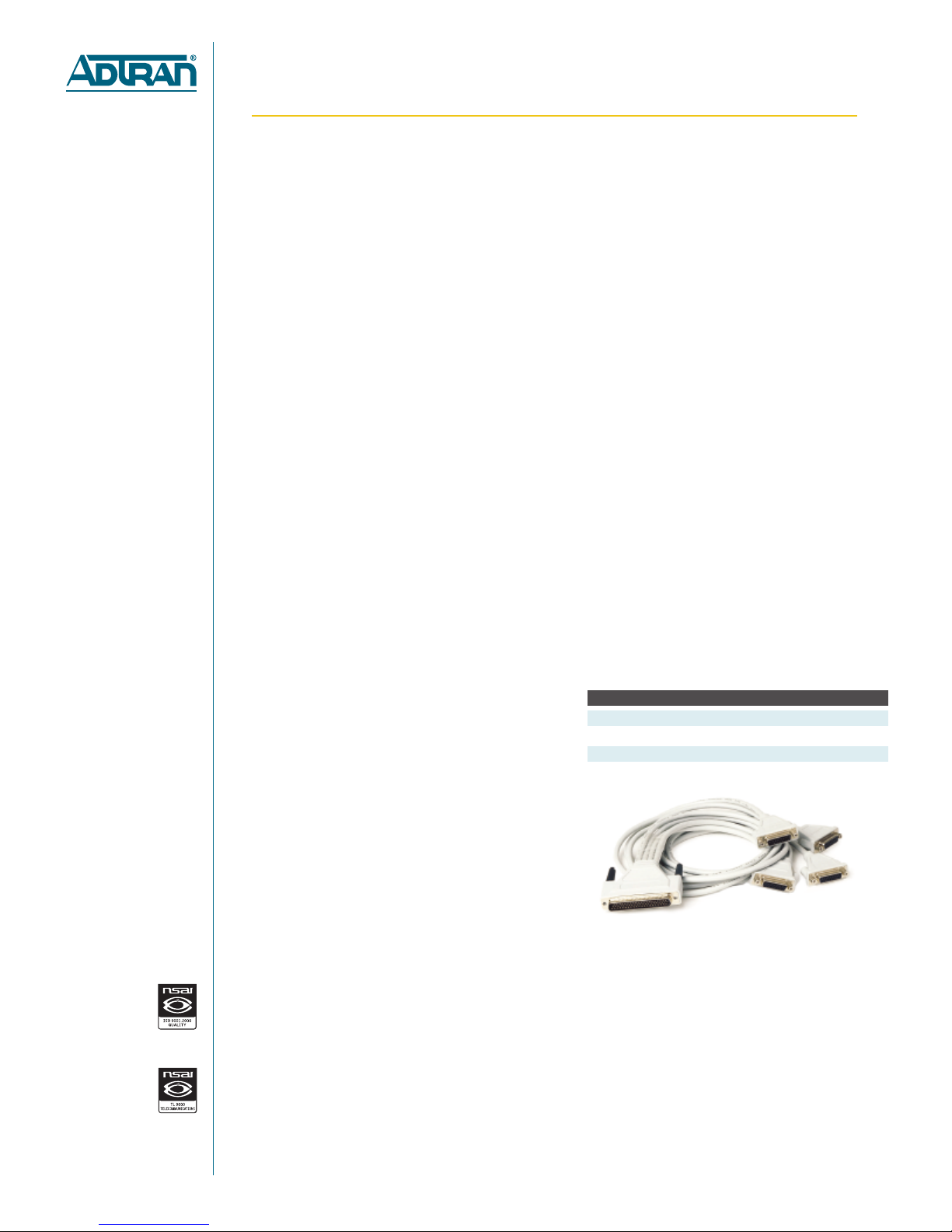

Product Specifications

Physical Interface

■ 62 pin D-sub connector

■ Adapter cable for 120 ohm balanced

termination with male DB-15

Line Rate

■ 2.048 Mbps

Framing

■ G.704 (FAS, TS16 MF, CRC-4)

Line Coding

■ AMI, HDB3

Line Length

■ 3,200 m at 75 ohms

■ 1,963 m at 120 ohms

System Timing

■ Network, internal, external

Switch Compatibility

■ ETSI/DSSI

Diagnostics

■ Local Loopback: Line

Test Patterns

■ QRSS, All 1s, All Os

Alarms

■ LOS, LOF, LOMF, CRC4, AIS, REM, REMF

Performance

■ Per G.821, RFC 1406

QUAD E1

ATLAS 800 Series Module

Signal Monitoring

■ AB signaling bits for all TS0s

Agency Approvals

■ FCC Part 15

■ Class A

■ UL 1950

■ IEC 950

■ Canadian UL (CUL)

■ CISPR 22

■ Class A

Environment

■ Operating Temperature: 0° to 45°C

■ StorageTemperature: -20° to 70°C

■ Relative Humidity: Up to 95%,

non-condensing

Power

■ 5 Watts at 48 vDC

Product Includes

■ Plug-in Module

■ Adapter Cable

■ User Manual

Ordering Information

Equipment Part #

Quad E1 Module

w/DB-15 adapter cable 1200264L1

Quad E1 Module

w/DB-15 adapter cable and BNC 75 Ωconverter 4200264L1

Specifications subject to change without notice. ATLAS is a trademark of ADTRAN, Inc.

ADTRAN is a registered trademark of ADTRAN, Inc. All registered trademarks and trade-

marks mentioned in this publication are the property of their respective owners.

ADTRAN, Inc.

Attn: Enterprise Networks

901 Explorer Boulevard

Huntsville, AL 35806

P.O. Box 140000

Huntsville, AL 35814-4000

256 963-8000 voice

256 963-8699 fax

General Information

800 9ADTRAN

[email protected]

www.adtran.com

Pre-Sales

Technical Support

800 615-1176 toll-free

[email protected]

www.adtran.com/support

Where to Buy

877 280-8416 toll-free

[email protected]

www.adtran.com/where2buy

Post-Sales

Technical Support

888 423-8726

[email protected]

www.adtran.com/support

ACES Installation &

Maintenance Service

888 874-ACES

[email protected]

www.adtran.com/support

International Inquiries

256 963 8000 voice

256 963-6300 fax

[email protected]

www.adtran.com/international

For the regional office

nearest you, visit:

www.adtran.com/where2buy

61200264L1-8E June 2004

ADTRAN is a TL 9000 3.0

certified supplier.

ADTRAN is an ISO 9001:2000

certified supplier.

DB-15 cable
