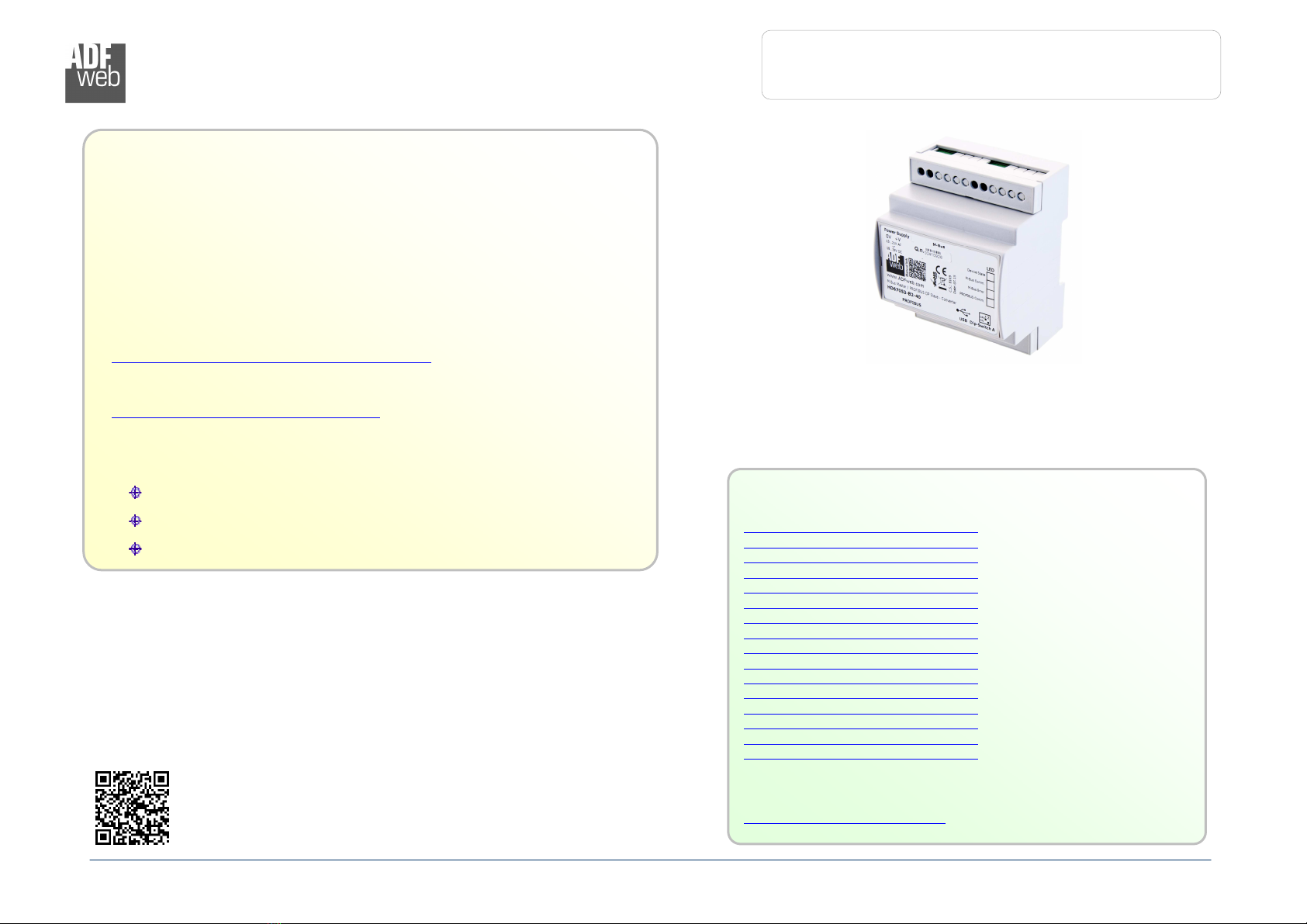

ADF Web HD67C66-B2 User manual
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOc
ean
/
J1939
Document code: MN67C66_ENG Revision 1.000 age 1 of 30
User Manual
Revision 1.000
English
EnOcean / J1939 - Converter
(Order Code: HD67C66-B2)
For Website information:
www.adfweb.com? roduct=HD67C66-B2
For rice information:
www.adfweb.com? rice=HD67C66-B2
Benefits and Main Features:
Very easy to configure
ower Supply 18…35V DC and 8…24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others EnOcean products, see also the following links:
Converter EnOcean to
www.adfweb.com? roduct=HD67C50 (Serial)
www.adfweb.com? roduct=HD67C52 (Mod us Slave)
www.adfweb.com? roduct=HD67C54 (Mod us TCP Slave)
www.adfweb.com? roduct=HD67C56 (BACnet Slave)
www.adfweb.com? roduct=HD67C57 (CAN)
www.adfweb.com? roduct=HD67C58 (CANopen)
www.adfweb.com? roduct=HD67C61 (DeviceNet Slave)
www.adfweb.com? roduct=HD67C63 (EtherNet/IP Slave)
www.adfweb.com? roduct=HD67C65 (IEC61850 Server)
www.adfweb.com? roduct=HD67C67 (KNX)
www.adfweb.com? roduct=HD67C70 (MQTT)
www.adfweb.com? roduct=HD67C72 (NMEA 0183)
www.adfweb.com? roduct=HD67C73 (NMEA 2000)
www.adfweb.com? roduct=HD67C75 (PROFIBUS Slave)
www.adfweb.com? roduct=HD67C77 (PROFINET Slave)
www.adfweb.com? roduct=HD67C79 (SNMP Agent)
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
User Manual
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOc
ean
/
J1939
Document code: MN67C66_ENG Revision 1.000 age 2 of 30
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 10
CAN 11
ENOCEAN 12
USE OF COM OSITOR SW67C66 13
NEW CONFIGURATION / O EN CONFIGURATION 14
SOFTWARE O TIONS 15
SET COMMUNICATION 17
ENOCEAN ACCESS 18
RECEIVE FRAMES 21
SEND FRAMES 23
U DATE DEVICE 25
MECHANICAL DIMENSIONS 27
ORDERING INFORMATIONS 28
ACCESSORIES 28
DISCLAIMER 29
OTHER REGULATIONS AND STANDARDS 29
WARRANTIES AND TECHNICAL SU ORT 30
RETURN OLICY 30
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision
Date Author Chapter
Description
1.000 05/12/2019
Ff All First release version
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOc
ean
/
J1939
Document code: MN67C66_ENG Revision 1.000 age 3 of 30
SECURITY ALERT:
G
ENERAL
I
NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I
NTENDED
U
SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q
UALIFIED
P
ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R
ESIDUAL
R
ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE
CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOc
ean
/
J1939
Document code: MN67C66_ENG Revision 1.000 age 4 of 30

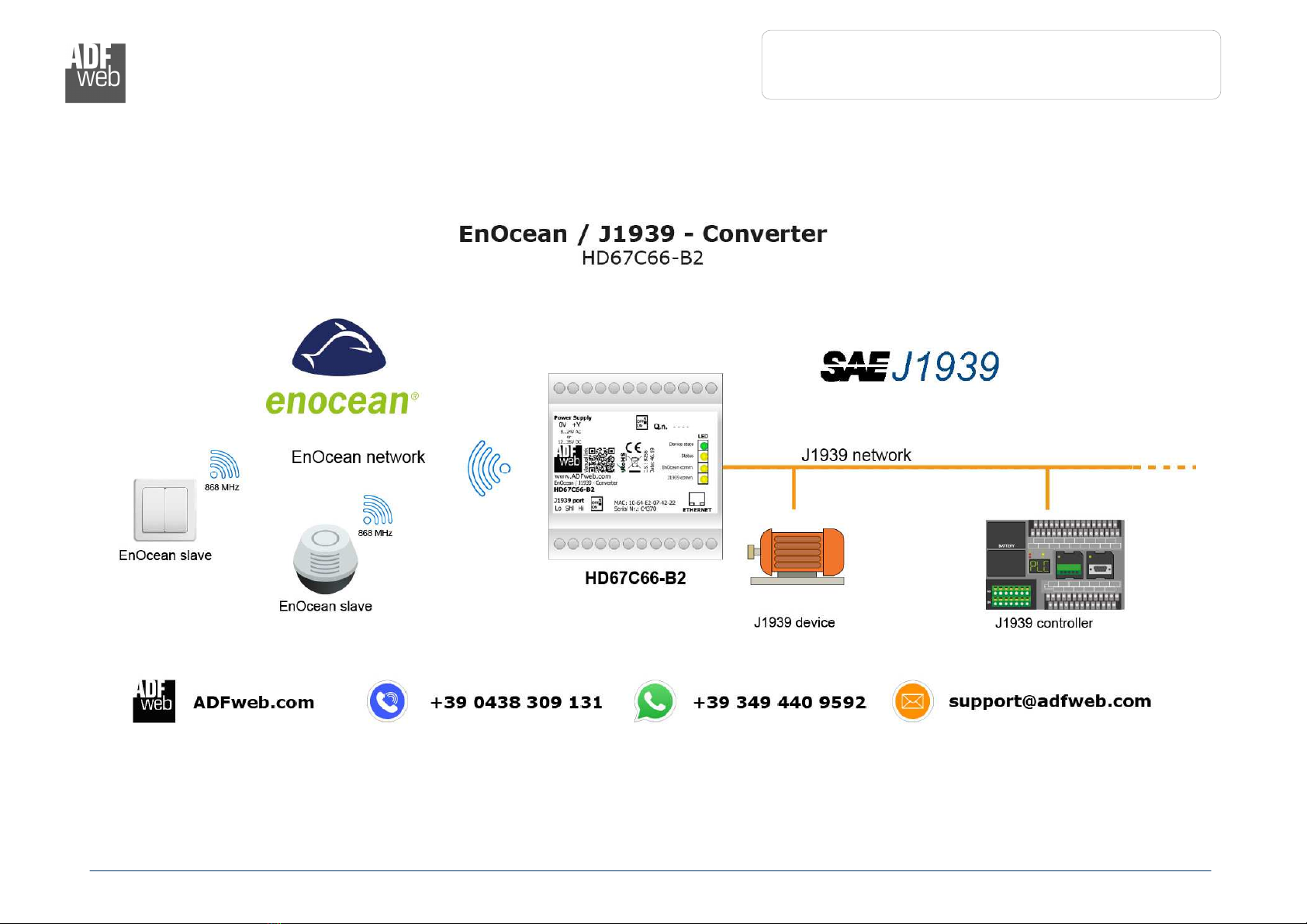

EXAMPLE OF CONNECTION:
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOc
ean
/
J1939
Document code: MN67C66_ENG Revision 1.000 age 5 of 30

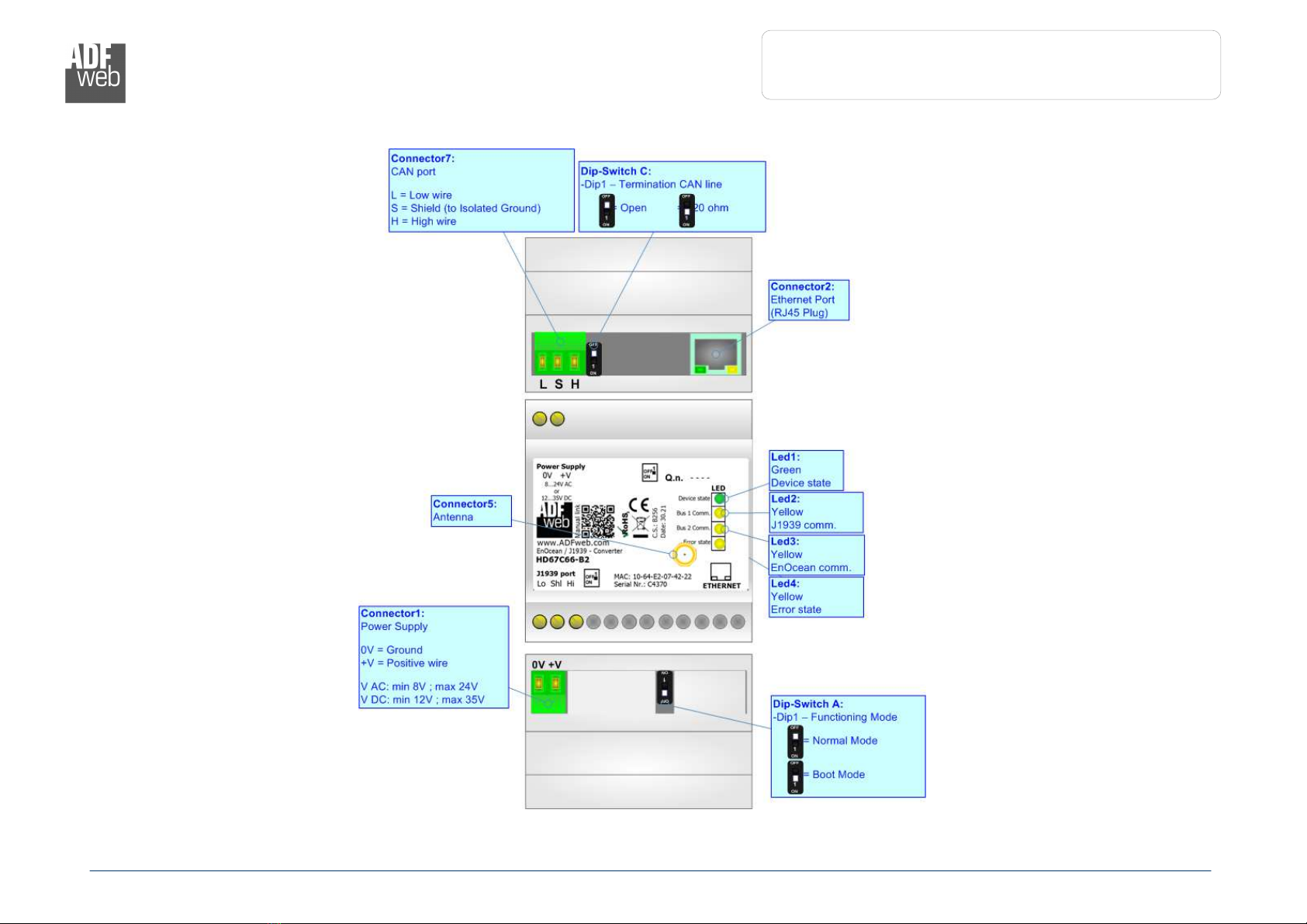

CONNECTION SCHEME:
Figure 1: Connection scheme for HD67C66-B2
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOc
ean
/
J1939
Document code: MN67C66_ENG Revision 1.000 age 6 of 30
CHARACTERISTICS:
The HD67C66-B2 is a EnOcean / J1939 Converter.
It allows the following characteristics:
Electrical isolation between EnOcean and ower Supply;
Mountable on 35mm Rail DIN;
Wide power supply input range: 18…35V DC and 8…24V AC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67C66 software on your C in order to perform the following:
Define the parameter of J1939 line;
Define the parameter of EnOcean line;
Define J1939 messages in rx and tx;;
Update the device.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOc
ean
/
J1939
Document code: MN67C66_ENG Revision 1.000 age 7 of 30

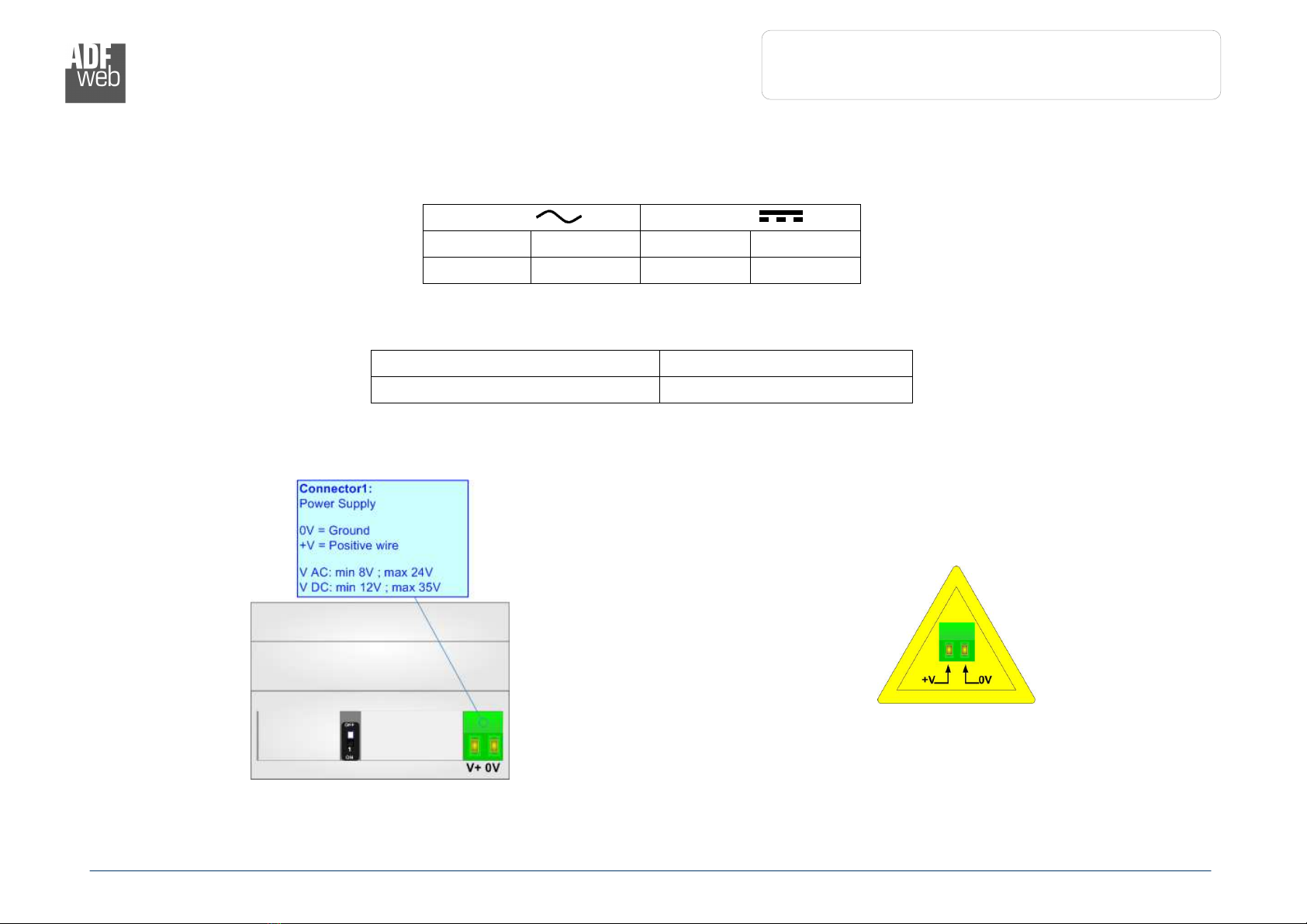

POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67C66-B2 3.5
HD67C66-B2
Caution: Not reverse the polarity power
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOc
ean
/
J1939
Document code: MN67C66_ENG Revision 1.000 age 8 of 30

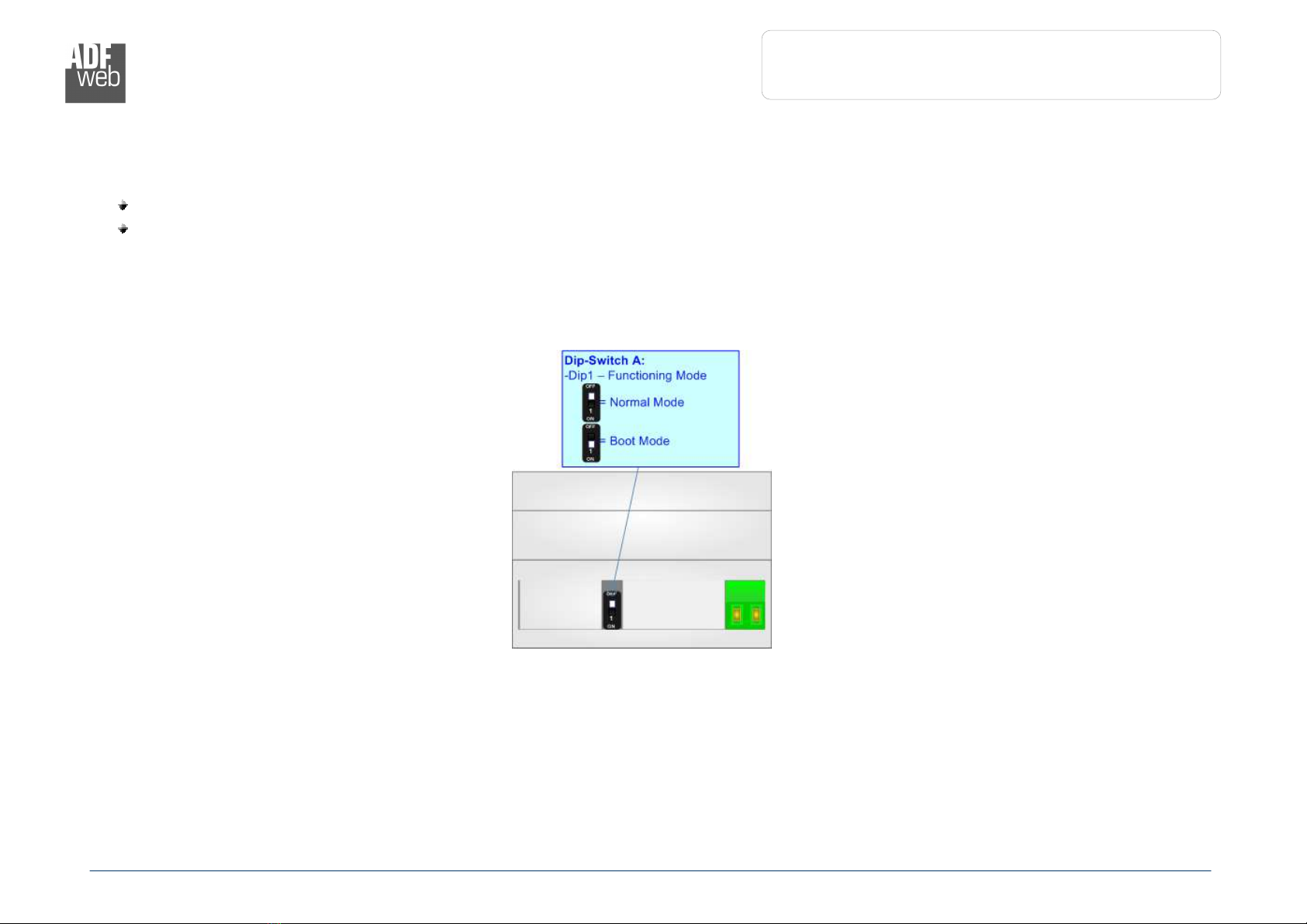

FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOc
ean
/
J1939
Document code: MN67C66_ENG Revision 1.000 age 9 of 30

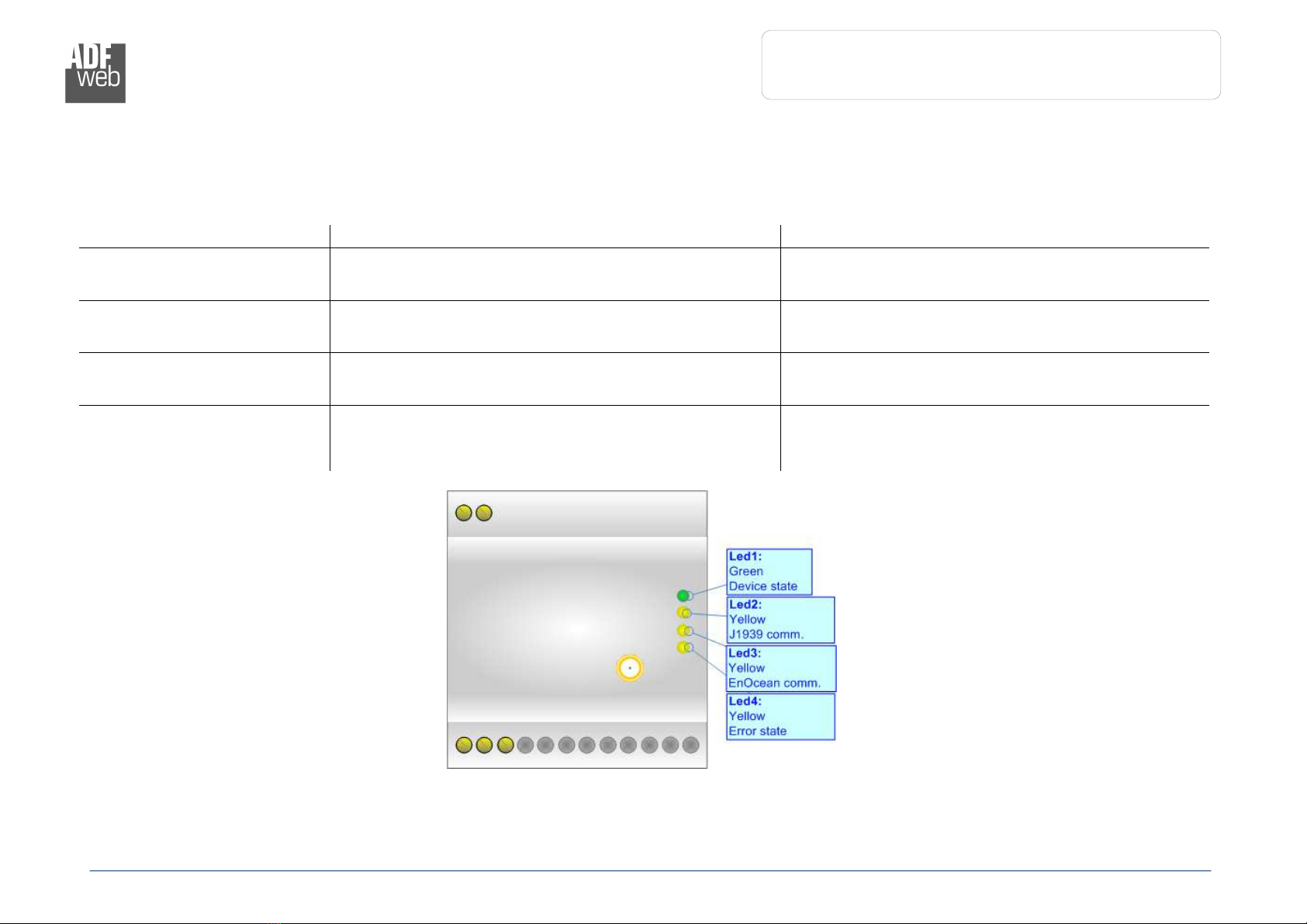

LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: J1939 communication
(yellow) Blinks when a J1939 message is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: EnOcean communication
(yellow) Blinks when EnOcean data is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
EnOc
ean
/
J1939
Document code: MN67C66_ENG Revision 1.000 age 10 of 30

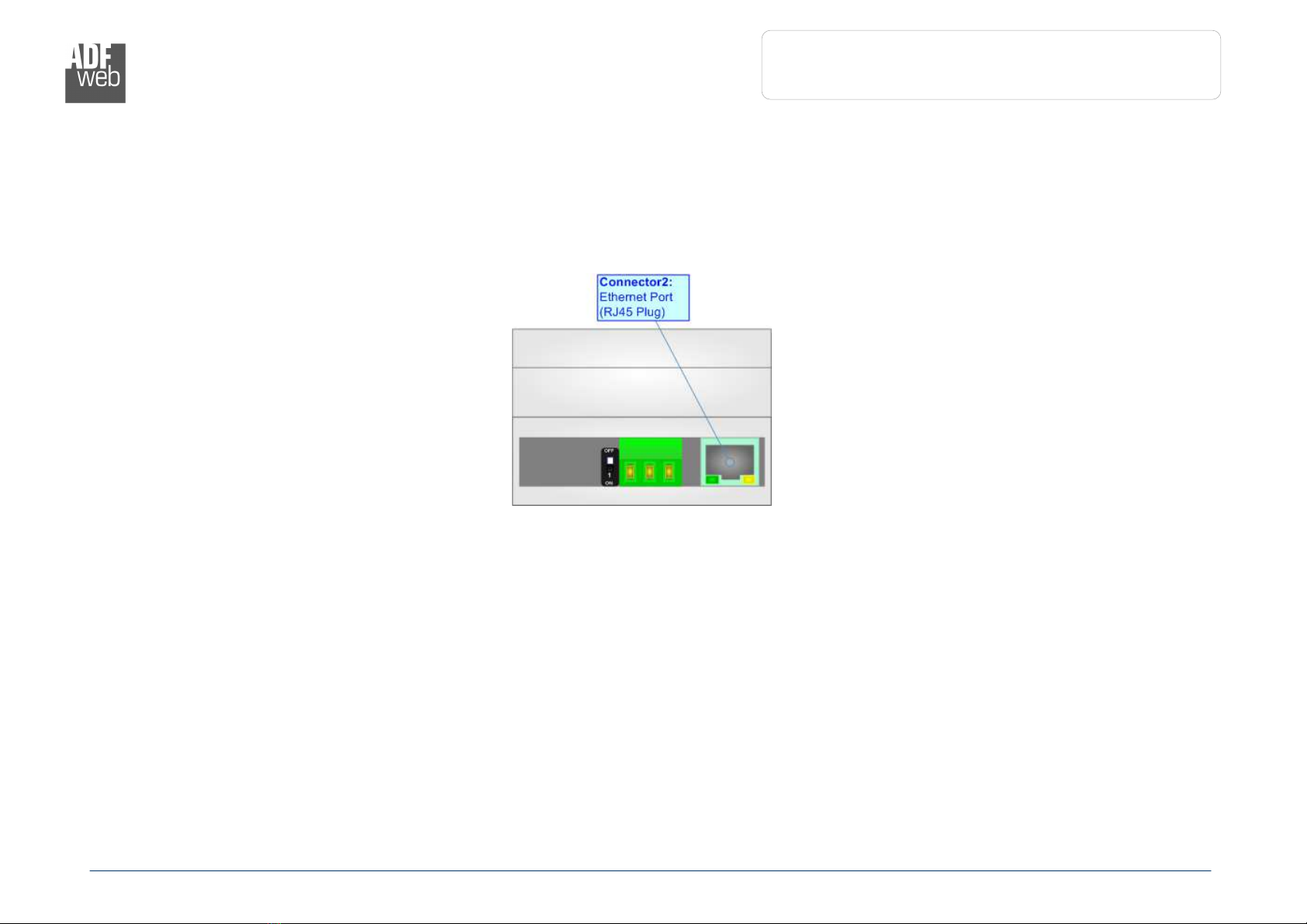

ETHERNET:
The Ethernet port is used for programming the device.
The Ethernet connection must be made using Connector2 of HD67C66-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C is recommended the use of a cross cable.
