ADF Web HD67912-A1 User manual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFINET

/ HART Master

Document code: MN67912_ENG Revision 1. Page 1 of 3

User Manual

Revision 1.

English

PROFINET / HART Master - Converter

(Order Code: HD67912-A1)

For Website information:

www.adfweb.com?Product=HD67912

For Price information:

www.adfweb.com?Price=HD67912-A1

Benefits and Main Features:

Very easy to configure

Triple Electrical isolation

Temperature range: -4 °C/+85°C (-4 °F/+185°F)

For other HART products see also the following link:

Converter HART Master to

www.adfweb.com?Product=HD679 (Seria )

www.adfweb.com?Product=HD679 1 (BACnet S ave)

www.adfweb.com?Product=HD679 2 (CAN)

www.adfweb.com?Product=HD679 3 (CANopen)

www.adfweb.com?Product=HD679 4 (DeviceNet S ave)

www.adfweb.com?Product=HD679 5 (Ethernet)

www.adfweb.com?Product=HD679 6 (EtherNet/IP S ave)

www.adfweb.com?Product=HD679 7 (J1939)

www.adfweb.com?Product=HD679 8 (Modbus S ave)

www.adfweb.com?Product=HD679 9 (Modbus TCP S ave)

www.adfweb.com?Product=HD6791 (MQTT)

www.adfweb.com?Product=HD67911 (PROFIBUS S ave)

www.adfweb.com?Product=HD67913 (SNMP Agent)

Do you have your customer protocol? Then go to:

www.adfweb.com?Product=HD67 3

Do you need to choose a device? Do you want help?

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFINET

/ HART Master

Document code: MN67912_ENG Revision 1. Page 2 of 3

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

HART 1

ETHERNET 11

USE OF COMPOSITOR SW67912 12

NEW CONFIGURATION / OPEN CONFIGURATION 13

SOFTWARE OPTIONS 14

SET COMMUNICATION 16

HART VARIABLES 17

UPDATE DEVICE 19

MECHANICAL DIMENSIONS 21

SCAN FUNCTION 22

HART DIAGNOSTIC OVER PROFINET 24

PLC CONFIGURATION 25

DISCLAIMER 27

OTHER REGULATIONS AND STANDARDS 28

WARRANTIES AND TECHNICAL SUPPORT 29

RETURN POLICY 3

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Revision

Date Author Chapter

Description

1. 18/ 6/2 19

Tf All First Release

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFINET

/ HART Master

Document code: MN67912_ENG Revision 1. Page 3 of 3

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFINET

/ HART Master

Document code: MN67912_ENG Revision 1. Page 4 of 3

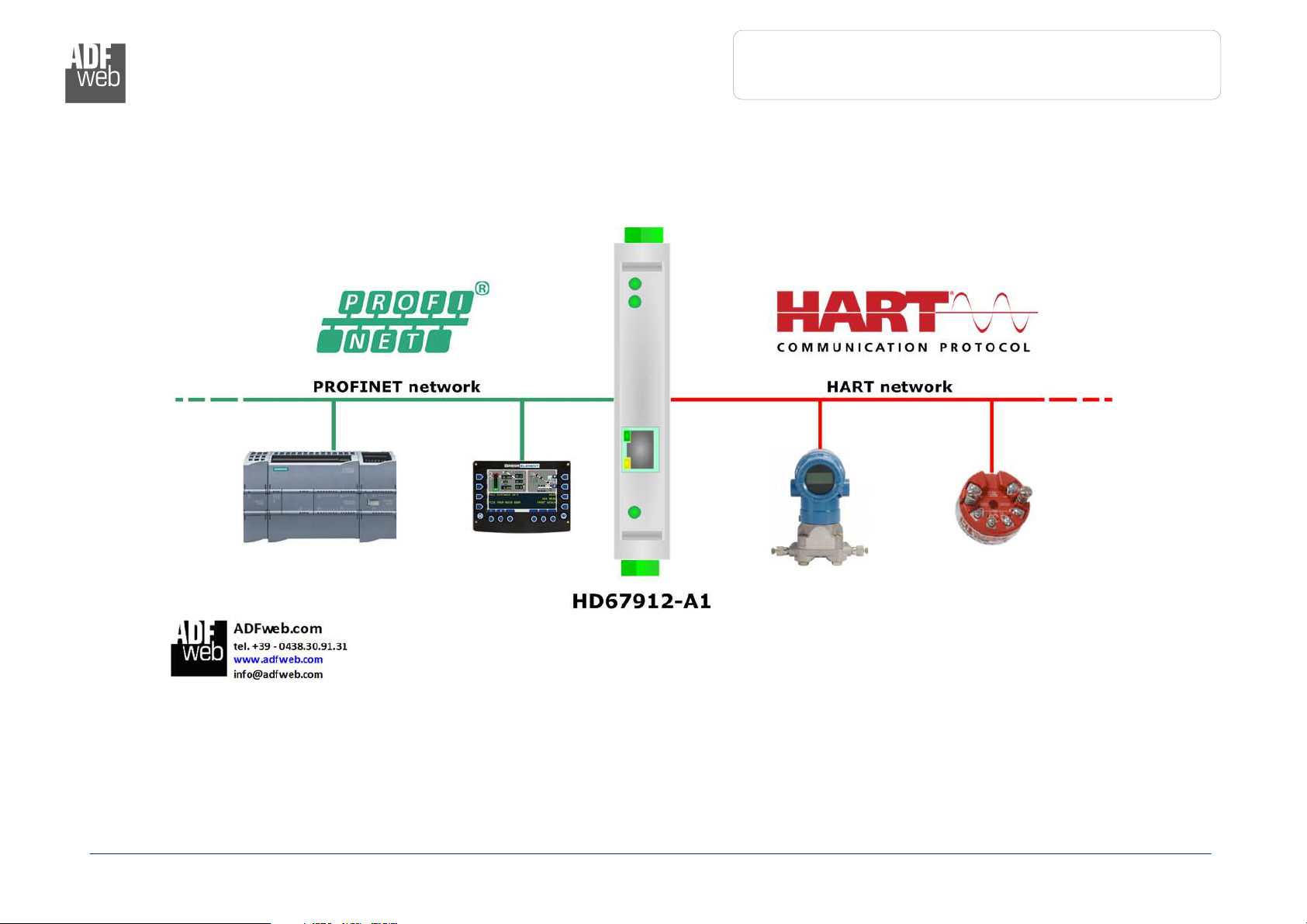

EXAMPLES OF CONNECTION:

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFINET

/ HART Master

Document code: MN67912_ENG Revision 1. Page 5 of 3

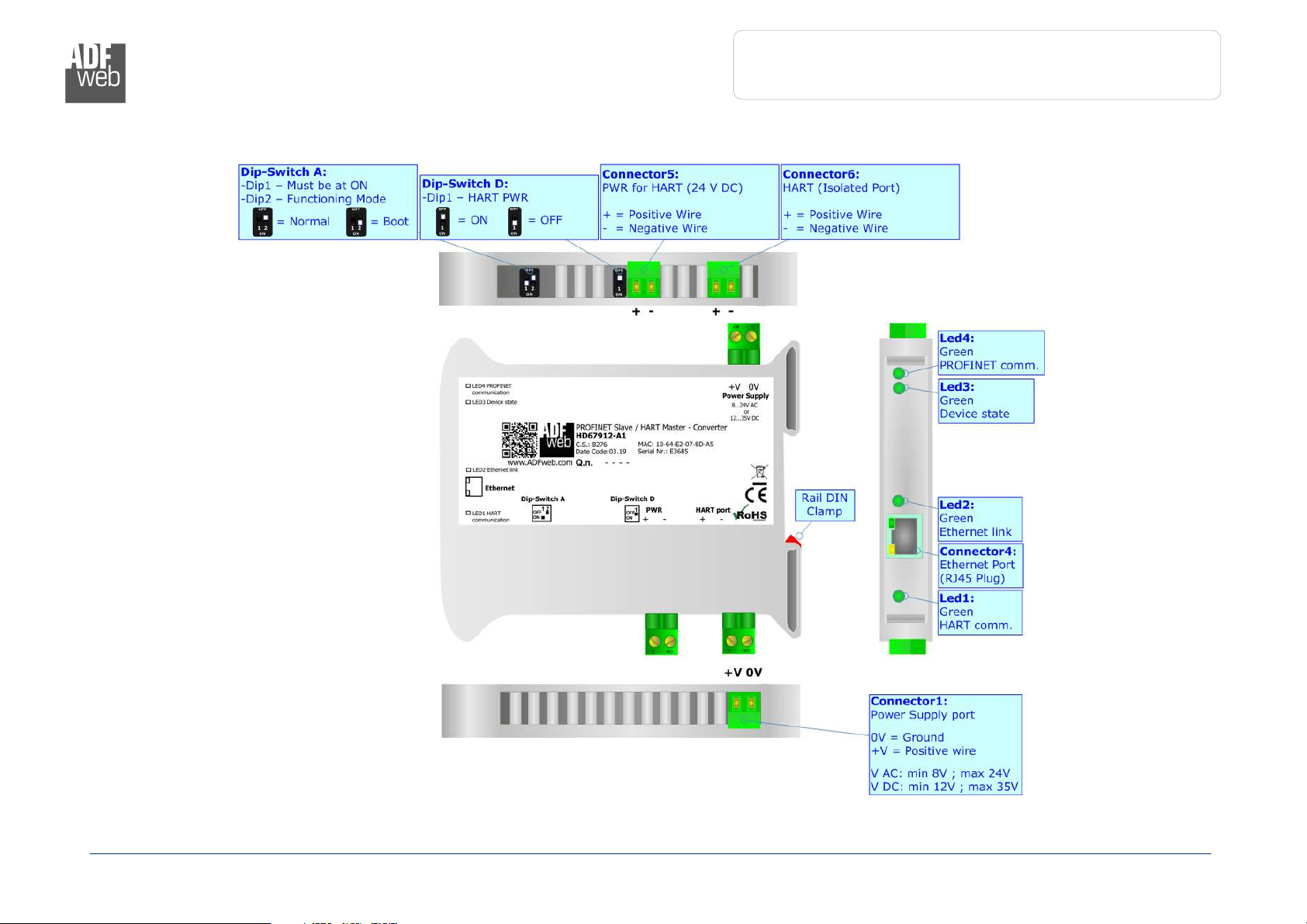

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67912-A1

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFINET

/ HART Master

Document code: MN67912_ENG Revision 1. Page 6 of 3

CHARACTERISTICS:

The HD67912-A1 are PROFINET / HART Master - Converters.

It allows for the following characteristics:

Triple isolation between Ethernet - Power Supply, Ethernet - HART, HART - Power Supply;

Two-directional information between Ethernet bus and HART bus;

Mountable on 35mm Rail DIN;

Wide power supply input range: 8…24V AC or 12…35V DC;

Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].

CONFIGURATION:

You need Compositor SW67912 software on your PC in order to perform the following:

Define the parameters of PROFINET line;

Define the parameters of HART line;

Define HART variables in read/write;

Define HART rules for gateway functions;

Update the device.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFINET

/ HART Master

Document code: MN67912_ENG Revision 1. Page 7 of 3

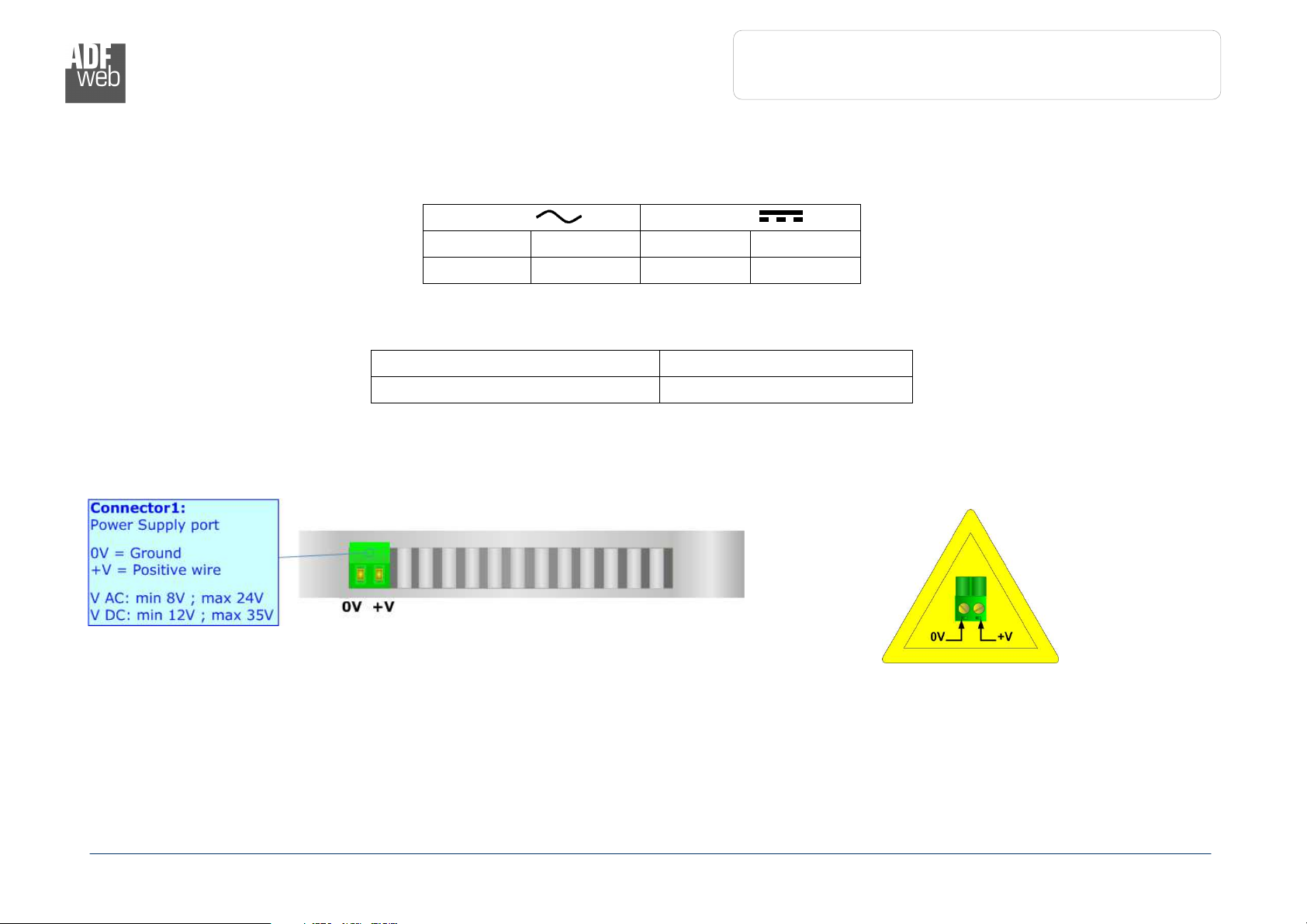

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67912-A1 3.5

HD67912-A1

Caution:

Do n

ot reverse the po arity power

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFINET

/ HART Master

Document code: MN67912_ENG Revision 1. Page 8 of 3

FUNCTION MODES:

The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’:

The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for uploading the Project and/or Firmware.

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.

According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.

Warning:

Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFINET

/ HART Master

Document code: MN67912_ENG Revision 1. Page 9 of 3

LEDS:

The device has got six LEDs that are used to give information about the functioning status.

The various meanings of the LEDs are described in the table below.

LED Norma Mode Boot Mode

1: HART communication

(green) It blinks when HART communication is running B inks quick y: Boot state

B inks very s ow y (~0.5Hz): update in progress

2: Ethernet link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

3: PROFINET communication

(green) It blinks when PROFINET communication is running B inks quick y: Boot state

B inks very s ow y (~0.5Hz): update in progress

4 : Device State

(green) Blinks slowly (~1Hz)

B inks quick y: Boot state

B inks very s ow y (~0.5Hz): update in

progress

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

PROFINET

/ HART Master

Document code: MN67912_ENG Revision 1. Page 1 of 3

HART:

“HART” is an acronym for Highway Addressable Remote Transducer. The HART Protocol makes uses Frequency Shift Keying (FSK) standard

to superimpose digital communication signals at a low level on top of the 4-2 mA. This enables two-way field communication to take place

and makes it possible for additional information beyond just the normal process variable to be communicated to/from a smart field

instrument.

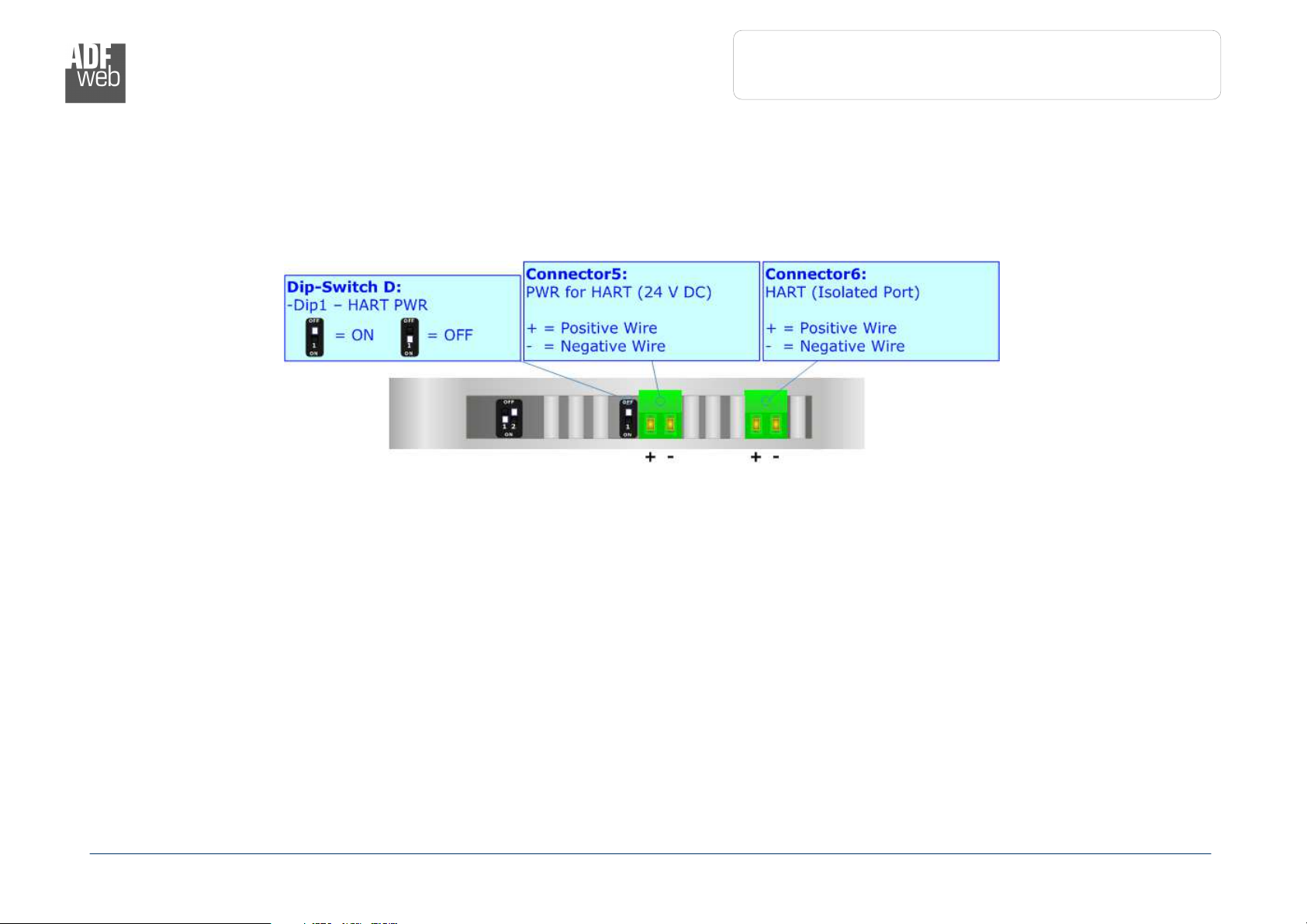

It is possible to provide the current loop for HART communication and an additional low power supply @ 24 V DC for feeding HART devices

by setting Dip-Switch D at ON position.

Current loop for HART is required when there is not an external device in the bus that provides it.
