ADF Web PROFIBUS Master User manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS

Master

/ Modbus TCP Slave

Converter

Document code: MN67579_ENG Revision 2. 2 Page 1 of 32

User Manual

Revision 2. 2

English

PROFIB

US Master / Modbus TCP Slave

- Converter

( Order Code: HD67579-A1 )

for Website information:

www.adfweb.com/?Product=HD67579

for Price information:

www.adfweb.com/?Price=HD67579-A1

Benefits and Main Features:

Very easy to configure

Industrial temperature range:

-4 °C / 85°C (-4 °F / 185°F)

For others PROFIBUS devices, see also the following links:

PROFIBUS Slave from/to …

www.adfweb.com?Product=HD67 45 (… Serial)

www.adfweb.com?Product=HD67 53 (… M-Bus Master)

www.adfweb.com?Product=HD67551 (… C Nopen)

www.adfweb.com?Product=HD67552 (… C N)

www.adfweb.com?Product=HD67553 (… J1939)

www.adfweb.com?Product=HD67554 (… DeviceNet Slave)

www.adfweb.com?Product=HD67555 (… DeviceNet Master)

www.adfweb.com?Product=HD67561 (… Modbus Master)

www.adfweb.com?Product=HD67562 (… Modbus Slave)

www.adfweb.com?Product=HD67563 (… Ethernet Server)

www.adfweb.com?Product=HD67564 (… Modbus TCP Client)

www.adfweb.com?Product=HD67565 (… Modbus TCP Server)

PROFIBUS Master from/to …

www.adfweb.com?Product=HD67575 (… Ethernet)

www.adfweb.com?Product=HD67577 (… C N)

www.adfweb.com?Product=HD6758 (… Modbus Slave)

Do you have an your customer protocol?

See the following links:

www.adfweb.com?Product=HD67 3

Do you need to choose a device? do you want help?

Ask it to the following link:

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS

Master

/ Modbus TCP Slave

Converter

Document code: MN67579_ENG Revision 2. 2 Page 2 of 32

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLES OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

PROFIBUS 1

ETHERNET 1

USE OF COMPOSITOR SW67579 11

NEW PROJECT / OPEN PROJECT 12

SOFTWARE OPTIONS 13

SET COMMUNICATION 14

PROFIBUS NETWORK 15

MASTER PROFIBUS OPTIONS 16

PROFIBUS DEVICE 17

UPDATE DEVICE 25

MODBUS MAP 27

MECHANICAL DIMENSIONS 29

ORDER CODE 3

ACCESSORIES 3

DISCLAIMER 31

OTHER REGULATIONS AND STANDARDS 31

WARRANTIES AND TECHNICAL SUPPORT 32

RETURN POLICY 32

Pagina 2 di 32

UPD TED DOCUMENT TION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

Revision

Date uthor

Chapter

Description

1. 2/12/2 11 Fl All First release version

2. 22/ 8/2 12 Fl All Software changed (v1. 1)

2. 1 9/ 1/2 13 Nt All Software changed (v1. 1)

2. 2 14/ 4/2 17 Ff All Revision

W RNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TR DEM RKS:

All trademarks mentioned in this document belong to their respective

owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS

Master

/ Modbus TCP Slave

Converter

Document code: MN67579_ENG Revision 2. 2 Page 3 of 32

SECURITY LERT:

ENER L

NFORM TION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

U LIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDU L

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected] or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS

Master

/ Modbus TCP Slave

Converter

Document code: MN67579_ENG Revision 2. 2 Page 4 of 32

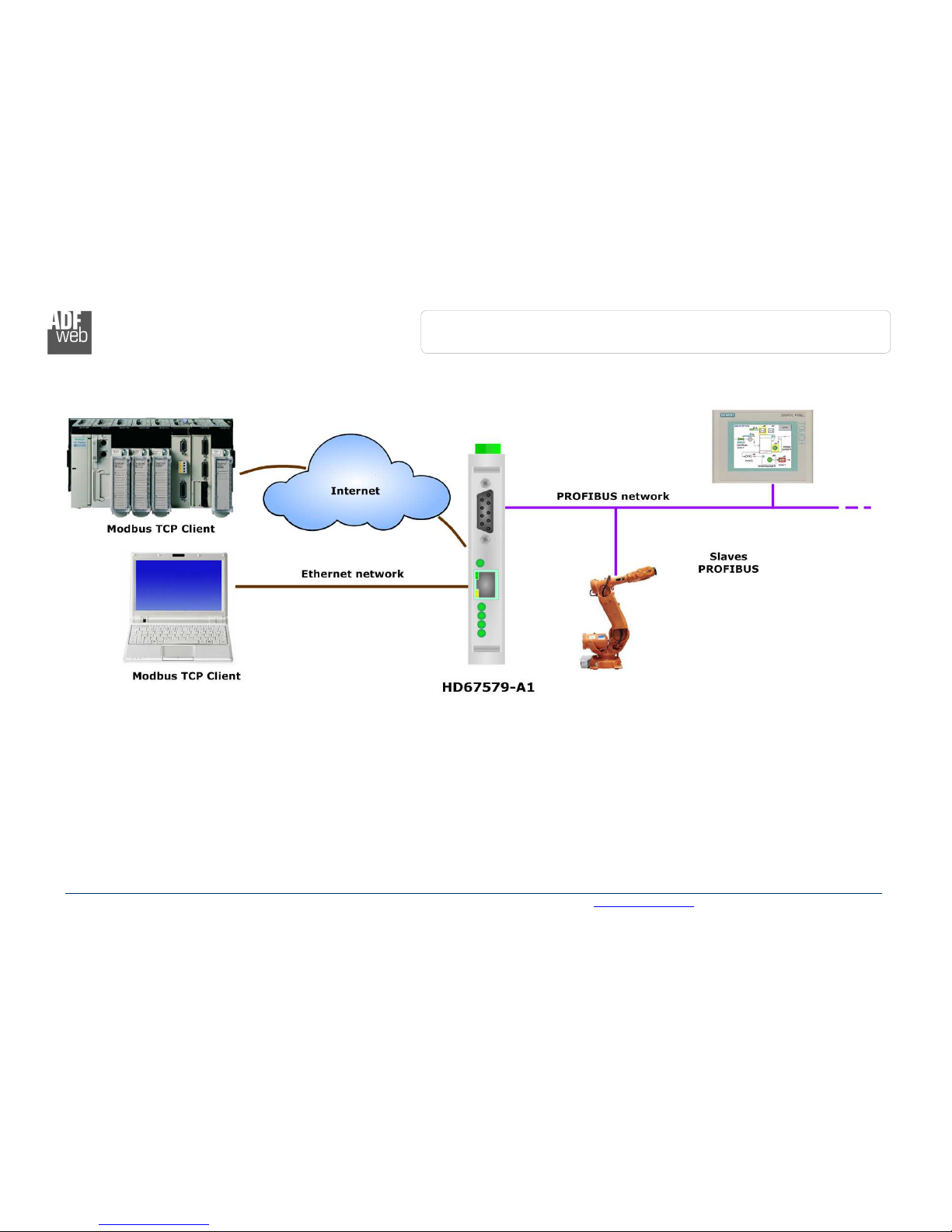

EX MPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS

Master

/ Modbus TCP Slave

Converter

Document code: MN67579_ENG Revision 2. 2 Page 5 of 32

CONNECTION SCHEME:

Figure

: Connection scheme for HD67

579

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS

Master

/ Modbus TCP Slave

Converter

Document code: MN67579_ENG Revision 2. 2 Page 6 of 32

CH R CTERISTICS:

The configurable “PROFIBUS Master / Modbus TCP Slave - Converter” allows the following characteristics:

Triple isolation between Modbus/PROFIBUS, Modbus/Power Supply, PROFIBUS/Power Supply.

Mountable on 35mm Rail DIN;

Power Supply 8...24V AC or 12...35V DC;

Temperature range -4 °C to 85°C.

CONFIGUR TION:

You need Compositor SW67579 software on your PC in order to perform the following:

Define the parameter of the PROFIBUS;

Define the parameter of the Modbus line;

Define the PROFIBUS network.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS

Master

/ Modbus TCP Slave

Converter

Document code: MN67579_ENG Revision 2. 2 Page 7 of 32

POWER SUPPLY:

The devices can be powered between a wide range of tensions. For more details see the two tables below.

V C

VDC

Vmin Vmax Vmin Vmax

HD67579- 1 8V 24V 12V 35V

Consumption at 24V DC:

Device W/V

HD67579-A1 4

Caution: Not reverse the polarity power

HD67

579

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS

Master

/ Modbus TCP Slave

Converter

Document code: MN67579_ENG Revision 2. 2 Page 8 of 32

FUNCTION MODES:

The device has got two functions mode depending of the position of the Dip2 of ‘Dip-Switch A’:

The first, with Dip2 in Off position (factory setting), is used for the normal working of the device.

The second, with Dip2 in On position, is used for upload the Project/Firmware.

For the operations to follow for the updating see ‘UPDATE DEVICE’ section.

According to the functioning mode, the LEDs will have specifics functions see ‘LEDS’ section.

Warning:

Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS

Master

/ Modbus TCP Slave

Converter

Document code: MN67579_ENG Revision 2. 2 Page 9 of 32

LEDS:

The device has got five LEDs that are used to give information of the functioning status.

The various meanings of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: Power (green) ON: Powered

OFF: Not powered

ON: Powered

OFF: Not powered

2: Modbus comm. (green) Blinks quickly when Ethernet commands are

received

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

4: PROFIBUS comm. (green) Blinks quickly when there is PROFIBUS

communication

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

5: Ethernet Link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS

Master

/ Modbus TCP Slave

Converter

Document code: MN67579_ENG Revision 2. 2 Page 1 of 32

PROFIBUS:

The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in the right figure.

Here some codes of cables:

Belden: p/n 183 79A - Continuous Armor DataBus® ISA/SP-5 PROFIBUS Cable.

ETHERNET:

The Ethernet connection must be made using Connector4 of HD67579-A1 with at least a Category 5E cable. The maximum length of the

cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To connect the

device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a

cross cable.
