ADF Web HD674-A006 User manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / Modbus Master

Document code: MN674-A006_ENG Revision .000 Page of 47

Page

User Manual

Revision .000

English

PROFINET / Modbus Master – Converter

(Order Code: HD674-A006)

For Website information:

www.adfweb.com?Product=HD674-A006

For Price information:

www.adfweb.com?Price=HD674-A006

Benefits and Main Features:

Very easy to configure

Wide supply input range

Electrical isolation

Industrial temperature range:

-40°C / 05°C (-40°F / 22 °F)

For others Gateways / Bridges:

J19 9 to Modbus

See also the following links:

www.adfweb.com?Product=HD670 (Modbus RTU Slave)

www.adfweb.com?Product=HD670 2 (Modbus RTU Master)

www.adfweb.com?Product=HD670 4 (Modbus TCP Slave)

www.adfweb.com?Product=HD670 5 (Modbus TCP Master)

Do you have an your customer protocol?

See the following links:

www.adfweb.com?Product=HD67003

Do you need to choose a device? do you want help?

Ask it to the following link:

www.adfweb.com?Cmd=helpme

User Manual

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / Modbus Master

Document code: MN674-A006_ENG Revision .000 Page 2 of 47

Page

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLES OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 9

CONFIGURATION 9

POWER SUPPLY 0

LEDS

RS232 2

RS485 3

ETHERNET 4

USB 4

USE OF COMPOSITOR SW674-A006 5

NEW PROJECT / OPEN PROJECT 6

SOFTWARE OPTIONS 7

SET COMMUNICATION 9

SET ACCESS 20

PROFINET XML 23

UPDATE DEVICE 24

ADVANCED FUNCTIONS 26

ADVANCED COMMANDS 30

MODBUS DIAGNOSTIC OVER PROFINET 36

PLC CONFIGURATION 37

MECHANICAL DIMENSIONS 40

ORDER CODE 44

ACCESSORIES 45

DISCLAIMER 46

OTHER REGULATIONS AND STANDARDS 46

WARRANTIES AND TECHNICAL SUPPORT 47

RETURN POLICY 47

Pagina 2 di 47

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

Revision Date Author Chapter Description

.000 5/06/20 7 Ff All First released version

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / Modbus Master

Document code: MN674-A006_ENG Revision .000 Page 3 of 47

Page

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / Modbus Master

Document code: MN674-A006_ENG Revision .000 Page 4 of 47

Page

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / Modbus Master

Document code: MN674-A006_ENG Revision .000 Page 5 of 47

Page

Figure

: Connection scheme

for HD674

A006

E4x

CONNECTION SCHEME:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / Modbus Master

Document code: MN674-A006_ENG Revision .000 Page 6 of 47

Page

Figure

: Connection scheme

for HD674

A006

E7x

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / Modbus Master

Document code: MN674-A006_ENG Revision .000 Page 7 of 47

Page

Figure

: Connection scheme

for HD674

A006

E4x

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / Modbus Master

Document code: MN674-A006_ENG Revision .000 Page 8 of 47

Page

Figure 1d: Connection scheme for HD674-A006-4-E7x-xx

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / Modbus Master

Document code: MN674-A006_ENG Revision .000 Page 9 of 47

Page

CHARACTERISTICS:

The “HD674-A006” series are rugged devices used to interface Modbus devices with PROFINET network.

With its particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal,

vertical, oblique).

It is possible to have the device varnished or totally resined and also in both cases with “Mini-Fit®” connectors or “AMP SuperSeal .5”

connectors. If is resined, the enclosure, like the “AMP SuperSeal .5" connectors, is waterproof.

All the four series have these characteristics:

Triple 4kV isolation between Power Supply / PROFINET / Modbus;

Varnished / Resined (optionally);

Wide power supply input range: 8…26V AC | 0…40V DC;

Mini-Fit® / AMP SuperSeal .5 connectors;

Metal enclosure with fixing lugs;

Possibility to use Metal hose clamps for fixing it without using lugs;

Microprocessor for data control;

Wide temperature range: -40°C / 05°C (-40°F / 22 °F).

CONFIGURATION:

You need Compositor SW674-A006 software on your PC in order to perform the following:

Define the parameter of PROFINET line;

Define the parameter of Modbus line;

Determinate which PROFINET byte transferring on Modbus and vice versa;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFINET / Modbus Master

Document code: MN674-A006_ENG Revision .000 Page 0 of 47

Page

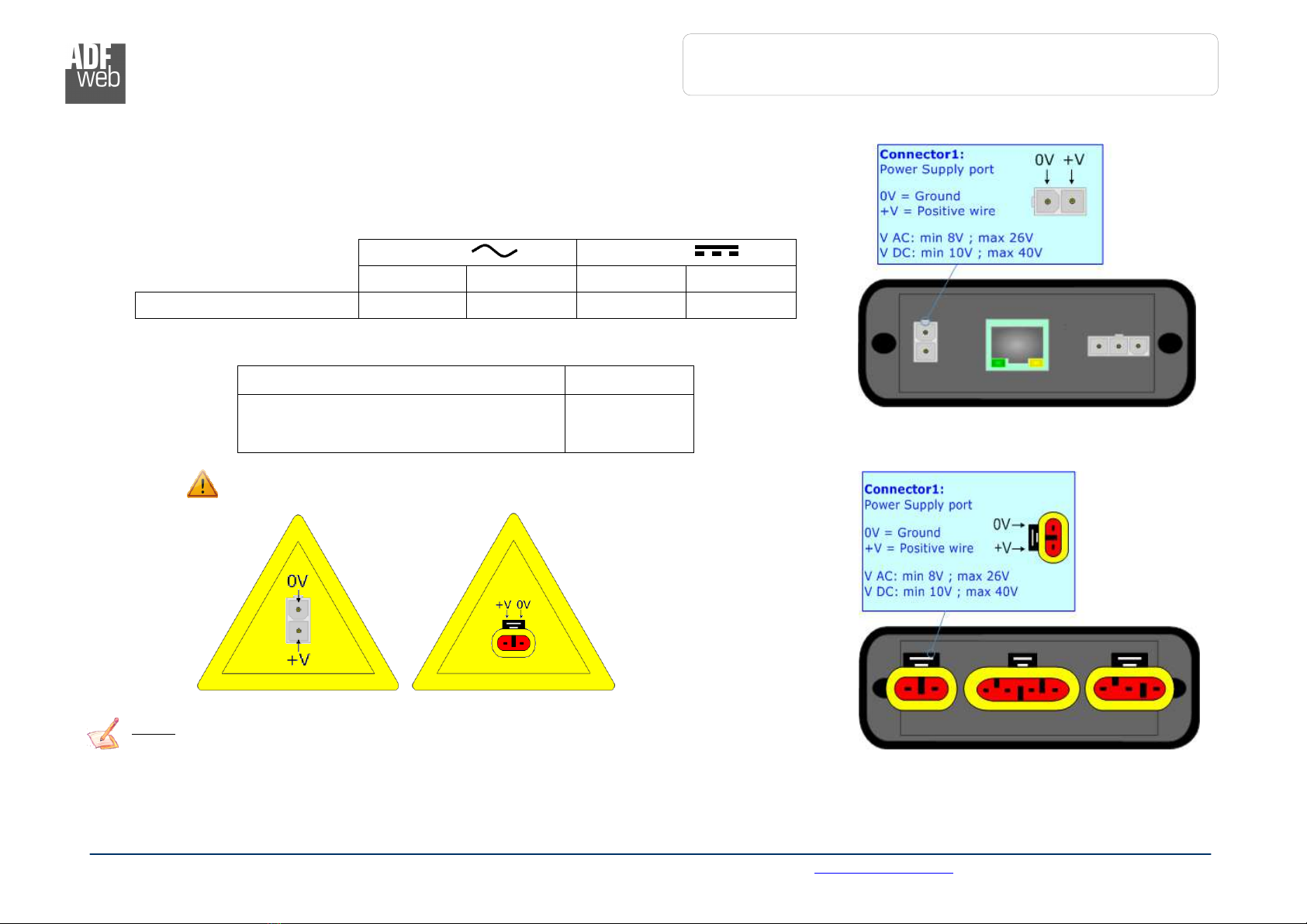

POWER SUPPLY:

The devices can be powered between a wide range of tensions. For more details see the two

tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

HD674-A006-Exx-xx 8V 26V 10V 40V

Consumption at 24V DC:

Device W/VA

HD674-A006-Exx-xx 4

Note: It is possible to use also negative tensions. In this case the polarity must be

inverted.

Caution: Not reverse

the polarity power

HD674-A006-E4x-xx HD674-A006-E7x-xx
