Addonics Technologies REDESP? REDESPU3 User manual

T E C H N O L O G I E S

User Guide

Ruby eSATAp ExDrive

(REDESP, REDESPU3)

Installing your HD to the

Ruby eSATAp ExDrive

Step 1

Separate the top from the bottom cover of

the drive enclosure by loosening the screw.

Step 3

Wrap the shock absorbers around

the hard drive and PCB.

Switch

SATA Connector

PCB

Shock Absorbers

HD Step 2

Align the SATA connector in the

2.5” hard drive with the SATA

connector on the PCB.

Step 4

Turn over the PCB and secure the hard

drive to the PCB with the mounting

screws that come with the kit.

Bottom of PCB

Technical Support

If you need any assistance to get your unit functioning properly, please have your

product information ready and contact Addonics Technical Support at:

Hours: 8:30 am - 6:00 pm PST

Phone: 408-453-6212

Email: http://www.addonics.com/support/query/

v3.1.11

www.addonics.com

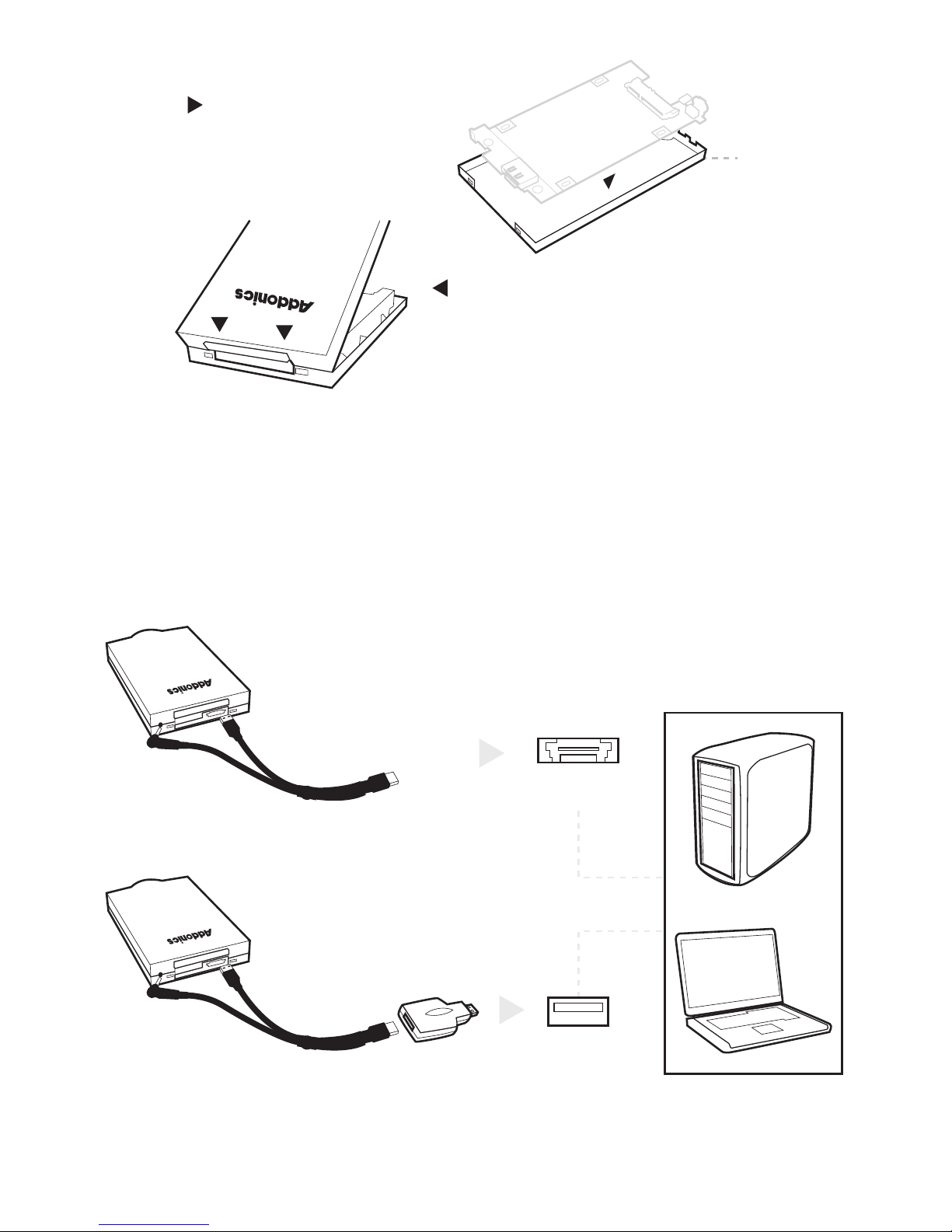

Step 5

Mount the board to the bottom cover.

Step 7

Lower the front of the top cover and making sure the two covers lined up

properly. Tighten the small retaining screw on the front of the bottom cover to

close the enclosure.

Bottom Cover

Universal eSATAp Cable

Universal eSATAp Cable

eSATAp to USB 3.0 Adapter

(REDESPU3 Only)

Step 6

Put the top cover on by holding it in

near vertical position and sliding the

two metal clips inside the two small

slots on the rear of the bottom cover.

Hybrid eSATA Port

(eSATAp)

USB 3.0/2.0 Port

Connecting the Ruby Enclosure to Your Computer

or
