INTRODUCTION

This manual describes and provides installation procedures for the Remote Test Access Unit

(RTAU) module used in the Soneplex Broadband System (MPU V5.3 and SCU V3.0 or later).

Revision History

ISSUE DATE REASON FOR CHANGE

Issue 1 06/1999 Original

Issue 2 04/2000 Add DS3 MUX compatibility and SCU 3.0 or later support.

Issue 3 09/2004 Technically updated 2. Installation, 3. LED Check, and 8. Customer Information and Assistance

sections.

Trademark Information

ADC and ADC Telecommunications are registered trademarks of ADC Telecommunications, Inc.

Soneplex is a registered trademark of ADC Telecommunications, Inc.

ADCP-61-743 •Issue 3 •September 2004

Page 2

2004, ADC Telecommunications, Inc.

Related Publications

Listed below are related manuals and their publication numbers. Copies of these publications

can be ordered by contacting the ADC Technical Assistance Center at 1-800-366-3891.

Title ADCP Number

Soneplex Broadband System Description, Design, and Application Manual (V5) ADCP-61-472

Soneplex Broadband System Operation and Maintenance Manual (V5) ADCP-61-471

Soneplex DS3 MUX Module Installation Instructions ADCP-61-742

Soneplex System Installation Manual LTPS-UM-8010

Soneplex Shelf Controller Unit (V4.1) User Manual LTPS-UM-8031

Admonishments

Important safety admonishments are used throughout this manual to warn of possible hazards

to persons or equipment. An admonishment identifies a possible hazard and then explains what

may happen if the hazard is not avoided. The admonishments — in the form of Dangers,

Warnings, and Cautions — must be followed at all times. These warnings are flagged by use of

the triangular alert icon (seen below), and are listed in descending order of severity of injury or

damage and likelihood of occurrence.

Danger: Danger is used to indicate the presence of a hazard that will cause severe personal

injury, death, or substantial property damage if the hazard is not avoided.

Warning: Warning is used to indicate the presence of a hazard that can cause severe personal

injury, death, or substantial property damage if the hazard is not avoided.

Caution: Caution is used to indicate the presence of a hazard that will or can cause minor

personal injury or property damage if the hazard is not avoided.

General Safety Precautions

Caution: Electronic modules can be damaged by electrostatic discharge (ESD). Before

handling modules, wear an anti-static discharge wrist strap to prevent damage to electronic

components. Place modules in anti-static packing material when transporting or storing. When

working on modules, always place them on an approved anti-static mat that is electrically

grounded.

ADCP-61-743 •Issue 3 •September 2004

Page 3

FCC Compliance Statement

The Remote Test Access Unit has been certified to comply with the requirements for Class A

computing devices per part 15 of the FCC regulations.

Warning: This equipment generates, uses, and can radiate radio frequency energy and if not

installed and used in accordance with the instruction manual, may cause interference to radio

communications. It has been tested and found to comply with limits for a Class A digital device

pursuant to Subpart A of Part 15 of FCC Rules, which are designed to provide reasonable

protection against such interference when operated in a commercial environment. Operation

of this equipment in a residential area is likely to cause interference to TV and radio reception

in which case the user, at their own expense, will be required to take whatever measures may

be required to correct the interference.

This equipment does not exceed Class A limits for radio emission for digital apparatus, set out in

the radio interference regulation of the authorization methods of Industry Canada. Operation in

a residential area may cause unacceptable interference to TV and radio reception requiring the

owner or operator to take whatever steps are necessary to correct the interference.

Certification

The Soneplex Broadband system is compliant with UL 1459.

Standards

ANSI T1.403-1997 Carrier to Customer Installation: DS1 Metallic Interface, 1997

TR-NPL-000054 High-Capacity Digital Service (1.544 Mbps) Interface General

Requirements for End Users, Issue 1, April 1989

ADCP-61-743 •Issue 3 •September 2004

Page 4

2004, ADC Telecommunications, Inc.

1 DESCRIPTION

The Remote Test Access Unit (RTAU) (Figure 1) provides maintenance functionality for

monitoring and intrusive test access to the DS1 channels in the chassis between the DS3 MUX

and the low speed distribution modules (DLX, HLXC, ODS2, and RLX). The RTAU requires

no periodic maintenance. It requires the Version D1 or later DS3 MUX module and MPU

Version 5.3 or SCU Version 3.0 or later system software to be functional in the Soneplex

Broadband System for DS3 applications. If an earlier version of MPU software is used, the

RTAU will appear as a blank slot on the Craft Interface’s Inventory Status screen. Earlier

versions of the SCU software will not display the TAU slot.

The RTAU has the following features:

• Access supervision for intrusive testing (i.e., monitor access, split access for both A and

B transmission paths, and loop access for both A and B transmission paths).

• Stress testing of any circuit within the system via the Internal Test Signal Generation

feature. Many DS1 networks are tested by passing repeating sequences (patterns) of

logical ones and zeros through the network, also known as stress test patterns. As the test

patterns are applied to the circuit, they are compared with the original pattern to

determine if any errors are introduced. QRS (Quasi Random Signal) is one of the test

patterns supported. (QRS conforms to TR-NPL-000054.)

• Capable of inserting bit errors at a specified rate or as single errors or burst errors to the

DS1 circuit being tested.

• Ability to monitor (intrusively or non-intrusively) the DS1 circuit being tested.

• User control through the Craft Interface or via the TL1 interface.

• Access to the DS1 through front panel bantam jacks or through the internal test signal

generator. This control is configurable through the Craft Interface.

• Supports the Building Integrated Timing Supply (BITS) primary interface through the

wire wrap pins on the back of the Soneplex Broadband chassis. If a valid BITS signal is

applied to the Broadband chassis, the RTAU will automatically switch over to the BITS

primary interface and use the recovered clock for timing.

Note: The BITS secondary interface on the Soneplex Broadband chassis is not supported

by the RTAU.

ADCP-61-743 •Issue 3 •September 2004

Page 5

11897-A

RTAU

STATUS

LINE CODE

INTRUSIVE

TEST

B8ZS

AMI

BIPOLAR

ACCESS

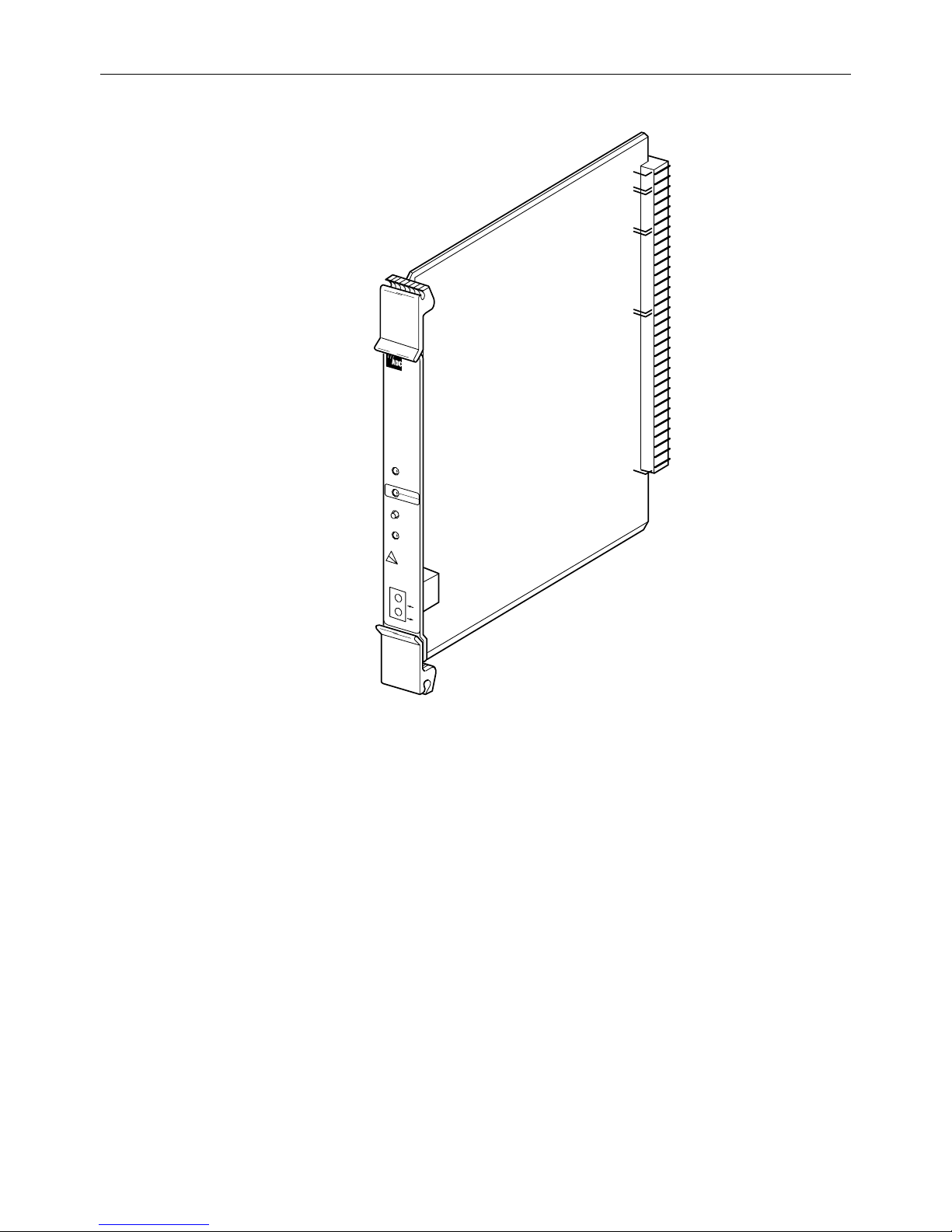

Figure 1. Remote Test Access Unit (RTAU) Module

ADCP-61-743 •Issue 3 •September 2004

Page 6

2004, ADC Telecommunications, Inc.

1.1 DS3 MUX Compatibility

Refer to Table 1 for compatibility information for DS3 MUXs, test access units, and MPU/SCU

software versions.

Table 1. DS3 MUX, TAU/RTAU, and MPU/SCU Software Compatibility

DS3 MUX TYPE

TEST ACCESS

UNIT TYPE

MPU SOFTWARE

VERSION

SCU SOFTWARE

VERSION

FUNCTIONALITY

C1 TAU 5.1.1 or later 2.5 or later TAU

C1 RTAU 5.1.1 or later 2.0 or later NO TEST ACCESS

D1 TAU 5.1.1 or later 2.5 or later TAU

D1 RTAU 5.2 or earlier 2.5 or earlier NO TEST ACCESS

D1 RTAU 5.3 3.0 or later RTAU

G1 TAU 5.1.1 or later 2.5 or later TAU

G1 RTAU 5.2 or earlier 2.5 or earlier NO TEST ACCESS

G1 RTAU 5.3 3.0 or later RTAU

Refer to the Soneplex System Operation and Maintenance Manual listed under Related

Publications at the beginning of this manual for more information.

2 INSTALLATION

There are two installation procedures:

• Initial Installation - This installation procedure applies to the first time an IBBC shelf

will be populated with a RTAU module.

• Maintenance Installation (Existing System) - This installation procedure applies to an

IBBC shelf that has already been populated with a RTAU module.

Please follow the appropriate procedure per your system configuration.

ADCP-61-743 •Issue 3 •September 2004

Page 7

2.1 Initial Installation

This installation procedure applies to the first time an IBBC shelf will be populated with

a RTAU module. If the IBBC shelf has already been populated with a RTAU module, go

to 2.2. Maintenance Installation (Existing System).

Installation consists of unpacking and installing the RTAU module, and verifying that it is

functioning properly. Use the following procedure to install a RTAU module:

Caution: Electronic modules can be damaged by static electrical discharge. Before handling

modules, wear an anti-static discharge wrist strap to prevent damage to electronic

components. Place modules in anti-static packing material when transporting or storing. When

working on modules, always place them on an approved anti-static mat that is electrically

grounded.

Warning: If the RTAU module is improperly installed, damage can be caused to the system.

Be careful when inserting the RTAU module into a new chassis.

Caution must be used to prevent bending pins when inserting modules into a new IBBC shelf.

Once a module has been successfully seated in the connector, it “trains” the pins and aligns

them to the modules connector greatly reducing the chances of bending pins on subsequent

insertions. The following procedure outlines a method to mitigate the risk on a new shelf

installation.

1. Open the front cover of the Soneplex Broadband system.

2. Open the shipping carton and carefully unpack the RTAU module from its protective

packing material.

3. Once the Soneplex shelf has been installed and powered up:

a. Remove both-48V A and B side fuses (and “pilot” fuses if used).

b. Inspect the RTAU slots for bent or misaligned pins.

c. If pins are not bent, continue to the next step. If pins are bent, refer to 2.1.1 Damaged

Pins section.

4. With shelf unpowered, refer to the chassis marking above the module slot (Figure 2) to

install the RTAU module in the full-height slot labeled TAU.

ADCP-61-743 •Issue 3 •September 2004

Page 8

2004, ADC Telecommunications, Inc.

14185-A

RTAU MODULE

HSW HSP TAU APU

SCU

MXPMXW

DS3FAIL

RESET

LMPTST/

APS

LPBK

ENABLE

ONLINE

STATUS

APS LOCKOUT

FORCE

APU

ACO

PWR

HSKP

RMT

ALM

LMPTST

DISPRMT

1-31-1 2-1 2-3 3-1 3-3 4-1 4-3 5-1 5-3 6-1 6-3 7-1 7-3

1-41-2 2-2 2-4 3-2 3-4 4-2 4-4 5-2 5-4 6-2 6-4 7-2 7-4

RTAU

INTRUSIVE

TEST

B8ZS

AMI

LINE CODE

STATUS

DS3FAIL

RESET

LMPTST/

APS

LPBK

ENABLE

ONLINE

STATUS

APS LOCKOUT

FORCE

STATUS

RESET

Figure 2. RTAU Mounting Position in the Soneplex Broadband

5. Align the module edges of the RTAU with the mounting slot module guides. Use the

injectors to seat the module in the chassis.

6. Remove the RTAU module.

7. Inspect the backplane connector for bent pins.

8. If pins are not bent, continue to the next step. If pins are bent, refer to 2.1.1 Damaged

Pins section.

9. Re-install the RTAU module.

10. With the RTAU module installed, power up the shelf one fuse at a time.

a. Install the -48V A fuse.

b. Install the -48V B fuse.

Refer to 8. Customer Information and Assistance, if needed.

2.1.1 Damaged Pins

The pins used in the back plane connector should not be straightened after they have been

deflected more than 10 degrees from vertical as they will “work harden” and break at the

bend. Bent pins must be removed and replaced using special tools and is not

recommended as a field repair. Remove shelf with damaged pins and contact ADC for

replacement. Refer to 8. Customer Information and Assistance.

ADCP-61-743 •Issue 3 •September 2004

Page 9

2.2 Maintenance Installation (Existing System)

Replacement of the RTAU module in existing IBBC shelves should follow normal

maintenance procedures. Since a module has already been in service in the affected slot, the

backplane pins will have been trained into alignment with subsequent replacement modules. If

excessive resistance is encountered upon insertion, remove the module and inspect for

misalignment or obstructions.

This procedure assumes that the IBBC shelf has already been populated with a RTAU

module. If this is the first time that the IBBC shelf has been populated with a RTAU

module, go to 2.1 Initial Installation.

Installation consists of unpacking and installing the RTAU module, and verifying that it is

functioning properly. Use this procedure to install a RTAU module.

Warning: To prevent electrical shock, never install equipment in a wet location or during a

lightning storm. When installing or modifying telephone lines, disconnect lines at the network

interface before working with uninsulated lines or terminals.

Caution: Electronic modules can be damaged by electrostatic discharge (ESD). Before

handling modules, wear an anti-static discharge wrist strap to prevent damage to electronic

components. Place modules in anti-static packing material when transporting or storing. When

working on modules, always place them on an approved anti-static mat that is electrically

grounded.

1. Open the front cover of the Soneplex Broadband (V5) chassis.

2. Open the shipping carton and carefully unpack the RTAU module from its protective

packing material. Inspect the module for damage

3. Refer to chassis markings above the module slot (Figure 2) to install the RTAU module

in the full-height slot marked TAU.

4. Align the module edges of the RTAU with the mounting slot module guides. Use the

injectors to seat the module in the chassis. If there is excessive resistance, remove the

module and check for obstructions or improper alignment.

ADCP-61-743 •Issue 3 •September 2004

Page 10

2004, ADC Telecommunications, Inc.

3 LED CHECK

1. When the RTAU module (Figure 3) is seated, the STATUS LED will be lit red for

approximately 5 seconds. All LEDs will then flash yellow, and then the STATUS LED

will be lit green. If the STATUS LED is not lit green after 10 seconds, replace the

module. Refer to 2.2 Maintenance Installation (Existing System).

RTAU

STATUS

LINE CODE

INTRUSIVE

TEST

12693-B

BIPOLAR

ACCESS

B8ZS

AMI

Figure 3. RTAU Front Panel

This manual suits for next models

Table of contents

Other ADC Network Hardware manuals

ADC

ADC ETU-751C List 1 User manual

ADC

ADC FlexWave MMX 7000 User manual

ADC

ADC RF Signal Management SignalOn Series User manual

ADC

ADC PG-FlexPlus AMU-912 User manual

ADC

ADC HiGain H2TU-C-231 User manual

ADC

ADC HIGAIN H2TU-R-402-L7A1 Original operating instructions

ADC

ADC InterReach Fusion User manual

ADC

ADC WiMAX Single-sector Base Station WMX 3000 User manual

ADC

ADC DSX-4R (RZX3) User manual

ADC

ADC HiGain HLU-231 LIST 8D Original operating instructions

ADC

ADC UniPatch Modular System RS-422 User manual

ADC

ADC LoopStar 780 User manual

ADC

ADC HiGain H2TU-R-402 List 7A Original operating instructions

ADC

ADC HiGain HDU-404 LIST 2 Original operating instructions

ADC

ADC HIGAIN H2TU-R-402 LIST 7G Original operating instructions

ADC

ADC H4TU-C-319 List 1 Line Unit User manual

ADC

ADC HiGain Wideband 3190 Installation and operation manual

ADC

ADC HiGain H2TU-C-231 Original operating instructions

ADC

ADC HiGain HLU-C-388 List 5F Original operating instructions

ADC

ADC HiGain H2TU-C-319 List 4E Original operating instructions

ADC

ADC FlexWave MMW 125 User manual

ADC

ADC Digivance User manual

ADC

ADC H2TU-C-388 HiGain Original operating instructions

ADC

ADC HiGain HDSL2 User manual

Popular Network Hardware manuals by other brands

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL product manual

B&B Electronics

B&B Electronics ZXT9-IO-222R2 product manual

Yudor

Yudor YDS-16 user manual

D-Link

D-Link ShareCenter DNS-320L datasheet

Samsung

Samsung ES1642dc Hardware user manual

Honeywell Home

Honeywell Home LTEM-PV Installation and setup guide

evertz

evertz 7700 Series manual

D-Link

D-Link ShareCenter DNS-343 Quick installation guide

Asante

Asante AsanteBridge 1012 user guide

FireBrick

FireBrick FB2700 user manual

Audiovox Electronics

Audiovox Electronics ARWH2T user manual

NetComm

NetComm NF2 user guide

Alcatel-Lucent

Alcatel-Lucent 5620 user guide

Dell EMC

Dell EMC XC6420 Series Solution guide

Lanner

Lanner NCA-1020A user manual

Allied Telesis

Allied Telesis AT-TN121-A Specifications

Arista

Arista CCA-ETM-Q12 quick start guide

Lanner

Lanner NCA-1525 user manual
