Adaptec GDT8114RZ User manual

ICP Disk Array Controllers

Excellence in Controllers

64-Bit/66MHz PCI - Ultra320 SCSI

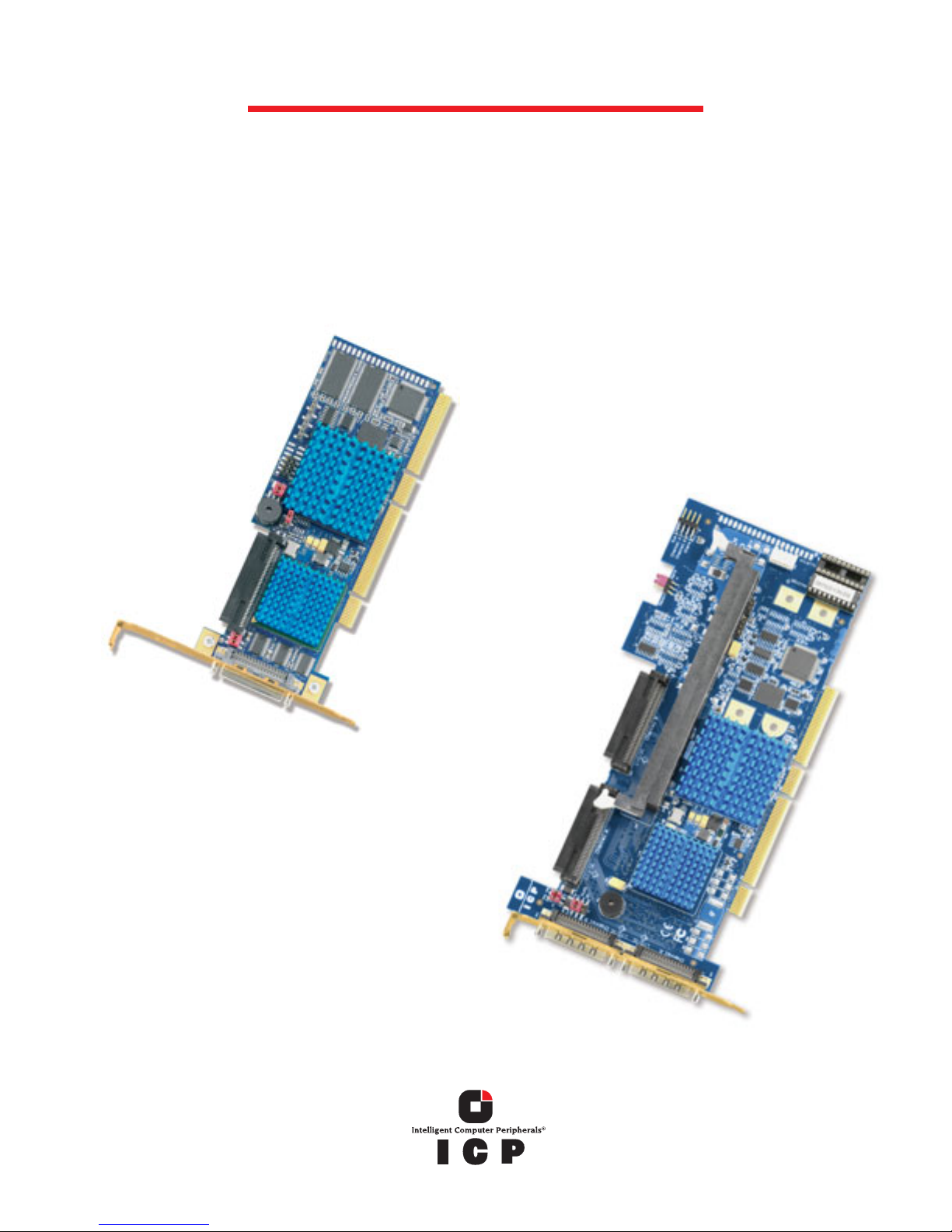

GDT8xy4RZ - A complete Family

GDT8x14RZ is the 1-channel RAID controller with the

functionality of a 2-channel RAID controller. It has

both, an internal channel and another independent

channel for external use. GDT8x14RZ is ideally suited

for blade, rackmount and enterprise servers. Its com-

pact design allows GDT8x14RZ to be used even in low

profile systems.

GDT8x24RZ is the 2-channel RAID controller

with two internal and two external connnectors.

GDT8x24RZ has been designed for use in

high performance enterprise servers.

GDT8524RZ+ can optionally be upgraded with

the ICP BBU. GDT8524RZ+BBU comes inital

with a battery for full BBU support.

GDT8xy4RZ is a family of

64-bit/66MHz PCI Ultra320 SCSI RAID

controllers. There are versions with one

and with two external Ultra320 SCSI

channels. The controllers feature

multiple RAID level support, for example

RAID 0/1 for mirroring, or they offer full

RAID 0, 1, 4, 5, 10 functionality. They have

either no, an optional upgradable or

full ICP Battery Backup Unit.

64-bit/66MHz PCI - Ultra320 SCSI

Hardware RAID Controller

●Supports RAID 0/1, or RAID 0/1/4/5/10 depending on

the type of controller

●Hot Plug, Auto Hot Plug with SAF-TE support

●Private or Pool Hot Fix drives

●Hardware RAID is totally independent of the host and

operating system

●Integrated acoustic alarm

Versatile Connectivity Capabilities

●Support of each one internal and one external

Ultra320 SCSI channel or two Ultra320 SCSI channels

with two internal and two external connections

depending on the type of controller

●Connection of up to 15 devices per channel with soft-

ware-switchable multi-mode termination (LVD/SE)

●Maximum synchronous data transfer rate of up to

320MB/sec. per channel (LVDS) depending on the

attached drives

●Backwards compatible to former SCSI devices

●Supports Ultra320 SCSI features and other SCSI devices

●Cable length up to 12 meters (LVDS) per channel

Multiprocessor RISC Architecture

●64-bit Intel* 80303 I/O processor, > 100 MIPS

●”Hardware XOR Engine”, integrated coprocessor

for optimized RAID 4/5 operations

●Completely offloading the host CPU

PCI Bus Specifications

●64-bit/66MHz PCI bus interface with up to 528MB/sec.

data throughput

●Backwards compatible with 32-bit/33MHz, 64-bit/33MHz

and 32-bit/66MHz PCI slots, as well as PCI-X slots

●Supports 5 Volt and 3.3 Volt PCI slots

●Supports PCI Hot Plug functions under Windows*

2000 and Novell* NetWare* (OS driver needed for “hot

replacement” and PCI Hot Plug System)

Optimum in Memory Technology

●64-bit cache RAM, non-buffered PC133 ECC SDRAM,

either 128MB onboard with GDT8x14RZ or optional

64 up to 256MB DIMM stick depending on the type of

controller

●Intelligent multi-level cache algorithm with

adaptive delayed write & read ahead functions

Intelligent Battery Backup Unit

BBU Support for even more Data Reliability

72 Hours of Cache Memory Protection

●GDT8524RZ+BBU, ICP Controller plus ICP Battery

Backup Unit, includes BBU support in hardware and

firmware

●With GDT8524RZ+ BBU functionality can optionally be

updated by putting the battery (ICP BBU) into action

●RAID cache holds all data and stores it even in the

case of power failure, at system/controller restart all

data in cache will be written back to hard drives

●Lithium Ion Battery with typ./min. hold time of

72 hours (appropriate handling required), depending

on the used memory module

●Intelligent battery management via ICP RAID software

for monitoring current, voltage, temperature and

actual capacity of battery, for instance

GDT8xy4RZ - ICP RAID Controllers

High Configuration Flexibility

●ROM-resident setup (ICP RAID Console) with integra-

ted “Express Setup” function (CTRL+<G>)

●Simultaneous operation of several disk arrays

●Flexible capacity setting

●Online capacity expansion

●Online RAID level migration

●Complete disk array migration

●RAID arrays from other ICP RAID controllers are easily

adopted without reconfiguration (Array Roaming)

●Controller switch and controller upgrade without

reconfiguration

●Automatic adaptation to changes in SCSI configura-

tion (ID/SCSI channels)

Operating System Support

●Windows* XP/2000/2003, Novell* NetWare*, SCO*

OpenServer*/OpenUnix*/UnixWare*, Linux* and

FreeBSD*

Number of

Wide/Ultra320 SCSI

Channels / Number

of Attached Devices

ICP Controller

Battery Backup Unit

PCB Size

Cache RAM in MB,

ECC DIMMPC133

RAID 0, 1

Hot Fix/Hot Plug

and SAF-TE/SES

Support

GDT8114RZ 1+1/30 no, not upgradable yes no, not upgradable onboard 128 low profile PCI

GDT8514RZ 1+1/30 no, not upgradable yes yes onboard 128 low profile PCI

GDT8124RZ 2/30 no, not upgradable yes upgradable 64 - 256 2/3 PCI

GDT8524RZ 2/30 no, not upgradable yes yes 64 - 256 2/3 PCI

GDT8524RZ+ 2/30 upgradable yes yes 64 - 256 2/3 PCI

GDT8524RZ+BBU 2/30 yes yes yes 64 - 256 2/3 PCI

RAID 0, 1, 4, 5 and 10

Hot Fix/Hot Plug

and SAF-TE/SES

Support

Integrated RAID Software

●ICP RAID Console - installation and monitoring soft-

ware, available for all supported operating systems

with the same look & feel, text-based graphical inter-

face, remote access via TCP/IP and IPX/SPX protocols

●ICP RAID Navigator - GUI tool for all Windows* opera-

ting systems above Windows* 95, context-sensitive

online help, remote access to Windows*, Unix*,

Linux* and NetWare* servers

●Support for messaging and online diagnosis

●Software updates based on Flash-RAM technology,

making Internet downloads easier from

www.icp-vortex.com

Delivery Contents

●ICP Disk Array Controller, either with onboard 128MB

integrated SDRAM or slot for DIMM stick depending

on the type of controller

●Always standard full height PCI bracket assembled,

with GDT8x14RZ an additional bracket for low profile

PCI slot is enclosed

●User’s Manual and Quick Installation Guide

●CD-ROM with tools and drivers

●Three-year warranty for controllers

Excellence in Controllers

ICP vortex Computersysteme GmbH · Konrad-Zuse-Str. 9 · D-74172 Neckarsulm · Germany

Phone: +49-7132-9620-0 · Fax: +49-7132-9620-200 · ICP Support Hotline · Phone.: +49-7132-9620-900 · http://www.icp-vortex.com

*Other names and brands may be claimend as the property of others. Technical changes reserved. Product pictures

may differ from actual products. Printed in Germany/0903/1K/wa
