Instruction Manual

Weather Station

model 02099 / 4409999

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features and Benets: Sensor ... 2

Features and Benets: Display ... 3

Setup .................................... 5

Sensor Setup ......................... 5

Display Setup ........................ 6

Set the Time, Date and Units.... 7

Backlight Settings................... 7

Placement Guidelines ............. 8

Using the Weather Station...... 9

Programmable Alarms...........10

Troubleshooting ....................11

Care and Maintenance .........12

Calibration ...........................12

Specications........................13

FCC Information ...................13

Customer Support .................13

Warranty..............................14

Questions? Contact Customer Support at

(877) 221-1252 or inf[email protected].

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Congratulations on your new AcuRite product. To ensure the best possible

product performance, please read this manual in its entirety and retain it for

future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display with Tabletop Stand

2. Outdoor Sensor

3. Power Adapter

4. 2 AA Batteries

5. Instruction Manual

Features and Benets

1 OUTDOOR SENSOR

1. Integrated Hanger

2 For easy placement.

2. Wireless Signal Indicator

Flashes when data is being sent to the

display.

3. Battery Compartment

3 4. A-B-C Switch

ID code that must match display’s A-B-C

4 switch to ensure units synchronize.

5. Battery Compartment Cover

/\.

Features and Benets

DISPLAY FRONT

1. Current Outdoor Temperature

Arrow icon indicates direction temperature

is trending.

2. Current Outdoor Humidity

Arrow icon indicates direction humidity

is trending.

3. Sensor Low Battery Indicator

4. Heat Index

Displays heat index calculation when

temperature is 27 °C (80 °F) or higher.

5. Dew Point

Displays dew point calculation when

temperature is 26 °C (79 °F) or lower.

6. Icon

Indicates display is in auto-dimming

brightness mode (see page 7).

7. Clock

8. Button

For viewing high and low records.

Display Low Battery Indicator

10. and Buttons

For setup preferences.

11. Button

For setup preferences.

2021 19

78 9 10 11 10 12

12. Button

For alarm setup.

13. Date

14. Moon Phase

15. Humidity Level Indicator

Indicates a high, low or ideal humidity

comfort level.

16.

Barometric Pressure

Arrow icon indicates the direction

pressure is trending.

17. Current Indoor Humidity

Arrow icon indicates direction humidity

is trending.

18. Current Indoor Temperature

Arrow icon indicates direction temperature

is trending.

19.

12 to 24 Hour Weather Forecaster

Self-Calibrating Forecasting pulls data from

the outdoor sensor to generate your

personal forecast.

20.

Icon

Disappears after weather forecast

self-calibration is complete (see page 9).

21. Sensor Signal Strength

Features and Benets

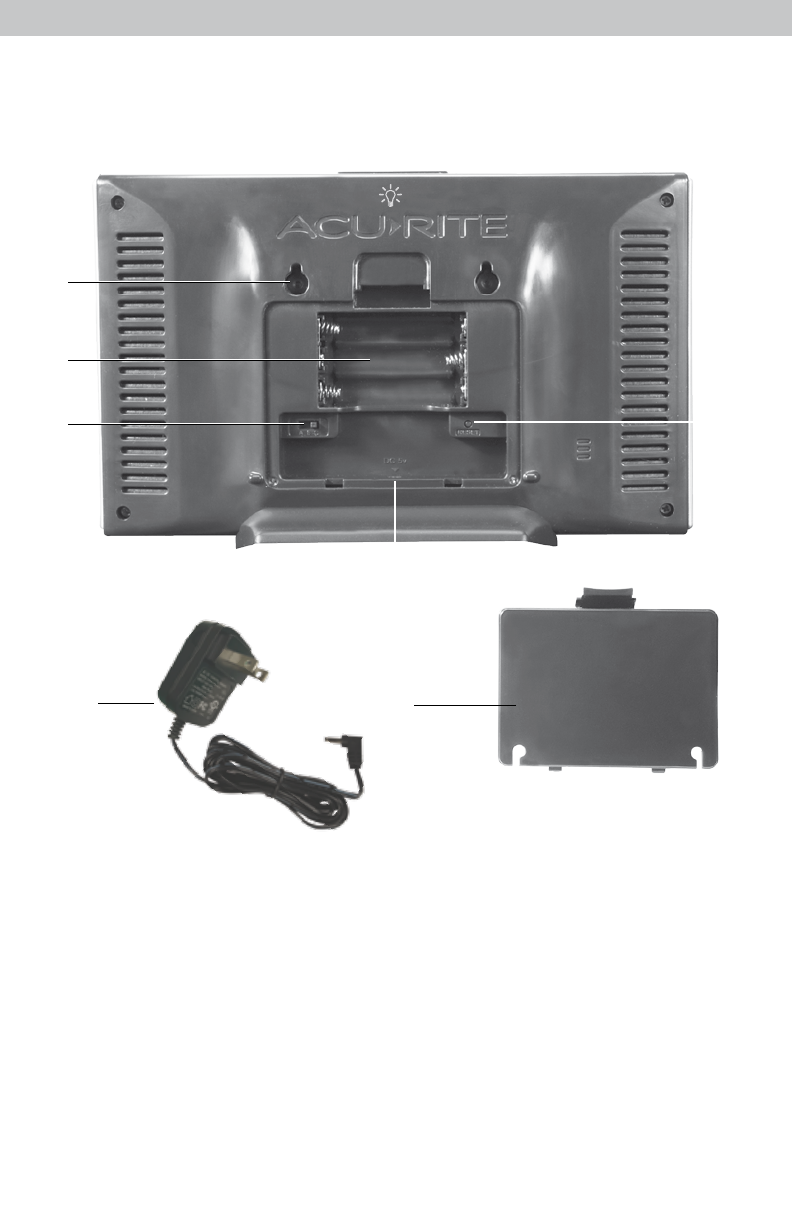

DISPLAY BACK

1. Backlight Button

5. Plug-in for Power Adapter

For momentary backlight and dimmer

settings.

Power Adapter

. In

tegrated Hang Holes 7. Battery Compartment Cover

For easy wall mounting.

8. RESET Button

3. Backup Battery Compartment

Full reset to factory defaults.

4. A-B-C Switch

ID code that must match sensor’s A-B-C

switch to ensure units synchronize.

•

SETUP

Sensor Setup

1 Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display in order for the units

to synchronize.

2 Install or Replace Batteries

AcuRite recommends high quality

alkaline batteries in the outdoor

sensor for the best product

performance. Heavy duty or

rechargeable batteries are not

recommended.

1. Slide off the battery

compartment cover. Take

note of the A-B-C switch

setting inside the battery

compartment for display

setup.

2. Insert 2 x AA batteries into

the battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

2 Install Batteries

2 AA batteries

A B C

1 A-B-C Switch

Set to match

display

• •

•

Display Setup

1 Set the A-B-C Switch

Locate the A-B-C switch inside

the battery compartment. Set

the A-B-C switch to A, B or C.

You must select the same letter

choices for both the display and

the sensor in order for the units to

synchronize.

2 Install or Replace Backup

Batteries (optional)

1. Remove the battery

compartment cover.

1 A-B-C Switch

Set to match

sensor

2. Insert 3 x AAA alkaline

batteries into the battery

compartment, as shown. Follow

the polarity (+/–) diagram in

the battery compartment.

3. Replace the battery cover.

3 Plug in Power Adapter

For the best performance, plug

in the power adapter as the main

power source for this product.

2 Install Batteries

3 AAA Batteries

(optional)

IMPORTANT: Batteries are

a backup power source to

preserve records in the event of

a power outage. Power adapter

is recommended as the primary

power source to enjoy the full

functionality of this product.

3 Plug in

Power Adapter

A B C

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment that will not be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

/\.

Set the Time, Date and Units

Press and release the “ ” button, located on the front of the display, to enter

SET MODE. Once in set mode, the preference you are currently setting will

blink on the display.

To adjust the currently selected (ashing) item, press and release the “ “or

““ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “ ” button again to adjust the

next preference. The preference set order is as follows:

Auto DST (Daylight Saving Time ON of OFF)*

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR

TEMPERATURE UNITS (ºC or ºF)

PRESSURE UNITS (hPa or inHg)

*If you live in an area that observes DST, DST should be set to ON, even if it is

not currently Daylight Saving Time.

You will automatically exit SET MODE if no buttons are pressed for 10 seconds.

Enter setup mode at any time by pressing the “ ” button.

Display Backlight Settings

This weather station’s colour display features three different lighting settings:

High (100%) brightness, Medium (60%) brightness and Low (15%) brightness.

Using battery power alone, the backlight is available momentarily for 10

seconds by pressing the Backlight button.

When display is powered with the power adapter, backlight remains on at

100% brightness. Press Backlight button once to dim to 60% brightness; press

again to dim to 15%, press a 3rd time to enter AUTO DIM mode.

NOTE: Pressing and holding the “ ” button for 5 seconds will disable the

backlight. Once any button is pressed, the backlight will return to your selected

setting.

AUTO DIM MODE: Automatically adjusts display brightness based on time of day and year.

MARCH 11- NOVEMBER 4 6:00 a.m. - 9:00 p.m. = 100% brightness

9:01 p.m. - 5:59 a.m.= 15% brightness

NOVEMBER 5 - MARCH 10 7:30 a.m. - 7:00 p.m.= 100% brightness

7:01 p.m. - 7:29 a.m. = 15% brightness

1111

\ I /

--o...

- -

; I \ '

f------i- ))})

[ 3feet) I

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display and outdoor sensor are critical to the accuracy

and performance of this product.

Display Placement

Place the display in a dry area free of dirt and dust. Display

stands upright for tabletop use and is wall-mountable.

Outdoor Sensor Placement

Sensor must be placed outside to observe outdoor conditions.

Sensor is water resistant and is designed for general outdoor

use, however, to extend its life place the sensor in an area

protected from direct weather elements.

Hang the sensor using the integrated hang hole or hanger,

or by using string (not included) to hang it from a suitable

location, like a well covered tree branch. The best location is

1 to 2 metres (4 to 8 feet) above the ground with permanent

shade and plenty of fresh air to circulate around the sensor.

Important Placement Guidelines

•To ensure accurate temperature measurement, place units out of direct

sunlight and away from any heat sources or vents.

•Display and outdoor sensor must be within 100 m (330 ft) of each other.

•To maximize wireless range, place units away from large metallic items, thick

walls, metal surfaces, or other objects that may limit wireless communication.

•To prevent wireless interference, place both units at least 90 cm (3 ft) away

from electronic devices (TV, computer, microwave, radio, etc.).

90 cm

(100metres maximum)

(330 feet)

Setup is Complete

The sensor will now synchronize with the display. It may take a few minutes for

synchronization to complete. Please refer to the troubleshooting section of this

manual if anything appears to be functioning improperly.

.... ..

IC X lt X X

OPERATION

Using the Weather Station

Learning Mode

Self-Calibrating Forecasting uses a unique algorithm to analyze changes in

pressure over a time period (called Learning Mode) to determine your altitude.

After 14 days, the icon disappears from the display screen. At this point,

the self-calibrated pressure is tuned in to your location and the unit is ready for

superior weather prediction.

Weather Forecast

AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast

of weather conditions for the next 12 to 24 hours by collecting data from the

sensor in your backyard. It generates a forecast with pinpoint accuracy -

personalized for your exact location.

STORMY

& WINDY

(flashing=stormy)

SNOW

LIKELY

SNOW / RAIN

MIX LIKELY

CHANCE

OF RAIN

CLOUDY

Moon Phase

Track the phases of the moon, conveyed through simple lunar phase icons:

NEW WAXING 1ST FULL 3RD WANING

CRESCENT QUARTER QUARTER CRESCENT

Barometric Pressure

Subtle variations in barometric pressure greatly affect the weather. This

weather station displays the current pressure with an arrow icon to indicate

the direction the pressure is trending (FALLING, STEADY, or RISING).

High and Low Records

High and low records for today and all-time are displayed for indoor and

outdoor temperature and humidity. Today’s records automatically clear at

12:00am midnight every day.

Press the button to cycle through high and low recorded values for outdoor

and indoor temperature and humidity. While viewing all-time records, a date and

timestamp are shown for when each value was recorded. You will automatically

exit records if no buttons are pressed for 8 seconds.

·~

V /\. ·~

/\. V

V /\.

·~

·~ ·~

/\. V

·~ ·~

·~

To manually clear a HIGH or LOW record, press and HOLD both the “ “ and

““ buttons simultaneously for 3 seconds while viewing the record(s) you wish

to clear. Dashes display to conrm you have cleared the record(s).

Programmable Alarms

This display features programmable alarms that sound an alert to notify you

when a value (for temperature or humidity) has been reached or exceeded.

When an alarm is triggered, the display emits an audible beep and ashes data

in the affected category. You can customize the alarms by turning ON or OFF

the alarms you’d like activated or deactivated, and by inputting your own values

to trigger the alarm.

Setup an Alarm

1.Press and release the “ ” button until the reading for which you wish to

set an alarm is shown on the display. “ ” will be shown.

2. Press and release the “ “ or “ “ buttons until “ ” appears.

3. Press and release the “ ” button. The current HIGH alarm value will be shown.

3. Press and release the “ “ or “ “ buttons to adjust the alarm’s HIGH value.

4. Press and release the “ ” button. The current LOW alarm value will be shown.

5. Press and release the “ “ or “ “ buttons to adjust the alarm’s LOW value.

6. Press and release the “ ” button to end alarm adjustments, OR press

and release the “ ” button to cycle to the next reading.

Disable an Alarm

1. Press and release the “ ” button until the reading for which you wish to

disable an alarm is shown on the display. “ ” will be shown.

2. Press and release the “ “ or “ “ buttons until “ ” appears.

3. Press and release the “ ” button to cycle to the next reading.

4. Repeat steps 1-3, as needed.

NOTE: To disable ALL alarms at once, press and HOLD the “” button for

10 seconds.

You will automatically exit alarm SET MODE if no buttons are pressed for

10 seconds. Enter alarm SET MODE at any time by pressing the “” button.

Other manuals for 02099

Table of contents

Other ACU-RITE Weather Station manuals

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

La Crosse Technology

La Crosse Technology C86371 instruction manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

La Crosse Technology

La Crosse Technology WS-2210 Operation manual

La Crosse Technology

La Crosse Technology WS-811561 manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions
