Instruction Manual

Weather Station

model 00806 / 02030 / 02031

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features & Benets: Sensor..... 2

Features & Benets: Display.... 3

Setup .................................... 5

Sensor Setup ......................... 5

Display Setup ........................ 6

Intelli-Time Clock.................... 7

Set the Time, Date & Units ...... 7

Backlight Settings................... 7

Placement Guidelines ............. 8

Using the Weather Station...... 9

Troubleshooting ....................10

Care & Maintenance.............12

Calibration ...........................12

Replace Intelli-Time Battery....13

Specications........................14

FCC Information ...................14

Customer Support .................15

Warranty..............................15

Questions? Contact Customer Support at

(877) 221-1252 or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Archive:l Products

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display with Tabletop stand

2. Outdoor Sensor

3. Instruction Manual

4. Power Adapter

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

►

Features & Benets

OUTDOOR SENSOR

1. Integrated Hanger

For easy placement.

2. Wireless Signal Indicator

Flashes when data is being sent

to the display unit.

3. Battery Compartment

4. A-B-C Switch

ID code that must match display’s

A-B-C switch to ensure units synchronize.

5. Battery Compartment Cover

------':---"'

wm,,---ti--

~-+---++-

,,,,,,,,

OCT

12:3s--23--------;..--------+c------

moon pt,.. *"""'TUE Ii1ow today', c1aa,

-8-

·v·

Features & Benets 18 3517

10 11

DISPLAY FRONT

1. Outdoor Sensor Signal Strength

2. Current Outdoor Temperature

Arrow icon indicates the direction

temperature is trending.

3. High Records Indicator

Indicates viewing today’s high records.

4. Current Outdoor Humidity

Arrow icon indicates the direction

humidity is trending.

5. Low Records Indicator

Indicates viewing today’s low records.

6. Current Indoor Humidity

7. Current Indoor Temperature

8. Moon Phase

9. auto Icon

Indicates display is in auto-dimming

brightness mode (see page 7).

10. Day of the Week

11. Display Low Battery Indicator

12. Date

13. Intelli-Time®Clock

Automatically updates itself for

Daylight Saving Time.

14. Current Barometric Pressure

Arrow icon indicates the direction

pressure is trending.

15. 12 to 24 Hour Weather Forecaster

Self-Calibrating Forecasting pulls data

from the outdoor sensor to generate your

personal forecast.

16. Learning Mode Icon

Disappears after weather forecast

self-calibration is complete.

17. Sensor Low Battery Indicator

18. Backlight Button

For momentary backlight and

dimmer settings.

Features & Benets

DISPLAY BACK

1. Integrated Hang Hole

For easy wall mounting.

2. Button

For setup preferences and viewing

today’s HIGH records.

3. SET Button

For setup preferences.

4. Button

For setup preferences and viewing

today’s LOW records.

7 8 9 10

5. A-B-C Switch

ID code that must match sensor’s

A-B-C switch to ensure units

synchronize.

6. RESET Button

For full reset to factory defaults.

7. Plug-in For Power Adapter

8. Battery Compartment

9. Intelli-Time®Battery Compartment

10. Battery Compartment Cover

•

B~~f~~~S

It(•Q¥•¥&•

ALKALINE

BATTERIES

(70°C) 1S8°F I

SETUP

Sensor Setup

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display unit in order for the

units to synchronize.

Install or Replace Batteries

AcuRite recommends high quality

alkaline or lithium batteries for

the best product performance.

Heavy duty or rechargeable

batteries are not recommended.

The sensor requires lithium

batteries in low temperature

2 Install Batteries

2 AA batteries

conditions. Cold temperatures

can cause alkaline batteries

to function improperly. Use

lithium batteries in the sensor for

temperatures below -4ºF / -20ºC.

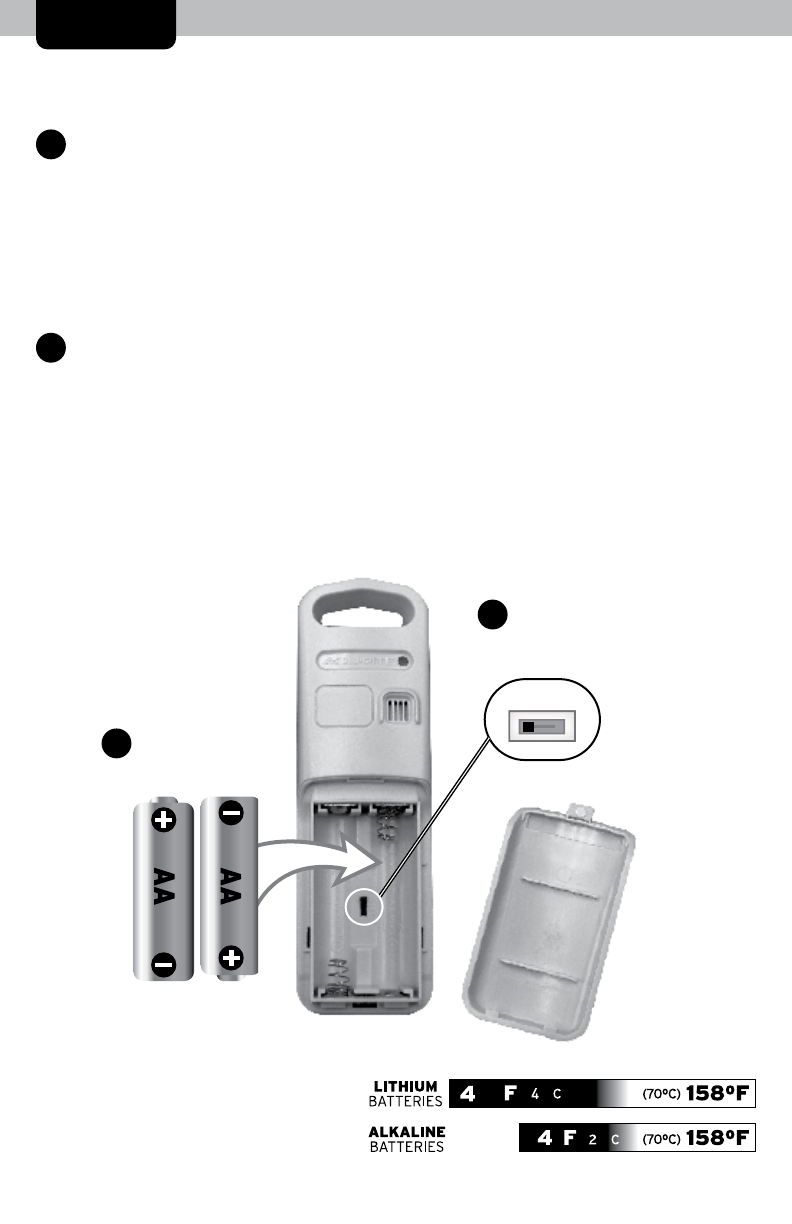

1. Slide off the battery

compartment cover. Take

note of the A-B-C switch

setting inside the battery

compartment.

2. Insert 2 x AA batteries into

the battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

1 A-B-C Switch

set to match

display unit

A B C

•

• •

•

Display Unit Setup

1 Set the A-B-C Switch

Locate the A-B-C switch inside

the battery compartment. Set

the A-B-C switch to A, B or C.

You must select the same letter

choices for both the display unit

and the sensor in order for the

units to synchronize.

2 Plug Power Adapter into

Electrical Outlet

Install or Replace Backup

Batteries

(optional)

1. Remove the battery

compartment cover.

2. Insert 3 x AA alkaline

batteries into the battery

compartment, as shown.

Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

1 A-B-C Switch

set to match

sensor

Install Backup

Batteries (optional)

3 AA batteries

IMPORTANT: Batteries are a backup power source to preserve records in the event of

a power outage. Power adapter is the recommended primary power source to enjoy

the full functionality of this product.

Plug in Power

Adapter

A B C

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to

be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of

used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries

in re, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT

recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Intelli-Time®Clock

Intelli-Time products are pre-programmed with the correct time and date.

Intelli-Time technology instructs the time and date to set themselves. All you

need to do is select your Time Zone and Daylight Saving Time preferences. The

clock will then automatically set itself and change for Daylight Saving Time.

Set the Time, Date & Units

Press and release the “SET” button to enter SETUP MODE. Once in setup

mode, the preference you are currently setting will blink on the display.

To adjust the currently selected (ashing) item, press and release the “

▲

” or

“

▼

” buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “SET” button again to adjust

the next preference. The preference set order is as follows:

AUTO CHANGE FOR DST?* (YES or NO)

TIME ZONE (PST MST CST EST AST HAT AKT)

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR

TEMPERATURE UNITS (ºF or ºC)

BAROMETRIC PRESSURE UNITS (inHg or hPa)

*If you live in an area that observes daylight saving time, DST should be set to

ON, even if it is not currently Daylight Saving Time.

You will automatically exit SETUP MODE if no buttons are pressed for 10

seconds. Enter setup mode at any time by pressing the “SET” button.

Display Backlight Settings

This weather station’s color display features three different lighting settings:

High (100%) brightness, Medium (60%) brightness and Low (30%) brightness.

Using battery power alone, the backlight is available momentarily for 10

seconds by pressing the Backlight button.

When display is powered with the power adapter, backlight remains on at

100% brightness. Press Backlight button once to dim to 60% brightness; press

again to dim to 30%, press a 3rd time to enter AUTO DIM mode.

AUTO DIM MODE: Automatically adjusts display brightness based on time of day & year.

MARCH 11- NOVEMBER 4 6:00 a.m. - 9:00 p.m. = 100% brightness

9:01 p.m. - 5:59 a.m.= 30% brightness

NOVEMBER 5 - MARCH 10 7:30 a.m. - 7:00 p.m.= 100% brightness

7:01 p.m. - 7:29 a.m. = 30% brightness

1111

\ I I

--o--

/ I \'

-I

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display unit and outdoor sensor are critical to the

accuracy and performance of this product.

Display Unit Placement

Place the display unit in a dry area free of dirt and dust.

Display unit stands upright for tabletop use or is wall-mountable.

Outdoor Sensor Placement

Sensor must be placed outside to observe outdoor conditions.

Sensor is water resistant and is designed for general outdoor

use, however, to extend its life place the sensor in an area

protected from direct weather elements.

Hang the sensor using the integrated hang holes or hanger, or

by using string (not included) to hang it from a suitable location,

like a well covered tree branch. The best location is 4 to 8 feet

above the ground with permanent shade and plenty of fresh air

to circulate around the sensor.

Important Placement Guidelines

•To ensure accurate temperature measurement, place units out of direct

sunlight and away from any heat sources or vents.

•Display unit and outdoor sensor must be within 330 ft (100 m) of each other.

•To maximize wireless range, place units away from large metallic items, thick

walls, metal surfaces, or other objects that may limit wireless communication.

•To prevent wireless interference, place both units at least 3 ft (.9 m) away

from electronic devices (TV, computer, microwave, radio, etc.).

TV 3

(330 feet maximum)

(.9 m)

LEAST

APART

(100 meters)

Setup is Complete

The sensor will now synchronize with the display unit. It may take a few

minutes for synchronization to complete. Please refer to the troubleshooting

section of this manual if anything appears to be functioning improperly.

◊

,',~','~ * •••

• * • • I II II 1, I

OPERATION

Using the Weather Station

Learning Mode

Self-Calibrating Forecasting uses a unique algorithm to analyze changes in

pressure over a time period (called Learning Mode) to determine your altitude.

After 14 days, the Learning Mode icon disappears from the display screen. At

this point, the self-calibrated pressure is tuned in to your location and the unit is

ready for superior weather prediction.

Weather Forecast

AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast

of weather conditions for the next 12 to 24 hours by collecting data from the

sensor in your backyard. It generates a forecast with pinpoint accuracy -

personalized for your exact location.

STORM

CONDITIONS

DEVELOPING

(Rain = Flashing)

SNOW

LIKELY

LIGHT RAIN

LIKELY CLOUDY PARTLY

CLOUDY CLEAR SKIES

View the complete list of icons at www.AcuRite.com/acurite-icons

Barometric Pressure

Subtle variations in barometric pressure greatly affect the weather. This

weather station displays the current pressure with an arrow icon to indicate

the direction the pressure is trending (FALLING, STEADY, or RISING).

Moon Phase

Track the phases of the moon, conveyed through simple lunar phase icons:

NEW WAXING 1ST FULL 3RD WANING

CRESCENT QUARTER QUARTER CRESCENT

High & Low Records

Today’s high and low records are displayed for indoor and outdoor temperature

and humidity. Today’s records automatically clear at 12:00am midnight every

day. View today’s high or low records by pressing and releasing the “▲” or

“▼” buttons. Press and release again to view current readings.

To manually clear all of today’s LOW recorded values, press and release the

“▼” button to view low records, then press and hold the “▼” button for 2

seconds. Dashes display to conrm you have cleared the LOW records.

To manually clear all of today’s HIGH recorded values, press and release

the “▲” button to view high records, then press and hold the “▲” button for

2 seconds. Dashes display to conrm you have cleared the HIGH records.

Tull

Troubleshooting

Problem Possible Solution

No outdoor sensor

reception

no bars

If the wireless signal indicator shows no bars:

• Relocate the display unit and/or the outdoor sensor. The

units must be within 330 ft (100 m) of each other.

• Make sure both units are placed at least 3 feet

(.9 m) away from electronics that may interfere with

the wireless communication (such as TVs, microwaves,

computers, etc).

• Use standard alkaline batteries (or lithium batteries in

sensor when temperature is below -4ºF/-20ºC). Do not

use heavy duty or rechargeable batteries. NOTE: It

may take a few minutes for display unit and sensor to

synchronize after batteries are replaced.

Outdoor

temperature

is ashing or

showing dashes

Flashing of the outdoor temperature is generally an

indication of wireless interference.

1. Bring both the sensor and display unit indoors and

remove batteries from each.

2. Make sure the A-B-C switch on both units match.

3. Reinstall batteries in the outdoor sensor.

4. Reinstall batteries in the display unit.

5. Let the units sit within a couple feet of each other for

a few minutes to gain a strong connection. Sometimes

changing to a different channel can help.

Inaccurate forecast

• Weather Forecast icon predicts conditions for the next

12 to 24 hours, not current conditions.

• Has Learning Mode icon disappeared from the display

unit? Learning Mode must complete before forecast and

pressure will be accurate.

• Allow unit to run continuously for 33 days. Battery

removal or resetting the display unit will restart Learning

Mode. After 14 days, forecast should be fairly accurate,

however Learning Mode calibrates for a total of 33

days.

Inaccurate

temperature

or humidity

• Make sure both the display unit and sensor are placed

out of direct sunlight and away from any heat sources or

vents (see page 8).

• Make sure both units are positioned away from moisture

sources (see page 8).

This manual suits for next models

Table of contents

Other ACU-RITE Weather Station manuals

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

La Crosse Technology

La Crosse Technology C86371 instruction manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

La Crosse Technology

La Crosse Technology WS-2210 Operation manual

La Crosse Technology

La Crosse Technology WS-811561 manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions
