Instruction Manual

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

F ... 2

F ... 3

Setup .................................... 6

Sensor Setup ......................... 6

Display Setup ........................ 7

Set the Time, Date and Units.... 8

Backlight Settings................... 8

Placement Guidelines ............. 9

Using the Weather Station.....10

Programmable Alarms...........11

Troubleshooting ....................12

Care and Maintenance .........13

Calibration ...........................13

........................14

FCC Information ...................14

Customer Support .................15

Warranty..............................15

Questions? Contact Customer Support at

www.AcuRite .com/support or email info@chaney-inst.com

Weather Station

model 01201

SAVE THIS MANUAL FOR FUTURE REFERENCE.

L I.

Congratulations on your new AcuRite product. To ensure the best possible

product performance, please read this manual in its entirety and retain it for

future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display

2. Outdoor Sensor

3. Power Adapter

4. Instruction Manual

PRODUCT MUST BE REGISTERED

IMPORTANT TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

www.AcuRite.com

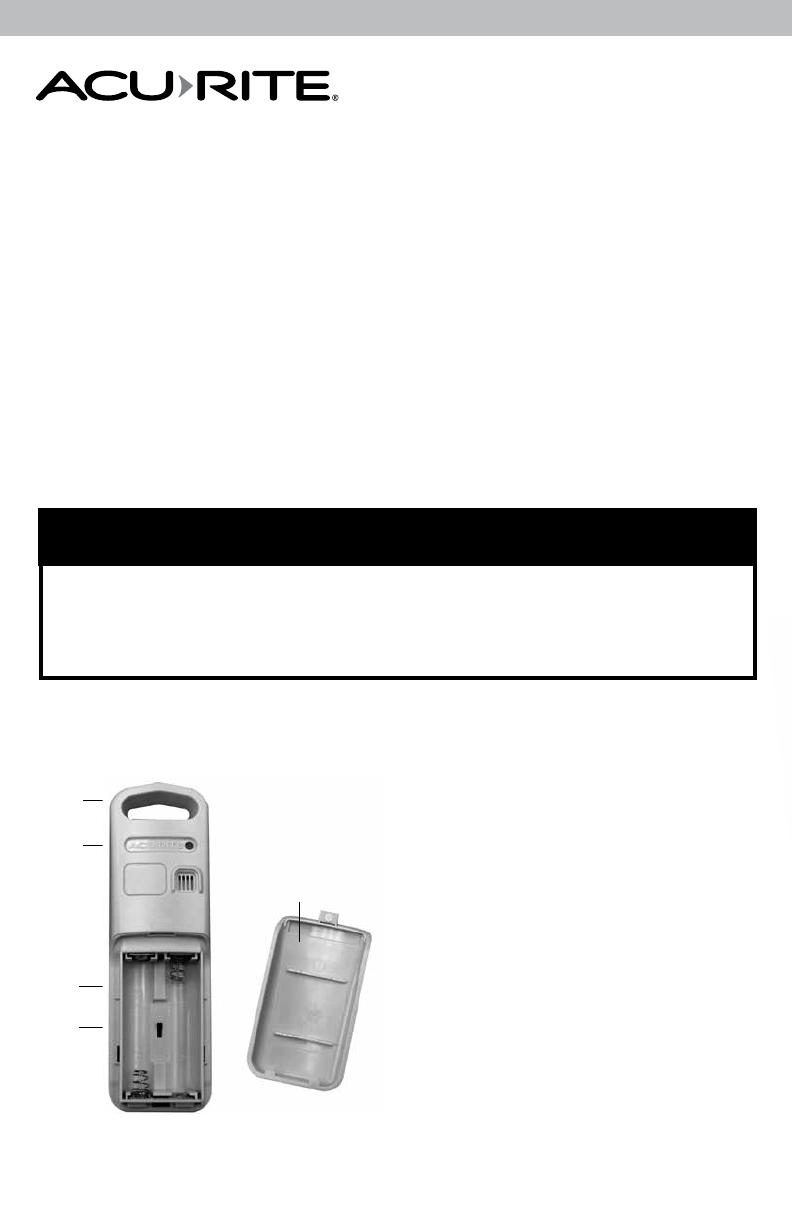

Features and Benets

1 OUTDOOR SENSOR

1. Integrated Hanger

2 For easy placement.

2. Wireless Signal Indicator

Flashes when data is being sent to the

display.

3. Battery Compartment

3 4. A-B-C Switch

ID code that must match display’s

4 A-B-C switch to ensure units

synchronize.

5. Battery Compartment Cover

Features and Benets

BACK OF DISPLAY

1. Integrated Hang Hole

For easy wall mounting.

2. Fold-out Tabletop Stand

3. Power Adapter

4. Plug-in for Power Adapter

5. RESET Button

For full reset to factory defaults.

6. A-B-C Switch

ID code that must match sensor’s

A-B-C switch to ensure units

synchronize.

7. Backup Battery Compartment

8. Battery Compartment Cover

(not shown)

UD"~ FF"~

•□

.Ei

JJ.3

33·~

Features and Benets

7 8 9 8 10

.,t)))

/\ V

-i-, '

1. Current Outdoor Temperature

Arrow icon indicates the direction

temperature is trending.

2. Outdoor High & Low Temperature

Records

Highest and lowest temperature

recorded since midnight.

3. Current Outdoor Humidity Arrow

icon indicates the direction humidity

is trending.

4. Outdoor Sensor Signal Strength

5. Heat Index/Dew Point

Heat Index calculation displays

when temperature is 80°F (27°C)

or above.

Dew Point calculation displays

when temperature is 79°F (26°C)

or below.

6. Date

7. Button

For alarm setup.

8. and Buttons

For setup preferences and viewing

indoor high & low records.

9. Button

For setup preferences.

10. Button

For momentary backlight and

dimmer settings.

11. AUTO Icon

Indicates display is in auto-dimming

brightness mode (see page 8).

12. Moon Phase

13. Clock

14. Current Barometric Pressure

Arrow icon indicates the direction

pressure is trending.

15. 12 to 24 Hour Weather Forecast

Self-calibrating forecasting pulls data

from the outdoor sensor to generate

your personal forecast.

16. Current Indoor Humidity

Arrow icon indicates direction

humidity is trending.

17. Indoor High & Low Temperature

Records

Highest and lowest temperature

recorded since midnight.

18. Current Indoor Temperature

Arrow icon indicates direction

temperature is trending.

•

SETUP

Sensor Setup

1 Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display in order for the units

to synchronize.

2 Install or Replace Batteries

AcuRite recommends high quality

alkaline batteries in the outdoor

sensor for the best product

performance. Heavy duty or

rechargeable batteries are not

recommended.

1. Slide off the battery

compartment cover. Take

note of the A-B-C switch

setting inside the battery

compartment for display

setup.

2. Insert 2 x AA batteries into

the battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

2 Install Batteries

2 AA batteries

A B C

1 A-B-C Switch

Set to match

display

• •

•

• •

•

Display Setup

1 Set the A-B-C Switch

Locate the A-B-C switch inside

the battery compartment. Set

the A-B-C switch to A, B or C.

You must select the same letter

choices for both the display and

the sensor in order for the units to

synchronize.

2 Install or Replace Backup

Batteries (optional)

1. Remove the battery

compartment cover.

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment that will not

be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of

used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries

in re, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT

recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

3 Plug in

Power

Adapter

1 A-B-C Switch

Set to match

sensor

Install Backup

Batteries

3 AAA Batteries

(optional)

A B C

2. Insert 3 x AAA alkaline

batteries into the battery

compartment, as shown. Follow

the polarity (+/–) diagram in

the battery compartment.

3. Replace the battery cover.

3 Plug in Power Adapter

For the best performance, plug

in the power adapter as the main

power source for this product.

IMPORTANT: Batteries are

a backup power source to

preserve records in the event of

a power outage. Power adapter

is recommended as the primary

power source to enjoy the full

functionality of this product.

/\.

-8-

-),/_

Set the Time, Date and Units

Press and release the “ ” button, located on the front of the display, to enter

SET MODE. Once in set mode, the preference you are currently setting will

blink on the display.

To adjust the currently selected (ashing) item, press and release the “ “or

““ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “ ” button again to adjust the

next preference. The preference set order is as follows:

Auto DST (Daylight Saving Time ON of OFF)*

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR

TEMPERATURE UNITS (ºC or ºF)

PRESSURE UNITS (hPa or inHg)

*If you live in an area that observes DST, DST should be set to ON, even if it is

not currently Daylight Saving Time.

You will automatically exit SET MODE if no buttons are pressed for 10 seconds.

Enter setup mode at any time by pressing the “ ” button.

Display Backlight Settings

This weather station’s colour display features three different lighting settings:

High (100%) brightness, Medium (50%) brightness and Low (15%) brightness.

Using battery power alone, the backlight is available momentarily for 10

seconds by pressing the Backlight button.

When display is powered with the power adapter, backlight remains on at

100% brightness. Press Backlight button once to dim to 50% brightness; press

again to dim to 15%, press a 3rd time to enter AUTO DIM mode.

NOTE: Pressing and holding the “ ” button for 5 seconds will disable the

backlight. Once any button is pressed, the backlight will return to your selected

setting.

AUTO DIM MODE: Automatically adjusts display brightness based on time of day.

6:00 a.m. - 9:00 p.m. = 100% brightness

9:01 p.m. - 5:59 a.m.= 15% brightness

1111

\ I /

--o.,.

/ I \ '

~r-7~ ))})

1----1 --------I

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display and outdoor sensor are critical to the accuracy

and performance of this product.

Display Placement

Place the display in a dry area free of dirt and dust. Display

stands upright for tabletop use and is wall-mountable.

Outdoor Sensor Placement

Sensor must be placed outside to observe outdoor conditions.

Sensor is water resistant and is designed for general outdoor

use, however, to extend its life place the sensor in an area

protected from direct weather elements.

Hang the sensor using the integrated hang hole or hanger,

or by using string (not included) to hang it from a suitable

location, like a well covered tree branch. The best location is

4 to 8 feet (1 to 2 metres) above the ground with permanent

shade and plenty of fresh air to circulate around the sensor.

Important Placement Guidelines

•To ensure accurate temperature measurement, place units out of direct

sunlight and away from any heat sources or vents.

•Display and outdoor sensor must be within 330 ft (100 m) of each other.

•To maximize wireless range, place units away from large metallic items, thick

walls, metal surfaces, or other objects that may limit wireless communication.

•To prevent wireless interference, place both units at least 3 ft (90 cm) away

from electronic devices (TV, computer, microwave, radio, etc.).

(330 feet)

3 feet

(90 cm)

(100 metres maximum)

Setup is Complete

The sensor will now synchronize with the display. It may take a few minutes for

synchronization to complete. Please refer to the troubleshooting section of this

manual if anything appears to be functioning improperly.

c3 cC'>

,.,.,.,.,

.,,./,,,J.,..,/'/41'/I,

/\. V

/\.

OPERATION

Using the Weather Station

Weather Forecast

Self-calibrating forecasting uses a unique algorithm to analyze changes in

pressure over a time period (called Learning Mode) to determine your altitude.

After 14 days, the icon disappears from the display screen. At this point,

the self-calibrated pressure is tuned in to your location and the unit is ready for

superior weather prediction.

STORMY

& WINDY

(flashing=stormy)

SNOW

LIKELY

SNOW / RAIN

MIX LIKELY

CHANCE

OF RAIN

CLOUDY

Moon Phase

Track the phases of the moon, conveyed through simple lunar phase icons:

NEW WAXING 1ST FULL 3RD WANING

CRESCENT QUARTER QUARTER CRESCENT

Barometric Pressure

Subtle variations in barometric pressure greatly affect the weather. This

weather station displays the current pressure with an arrow icon to indicate

the direction the pressure is trending (FALLING, STEADY, or RISING).

High and Low Records

High and low records for today and all-time are displayed for indoor and

outdoor temperature and humidity. Today’s records automatically clear at

12:00am midnight every day.

Press the “ “ and ““buttons to cycle through high and low recorded

values for outdoor and indoor temperature and humidity. While viewing all-time

records, a date and timestamp are shown for when each value was recorded.

You will automatically exit records if no buttons are pressed for 8 seconds.

To manually clear a HIGH or LOW record, press and HOLD both the “ “ and

““ buttons simultaneously for 3 seconds while viewing the record(s) you wish

to clear. Dashes display to conrm you have cleared the record(s).

Table of contents

Other ACU-RITE Weather Station manuals

ACU-RITE

ACU-RITE 06004RM/VN1TXC User manual

ACU-RITE

ACU-RITE 00484 User manual

ACU-RITE

ACU-RITE 00359 User manual

ACU-RITE

ACU-RITE 06086 User manual

ACU-RITE

ACU-RITE Iris 06014 User manual

ACU-RITE

ACU-RITE 615 User manual

ACU-RITE

ACU-RITE 01500 User manual

ACU-RITE

ACU-RITE 992 User manual

ACU-RITE

ACU-RITE 00806 User manual

ACU-RITE

ACU-RITE 00275RM User manual

ACU-RITE

ACU-RITE 06100M User manual

ACU-RITE

ACU-RITE 02010 User manual

ACU-RITE

ACU-RITE 06014 User manual

ACU-RITE

ACU-RITE Iris 06106 User manual

ACU-RITE

ACU-RITE 75108SBDI User manual

ACU-RITE

ACU-RITE 02085 User manual

ACU-RITE

ACU-RITE 00621 User manual

ACU-RITE

ACU-RITE 00593W User manual

ACU-RITE

ACU-RITE Weather Forecaster 00821 User manual

ACU-RITE

ACU-RITE 250 User manual

ACU-RITE

ACU-RITE 06020 User manual

ACU-RITE

ACU-RITE 01193 User manual

ACU-RITE

ACU-RITE 06019RM User manual

ACU-RITE

ACU-RITE 4409999 User manual

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

La Crosse Technology

La Crosse Technology C86371 instruction manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

La Crosse Technology

La Crosse Technology WS-2210 Operation manual

La Crosse Technology

La Crosse Technology WS-811561 manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions
