Activeforever Fluid Cycle XT E720 User manual
2
Contents
1. Contents of E720 Box.
2. E720 assembly instructions.
3. Tank filling and water treatment.
4. Long term water treatment and basic
operation.
5. E720 Control arm.
6. Maintenance.
7. Troubleshooting guide
8. The E720 Ergometer with USB Function
9. Tank belt drive adjustment.
10. Parts list and Warranty.
As with any piece of fitness equipment,
consult a physician before beginning
your E720 exercise program.

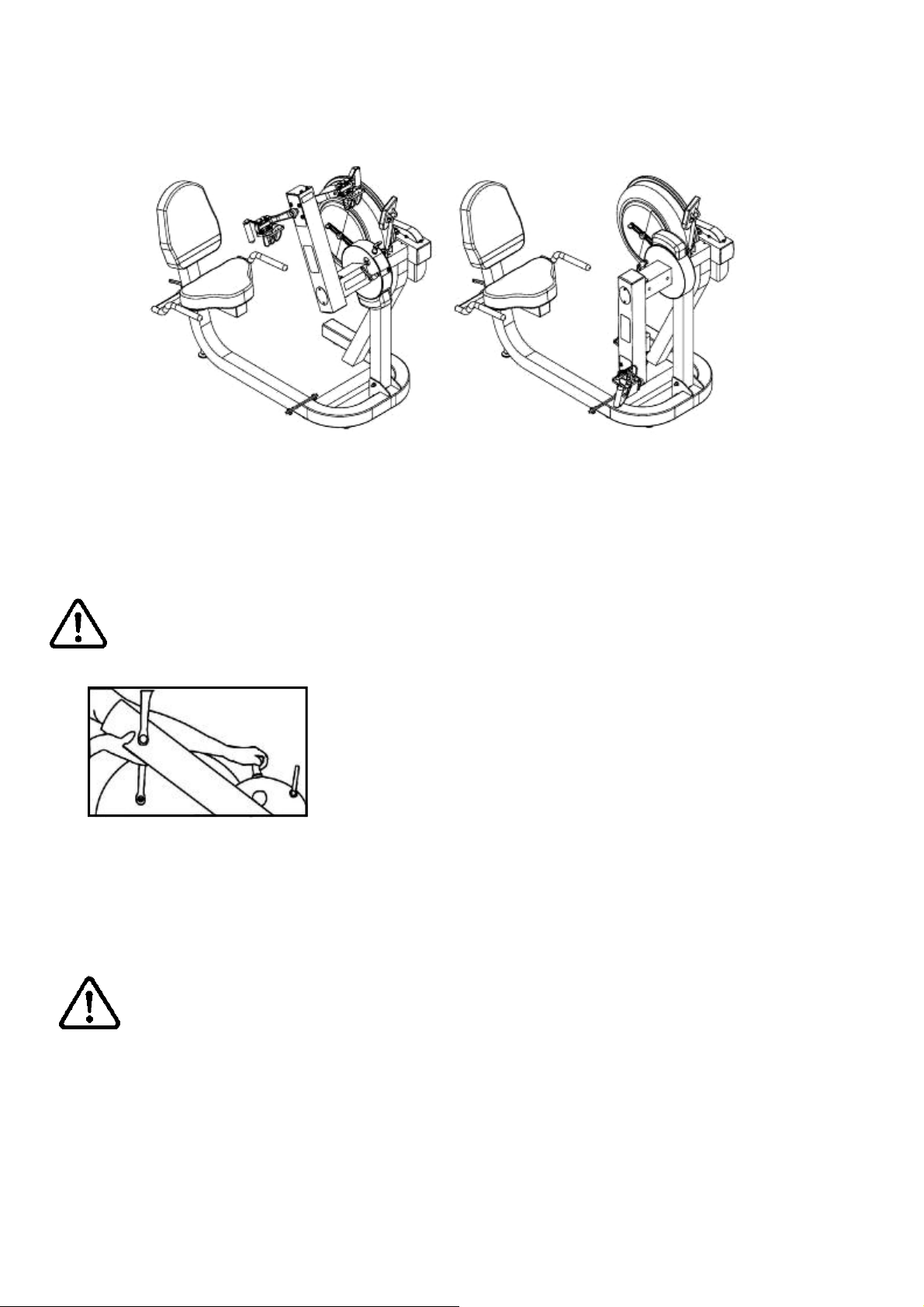

CAUTION
Use two hands and follow all safety in-
structions whenever raising or lowering
the E720 control arm.
Warning
Do not remove feet or hands while
crank is in motion. The crank will con-
tinue to rotate and could cause injury.
Training with E720
3

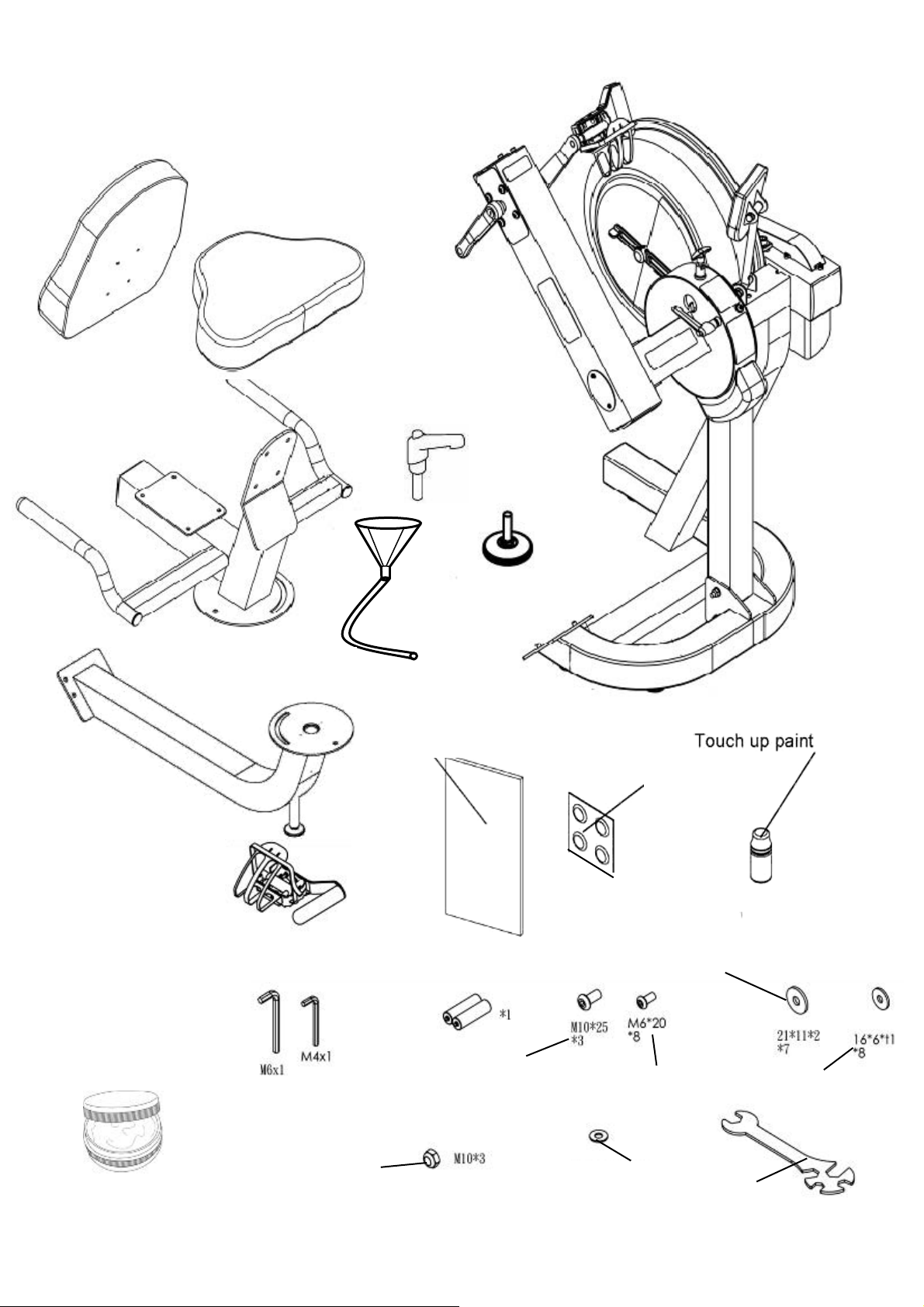

Box Contents
1x Upper seat frame
1x Main frame
1x Upper/Lower seat
frame
1x Right crank
pedal
1x L-pin
1x Fill funnel/hose
3x Leveler
Hex Keys 2x Batteries
3x Frame bolts 8x Seat bolts
7x Frame bolt washers
8x Seat bolt
washers
3x Main frame
Nylock nut 1x Multi-tool
M10 Plastic
Washer
Owners Manual
Seat frame lubricat-
ing grease
1x Lower seat frame
Chlorine Tablets x 4
4

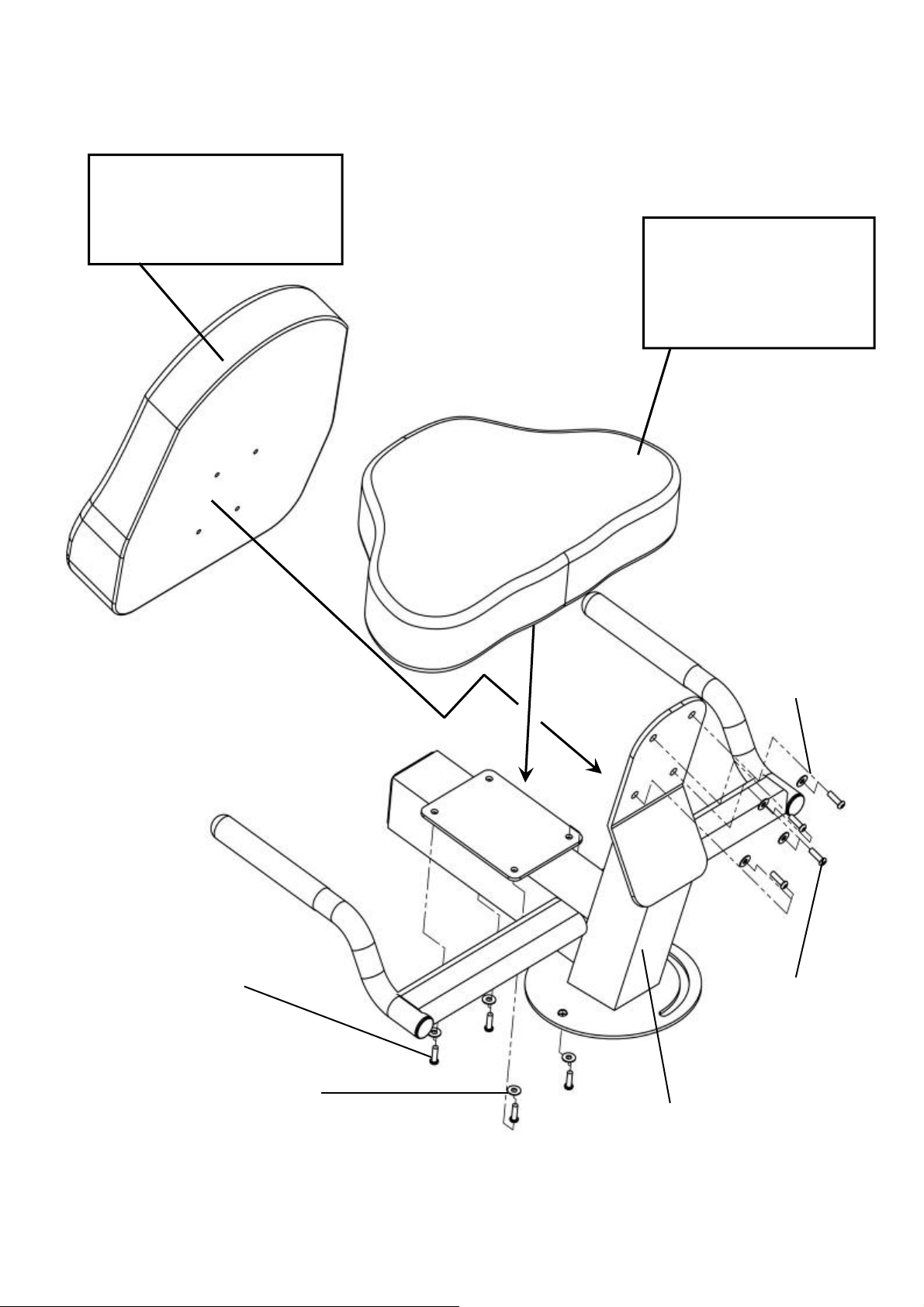

E720 Assembly Instructions
Upper seat
Lower seat
Step 1: Attach upper seat to
upper seat frame using 4x
M6x20mm bolts and 4x
16x6xl washers. Step 2: Attach lower seat
to upper seat frame using
4x M6x20mm bolts and 4x
16x6xl washers.
Upper seat frame
M6x20mm bolt
M6x16x1 washer
M6x16x1 washer
M6x20mm bolt
5

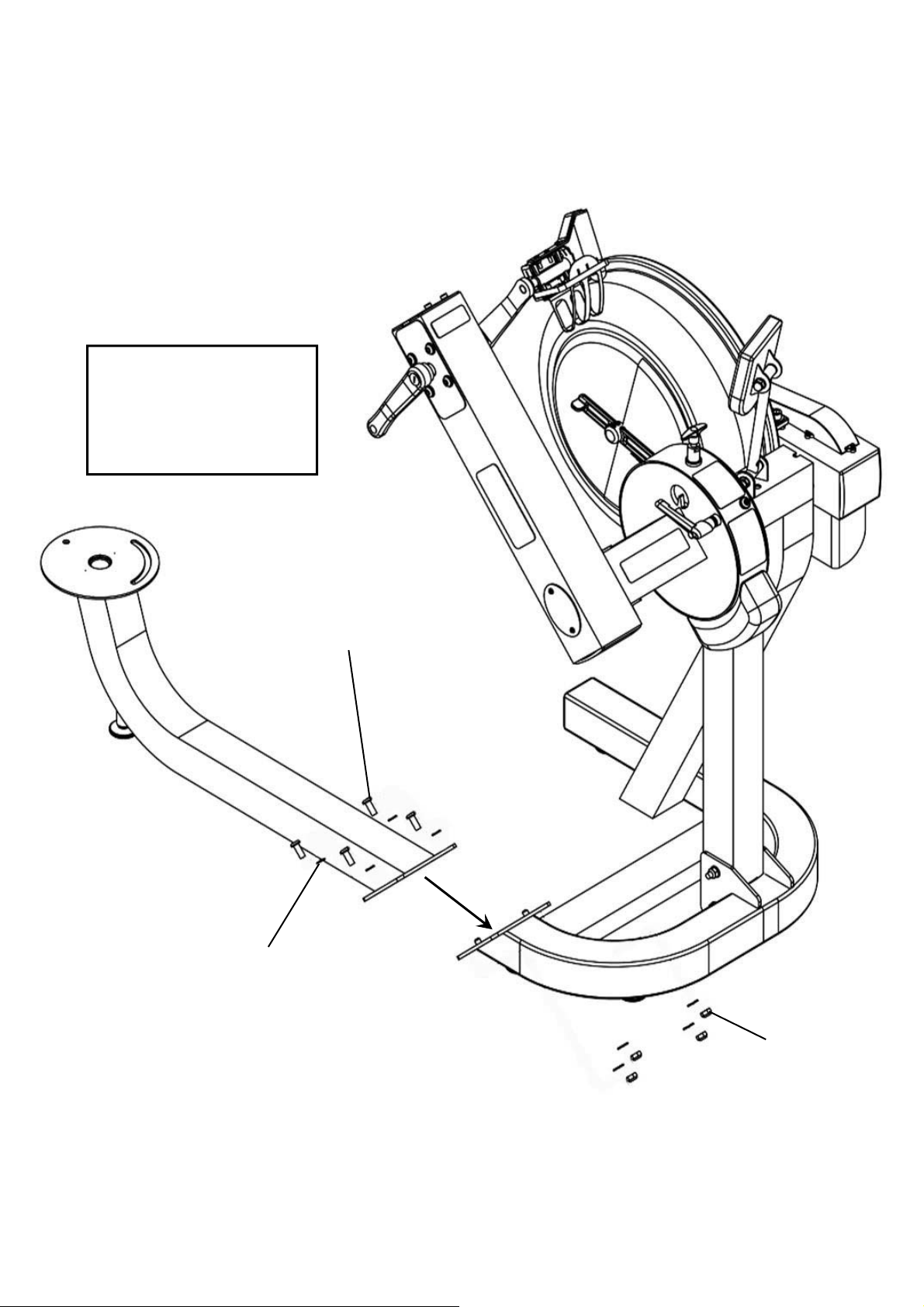

Step 3: Attach lower seat
to lower mainframe using
4x M10x25mm bolts, 4x
M10 Nylock nuts and 8x
21x11x2 washers
M10 Nylock nut
21x11x2 washer
M10x25mm bolt
E720 Assembly Instructions
6
L-Pin
M10x25mm
bolt
M10 Nylock
nut
21x11x2 washer

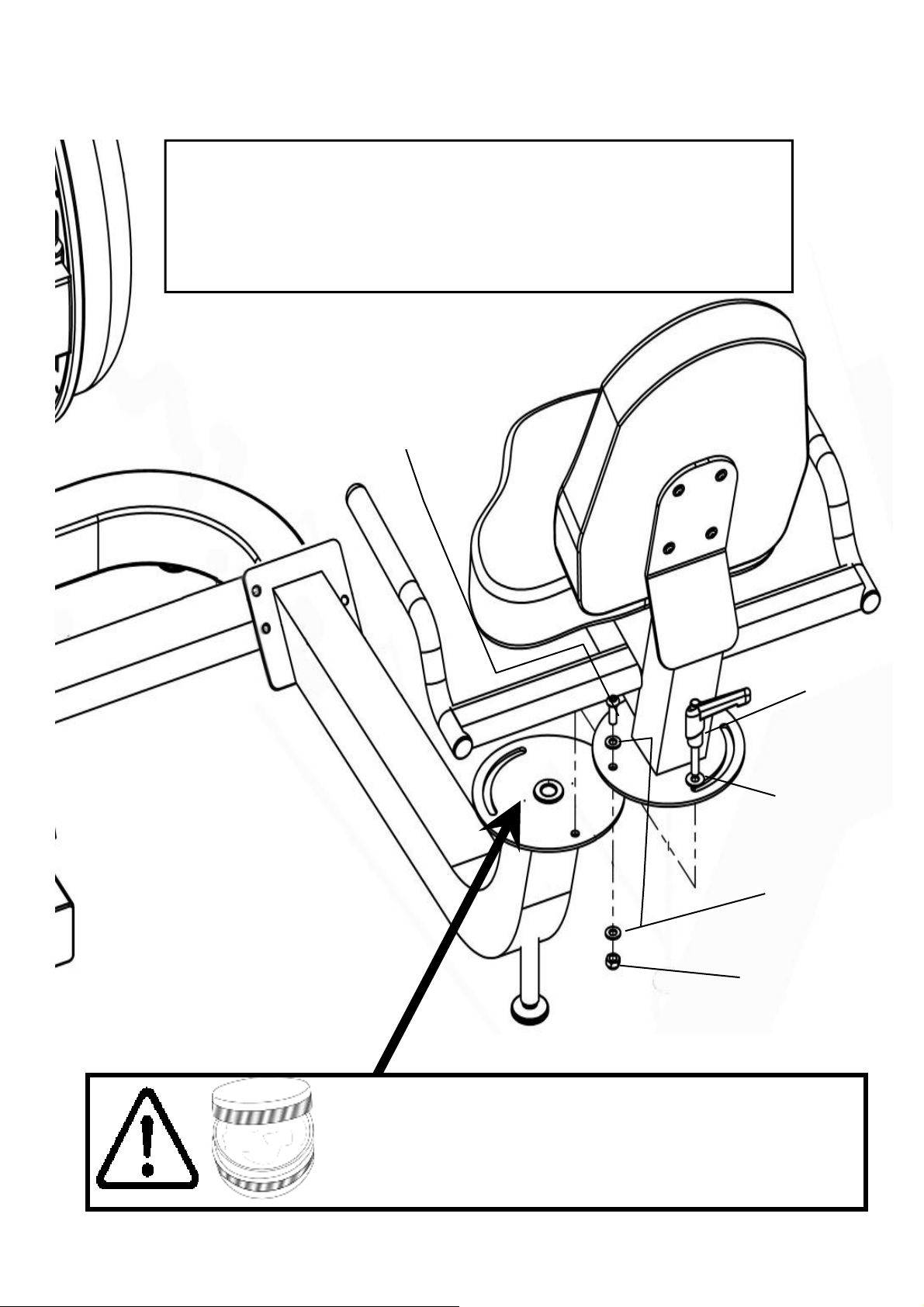

Step 4: Lower upper seat frame onto lower mainframe and secure using
1x M10x25mm bolt, 1x M10 Nylock nut, 3x 21x11x2 washers and L-pin.
Note: Tighten the M10x25mm bolt, washers and Nylock until lightly snug
only. Over-tightening will prevent the seat from rotating. Use the L-pin to
tighten the upper seat frame once rotated into place.
E720 Assembly Instructions
M10 plastic
washer
Before installing the upper seat frame onto the
lower, use the supplied grease and apply liberally
between the two sliding surfaces
7

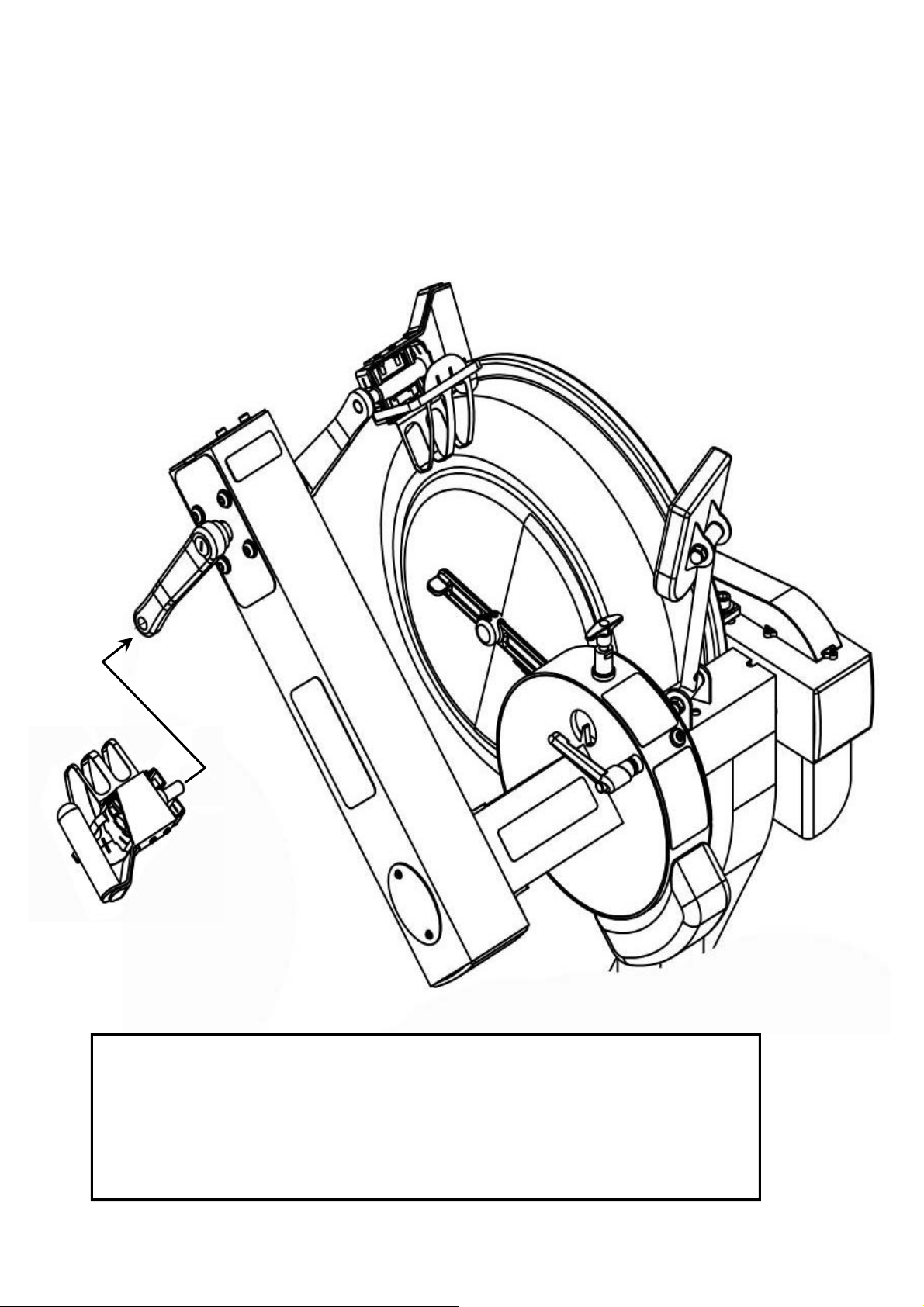

Step 5: Secure right pedal onto Crank arm. The pedal threads have a blue
coating which will feel very tight when threaded onto the crank arm. This is a
type of thread locker, and once in contact with the crank arm threads will acti-
vate in approximately 15minutes.
Caution! Extreme over-tightening could damage the aluminum threads on the
crank arm.
Note: Allow 15 minutes for the thread-locker to activate before first time use.
Check pedal tightness on a regular basis and tighten as needed with a 15mm wrench.
E720 Assembly Instructions
8

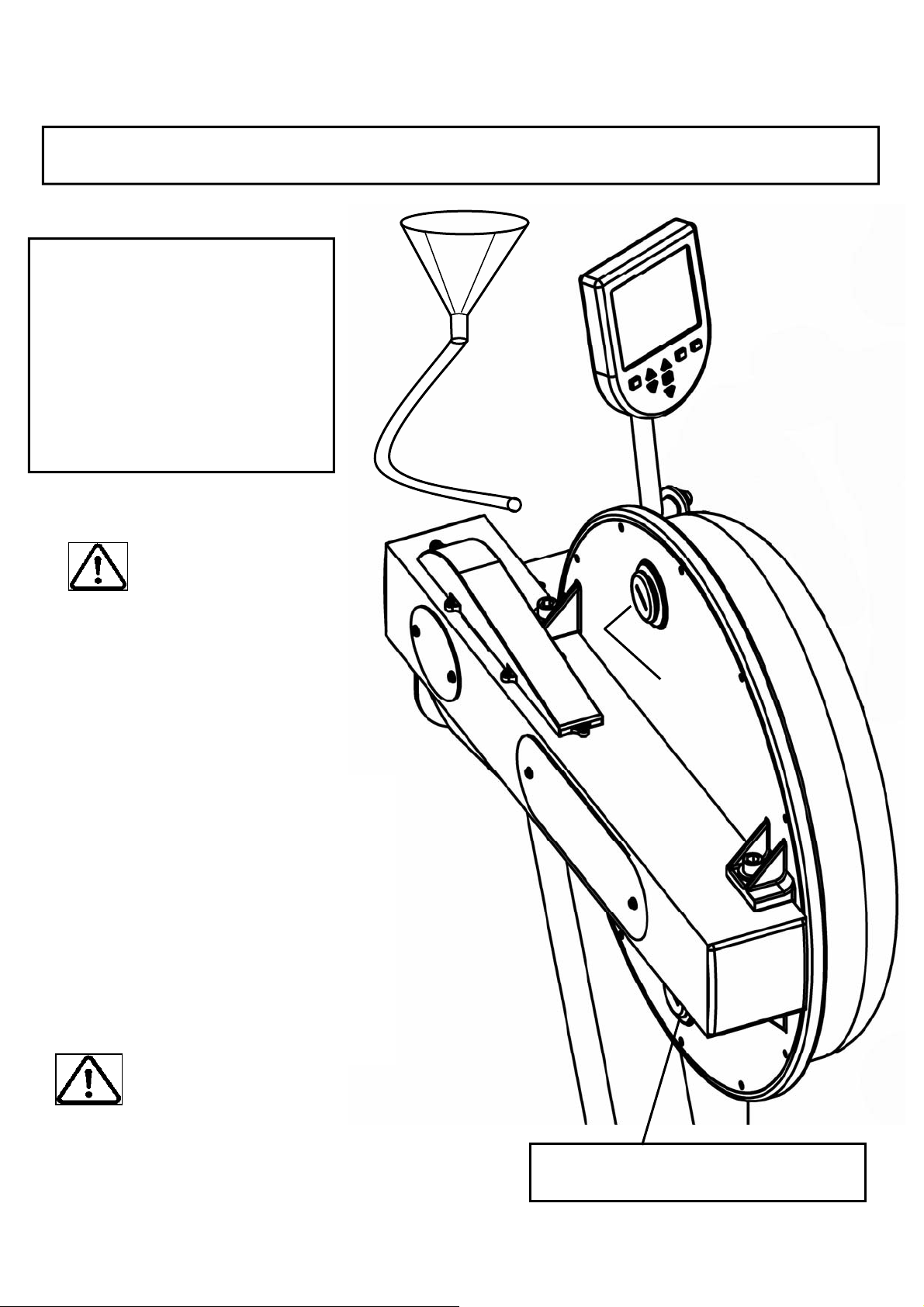

Tank Filling and Water Treatment
Yellow
Tank
Plug
Filling hose and
funnel
Note: A large bucket is required for filling (Not included).
In areas where tap water quality is known to be poor, FDF recommends the use of distilled water.
Open the tank plug and insert hose
into tank (rotating the impeller
slightly may be necessary to allow
the hose to pass), move the tank
adjuster handle to level 20 and be-
gin filling. Do not fill the tank
higher than the level indicator on
the front of the clear shell. A prop-
erly filled tank holds approximately
8 liters of water.
Do not under any circumstances
put fingers into the tank. Use the
end of the hose to move the impel-
ler should the need arise.
WARNING
Note: Lower tank plug is permanently
sealed.
Water Treatment Procedures:
1. Add Chlorine tablet.
2. Enough Chlorine Tablets are supplied
for many years of Water treatment.
Add a chlorine Tablet whenever the
Water appears dirty or cloudy.
WARNING: Only use First Degree
Fitness Supplied Water treatment tab-
lets.
Use a drop cloth under the tank when
filling the tank to avoid damage floor or
carpet
Caution:
9

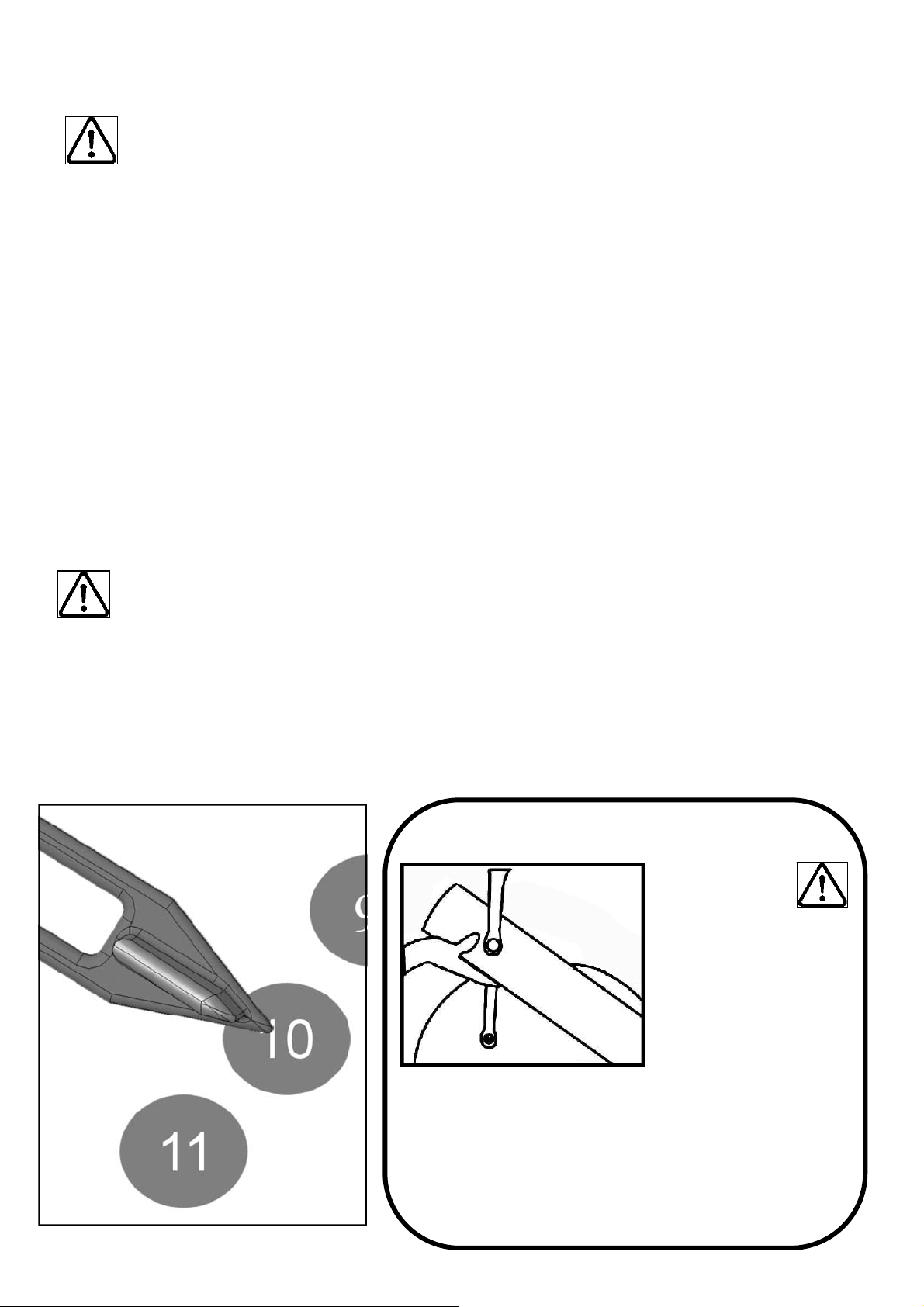

Long Term Water Treatment and Basic Operation
Caution: It is important that a drop cloth be used under the fluid tank
whenever the tank plug is opened for water treatment.
The level of resistance is determined by the level indicator located on the front of
the tank. Level one indicates lightest resistance, level twenty represents heaviest
resistance. Allow three to four seconds after adjusting resistance handle for the
correct resistance level to be achieved.
Long term water treatment:
Do not use any water treatment other than the tablets supplied with this ma-
chine. For replacement tablets, contact your local First Degree Fitness distributor
o
Water treatment schedules for the E720 will vary according to the fluid tanks expo-
sure to sunlight but expect 8-12 months near a bright, sunlit window and 2-4 years
for a darker location. At the point of finding the water slightly green, add a Chlorine
tablet. Remember to wait 72 hours before adding the blue dye as the Chlorine tab-
let is extremely concentrated.
Important: Do not fill past the calibration mark as indicated on the tank level
sticker or water spillage may occur. See tank filling and water treatment page
for details.
Resistance:
Removing hands before the crank comes to
a complete stop while training can cause in-
jury. The crank is direct drive so as to allow
both forward and reverse rotation during
workouts.
Warning:
CAUTION
10

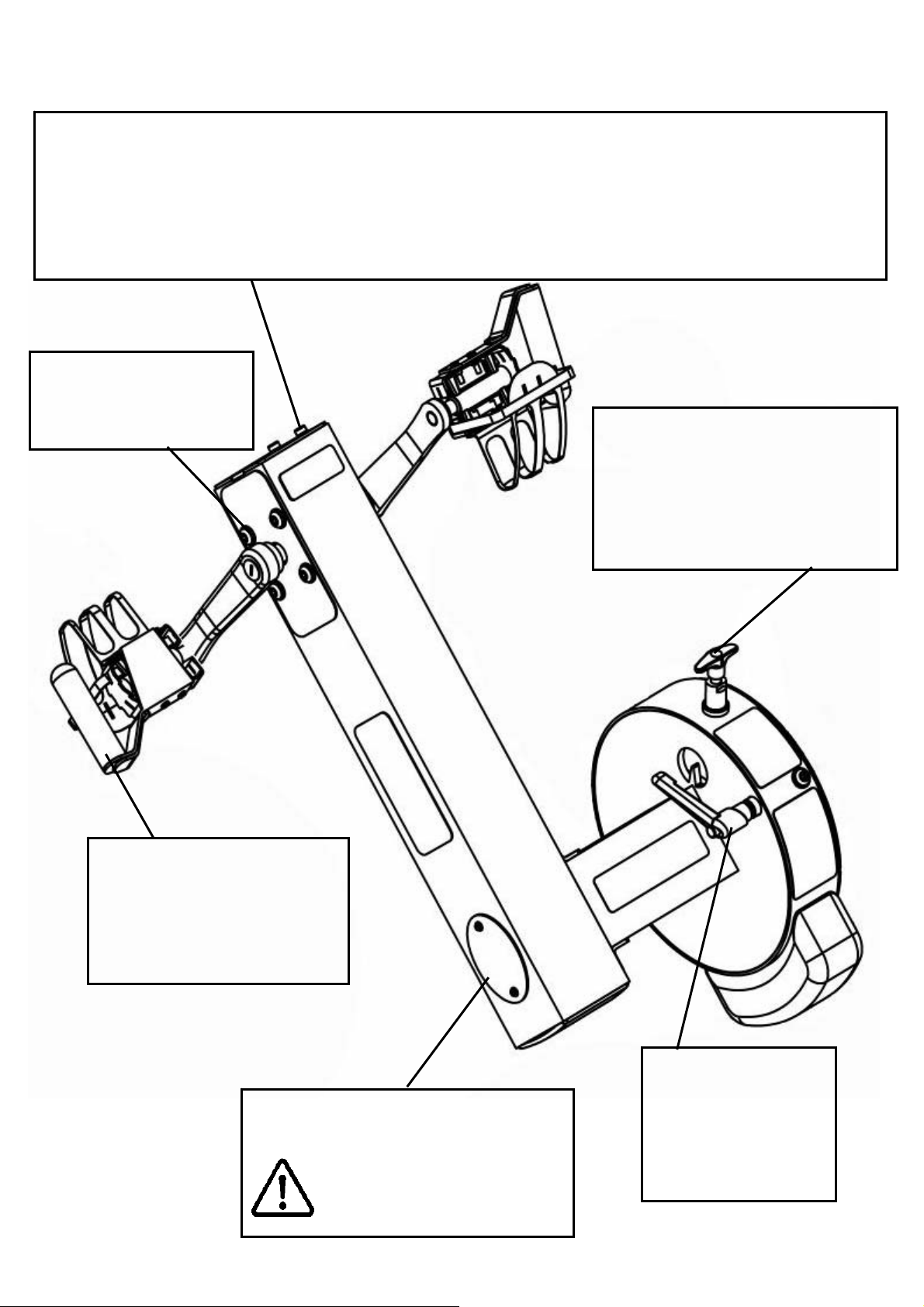

The E720 Control Arm
The E720 Pedal: This pat-
ented design allows for usage
in both the recumbent posi-
tion and for sitting/standing
upper body workouts.
L-pin: Loosen when
rotating the control
arm and tighten (snug
only) once the de-
sired position has
been reached.
T-pin: The T-pin locks the control
arm in any one of 72 different posi-
tions throughout its 360 degree
range of motion. Pull up the T-pin
to allow the control arm to rotate
while supporting the control arm
with the other hand.
Crank arm bolts:
Loosen all 8 bolts slightly
before adjusting/
tightening chain.
Inspection plate: Open to check
chain tension.
Warning: Do not check
chain tension by hand!
Chain tensioning bolts: Allows for tightening the chain or adjustment from side to side. Make sure
when tightening only to adjust the same amount for both bolts, otherwise the sprocket will be mis-
aligned.
Note: Tightening the right bolt only will pull the right side of the crank assembly toward you, tighten-
ing the left will pull the left side toward you. Use this feature to realign the rear with the front sprocket
if needed or when changing to a new chain.
