ABM ABM300-CGC4 User manual
REV 0.0 April 18, 2023 Page 1
ABM300-CGC4
RS485 Cellular Gateway
Installation Manual
730 The Kingsway Peterborough, ON K9J6W6 Canada
Tel: (705) 740 —2010 Web: www.abmsensor.com
Fax: (705) 740 —2563 E-mail: info@abmsensor.com
A –Introduction
This manual describes the requirements to successfully connect
up to eight ABM radar level sensor products in an RS485
network hosted by the ABM300 RS485 Cellular Gateway.
The Gateway not only acquires data from these sensors but can
also control them. Users have access to remotely change all alarm
related functions, while ABM experts can remotely recalibrate
and fine-tune the sensors for optimized performance in their
respective environments.
The Gateway can also be used to power any DC version ABM
radar level sensor (ABM300 series), which can simplify cable
routing in many cases.
B - Requirements
Cellular Network
The key to reliable Gateway operation is suitable cellular phone network access. While urban and developed areas
typically provide excellent cellular signal strength, there may be some installations where the cellular signal is weak. For
such locations, it is highly recommended that the installer determine an optimal mounting location by using a cell phone
display to assess the signal strength.
The standard antenna supplied with the Gateway has a magnetic-base and a 6’ (2m) cable that allows mounting on top of
a tank or structure for optimal signal strength while mounting the Gateway in a more sheltered or accessible area. The
optional SMA-mounted antennas have slightly higher gain. For difficult installations, the ABM Sensor technical team can
provide advice regarding the use of directional antenna and extension cables.
Power Supply
The Gateway requires an input supply voltage of 12 to 30Vdc. Peak power is 6W (1A at 6V down to 0.2A at 30V). This
peak only occurs for a very short period during cellular transmissions.
If the Gateway is connected to supply DC-powered ABM sensors (see Appendix), it supplies an output of ≥18V, provided
the following requirements are met for the supply input voltage (VIN):
•For 1 to 3 sensors, VIN ≥ 12Vdc
•For 4 sensors, VIN ≥ 15Vdc
•For 5 sensors, VIN ≥ 18Vdc
•For 6 to 8 sensors, VIN ≥ 21Vdc
The number and type of ABM sensors connected to the Gateway determine its total power requirement. Input current up to
600mA at 21-30Vdc may be required for an eight sensor configuration.
REV 0.0 April 18, 2023 Page 2
Environmental
The Gateway is designed for operation over the temperature range of -40°F to +140°F (-40°C to +60°C).
The Gateway enclosure is rated for NEMA 4/4X ingress protection –suitable for exposed outdoor applications.
However, the selected antenna must be suitable for the installation environment. ABM offers the following:
•A remote magnetic-mount outdoor antenna with a 6’ (2m) SMA extension cable (standard configuration).
•An outdoor antenna (IP66 rated) that mounts directly on the enclosure’s SMA connector.
•An indoor-only antenna mounted on the SMA connector (as shown in the above product photo).
If installed outdoors and unsheltered, the Gateway must be mounted vertically, such that the wiring exits from the
bottom and the antenna from the left side, to prevent a build up of water, snow or ice around the cable glands or the
SMA antenna connector. The mounting feet may be relocated to the sides of the enclosure (rather than the top and
bottom as shown in the above product photo) for further mounting flexibility.
C - Installation:
Physical Configuration
Following the proper installation of each sensor according to its supplied instructions, the Gateway should then be
installed in any location with suitable cellular reception and environmental conditions. The Gateway’s 6ft (2m) pigtail
can in many cases be wired directly to a sensor –otherwise, a junction box is required to connect it to the RS485 and
DC power buses.
It is not necessary to install the Gateway at one end of the RS485 bus (as shown in several examples in Section D) –it
can be located anywhere in the network. The RS485 cabling must be connected in a multi-drop or daisy-chain
configuration, as star configurations (i.e. with long branches) are not recommended. Short stubs are acceptable
(maximum 6ft/2m) when connecting sensors using junction boxes.
Cabling
The Gateway is supplied with two 6ft (2m) #24AWG shielded twisted-pair pigtail cables –the minimum
recommended wire size. ABM supplies all other sensor products with terminal blocks suitable for up to #14AWG
wires. These terminals also accept two #18AWG conductors, which allows for direct wiring without junction boxes in
some cases (see Section D Examples 1 and 4).
Several basic rules apply to cabling:
•For ingress protection, it is important that only one cable per cable gland be used. Each ABM300 sensor is
supplied with two cable entries, facilitating direct connection in a multi-drop network.
•AC versions sensors (ABM400 or ABM430) require one gland for AC power, leaving only one gland for
network connections. Line voltage (AC) conductors must not share a cable with low voltage (DC) conductors
such as RS485 or mA Output.
•When junction boxes are used to meet the above requirements, the branch cable must not exceed 2m/6’ in
length.
•Conduits can be used instead of cable glands to allow runs of multiple cables or wire pairs, but line voltage
cables or conductors cannot share a conduit with low voltage cables or conductors.
REV 0.0 April 18, 2023 Page 3
Shielding
Shielding is required for all Gateway-connected cables. See the Appendix for identification by ABM model number of
the sensors discussed in the following shielding rules:
•Most important: the shield shall be connected to earth-ground in only one location. Connections at multiple
points will create a ground-loop that can result in significant ground differential voltages and currents, which
can adversely affect communication and even damage installed equipment.
•Ideally, the sole earth-ground connection to the system’s cable shield should be made at either end (as
opposed to somewhere in the middle) of a multi-drop cable run. In most cases, especially if a line-powered
DC supply is used, it is best to ground it at the power supply.
•The shields of all low-voltage cables should be connected together. Twisting together is acceptable, but
screw terminals, wire nuts or soldered connections are more reliable.
•The installer must prevent the bare shield wires from touching any metal housing or any other conductors.
•AC powered sensors must have an earth-ground wire directly connected to Terminal 6 for electrical safety as
part of the AC supply. Terminal 6 is internally connected to Terminal 3 on all sensors. Therefore, the cabling
system shield can use Terminal 3 on one AC sensor as its grounding point –as long as it is not already
grounded elsewhere.
•DC powered sensors are not required to have an earth-ground wire connecting to Terminal 3 or 6, as low-
voltage installation rules do not require such. However, DC sensors with metal housings may be indirectly
grounded through their mounting –for instance, where a metal or otherwise conductive tank is grounded to
earth through its base and the sensor is installed without an isolating mount such as an aiming device. If a DC
sensor is not indirectly grounded in this manner, nor grounded through an earth-ground wire connected to
either Terminal 3 or 6, then the system shield wire should be connected to Terminal 3 or 6.
The above shielding rules are illustrated throughout the configuration examples in Section D.
RS485 Common Connection
While it is common practice to implement RS485 wiring with only two wires (“A” and “B”), this is risky over long
distances and multiple network nodes. Best practice, per the RS485 standards, is to provide a Common connection
between nodes.
The Gateway’s Common connection is the black wire of the red/black pair of both pigtail cables. The white/black pair
of the 2-pair cable provides the A/B connections.
For sensors that are not powered through the Gateway, such as AC powered sensors, the Common connection is to be
made through Terminal 4, which is Common for both the RS485 and the mA loop current output. For all DC powered
sensors, Terminal 4 connects internally to Terminal 7 (labelled “L2/N”).
RS485 Network Initialization
ABM sensors are supplied with a factory-default SID = 2, unless they were specifically ordered from ABM for a
Gateway network configuration with a pre-assigned Serial ID (SID) sequence. The connection of more than one sensor
having the same SID will result in communications failure.
Therefore, installation of more than one factory-default sensor to the Gateway requires that the installer only add one
sensor at a time to the RS485 bus (the black/white twisted pair) to re-assign its SID to a unique number, as described
in the Cellular Gateway User Manual.
REV 0.0 April 18, 2023 Page 4
D - Installation Examples
1. Single AC Powered Sensor
The following example shows an AC powered sensor (ABM400 or ABM430 series), without a current output
connection, connected to a Gateway.
As the current loop output of the sensor is unused, the Gateway, located within 6ft (2m), is shown directly wired to the
sensor through one cable gland, while the AC supply requires a second separate cable gland.
As the Gateway is not supplying sensor power, the red wire is either cut off or insulated with tape inside the sensor.
The black wire from the red/black pair is still connected to provide a signal common for the RS485 link, so it is
connected to Common at Terminal #4 (mA Output “-“).
The shield is shown grounded at the power supply and not connected in the sensor. As AC powered sensors have both
Terminals 3 and 6 earth-grounded for electrical safety, the shield could instead have been left unconnected at the
power supply and connected to Terminal 3 in the sensor.
Figure 1 –AC Supply Sensor Connections (No Current Output) Using Gateway Pigtail
REV 0.0 April 18, 2023 Page 5
2. Single AC Powered Sensor with Current Output
The following example is a variation of the first, but with the current output implemented.
As the sensor is AC supplied, there is only one free cable gland for all low voltage wiring, so an external junction box
is required to break out the current output.
The shield is shown being earth-grounded at the sensor since, being AC powered, Terminal 3 must be earthed through
Terminal 6. Optionally, the shield could be earth-grounded at the junction box (but not at the sensor or power supply).
As Terminal 4 (mA Output “-“) is the signal common for both the current output and the RS485 in the sensor, it is
acceptable to provide this connection through the one black wire to the junction box as shown - thus avoiding the
requirement for a 3-pair connection to the sensor.
Figure 2 –AC Supply Sensor Connections (With Current Output) Using Junction Box
REV 0.0 April 18, 2023 Page 6
3. Single DC Powered Sensor
The following example is a variation of the previous two, except that the line-powered DC supply is remotely located
and the Gateway does not supply the power to the sensor.
The junction box is required, since there are conductors from three cables that need to be routed to the sensor. In this
case, the Gateway supply output pair (red/black) is not connected.
Note that the common (black wire) of the Gateway supply cable is internally connected to the common of the Gateway
sensor cable (black of the red/black pair). Only one of these should be connected for signal common.
This example illustrates the case where the sensor body is not providing an earth-ground connection, so the shield wire
must be connected to Terminal 3 in the sensor. This may occur if the sensor is mounted on a non-metallic tank or uses
a sensor aiming mount that electrically insulates the housing from earth-ground.
Figure 3 –Simple DC Sensor Connections (No Current Output)
Note that if the DC power supply is located at a significant distance, and the junction box has an available earth-
ground connection much closer to the Gateway and sensor, it may be more desirable to ground the shield wire at the
junction box instead of at the power supply.
Over long distances with multiple RS485 connections, it is preferred to earth-ground the shield at one end or the other.
There are exceptions, of course, depending on the total length of the cable, proximity of electrical noise sources (such
as motors) and the quality of the grounding connection available. For instance, a sensor grounded through a metal tank
mounted on dry ground may not be as effective as a connection to the earth-ground from the AC line supply (as in
Figure 2) –the latter typically implemented with a buried grounding rod or plate.
REV 0.0 April 18, 2023 Page 7

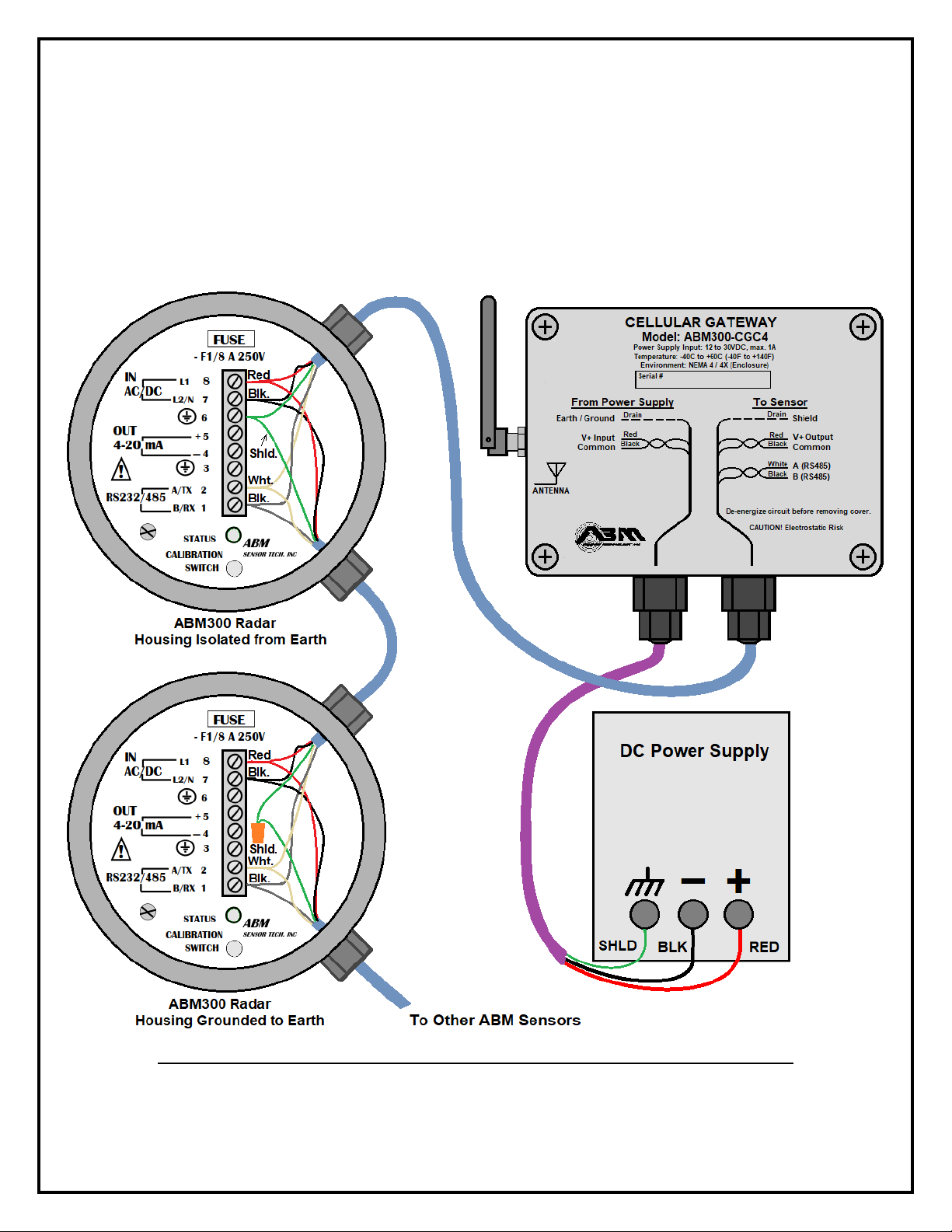

4. Multiple DC Powered Sensors
The following example shows the Gateway wired to control multiple sensors.
As shown, the lower sensor is grounded through its metal housing, so the shield wire should not connect to either
Terminals 3 or 6 in that sensor. However, the shield wire is connected to the upper (isolated) sensor.
In multiple sensor configurations powered by the Gateway, the voltage of the power supply must be adequate to be
able to meet the load requirements (see section “B –Requirements - Power Supply” above).
Figure 4 –Multiple DC Sensor Connections - Shield Earth-Grounded at Power Supply
REV 0.0 April 18, 2023 Page 8
5. Multiple DC Powered Sensors
The following example shows the Gateway wired to multiple sensors, each with a current loop output to the PLC.
As they are all DC version sensors, they are powered directly from the 24Vdc supply. It is shown as a separate power
supply, but one could use a 24Vdc supply from the PLC instead. In either case, the Sensor Supply output from the
Gateway is not connected in this example.
Note that all three sensors are shown as being isolated from earth/ground at their tanks, so the shield is grounded at the
power supply.
Figure 5 –Multiple DC Sensors with Current Outputs
REV 0.0 April 18, 2023 Page 9
E - Appendix
Following is a list of ABM sensors that are compatible for use with the Gateway.
•DC Radar: ABM300-xxxYYC4 series:
-may be indirectly earth-grounded through its mounting configuration (caution required re: shield wire)
-may be powered from the Gateway sensor power output
•AC Radar: ABM400-xxxYYC4 series and ABM430-xxxYYC4 series:
-should be earth-grounded through its AC supply (do not connect shield wire)
-cannot be powered from the Gateway
where xxx = any one of: 017, 033, 050, 100, 140, 240 or 340
and where YY = any one of: R2, R5, R6, R2R7 or R6R2
