ZyXEL Communications P-336M User manual

ZyXEL P-336M

802.11g Wireless MIMO Router

Quick Start Guide

Version 1.0

1/2006

CONTENTS

ENGLISH 2

DEUTSCH 16

ESPAÑOL 32

FRANÇAIS 48

ITALIANO 64

РУССКИЙ 80

SVENSKA 97

繁體中文 111

ZyXEL P-336M

Introducing the ZyXEL P-336M

The ZyXEL P-336M 802.11g Wireless MIMO Router isa broadbandsharinggateway witha

built-in wireless LAN access point, four-port 10/100 Mbps switch, and a USB port for the Microsoft

Windows® Connect Now (WCN) technology.

Key features of the ZyXEL P-336M include advanced WPA2 wireless security, firewall with DoS protection,

VPN pass-through, NAT and UPnP. See your User’s Guide for more details on all ZyXEL P-336M features.

The ZyXEL P-336M will be referred to as the P-336M in this guide.

You should have an Internet account already set up and have been given most of the following information.

Internet Account Information

Your device’s WAN IP Address (if given): __________________

DNS Server IP Address (if given): First ______________, Second ______________, Third ______________

Encapsulation: (select one below):

 Ethernet Service Type: _______________________

User Name: ____________ Password: ____________

 PPPoE (PPPoE) Service Name: ____________

User Name: ____________ Password: ____________

ZyXEL P-336M

1 Hardware Installation

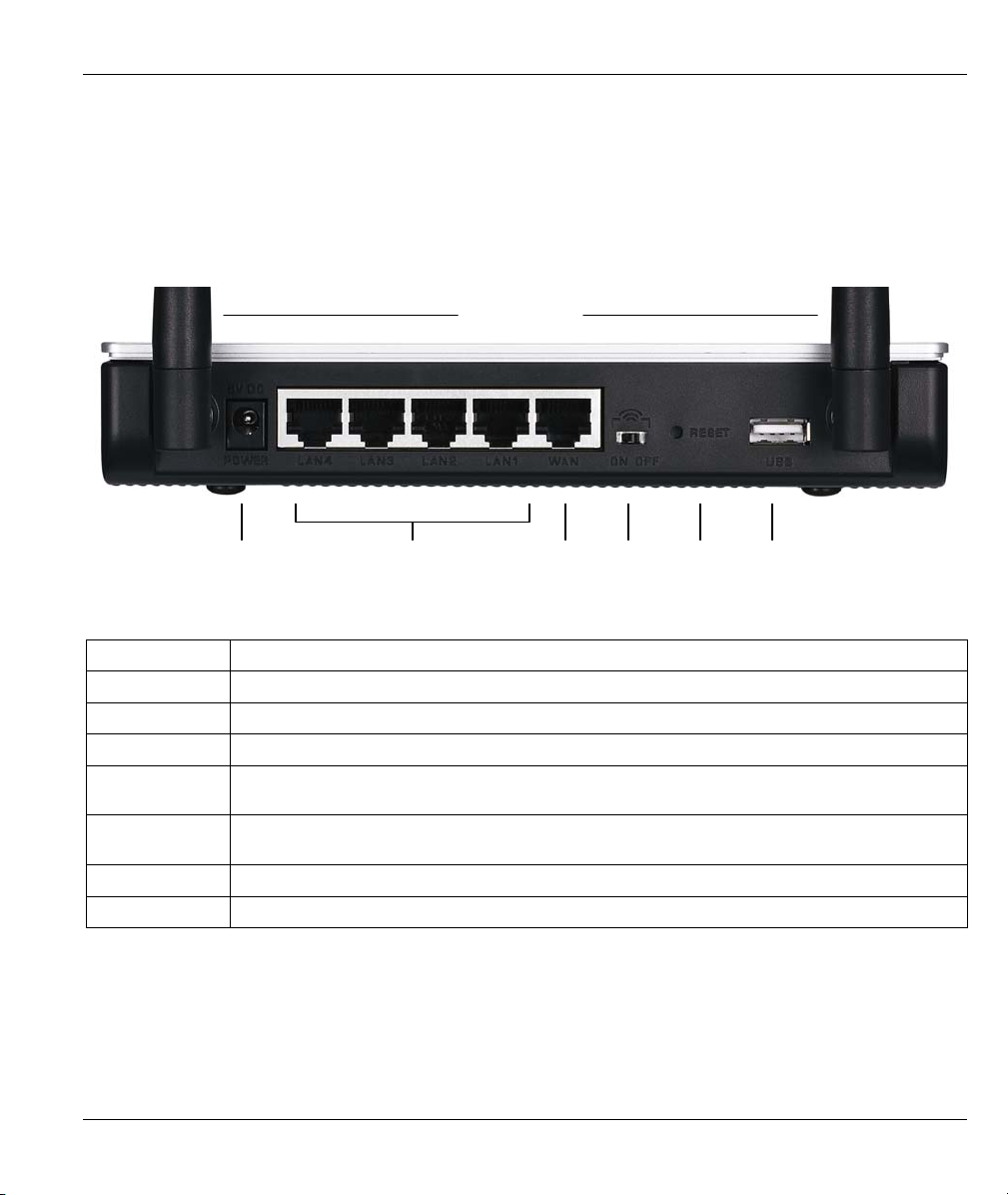

1.1 Rear Panel

LABEL DESCRIPTION

LAN 1-4 Use an Ethernet cable to connect at least one computer for initial configuration.

WAN Connect your broadband modem to this port with the cable that came with your modem.

ON/OFF (WLAN) Slide this switch to enable (ON)or disable (OFF)the wireless LAN feature.

RESET Use this button to restore the P-336M back to the factory default settings. Push the button for less

than 5 seconds to reboot, push for 10 seconds to reset to the factory defaults.

USB Connect this port to a computer to set up a wireless LAN using the Microsoft Windows® Connect

Now feature.

Antennas The P-336M includes 2 adjustable external antennas and 2 internal antennas.

POWER Connect the included power adaptor to this power socket.

1.2 Front Panel LEDs

After you’ve made the connections, connect the included power adaptor to a power source to turn on the P-

336M. Look at the front panel LEDs. The PWR LED turns on. The LAN LED turns on if the LAN port is

properly connected. Refer to the User’s Guide for detailed LED descriptions.

POWER LAN 1 .. 4 WAN ON/OFF

(

WLAN

)

RESET USB

ntennas

ZyXEL P-336M

2 Configuring Your P-336M

This guide shows you how to use the web configurator setup wizard only. See your

User’s Guide for background information on all P-336M features.

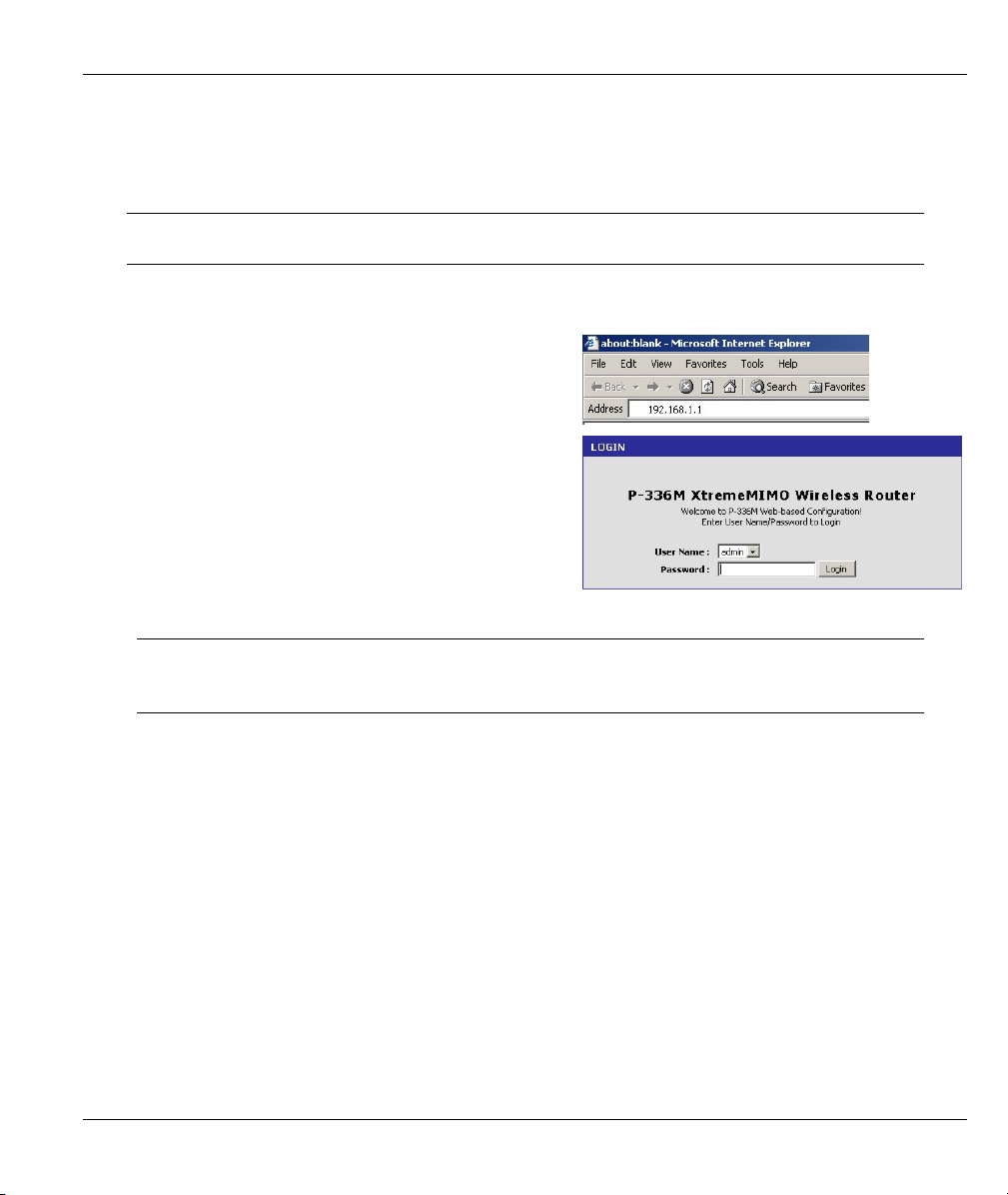

2.1 Accessing the P-336M

1. Launch your web browser. Enter “192.168.1.1” as

the web site address.

2. A LOGIN screen displays.

Select the admin user name to log in as an

administrator and enter the password (the default is

“1234”) in the Password field. Click Login.

If the login screen does not display, make sure your

computer IP address is set up correctly. Refer to

Section 4.1 for more information.

It is highly recommended you change the default password. You can change the

Admin).

3. You should see the DEVICE INFO screen displaying the current device information (such as the

firmware version and WAN IP address, etc.).

3 Wizard Setup

Click BASIC > START in the navigation panel to configure the P-336M using the wizard screens.

• Click Launch Internet Connection Setup Wizard to begin a series of screens to help you

configure your P-336M for Internet access.

• Click Launch Wireless Security Setup Wizard to begin a series of screens to help you configure

your P-336M wireless security settings.

ZyXEL P-336M

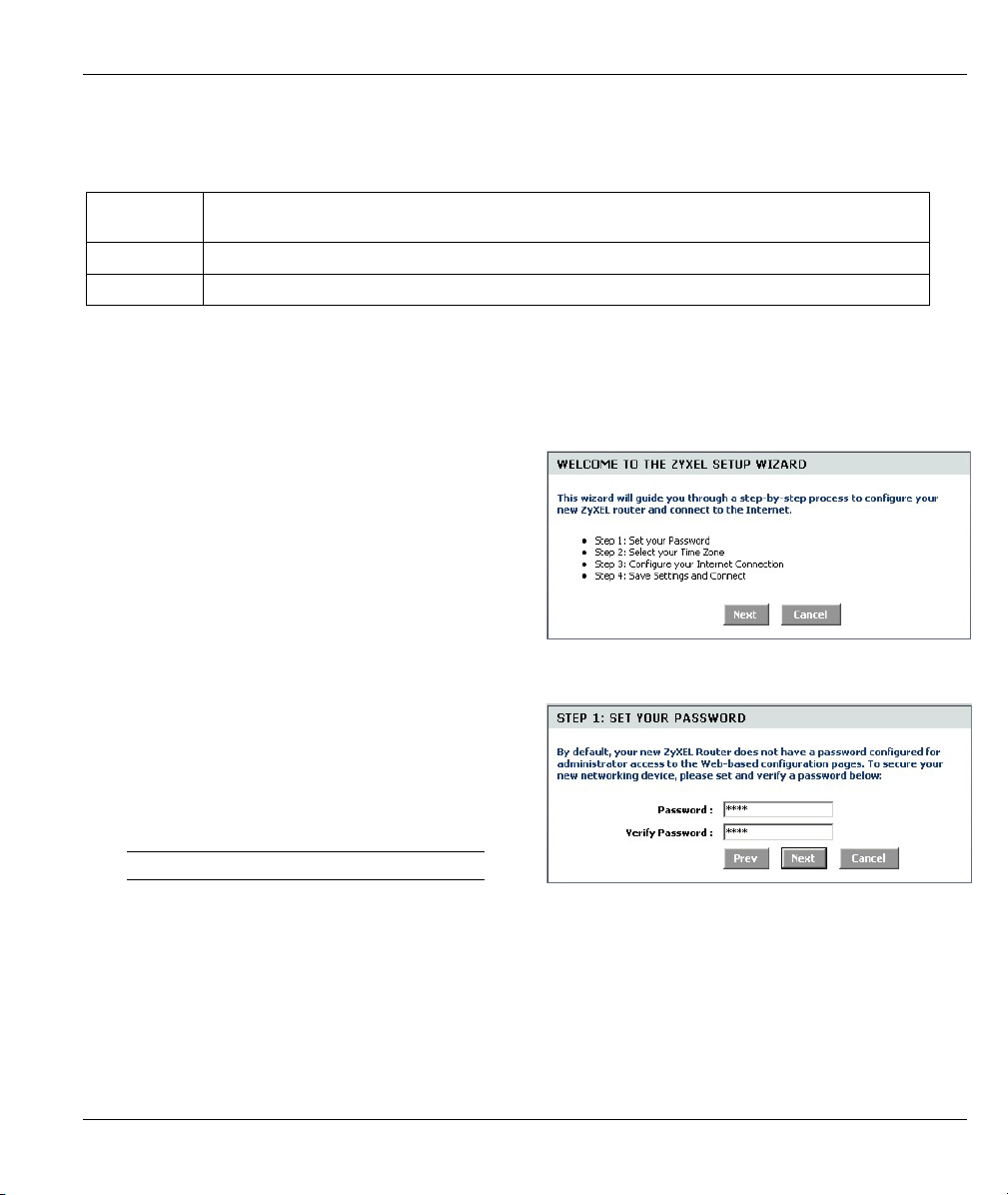

3.1 Common Wizard Screen Buttons

Use the following buttons to navigate the wizard screens:

Cancel Click Cancel in any wizard screen to return to the main WIZARD screen. All unsaved custom

settings will be lost.

Next Click Next to continue to the next screen.

Prev Click Prev to return to the last screen.

No configuration changes will be saved to the P-336M until you go through the entire setup process and click

Connect or Save.

3.2 Wizard Setup for Internet Access

Follow the steps below to configure the P-336M for Internet access.

1. Click START > WIZARD > Launch Internet

Connection Setup Wizard to display the first

wizard screen.

This screen introduces you to the setup wizard

and outlines the steps to set up your P-336M.

Click Next to continue.

2. The second wizard screen prompts you to change

the login password.

Enter a new password in the Password field and

retype the password in Verify Password field to

verify.

Passwords are case sensitive.

Click Next to continue.

ZyXEL P-336M

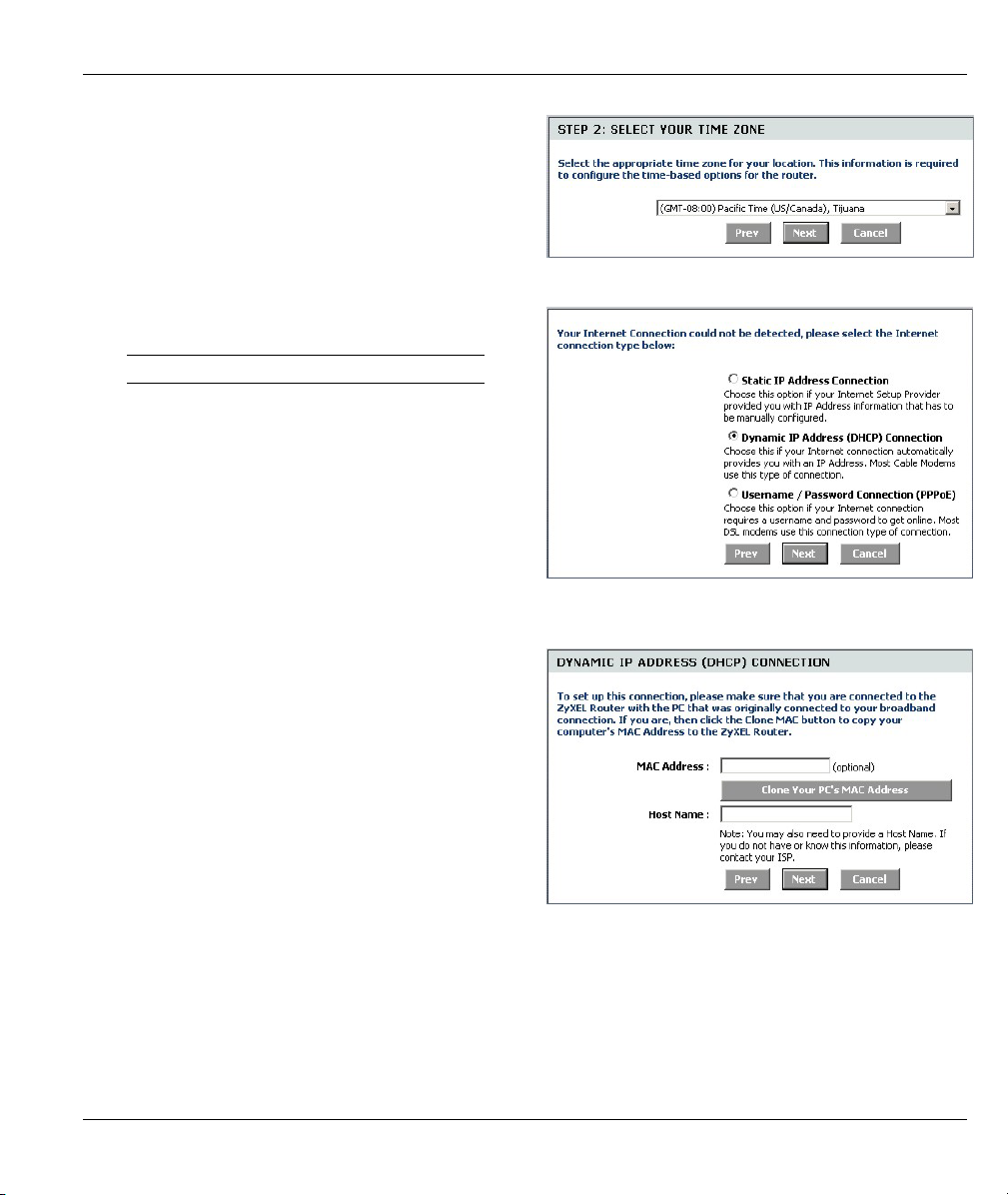

3. Select the time zone for your geographical

location. For example, if you are in California,

select (GMT-08:00) Pacific Time (US/Canada),

Tijuana.

Click Next to continue.

4. Select your Internet connection type.

If you do not know, contact your ISP.

Click Next to continue.

4a. Dynamic IP Address (DHCP) Connection

If required by your ISP, enter your computer MAC

address in the MAC Address field or click Clone

Your PC’s MAC Address to copy the MAC address

of the computer connecting to your ISP onto the P-

336M.

If a host name is necessary for a successful Internet

connection, enter it in the Host Name field.

Click Next to continue.

ZyXEL P-336M

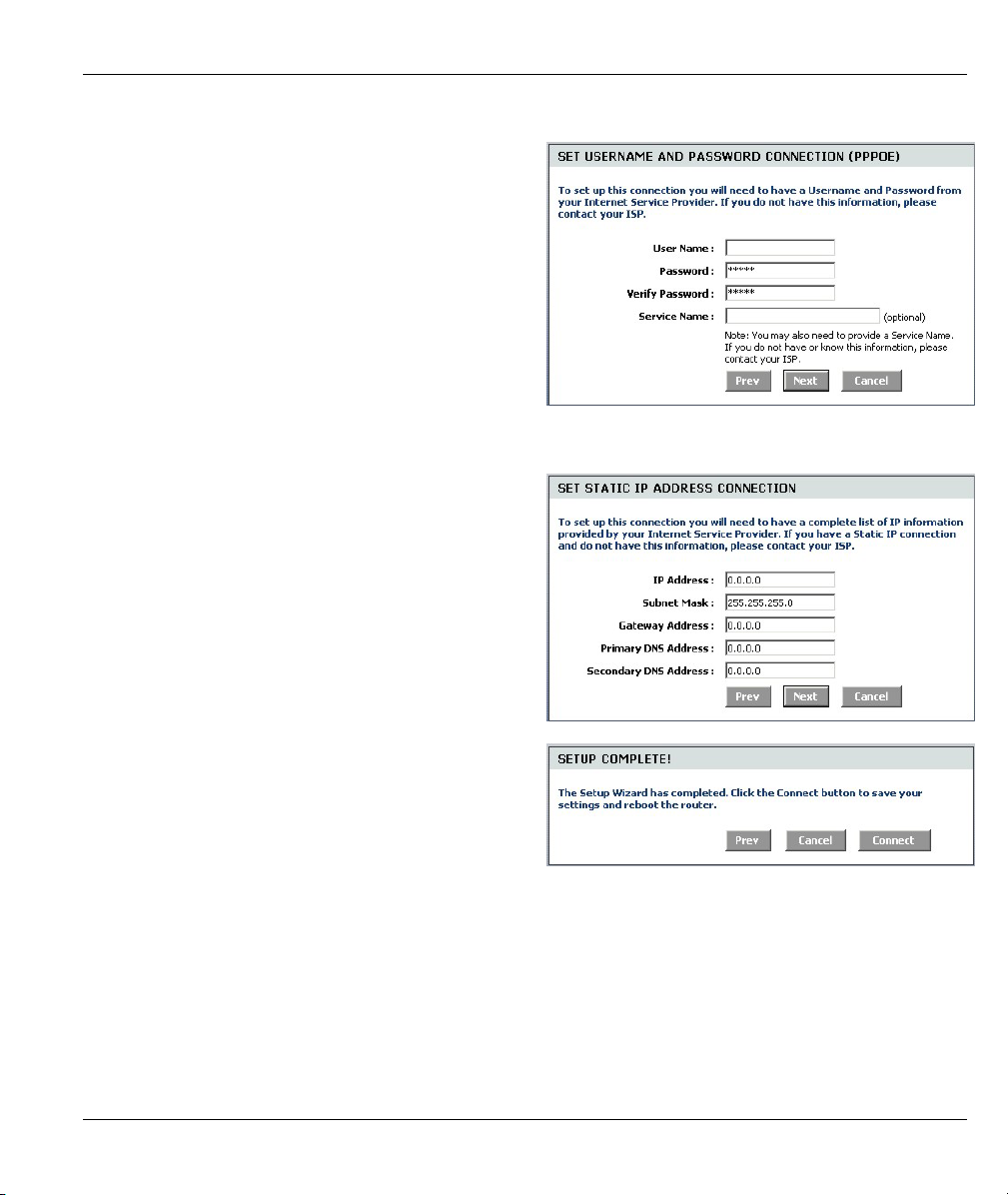

4b. Username / Password Connection (PPPoE)

Enter your Internet access account user name and

password in the fields as provided by your ISP.

Configure the Service Name field when required by

your ISP with the information given.

Click Next to continue.

4c. Static IP Address Connection

Configure the IP Address, Subnet Mask, Gateway

Address, Primary DNS Address and Secondary

DNS Address fields with the information provided by

your ISP.

Click Next to continue.

5. You have completed Internet access setup using

the wizard screens.

Click Connect to save the settings and restart the

device to make the changes take effect.

ZyXEL P-336M

3.3 Wizard Setup for Wireless LAN and Security

Follow the steps below to set up a wireless LAN and configure wireless security using the wizard screens.

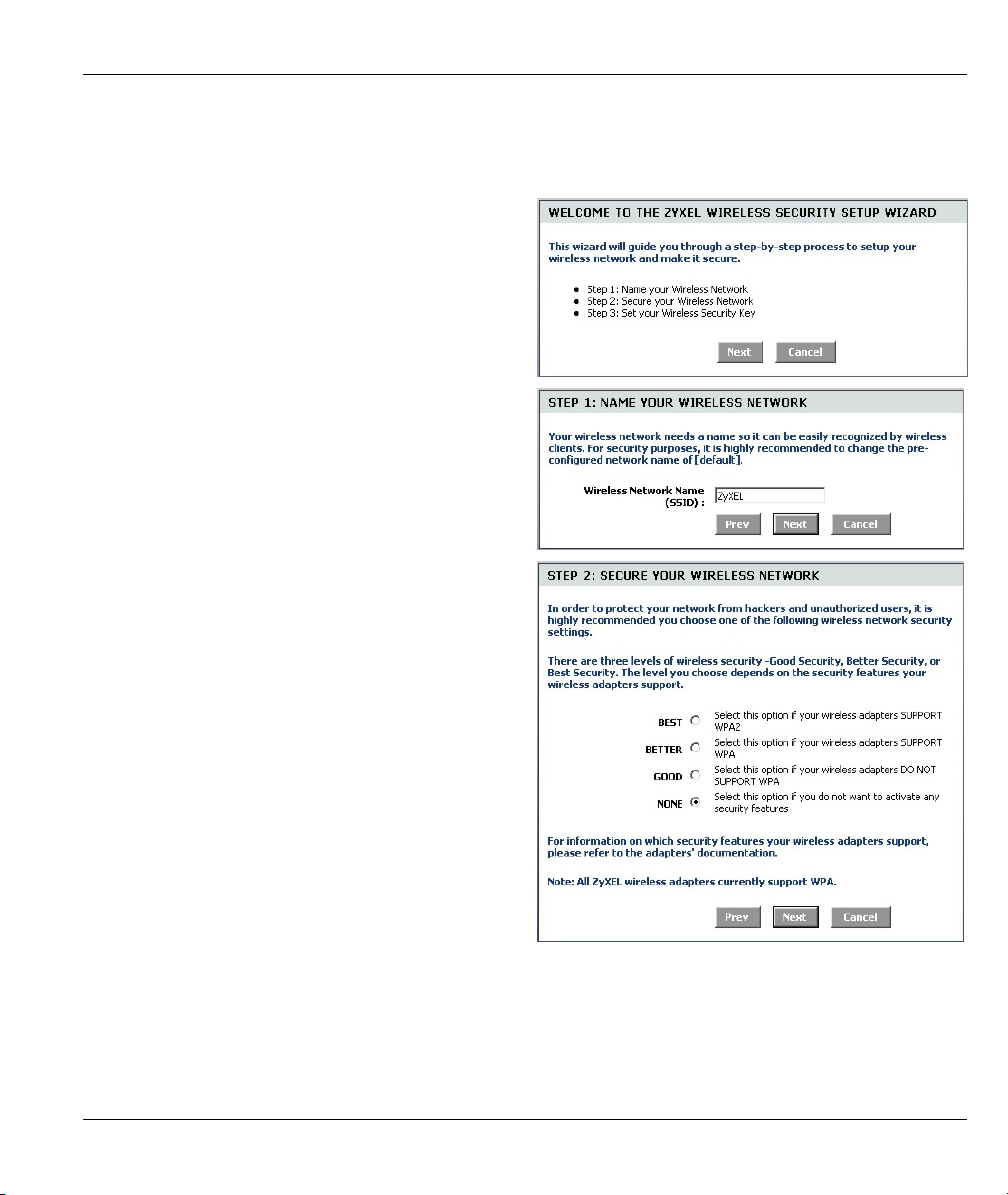

1. Click START > WIZARD > Launch Wireless

Security Setup Wizard to display the first

wizard screen.

This screen outlines the steps to set up a secure

wireless network.

Click Next to continue.

2. Specify a unique name to identify your wireless

LAN.

Click Next to continue.

3. Select a security level.

Click Next to continue.

ZyXEL P-336M

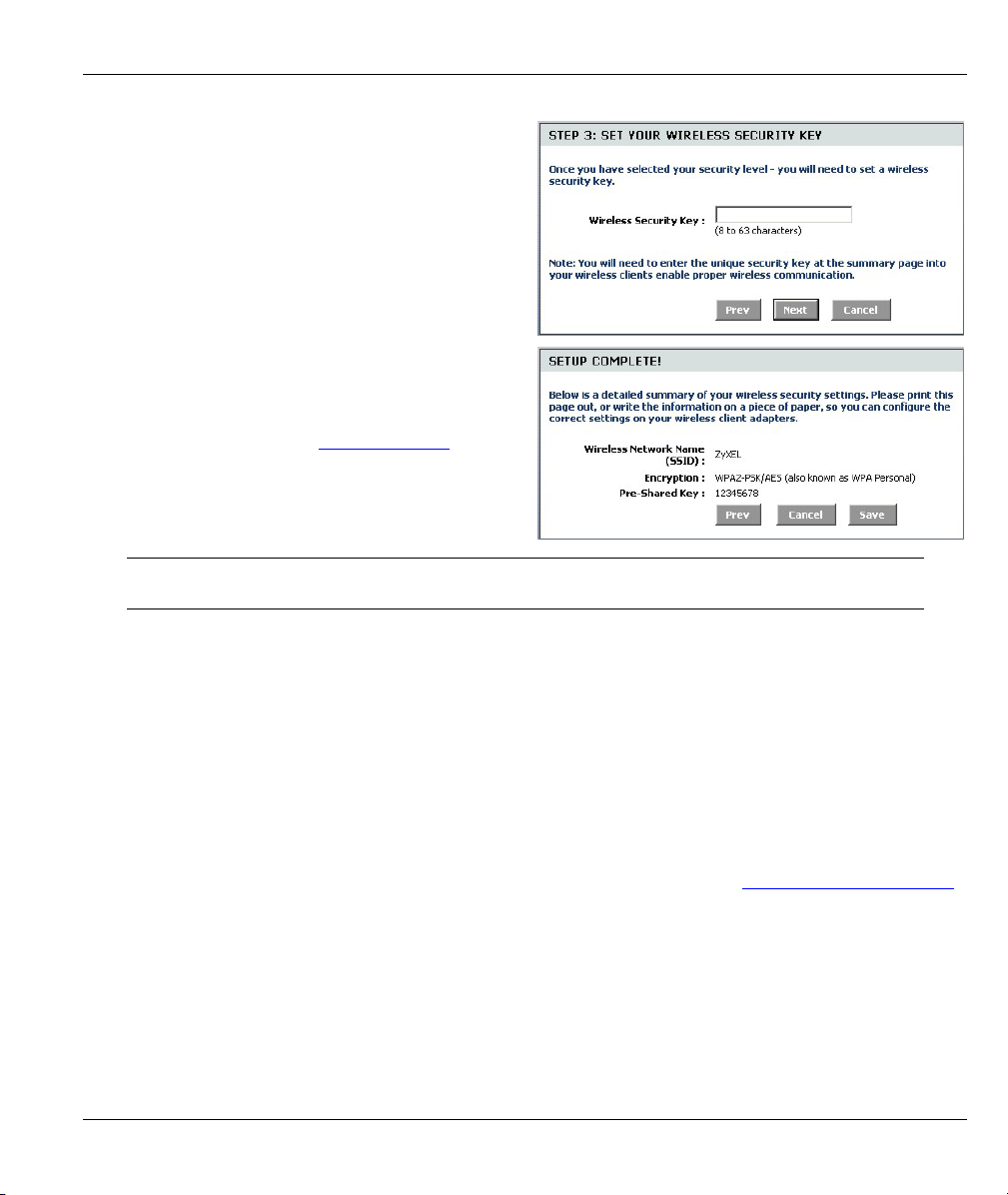

4. If you select BEST, BETTER or GOOD in the

previous screen, enter a security key for secure

wireless connection.

Click Next to continue.

5. Verify your settings and click Save to save the

changes.

6. Test your Internet connection. Launch your web

browser and navigate to www.zyxel.com.

Wireless clients must also set to use the same security option and key to connect

to the P-336M.

3.4 Wireless Connection Setup using Windows® Connect Now

With Windows® Connect Now, you can store the wireless settings on the P-336M on a USB memory stick

and save the settings to the wireless client computer(s). This allows you to wirelessly connect devices with

minimum configuration. Windows® Connect Now is available in Windows XP, Service Pack 2.

To take advantage of this feature, make sure you have the following requirements:

• A USB memory stick with at least 300K of available memory.

• Windows XP with Service Pack 2 (SP2) installed on your computer (see http://www.microsoft.com

for more information).

Follow the steps below to create a new wireless network using Windows® Connect Now.

ZyXEL P-336M

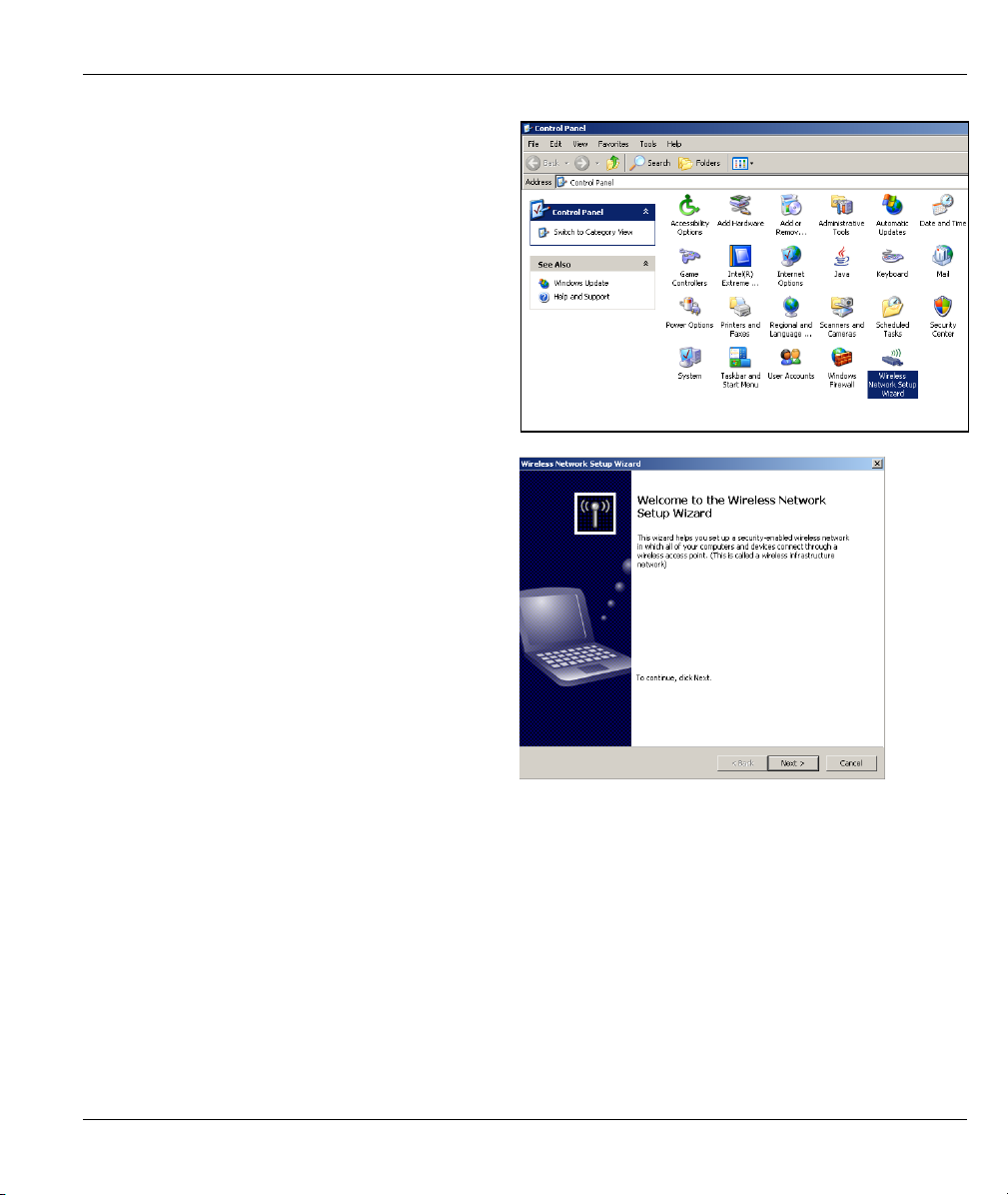

1. Click Start > Control Panel and double-click

Wireless Network Setup Wizard.

2. Click Next to continue.
