ZyXEL Communications Nwa1100-n User manual

IPAddress http://192.168.1.2

Username

admin

Password

1234

NWA1100-N

Quick StartGuide

802.11b/g/nPoEAccess

Point

FirmwareVersion1.00

Edition 1,3/2011

DEFAULTLOGINDETAILS

www

zyxel.com

2011ZyXELCommunicationsCorporation

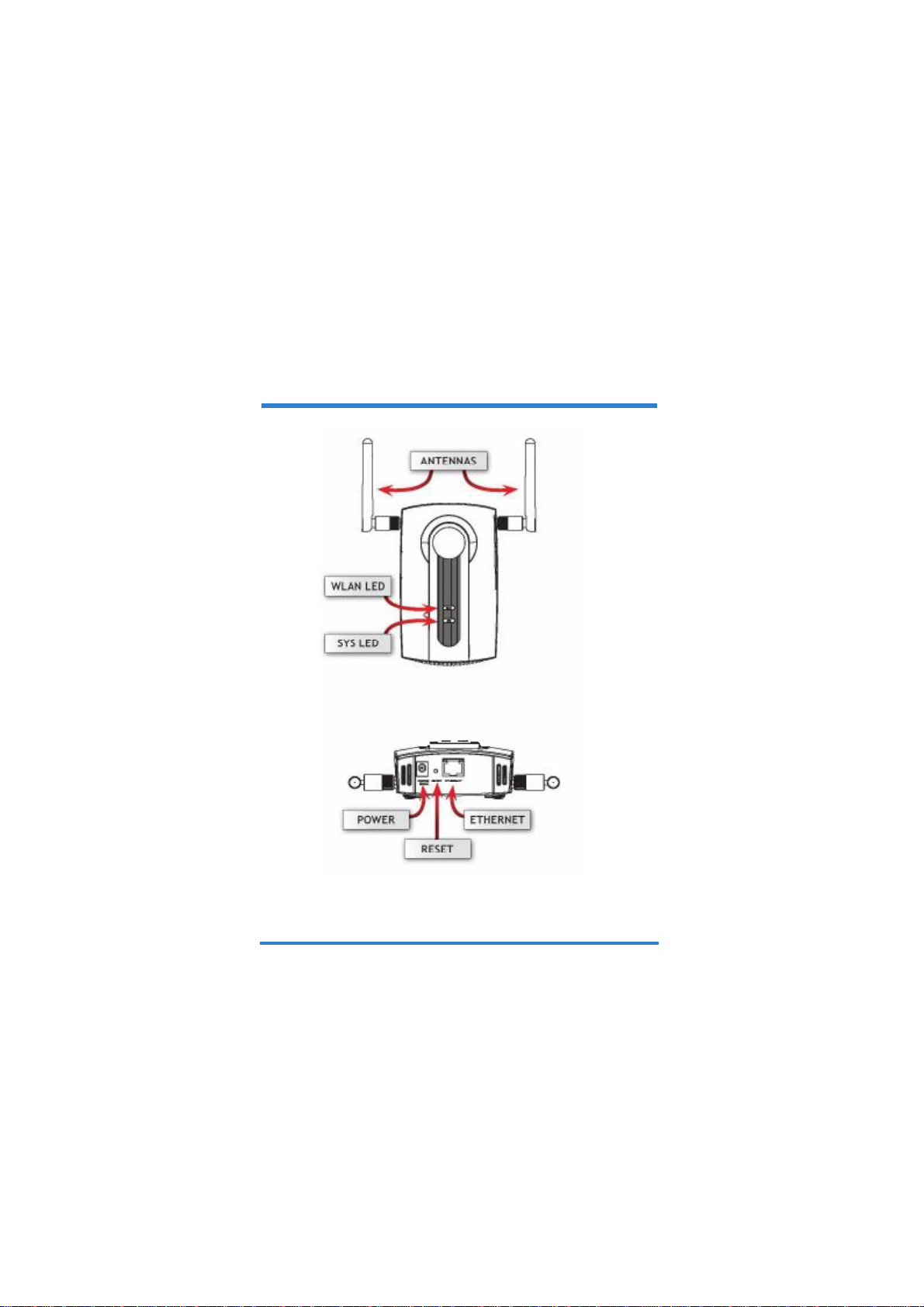

Panels

Overview

ENGLISH

ThisQuickStartGuideshowshowtoset upand configurethe

NWA1100-N(marked Zin thefigure)toallowwirelessclientstosecurely

accessyourwired network.See yourUser sGuideformoreinformation.

You mayneedyourInternet accessinformation.

Tosetup yourwirelessnetworkyou need to:

•ConnecttheHardware

•AccesstheWebConfigurator

•ConfiguretheNWA1100-N

•InstalltheHardware

•SetUpPoweroverEthernet(Optional)

Connect theHardware

1. UsingtheEthernet cable,connectthe ETHERNET porttoacomputer

forinitial configuration.

2. Connectthe

POWER

12VDC sockettoapowersourceusingonlythe

included poweradaptor.

Connectthe NWA1100-N s ETHERNET port toan Ethernetjackwithnetwork

accessafteryouhavecompleted the initialconfiguration.

LEDs

•The SYS LEDblinks red,then turnssteadygreen when thepoweris

connected.

•OneoftheLEDsbythe ETHERNET port turnsoniftheportis

properlyconnected,andblinkswhen thereistraffic. The yellowlight

shinesiftheconnection isat1000 Mbps.Thegreen light shinesif

theconnection isat 10/100Mbps.

neitherLED nearthe ETHERNET port turnson, checkthe cable

connectionstotheport. Ensureyourcomputer snetworkcardisworking

properly.

Access theWebConfigurator

InternetExplorer6.0and laterversions,withJavaScriptenabled,orMozillaFirefox

3and laterversionsorSafari2.0and laterversions.

SetUpYourComputer sIPAddress

Notedownyourcomputer scurrentIPsettingsbeforeyou change them.

First, setyourcomputertouseastaticIPaddress inthe192.168.1.3-

192.168.1.254rangewithasubnetmaskof

255.255.255.0.

Thisensures

thatyourcomputercan communicatewithyourNWA1100-N.See your

User sGuideforinformation on settingupyourcomputer sIPaddress.

Log IntotheWebConfigurator

Even though you can connecttothe NWA1100-Nwirelessly,it isrecommended

thatyou connect yourcomputertothe ETHERNET port forinitialconfiguration.

1. Launchyourwebbrowser.Enter

192.168.1.2 (the NWA1100-Ns

default IPaddress)asthe

address.

you cannotaccessthe Web configurator,makesurethe IPaddressesand

subnet masksof the NWA1100-N and thecomputerareinthe same IP

addressrange.

2.Enter admin (the default

username)inthe Username field

and 1234 (thedefaultpassword)in

the Password field.Click Login.

3.Change the loginpasswordby

entering anew passwordand

clicking Apply. Besuretorecord

the new passwordand keepit ina

safeplace.

you change the passwordand thenforget it,you willneed toreset

the

NWA1100-N. Refertothe User sGuide forhow tousethe RESET button.

4.The STATUS screen appears.

ConfiguretheNWA1100-N

ConfigureSystemSettings

1. Click SYSTEM in thenavigation panel.

2. The SYSTEM>General screen appears.

•SystemName isforidentifying theNWA1100-Non yournetwork.

Chooseadistinctivename,orleavethisatitsdefault.

•You can configuretheEthernetport speed andduplexin

the

EthernetDataRatefield. If you arenot sure,select

Auto

3. Click Apply.

ConfigureWirelessSettings

1. Click WIRELESS inthenavigation panel.The WirelessSettings

screen displays. Configurethebasicsettingsforyourwireless

network.

The wirelessstationsand the NWA1100-Nmust usethe sameSSID, channelID

and encryption settingsforwirelesscommunication.

•OperationMode: Ensurethat AccessPoint modeisselected.

•Wireless Mode: Select thewirelessstandardyou want your

networktouse.If you arenotsurewhichtoselect, select 802.11b/

g/n.

•SSIDProfile: Select theSSIDprofileyou wanttoconfigurefor

networkaccessfromthedrop-downlist box.

•Channel: Select thewirelesschannel you want yournetworkto

use.

•ChannelWidth: Select thechannel bandwidthyou want touse.If

you arenot sure, select 20/40MHz.

2. Click Apply tosaveyoursettings.

3. Click the SSID tab.If you want toconfigureadvanced settingsofan

SSIDprofile(suchaschangethe profilename, SSID,orsecurity),

selectitand click Edit.

4. Click the Security tab. Select theprofileyou wanttoconfigureand

click Edit.

5. Theedit screen oftheselected securityprofileappears. If you don t

configurewirelesssecurity,anyonecan access yournetwork.

•Thisiswhereyou can enterthesecuritysettingsforyourwireless

network.The fieldsyoufillindifferaccordingtothe type ofsecurity

you select in the SecurityMode field.Select None if youdo not

wishtousewirelesssecurity.

•Thisexampleuses WPA2-PSK security, in whichall wirelessclients

mustusethesamepre-shared keytojointhenetwork.

•Ensurethatall yourwirelessclientssupport thetype of securityyou

set. Click Apply when you havefinished.

the wirelessclientscannotcommunicatewiththe network, ensurethat the

clientsand the NWA1100-Nareusing the same wirelesssecuritysettings.
