ZyXEL Communications NWA-3500 User manual

NWA-3500

802.11a/b/g Wireless Access Point

Quick Start Guide

Version 3.60

01/2010

Edition 3

Table of Contents

ENGLISH 3

DEUTSCH 17

ESPAÑOL 33

FRANÇAIS 47

ITALIANO 61

РУССКИЙ 77

SVENSKA 91

简体中文 105

繁體中文 117

ENGLISH

Overview

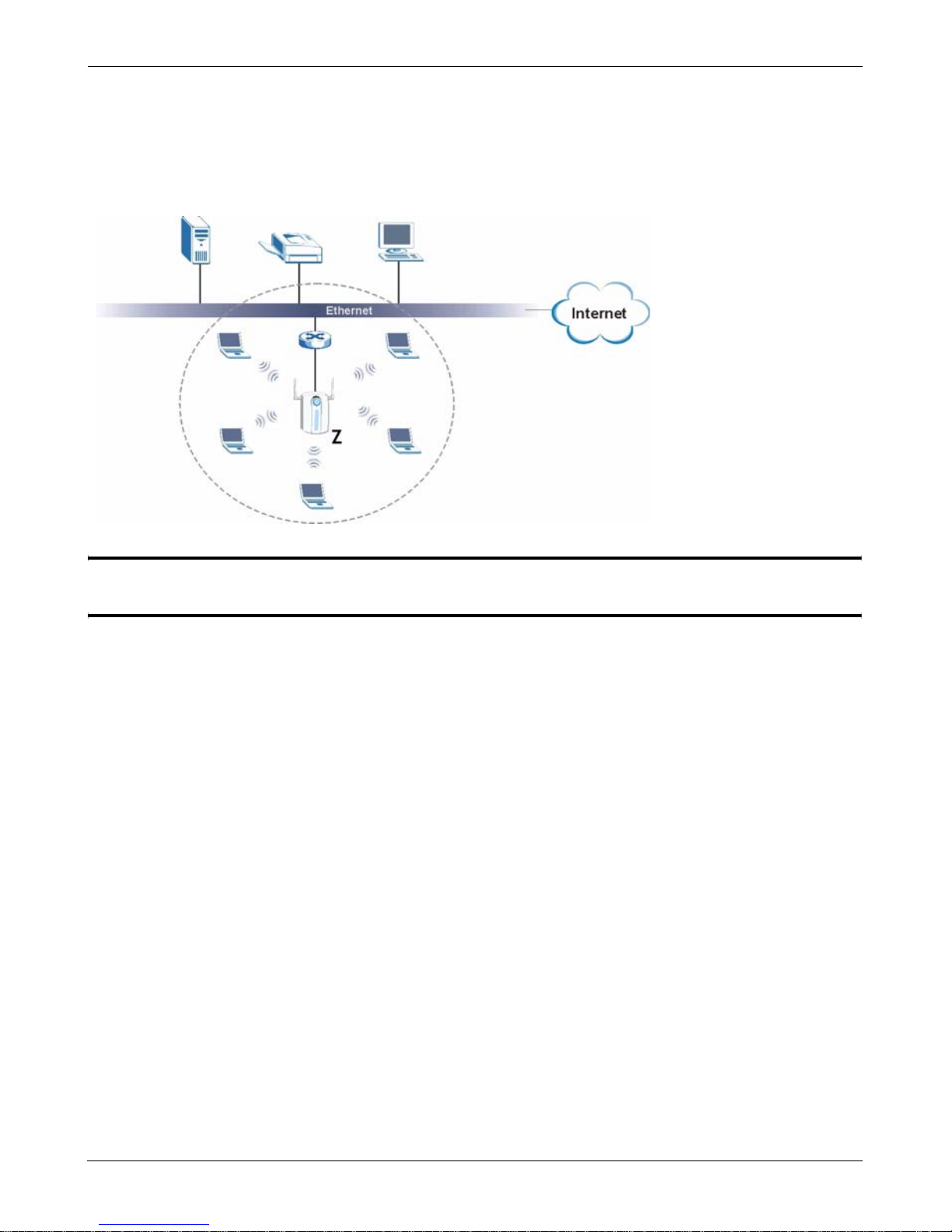

This Quick Start Guide shows how to set up and configure the NWA-3500 (Zin the figure)

to allow wireless clients to securely access your wired network. See your User’s Guide for

more information.

"You may need your Internet access information.

To set up your wireless network you need to:

1Connect the Hardware

2Access the Web Configurator

3Configure the NWA-3500

4Install the Hardware

5Set Up Power over Ethernet (Optional)

ENGLISH

1 Connect the Hardware

1Using an Ethernet cable, connect the ETHERNET port to a computer for initial

configuration.

2Connect the POWER 12VDC socket to a power source using only the included power

adaptor.

"Connect the NWA-3500’s ETHERNET port to an Ethernet jack with network

access after you have completed the initial configuration.

1.1 LEDs

The WDS/SYS LED blinks red while the NWA-3500 is starting up. When the NWA-3500 is

ready, the ZyAIR LED turns on and blinks when there is traffic.

ENGLISH

One of the ETHERNET LEDs on the RJ-45 ETHERNET port turns on if the ETHERNET port

is properly connected, and blinks when there is traffic. The green ETHERNET LED turns on

if the connection is at 10Mbps, and the yellow ETHERNET LED turns on if the connection

is at 100Mbps.

VIf the ZyAIR LED does not turn on, make sure you are using the correct

power adaptor and that the power adaptor is plugged into an appropriate

power supply. Unplug the power adaptor and plug it in again. If the error

persists, you may have a hardware problem. In this case, you should

contact your vendor.

If neither ETHERNET LED turns on, check the cable connection to the

NWA-3500’s ETHERNET port.Ensure your computer’s network card is

working properly.

2 Access the Web Configurator

"Use Internet Explorer 6.0 and later or Netscape Navigator 7.0 and later

versions with JavaScript enabled and pop-up blocking disabled.

2.1 Set Up Your Computer’s IP Address

"Note down your computer’s current IP settings before you change them.

First, set your computer to use a static IP address in the 192.168.1.3 - 192.168.1.254

range with a subnet mask of 255.255.255.0. This ensures that your computer can

communicate with your NWA-3500. See your User’s Guide for information on setting up

your computer’s IP address.

ENGLISH

2.2 Log Into the Web Configurator

"Even though you can connect to the NWA-3500 wirelessly, it is

recommended that you connect your computer to the ETHERNET port for

initial configuration.

1Launch your web browser. Enter

192.168.1.2 (the NWA-3500’s

default IP address) as the address.

VIf you cannot access the Web configurator, make sure the IP addresses

and subnet masks of the NWA-3500 and the computer are in the same IP

address range (see Section 2.1).

2Click Login (the default password

1234 is already entered).

3Change the login password by

entering a new password and

clicking Apply. Be sure to record the

new password and keep it in a safe

place.

ENGLISH

VIf you change the password and then forget it, you will need to reset the

NWA-3500. Refer to the User’s Guide for how to use the RESET button.

4Click Apply to replace the factory

default certificate for added security;

alternatively click Ignore to proceed

if you do not want to change the

certificate now.

5The MAIN MENU screen appears.

ENGLISH

3 Configure the NWA-3500

3.1 Configure System Settings

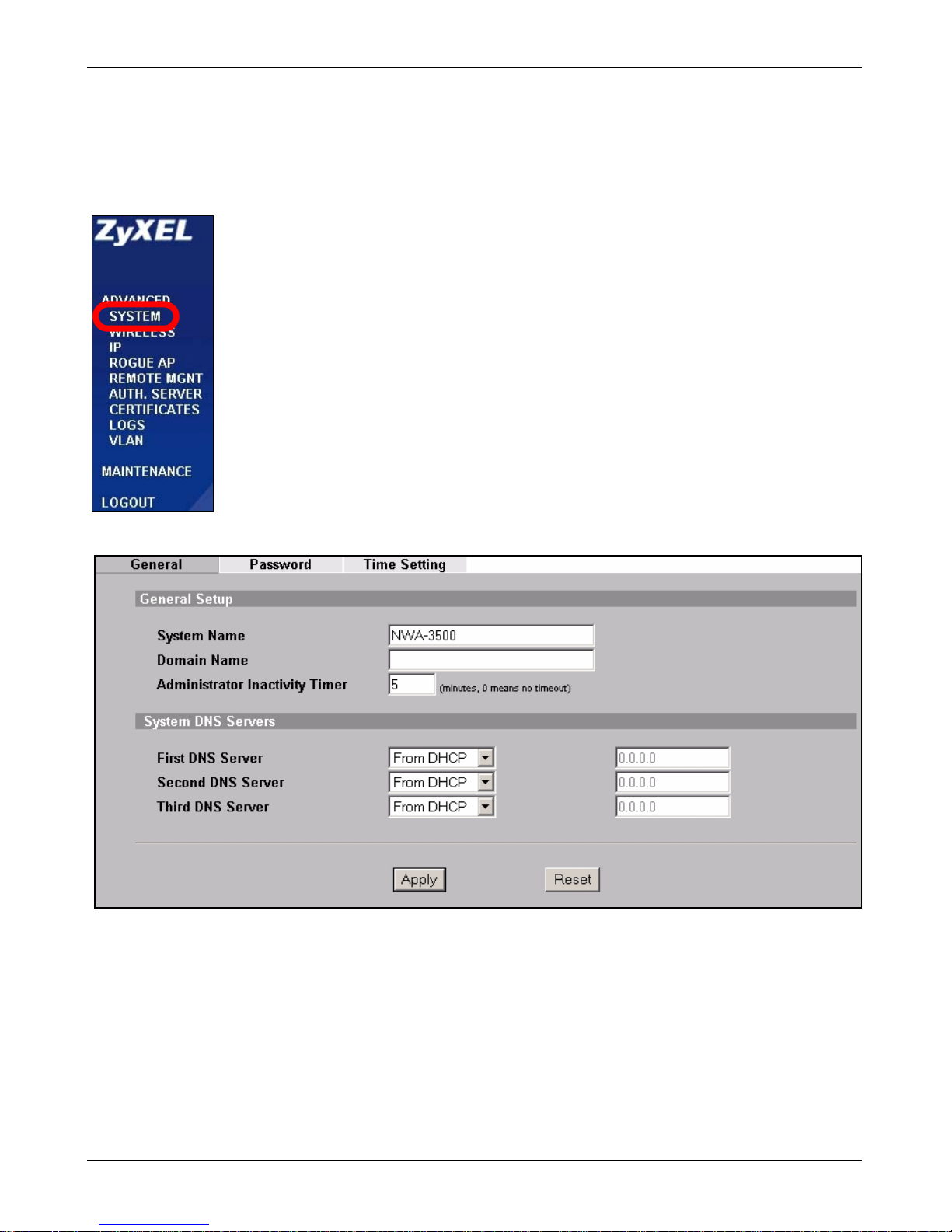

1Click SYSTEM in the navigation panel.

2The SYSTEM > General screen appears.

System Name is for identifying the NWA-3500 on your network. Choose a distinctive

name, or leave this at its default.

Domain Name: Enter a domain name if your ISP requires one for authentication.

Otherwise you can leave it blank or set to whatever may have displayed automatically.

DNS Server(s): if your ISP gave you specific DNS (Domain Name System) settings,

select User-Defined and enter them here. Otherwise, leave these fields at their defaults.

3Click Apply.

ENGLISH

Configure Wireless Settings

1Click WIRELESS in the

navigation panel. The

following screen appears.

"The wireless stations and the NWA-3500 must use the same SSID,

channel ID and encryption settings for wireless communication.

WLAN Adaptor: Ensure that WLAN1 is selected.

Operating Mode: Ensure that Access Point mode is selected.

802.11 Mode: Select the wireless standard you want your network to use. If all the

wireless clients support IEEE 802.11a, select 802.11a. Otherwise, select 802.11b+g.

Choose Channel ID: Select the wireless channel you want your network to use. To have

the NWA-3500 automatically select a channel, click Scan instead.

SSID Profile: Select the SSID profile you want to configure for network access from the

drop-down list box. This example uses the SSID03 profile.

2Click Apply to save your settings.

ENGLISH

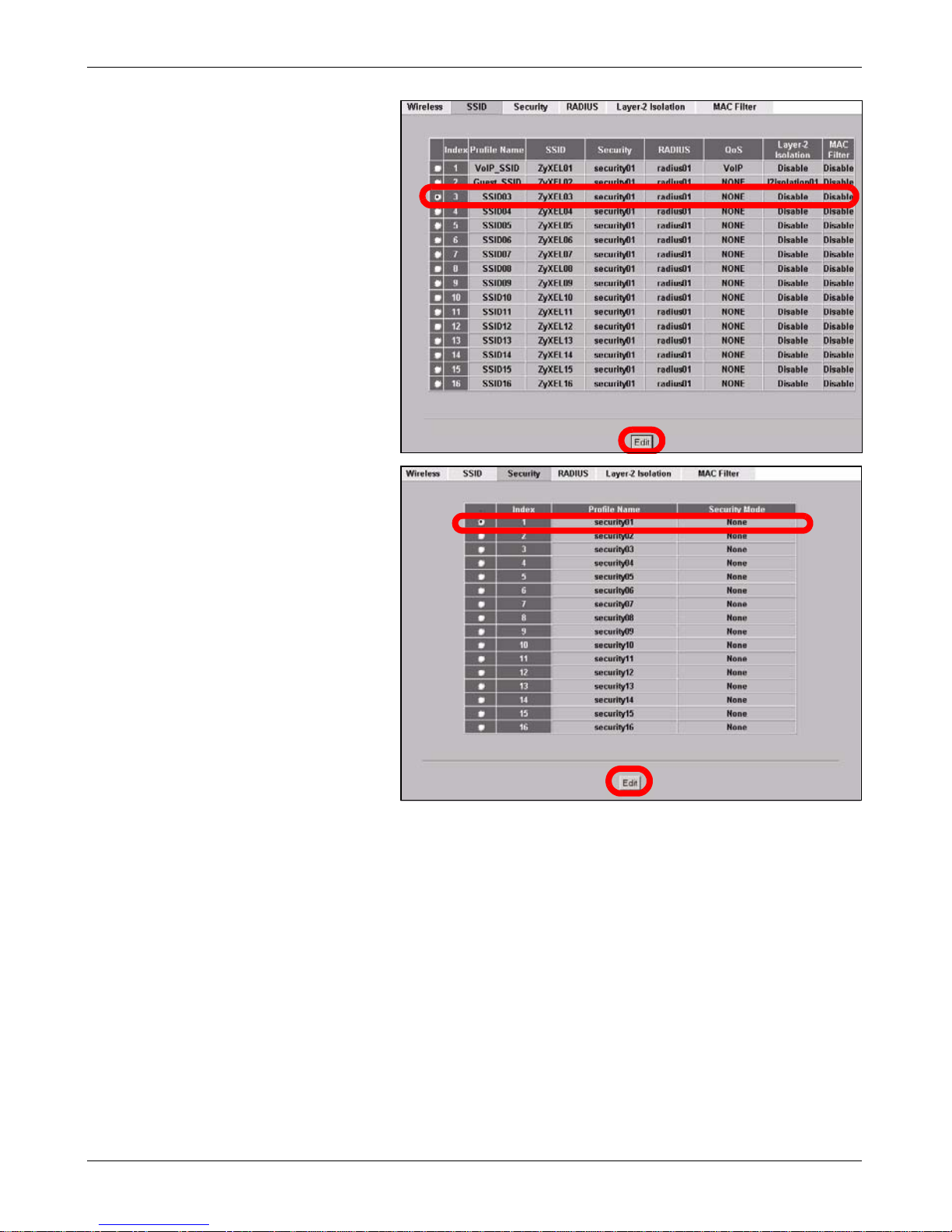

3Click the SSID tab. The

following screen appears.

Ensure the settings for SSID03

are at their default values.

The default SSID (the name of

the network) is ZyXEL03, its

default Security setting is

Security01.Layer 2 Isolation

and MAC Filter are set to

Disable by default.

If you want to change the SSID

profile’s settings, select SSID03

and click Edit.

4Click the Security tab. Ensure

that Security01 is selected

and click Edit.

If you don’t configure wireless

security, then anyone can

access your network.
