ENGLISH

Getting to Know Your Switch

Introduction

The switch is a multi-port switch that can be used to build high-

performance switched networks. The switch is a store-and-forward device

that offers low latency for high-speed networking. The switch is designed

for SOHO (Small Office Home Office) businesses.

Standalone Workgroup Application

The switch can be used as a standalone switch to which computers, servers

and print server are directly connected to form a small workgroup.

Standalone Workgroup Example

Hardware Installation

The switch is suitable for an office environment where it can be placed on

a desktop.

Step 1. Make sure the switch is clean and dry.

Step 2. Set the switch on a smooth, level flat space strong enough to

support the weight of the switch and the connected cables.

Make sure there is a power outlet nearby.

Step 3. Use only the supplied power adaptor to connect your switch to

a power source. Refer to the label on the power adapter for

more information.

ENGLISH

Do not block the ventilation holes.

Hardware Connection

The power and the Ethernet ports are located on the rear panel.

Rear PanelGS-105A

Rear Panel: GS-108A

Power Connection

Connect one end of the supplied power adaptor to the power port on the

rear panel of the switch and the other end to the appropriate power source.

The PWR LED turns on.

RJ-45 Auto-negotiating Ports

The switch comes with 5 or 8 10/100/1000M RJ-45 ports depending on

the model of your switch. The auto-negotiation feature allows the switch

to detect the speed of incoming transmission and adjust appropriately

without manual intervention. It allows data transfers of 10 Mbps, 100

Mbps or 1000 Mbps in either half-duplex or full-duplex mode depending

on your Ethernet network.

ENGLISH

Auto-crossover Ethernet Ports

All ports are auto-crossover, that is auto-MDIX ports (Media Dependent

Interface Crossover), so you may use either a straight-through Ethernet

cable or crossover Ethernet cable for all Ethernet port connections. Auto-

crossover ports automatically sense whether they need to function as

crossover or straight ports, so crossover cables can connect both

computers and switches/hubs.

Refer to the Product Specifications section for the types of network cable

used for the different connection speeds.

Front Panel LEDs

The LEDs on the front panel indicate the real-time status of the switch.

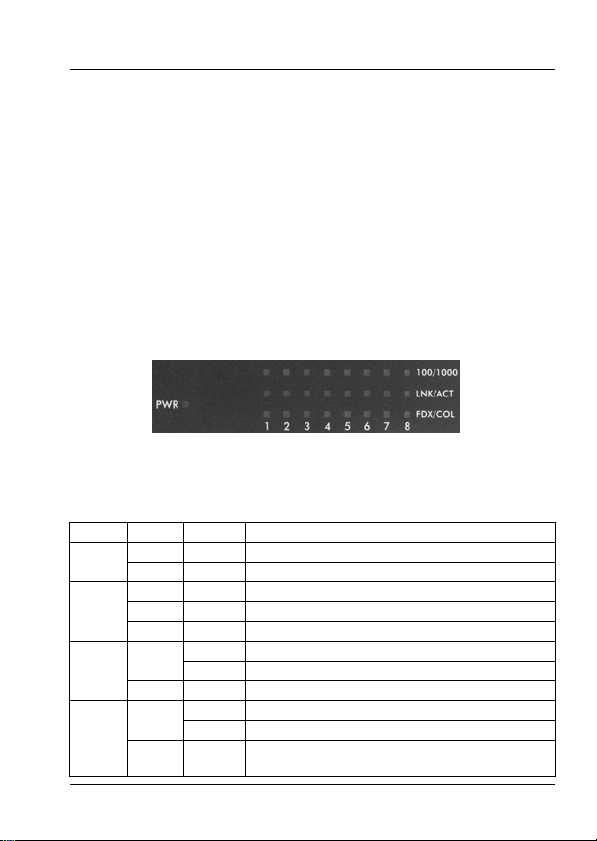

Front Panel LED: GS-108A

Table 1 Front Panel LED Descriptions

LED COLOR STATUS DESCRIPTION

PWR Green On The switch is on and receiving power.

Off The switch is not receiving power.

100/1000 Green On The port is operating at 1000Mbps.

Amber On The port is operating at 100Mbps.

Off The port is operating at 10Mbps or no device is attached.

LNK/ACT Green On The port is connected to an Ethernet network.

Blinking The port is receiving or transmitting data.

Off The port is not connected to an Ethernet network.

Amber On The port is operating in full-duplex mode.

Blinking Packet collision occurred on this port.

FDX/COL

Off The port is operating in half-duplex mode or no Ethernet

device is connected to this port.

ENGLISH

Product Specifications

Standard

IEEE 802.3 10BASE-T Ethernet,

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE802.3x Flow Control and Back-pressure

Protocol CSMA/CD

Technology Store-and-Forward switching architecture

Transfer Rate

14,880 pps for 10Mbps

148,800 pps for 100Mbps

1,488,000 pps for 1000Mbps

Connector 5/8 Gigabit Copper: RJ-45 ; Auto-MDIX on all ports

MAC Address 4K Mac address table

Memory Buffer 1Mbits

Network Cable

(Up to 100m or 328ft)

10BASE-T: 100Ω2-pair UTP/STP Cat. 3, 4, 5

100BASE-TX: 100Ω2-pair UTP/STP Cat. 5

Gigabit Copper: 100Ω4-pair UTP/STP Cat. 5

Backplane GS-105A: 10Gbps

GS-108A: 16Gbps

LED Per port: 100/1000, LNK/ACT, FDX/ COL

Per unit: PWR

Power Supply External power DC 12V/1.3A

Power Consumption GS-105A: 7.5 Watt (maximum)

GS-108A: 13.2Watt (maximum)

Operation

Temperature 0º C to 45º C (32º F to 113º F)

Operation Humidity 10% to 90% (Non-condensing)

Dimension 165 x 100 x 32.5 mm (L x W x H)

EMI & Safety FCC Class A, CE, UL

Other manuals for GS-105A

This manual suits for next models

Table of contents

Other ZyXEL Communications Switch manuals

ZyXEL Communications

ZyXEL Communications ZyXEL PLA-470 User manual

ZyXEL Communications

ZyXEL Communications GS1350 Series User manual

ZyXEL Communications

ZyXEL Communications ES-2048 Instruction Manual

ZyXEL Communications

ZyXEL Communications ES-2024PWR Instruction Manual

ZyXEL Communications

ZyXEL Communications NSW Series User manual

ZyXEL Communications

ZyXEL Communications AAM1212 User manual

ZyXEL Communications

ZyXEL Communications GS-105A User manual

ZyXEL Communications

ZyXEL Communications Dimension ES-3124 Instruction Manual

ZyXEL Communications

ZyXEL Communications GS-1116A Manual

ZyXEL Communications

ZyXEL Communications GS1510 - User manual

ZyXEL Communications

ZyXEL Communications PMG5318-B20A User manual

ZyXEL Communications

ZyXEL Communications Dimension ES-3124PWR Instruction Manual

ZyXEL Communications

ZyXEL Communications GS2200 Series User manual

ZyXEL Communications

ZyXEL Communications GS-105B v2 User manual

ZyXEL Communications

ZyXEL Communications ES-116S User manual

ZyXEL Communications

ZyXEL Communications GS3700 Series User manual

ZyXEL Communications

ZyXEL Communications IES-5000 Series User manual

ZyXEL Communications

ZyXEL Communications GS-1124A User manual

ZyXEL Communications

ZyXEL Communications ZyXEL Dimension ES-2724 User manual

ZyXEL Communications

ZyXEL Communications XGS1250-12 User manual

ZyXEL Communications

ZyXEL Communications GS1510 - Operator's manual

ZyXEL Communications

ZyXEL Communications NWA-3160 User manual

ZyXEL Communications

ZyXEL Communications Dimension GS-3012 Instruction Manual

ZyXEL Communications

ZyXEL Communications XGS3700 Series User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
