ZyXEL Communications 2108 Series Manual

VLAN - GVRP

Ethernet Switch

ZyNOS 3.7

Support Notes

Version 3.70

August 2006

VLAN Support Note

2

How to configure GVRP?

Description:

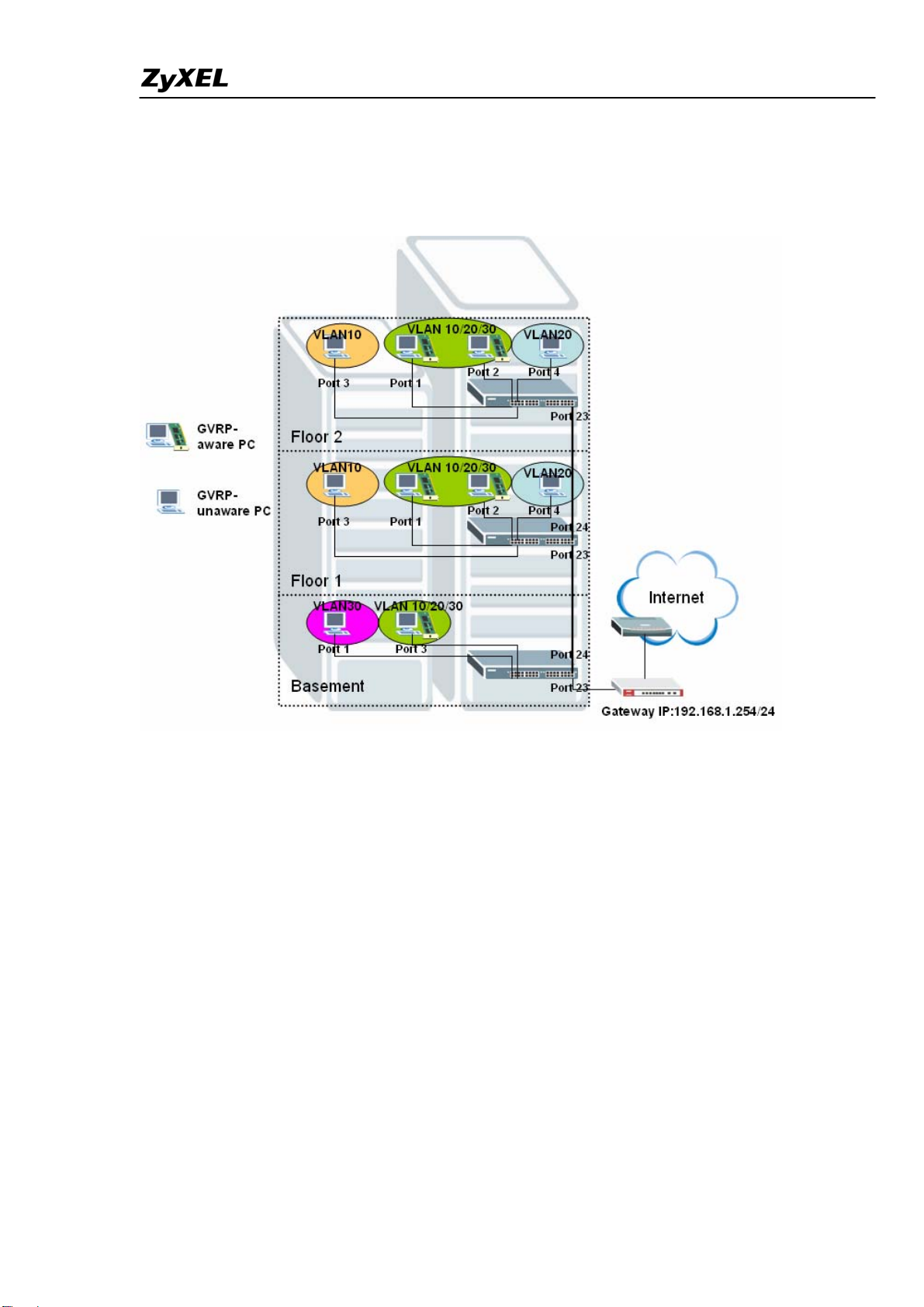

In this scenario, PCs belonging to different divisions within a single

corporation cannot communicate with each other. Also, we leave some ports of

switches for GVRP-aware PCs and others for VLAN-unaware PCs. Therefore

the network administrator can manage and configure VLAN smartly based on

what are the different devices and the requirements. For switches on floor 1

and 2, PC that is connected to port 3 joins VLAN 10 statically; PC that is

connected to port 4 joins VLAN 20 statically; and PCs that are connected to

port 1&2 can join VLAN 10/20/30 as determined by its configuration on

GVRP-aware NIC dynamically. For switch in the basement, PC that is

connected to port 1 joins VLAN 30 while the PC that is connected to port 3 can

join VLAN10/20/30 dynamically. Please Note that all the clients connected to

the switches in this scenario should be located in the same subnet (in this

example, the subnet is 192.168.1.0/24)

How to configure this scenario:

All contents copyright (c) 2006 ZyXEL Communications Corporation.

VLAN Support Note

3

1. For Switch A on Floor 2:

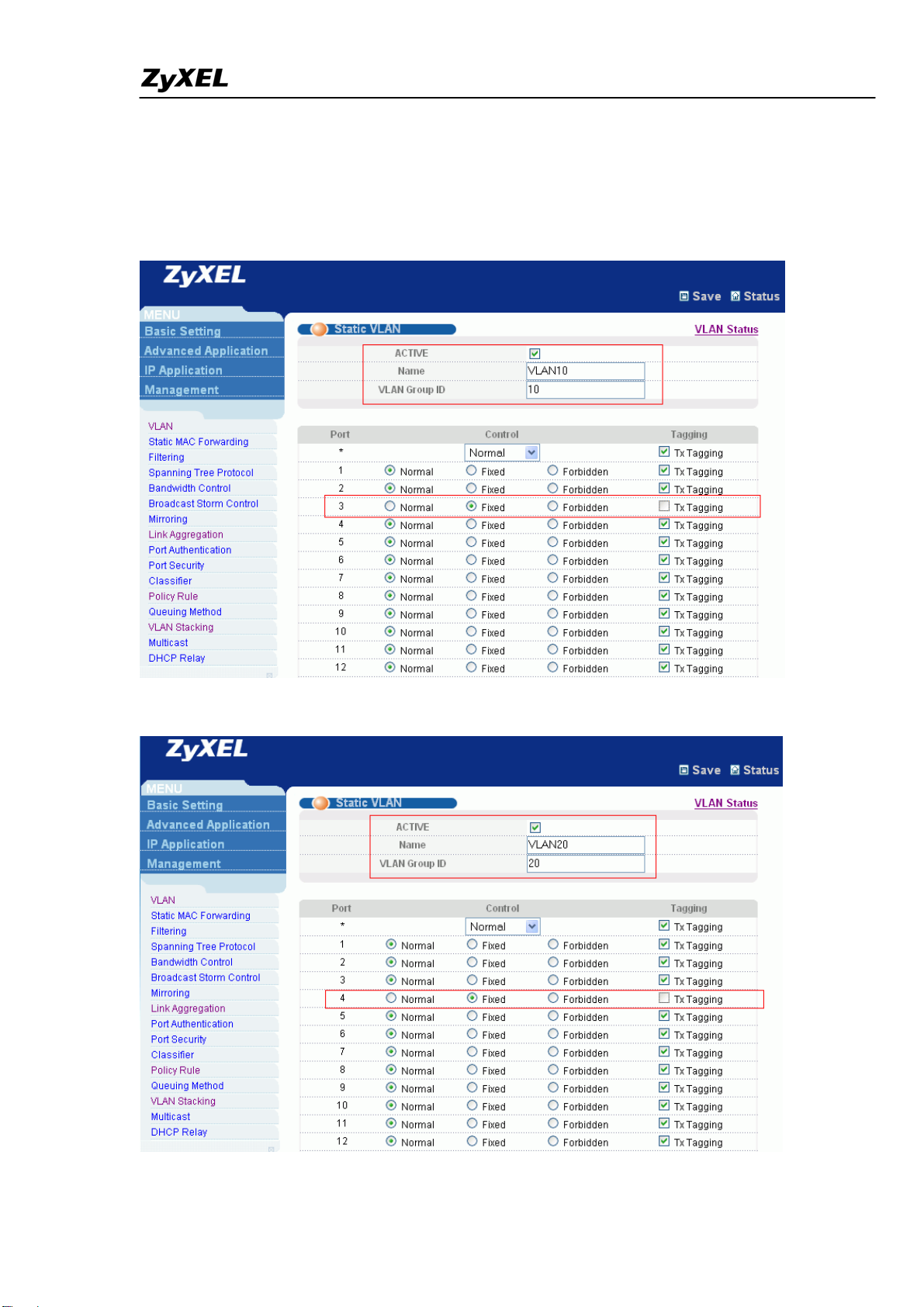

Please enter VLAN setting under Advanced Application menu and click “static

VLAN” to bring up the following screen and add VLAN 10: port 3, fixed, untag;

port 23, fixed, Tx tagging”.

Add VLAN 20 to this switch, VLAN 20: port 4, fixed, untag; port 23, fixed, Tx

tagging.

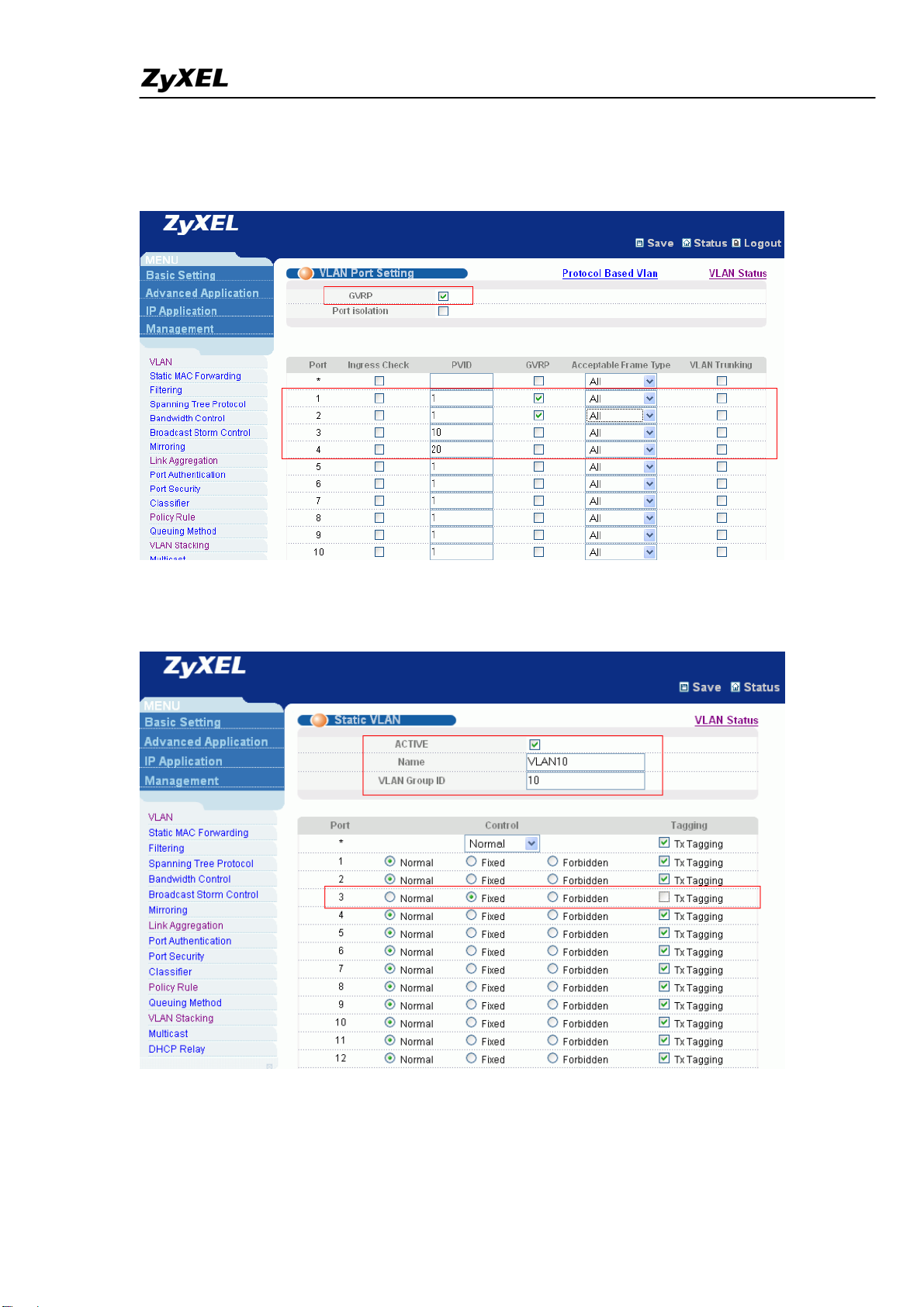

Click VLAN port setting to bring up the following screen, setup PVID 10 for

All contents copyright (c) 2006 ZyXEL Communications Corporation.

VLAN Support Note

4

port 3, PVID 20 for port 4, and enable GVRP on the top of the screen and

port 1, port 2, port 23.

2. For Switch B on Floor 1:

Please follow the same steps and add VLAN 10: port 3, fixed, untag; port 23,

fixed, Tx tagging; port 24, fixed, Tx tagging”.

Add VLAN 20 to this switch, VLAN 20: port 4, fixed, untag; port 23, fixed, Tx

tagging; port 24, fixed, Tx tagging.

All contents copyright (c) 2006 ZyXEL Communications Corporation.

VLAN Support Note

5

Click VLAN port setting to bring up the following screen, setup PVID 10 for

port 3, PVID 20 for port 4, and enable GVRP on the top of the screen and

port 1, port 2, port 23, port 24.

3. For Switch C on Basement:

Please set static VLAN 10: port 23, fixed, untag.

All contents copyright (c) 2006 ZyXEL Communications Corporation.

VLAN Support Note

6

Please set static VLAN 20: port 23, fixed, untag.

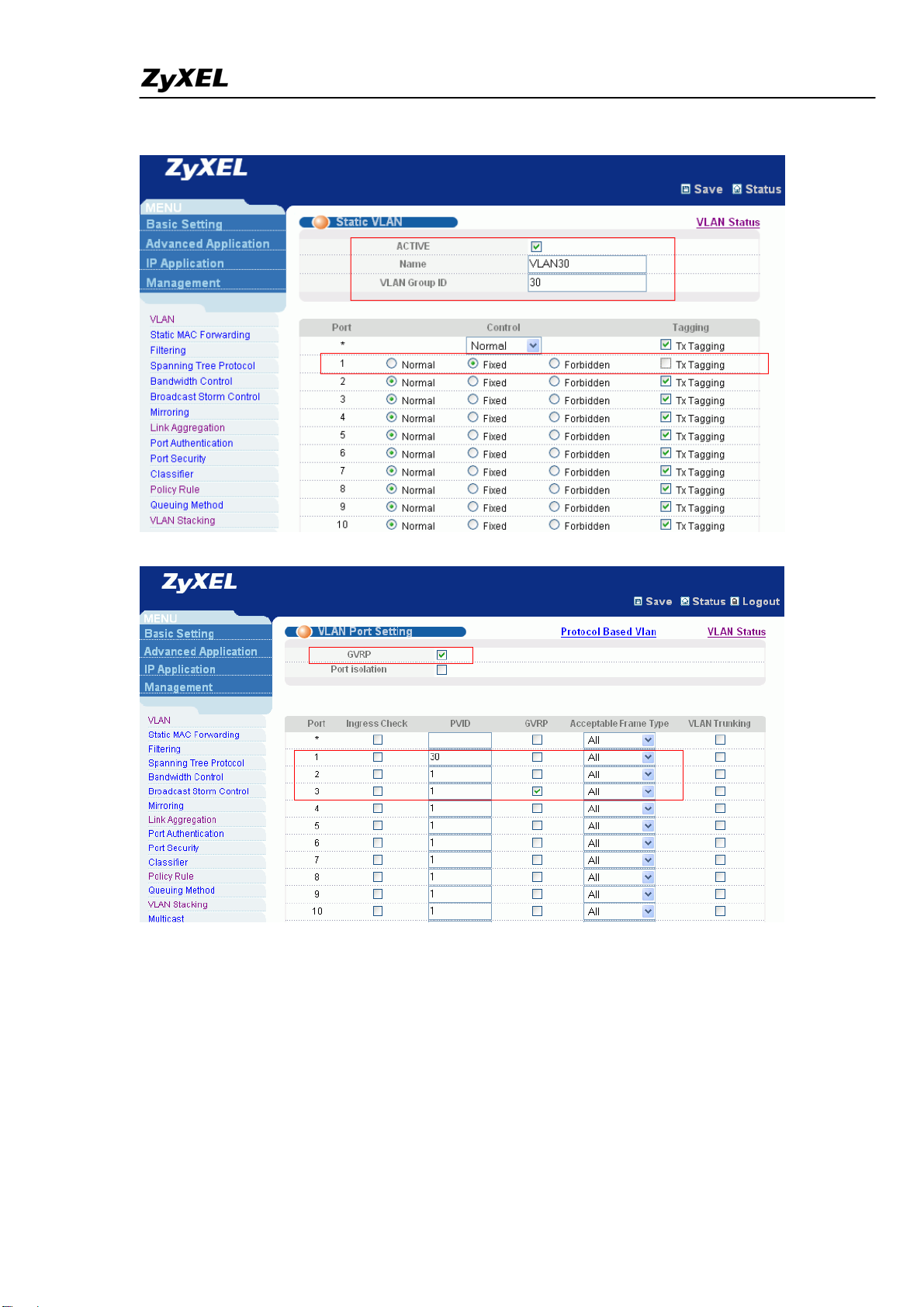

Add VLAN 30: port 1, fixed, untag; port23, fixed, untag; port 24, fixed, Tx

tagging.

All contents copyright (c) 2006 ZyXEL Communications Corporation.

VLAN Support Note

7

Setup PVID 30 for port 1 and enable GVRP on port 3 and port 24.

The setting of this scenario is done.

All contents copyright (c) 2006 ZyXEL Communications Corporation.
