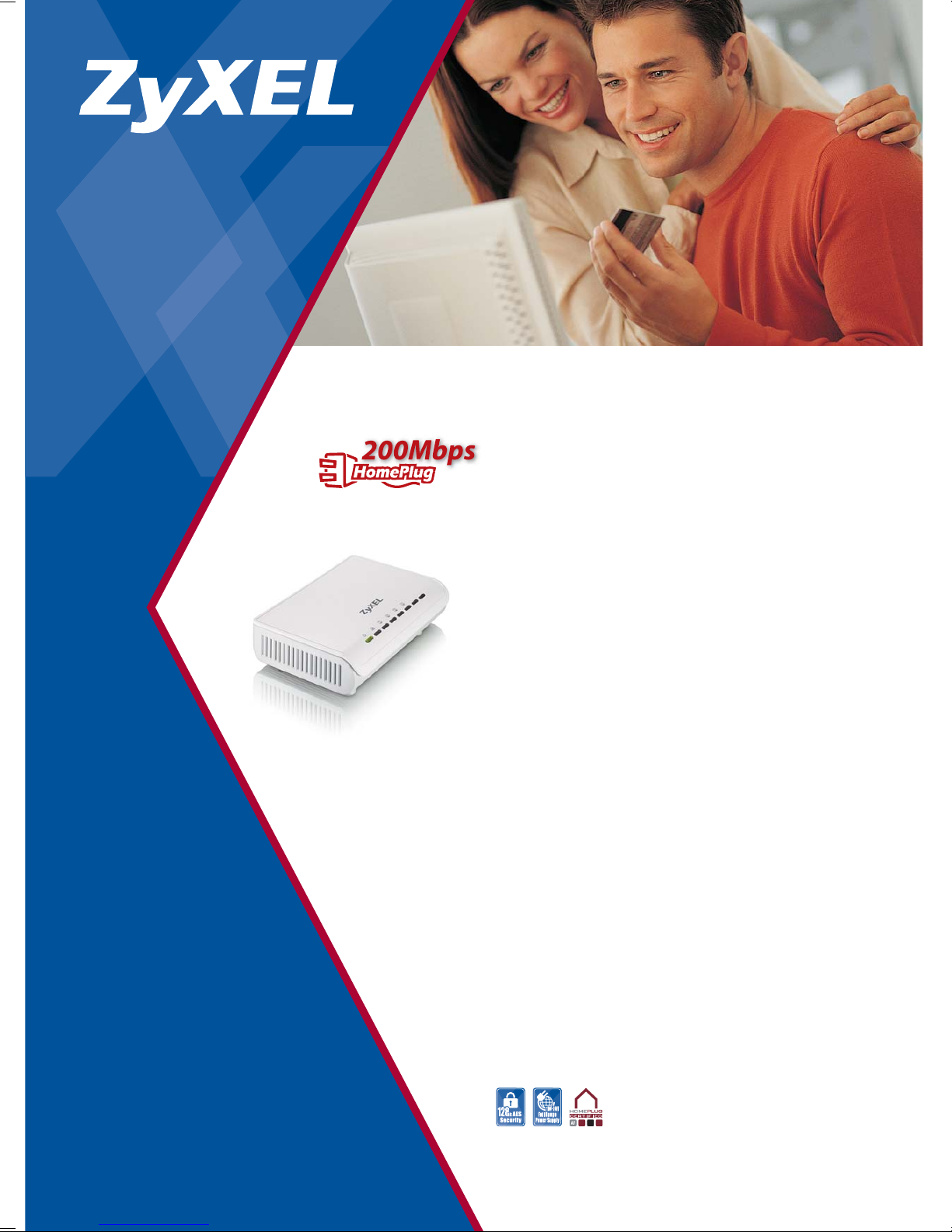

ZyXEL Communications PLA-470 v2 User manual

Power Up Your Network

Benefits

Data Transmission Rates of Up to 200 Mbps

ZyXEL's PLA470 v2 is an access extension solution for your house to be

completely networked with existing power lines. Thanks to the advanced

HomePlug AV Technology, the PLA470 v2 is capable of transmitting data at

up to 200Mbps. It allows you to share network resources and enjoy Internet

access through secure high-speed data connection over the house power

lines you already have.

High Speed and QoS for High Definition Video Streams

The inherited advanced QoS features make HomePlug AV Series ideal

access tools for service providers to deliver "triple play" multimedia services

such as high-quality digital video streams, high-speed Internet access and

voice services.

4-port 10/100 Mbps Ethernet Uplink/Downlink

The 4-port ZyXEL desktop powerline ethernet switch is designed increase

the flexibility and cost efficiency of your powerline network.The PLA470 v2

allows more applications to take advantage of the poweline network

simultaneously, and its plug-and-play compatibility makes installation and

management easier and faster than ever.

Advanced 128-bit AES Security Protection

With the 128-bit Data Encryption Security (AES) feature,the PLA470 v2

provides secure network connection for Internet access and network

resource sharing. Just leave the sweats to the PLA470 v2,sit back and enjoy

the fast surfing experience as well as secure file transfer over the internet.

ł

Data Transmission Rates of Up to 200 Mbps Over Powerline

ł

4-port 10/100 Mbps Ethernet Uplink/Downlink

ł

Advanced 128-bit AES Security Network Protection

ł

HomePlug Instant Encrypt Button to Secure Your

Powerline Network

ł

Multi-colored LED to Indicate Data Transmission Rates

Over Powerline

HOMEPLUG

Powerline Ethernet 4-port Switch

PLA470 v2

Application Diagram

For more product information, visit us on the web at www.ZyXEL.com

65-100-047003B 01/08

product names, or trademarks mentioned are the property of their respective owners. All specifications are subject to change without notice.

System Specifications

•

AV 200 Mbps

omePlu

Plug A

omp

iance Data Rate

•

Power Line Network:

Supports up to 16

16 Powerlin

ces

line- devices

ach

communicatin

ting on a sin

work. Eac

single netwo

Powerline E

e Ethernet

ports 15

et adapter suppo

l 4

emote Eth

hernet

otal

et addresses.With tot

otal 64.

oups then

grou

n i

it can support up to tot

•

ulatio

Modul

tion:

pports QAM

DM Sy

OFDM

Symbol Mo

Modulation, supp

PSK and ROBO

024/256/6

/64/16, DQ

QPSK, DBPS

Carrier modu

dulation sc

chemes

•

z ~ 30 MHz

Frequency Ban

nd: 1.7 MH

•

00 meters

Coverage Area: up

up to 30

•

encryption

Security: 128 bit AES e

ES e

Hardware Specifications

• Interface: 4-port 10/100 Mbps Ethernet, RJ-45, with

automatic MDI/MDIX

• Power Input: 100-240 VAC, 50/60 Hz, 0.2 A (Max)

• LED Display:

- Status LED Power

- Powerline Link and Activity

- Ethernet Link and Activity

- Throughput Indication

Physical Specifications

• Dimensions: 162 (W) x 118 (D) x 35 (H) mm

• Weight: 300 g

Environmental Specifications

• Operating Temperature: 0ºC ~ 40ºC

• Storage Temperature: -20ºC ~ 60ºC

• Operating Humidity: 20% ~ 95% RH

• Storage Humidity: 20% ~ 95% RH

Certification

• Safety: UL/cUL, LVD

• EMI: CE, FCC part 15B

• HomePlug Certification: HomePlug AV

Specifications

Powerline Ethernet

4-port Switch

PLA470 v2

Powerline

Adapter

DSL

Stereo

Gaming

Internet

Ethernet

Extension

3Network Backbone/

Contents Sharing

Network Backbone/

Contents Sharing

line Backbon
