ZyXEL Communications LTE7410 User manual

www.zyxel.com

LTE7410

LTE Outdoor Gateway

Version 2.60

Edition 2, 1/2016

Default Login Details

LAN IP Address https://192.168.1.1

User Name admin

Password 1234

Quick Start Guide

ENGLISH ............................... 1

DEUTSCH ..............................9

ESPAÑOL............................. 16

FRANÇAIS ........................... 23

ITALIANO ............................ 30

DUTCH................................ 37

DANSK................................ 44

NORSK................................ 51

SUOMI ................................ 58

SVENSKA............................. 65

ČEŠTINA ............................. 72

MAGYAR .............................. 79

ROMÂNĂ.............................. 86

POLSKI................................ 93

SLOVENŠČINA.................... 100

SLOVENSKY ....................... 107

БЪЛГАРСКИ....................... 114

РУССКИЙ........................... 121

CONTENTS

ENGLISH

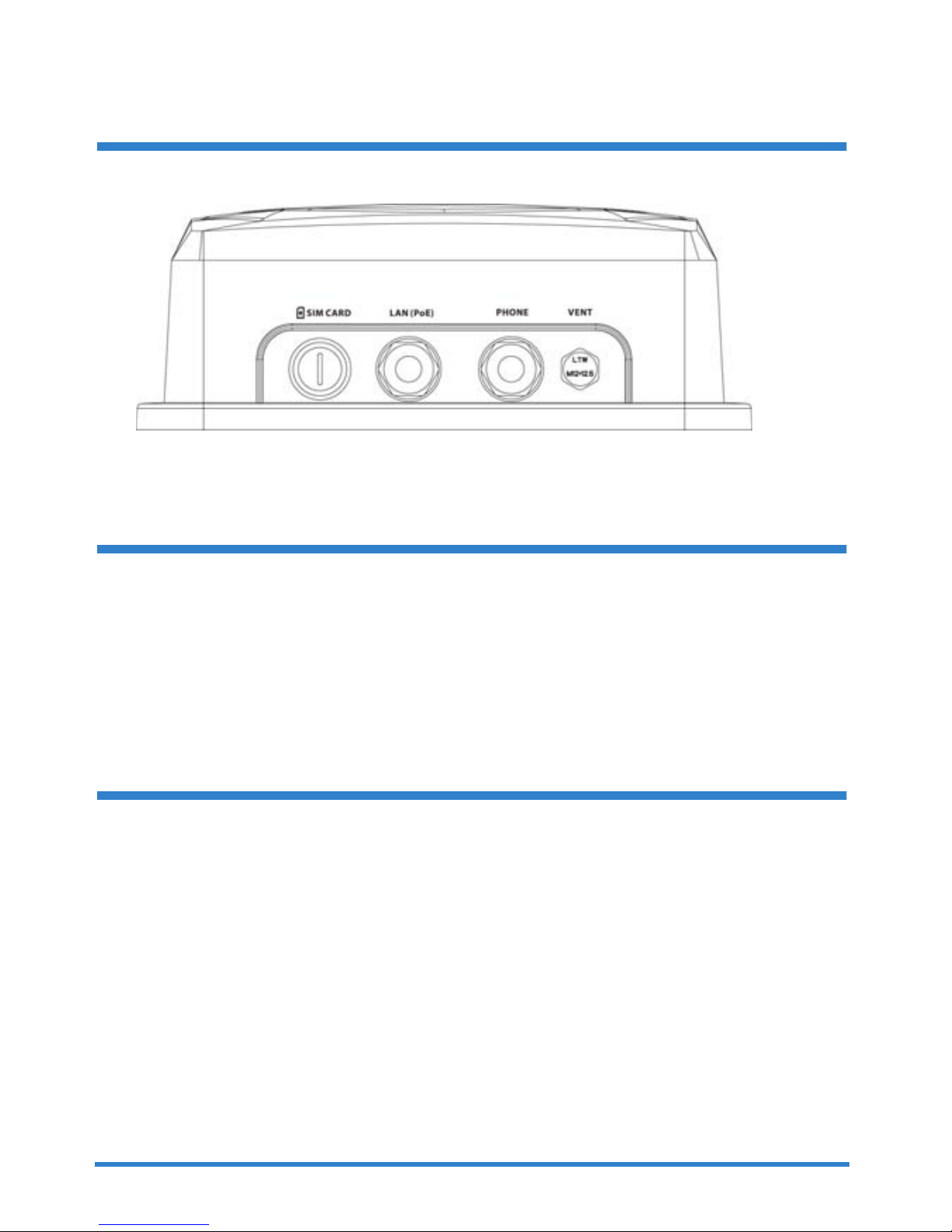

Device Ports

Requirements

Make sure you have the following things before you start:

•INTERNET ACCESS: You need a SIM card from an LTE ISP

(Internet Service Provider). You may also need a PIN code to use

the SIM card.

Installing the LTE Device

Before you begin, ensure that you are familiar with all safety and

accident prevention procedures necessary for working at heights

and with electricity.

Do NOT install the LTE Device during a lightning storm.

Choose a Location

The LTE Device can be mounted on a pole or antenna mast using the

supplied bracket mount.

• Choose a mounting point that is sturdy enough to hold the LTE

Device, even during high winds.

• When choosing a location to install the LTE Device, remember that

the LTE Device’s front panel should point towards your service

provider’s nearest base station. If you are not sure where this is,

consult your service provider.

• You do not need to be able to see the base station from the LTE

Device’s position; there may be objects such as trees and buildings

in the way without signal loss. However, if you experience difficulties

with signal reception, a Line of Sight (LoS) connection may produce

better results.

• It is suggested that you transport the LTE Device to its intended

installation location in its original protective packaging.

Insert a SIM Card

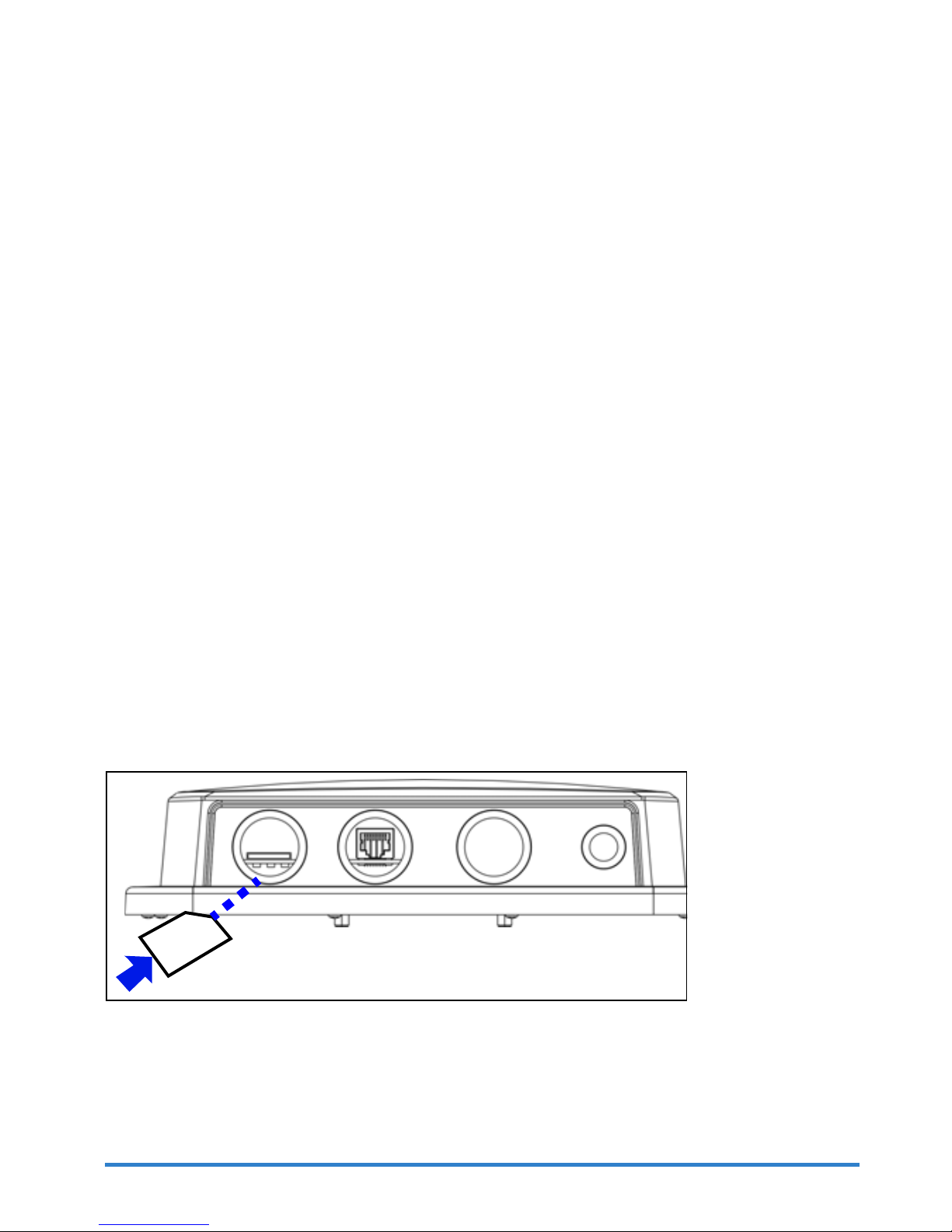

1. Insert your SIM card.

SIM

2. Align and twist the cover clockwise to tighten it into the LTE Device.

Make sure the LTE Device is turned off before you insert your SIM

card. It is recommended to NOT connect the PoE cable before you

do this step. Otherwise, the SIM card may be damaged.

Grounding

1. Use the M4 screw to secure the ground cable to the ground hole on

the LTE Device’s rear panel as shown.

2. Attach the other end of the ground cable to a wall or the ground.

Connecting the LTE Device

1. 2.

3. 4.

7. Repeat steps 1 to 6 to connect a PoE and VoIP cable on the LTE

Device.

8. Connect the CAT5 Ethernet cable which is already connected to the

LTE Device to the provided PoE injector’s OUT port.

Do not connect a computer or a switch directly to the PoE injector’s

OUT port due to the high PoE power (48V).

9. Connect the IN port of the PoE injector to a computer with an Ethernet

cable for initial configuration.

5. 6.

Pole Mount the LTE Device

To avoid the danger of rainwater entering the LTE Device, install it vertically (with

the connectors pointed down).

You can install the LTE Device vertically with a +15, 0, or -15 degree

angle relative to the pole. The connectors should be pointed down.

1. Insert the U bolt through the appropriate pair of pole bracket holes.

Mount

Bracket U bolt

2. Align the four edge holes on the pole bracket with the screws on the

rear of the LTE Device.

Connecting to the Internet

1. Open a web browser and go to https://192.168.1.1.

2. Enter the default Username (admin) and Password (1234), and then

click Login.

If the login screen does not open, make sure you allow web browser pop-up

windows, JavaScript and Java permissions. Your computer should also be

set to get an IP address automatically from a DHCP server. See your User’s

Guide for more information.

See the User’s Guide at www.zyxel.com for more information.

Geräteanschlüsse

Systemvoraussetzungen

Folgende Informationen benötigen Sie, bevor Sie beginnen.

•INTERNETZUGRIFF: Sie benötigen eine SIM-Karte eines LTE ISP

(Internet Service Provider). Sie benötigen möglicherweise auch

einen PIN Code, um die SIM-Karte verwenden zu können.

Installieren des LTE Device

Bevor Sie beginnen, stellen Sie sicher, dass Sie mit den sämtlichen

Sicherheits- und Unfallverhütungsmaßnahmen bei Arbeiten in der

Höhe und mit Elektrizität vertraut sind.

Installieren Sie das LTE Device NICHT während eines Gewitters.

DEUTSCH

Einen Standort auswählen

Das LTE Device kann mit der beiliegenden Montagehalterung auf einem

Stangen- oder Antennenmast befestigt werden.

• Wählen Sie einen Befestigungspunkt, der stabil genug ist, um das

LTE Device selbst bei starkem Wind zu halten.

• Achten Sie bei der Auswahl eines Standorts für die Installation des

LTE Device darauf, dass die Vorderseite des LTE Device zur

nächsten Basisstation Ihres Dienstanbieters zeigt. Wenn Sie nicht

wissen, wo sich diese befindet, kontaktieren Sie Ihren

Dienstanbieter.

• Sie müssen die Basisstation von der Position des LTE Device nicht

sehen können. Objekte wie z.B. Bäume und Gebäude stellen

möglicherweise keinen Signalverlust dar. Wenn Sie allerdings

Probleme mit dem Signalempfang haben, kann eine

Sichtverbindung (LoS) bessere Ergebnisse liefern.

• Es wird empfohlen, das LTE Device in der Originalverpackung zum

Installationsstandort zu transportieren.

Einsetzen einer SIM-Karte

1. Setzen Sie Ihre SIM-Karte ein.

SIM
