Zte MF283+ User manual
1
MF283+
Let’s go
Getting started with your device.
2
LEGAL INFORMATION
Copyright © 2014 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced,
translated or utilized in any form or by any means, elec-
tronic or mechanical, including photocopying and microlm,
without the prior written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve
the right to make modifications on print errors or update
specications without prior notice.
Version No. : R1.0
3

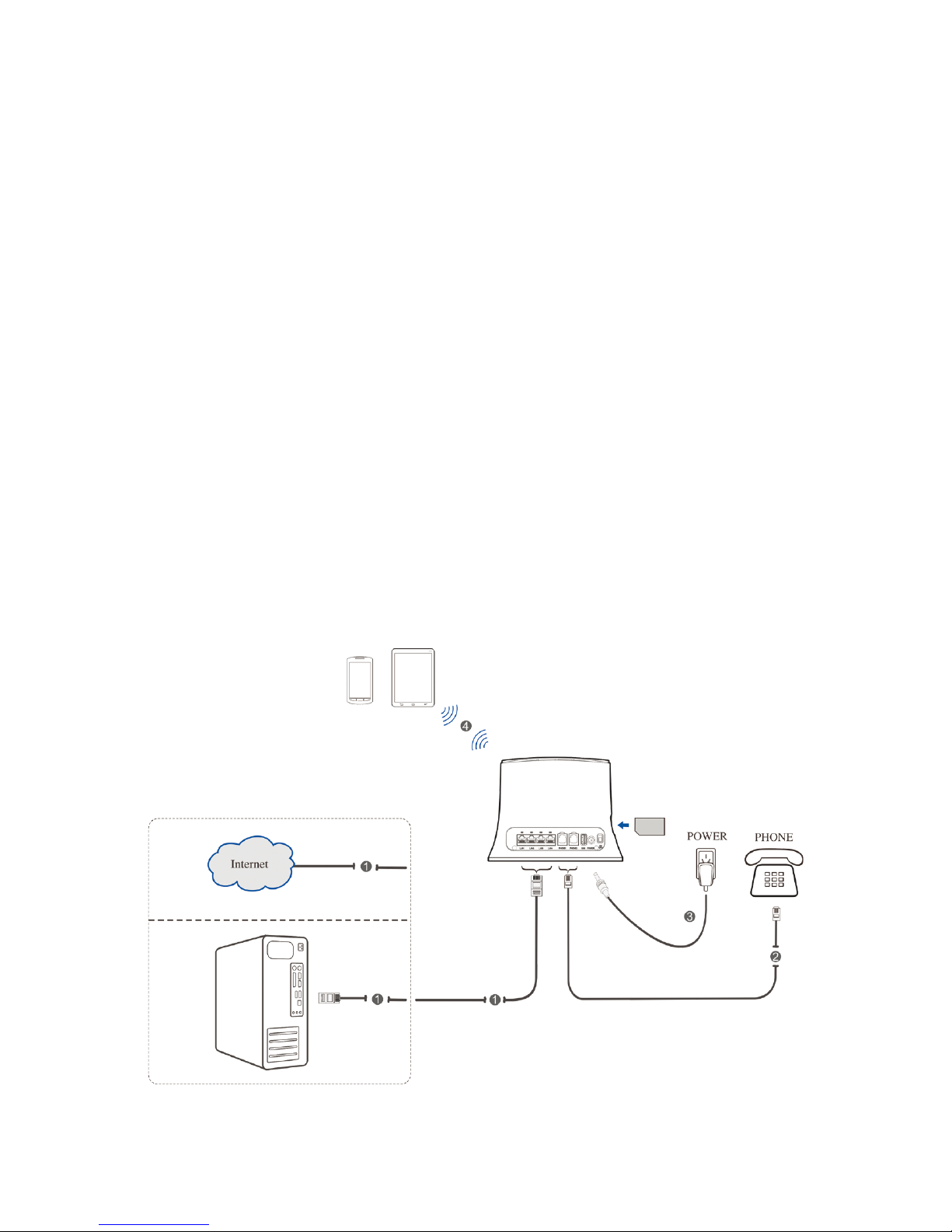

Connecting Your Device
Follow the number to connect your device.
If you select a different operation mode, the connection of
the LAN port is different. Please refer to the chapter “Ac-
cessing the Internet”. If you want to use the mobile network
to connect to the Internet or use your home phone, you
need to insert your (U)SIM card rst.
IMPORTANT:
Your device does not support Micro/Nano SIM card or any
other nonstandard SIM cards. To avoid device damage,
please do not use them or any card holders.
4
Indicators
Indicator State Description
POWER
Blue ON Power is on and external power
supply is working normally.
OFF Power is off or external power
supply is working abnormally.
WIFI
Blue ON WLAN works normally with no
data transmission.
Blue Blinking WLAN works normally with data
transmission.
OFF WLAN works abnormally or the
WLAN function is disabled.
PHONE
OFF The phone is not in use.
Blue Blinking The phone is ringing.
Blue ON The phone is in calling.
SIG Blue ON Signal strength is very good or
good.
Blue Blinking Signal strength is weak.
OFF There is no signal.
5
3G/4G
Red
The device is turned on but not
registered to the mobile net-
work.
Blue Blinking
The device is connected to the
LTE network and data is being
transferred.
Blue Solid The device is registered to the
LTE network.
Green
Blinking
The device is connected to the
3G network and data is being
transferred.
Green Solid The device is registered to the
3G network.
LAN
Green ON The LAN port is connected.
Green
Blinking
The LAN port is connected with
data transmission.
OFF The network cable is not con-
nected.
NOTE:
The phone function needs the network support.
6
Conguring Your PC
Follow the following steps and gures for Windows XP to
congure the Internet Protocol for your connection.
NOTES:
• Wireless Network Connection is used for Wi-Fi connec-
tion.
• Local Area Connection is used for network cable con-
nection.

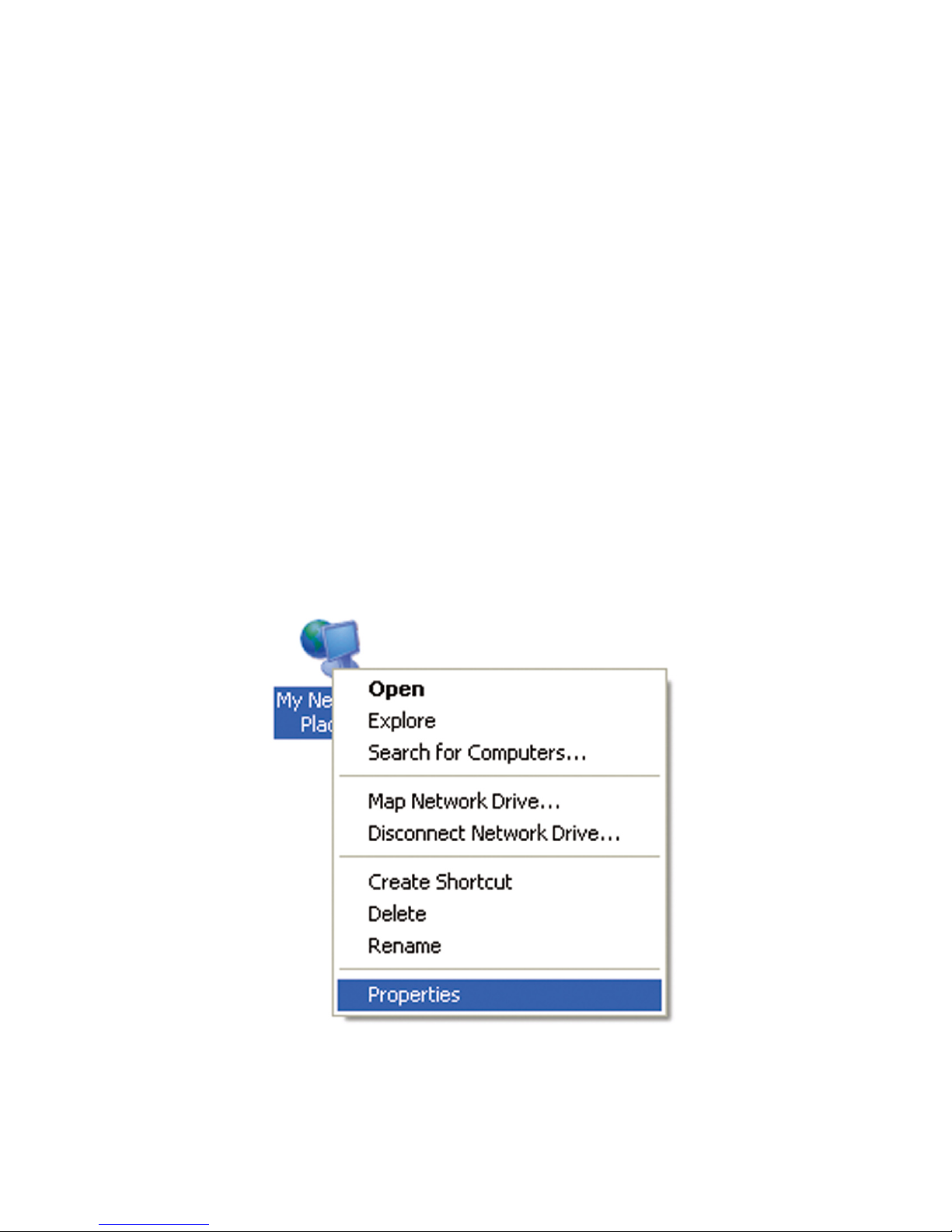

1. Right-click My Network Places, and then select Prop-
erties.
7

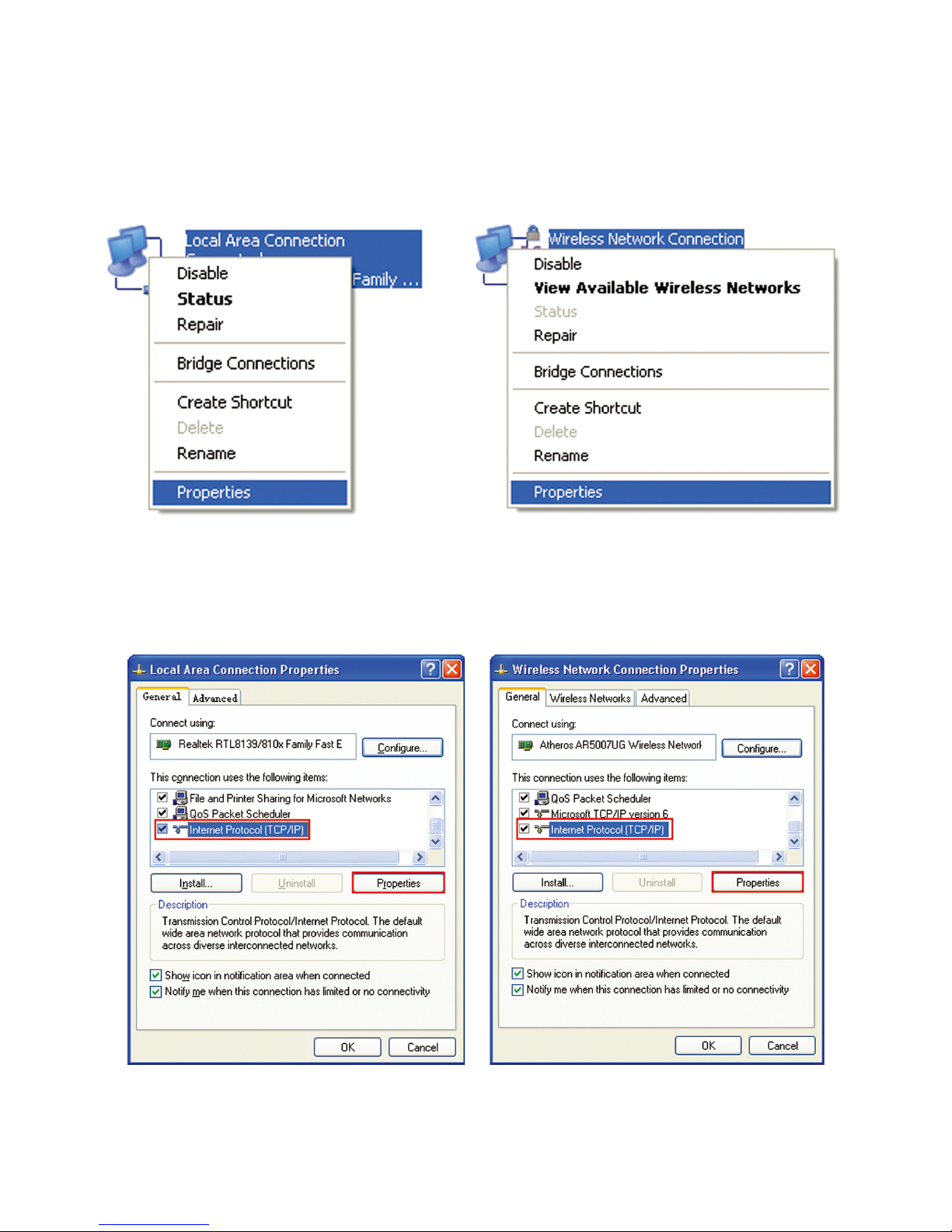

2. Right-click the icon for Connection, and then select
Properties.
3. Select Internet Protocol (TCP/IP), and then click
Properties.
8

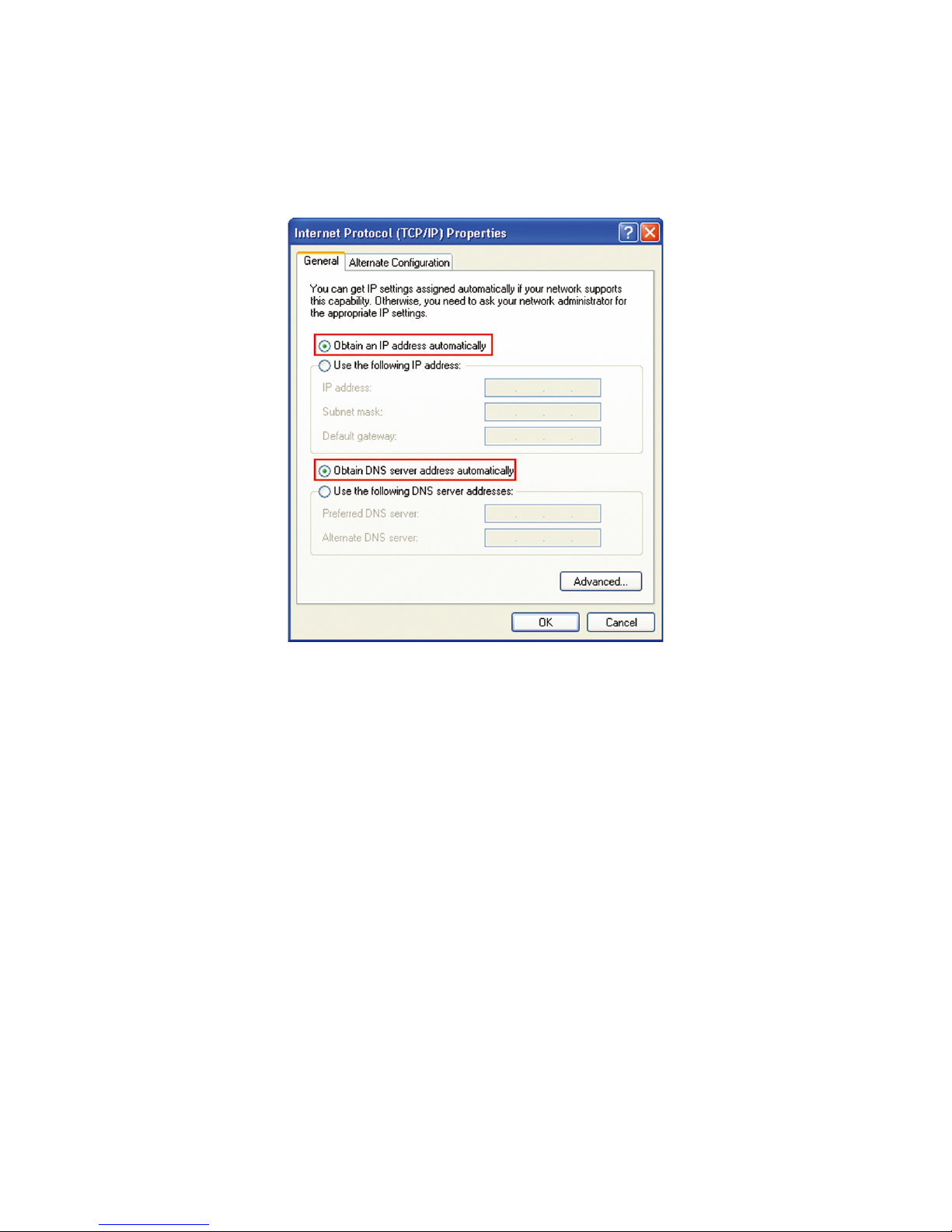

4. Select the two items indicated in the following gure,
and then click OK to nish the conguration.
Accessing the Internet
Before accessing the Internet, please make sure that the
following operations are nished.
• Your device is connected via a network cable or Wi-Fi.
• Your PC is congured.
9
To access the Internet:

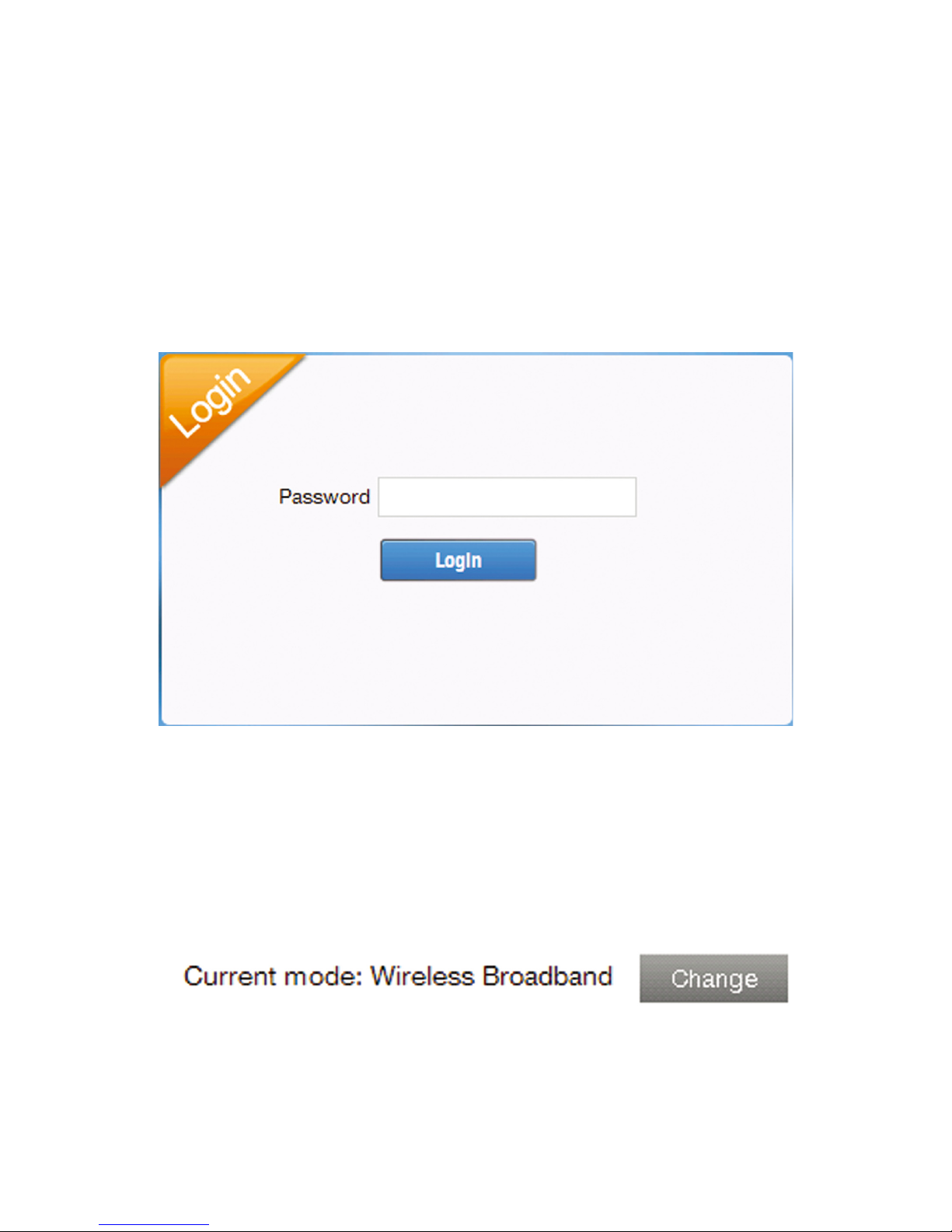

1. Log in the 4G CPE Page.
1) Launch the Internet browser and enter
http://192.168.0.1 in the address bar. The login
page appears.
2) Input the password and then click Login. The de-
fault password is admin.
2. View the current mode on the left top of the 4G CPE
page, and then click Change.
10

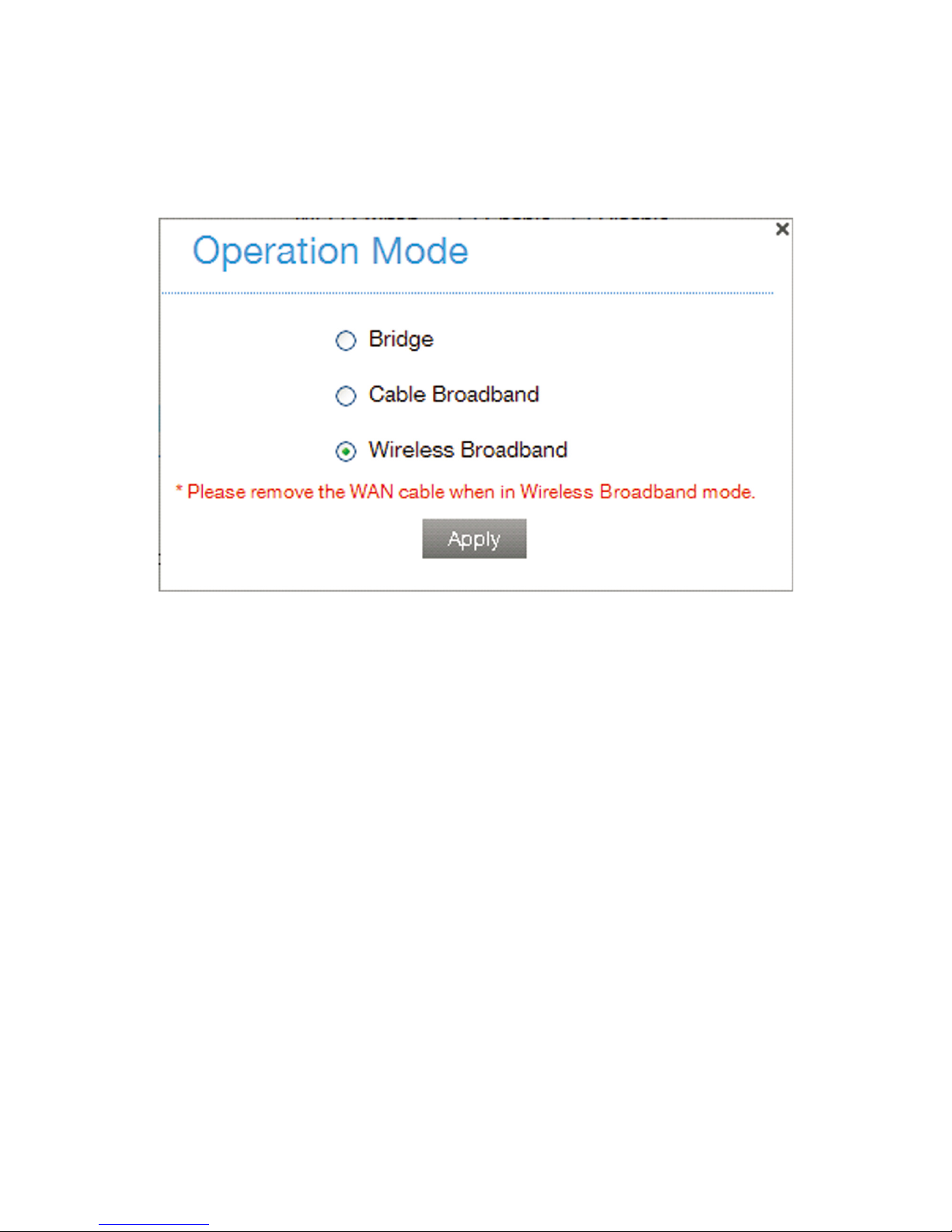

3. Select an operation mode which you want to use and
then click Apply.
NOTE:
If you change the operation mode, the device will be re-
started automatically.
4. Set the detail parameters for the operation mode.
• For Bridge
You need to connect the WAN to the LAN port via Ethernet
cable and set the clients to obtain the IP address automati-
cally. Your clients can obtain the IP address from the WAN
DHCP host and connect to the Internet directly.
