MC888 Pro

Quick Start Guide 1

Hurtigstartsguide 25

Pikakäynnistysopas 48

Trumpasis vadovas 72

Hurtigstartveiledning 96

Snabbstartsguide 120

Lühike juhend 144

Краткое руководство

пользователя 168

1

MC888 Pro

Let’s go

Getting started with your device

2

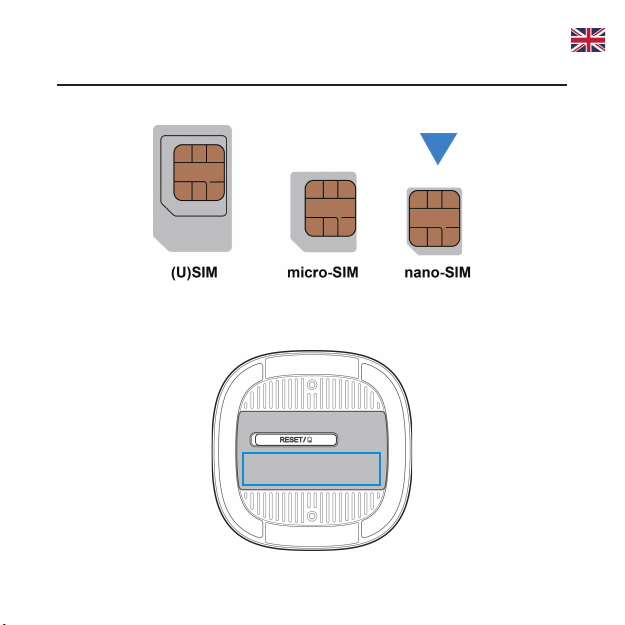

1. Prepare

• A valid nano-SIM card.

• View the label on your device to get the default information. The

following gure is for your reference only.

3

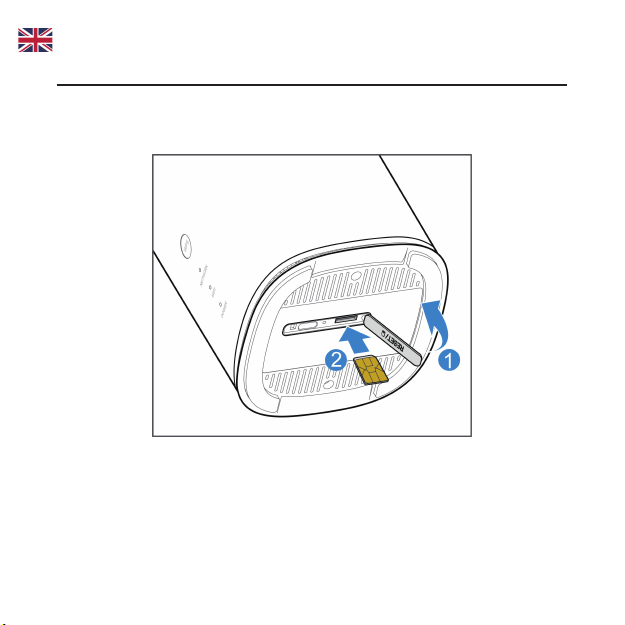

2. Insert the nano-SIM Card

Open the slot cover at the bottom of the device and insert the nano-SIM

card.

4

3. Power on Your Device

Connect the power adapter to your device and then your device will be

powered on and connect to the Internet automatically.

5

4. Access the Internet

•

Wi-Fi: Get the default WLAN SSID and WLAN key (password) on

the label and connect to the Wi-Fi network with your mobile device,

and then access the Internet.

•

NFC: Your device supports the NFC function. When you bring

your NFC- supported phone and the device together, follow the

instructions on your phone to connect to the Wi-Fi network without

entering the password and then access the Internet.

6

NOTES:

• This function is only supported by Android phones.

• The distance between your phone and the device should be less

than 5 cm.

•

Network cable (RJ45): Connect with the computer via port WAN/

LAN1 or LAN2 and access the Internet.

7

5. Change Your Device Settings

You can change the device settings from ZTELink APP or logging in to

the 5G CPE web page

ZTELink:

1. Scan the barcode or Search ZTELink in the Play Store* or App

store* and download the app.

2. Click Manager Routers in the app and input Website Password in

the label.

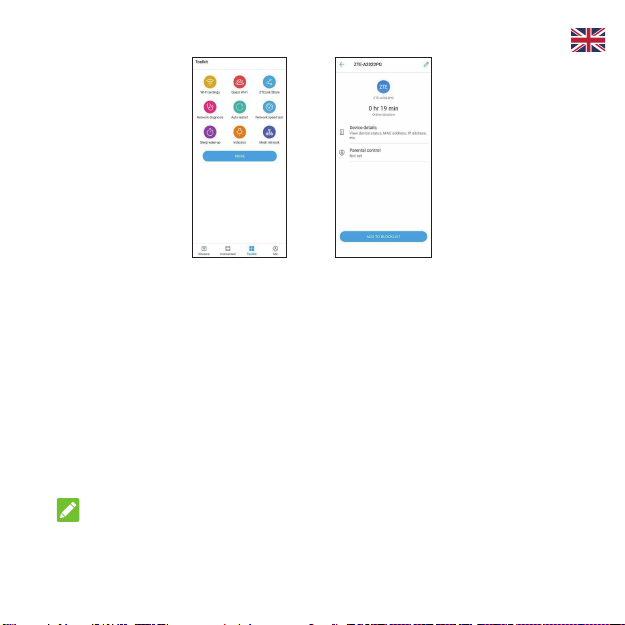

3. You can add parental control policy and block the connected units

through Connected menu or change conguration of the device

through Toolkit Menu.

8

Web Interface:

1. View the label on your device to get the default Device Manager

Website IP address (http://192.168.32.1) and Website Password.

2. Launch your Internet browser and enter the Device Manager

Website IP address (http://192.168.32.1) in the address bar.

3. Open the Web Interface login page and Input the Website

Password and then click Login.

4. After the 5G CPE web page is opened, you can change the Wi-Fi

SSID, password or other settings.

NOTE:

Play Store is from Android, App Store is from iOS.

9

Indicator Lights and Interfaces
