Zoom G2 User manual
Quick Tour
© 2022 ZOOM CORPORATION
Copying or reprinting this manual in part or in whole without permission is prohibited.
You might need this manual in the future. Always keep it in a place where you can access it easily.
The contents of this manual and the specifications of the product could be changed without notice.
www.zoom.jp/docs/g2four_g2xfour
You must read the Usage and Safety Precautions before use.
An Operation Manual with more detailed explanations and other documents
related to this product can be viewed on the following website.
2
Turning the power on and making connections
AC adapter
(ZOOM AD-16)
To prevent noise and
malfunction, connect
powered monitors or
a guitar amp before
turning the power on.
Guitar
Powered monitors Guitar amp
Headphones
By default, ECO mode is set to ON, so the power will automatically turn off if no use occurs for 10 hours. ECO mode
can also be turned OFF.
Select the output device
When connecting to a guitar amp, set that amp to a clean sound and adjust the EQ as desired.
3
Using the MEMORY Screen and performing
Patch memories store effect on/off states and parameter setting values. Effects are saved
and recalled in units of patch memories.
MEMORY Screen
Select a patch memory 10 places away.
Select an adjacent patch memory.
Directly select from the 3 patch memories shown on the display.
On the MEMORY Screen use to adjust the overall volume and tone.
4
Using the EFFECT Screen and performing
On the EFFECT Screen, the effects and the amp used in the patch memory are shown in
order from the left.
EFFECT Screen
■Turning effects on/off
■Changing positions of shown effects
This effect can be used to adjust volume and wah with the expression pedal.
This sets the tempo in BPM (beats per minute) used by the rhythm, the looper, and delay and
modulation effects.
These show the order of the effects.
5
Editing patch memories
■Adjusting effects
When parameters are on multiple pages, ▶and ◀will be shown.
■Selecting different effects from the library
On the Library Screen, the sounds of selected effects can be checked individually.
Use to conrm the effect and reopen the EFFECT Screen.
Library Screen
The G2 FOUR/G2X FOUR can chain up to 7 effects, but the message to the left will appear if the processing
power is exceeded. Change one of the effects to end this condition.
6
Reverting edited patch memories to previous states
REVERT Screen
Press and hold
Execute
This reverts the selected patch
memory to the state it was in
when it was loaded.
This reverts the selected patch
memory to its factory default
state.
By default the AUTO SAVE function is on, so changes to patch memories are saved automatically.
7

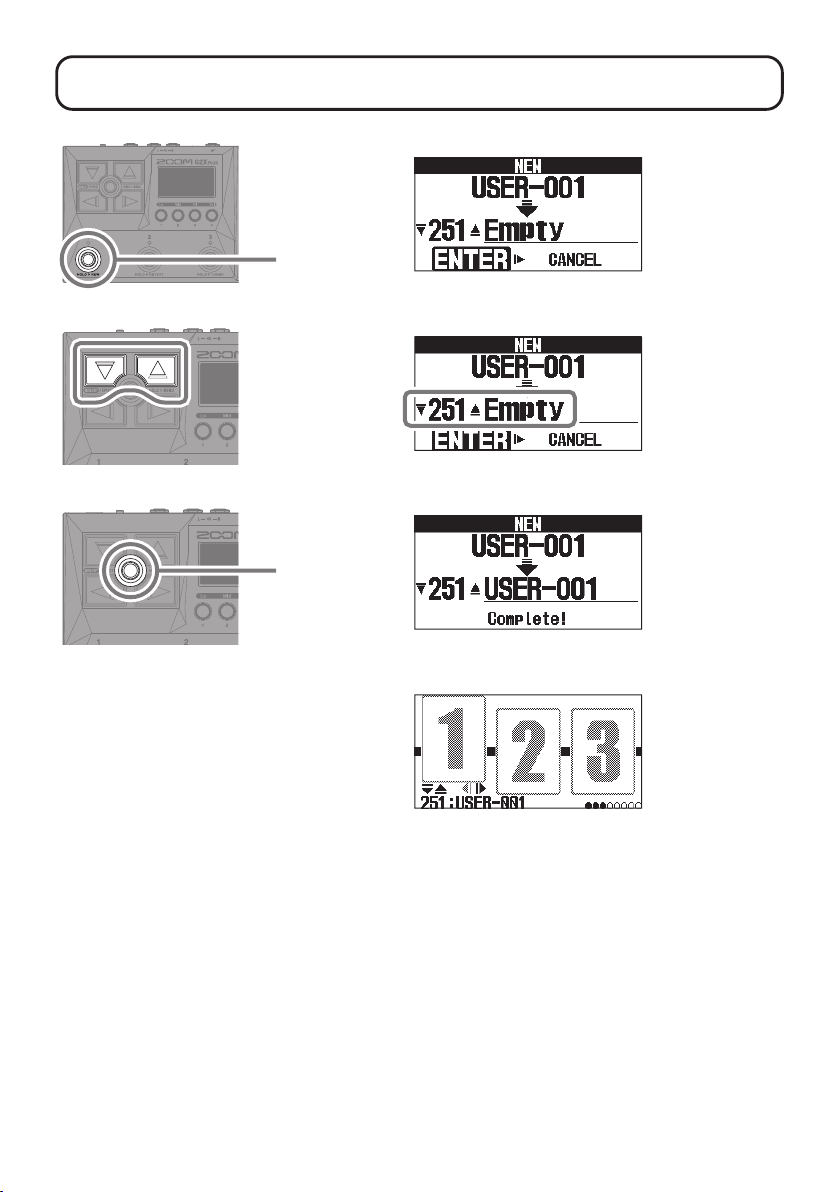

Creating new patch memories
NEW Screen
Press and hold
Select
the save
destination
Execute
Select effects from the library and create
an original sound.
8
Using the tuner
TUNER Screen
Press and
hold
• Play an open string and adjust its pitch to tune
it.
• The nearest note name and pitch detuning will
be shown.
• ▶◀ will appear when the pitch is in tune.
Use to change tuner settings.
Output sound BYPASS/MUTE
Standard pitch 430 Hz – 450 Hz
Tuner type The desired tuner type can be
selected.
Flat tuning
All strings can be tuned at from
an ordinary tuning by 1 ( ♭×1), 2
(♭×2) or 3 ( ♭×3) semitones.
9
Using the MENU
Press
and hold
Change the effect order.
Change the patch memory name.
Copy the patch memory and save it in a different location.
Delete the patch memory.
Select the output device connected to the G2 FOUR/G2X FOUR.
Turn the automatic saving function on/off.
Turn the preselect function on/off.
Turn the ECO mode on/off.
Turn on/off output setting display when the power is turned on.
Adjust the display contrast.
Restore the factory default settings.
Calibrate the expression pedal.
Check the rmware versions.
See the Operation Manual for detailed information about all the functions.
10
Functions of parts
■Top
①Arrow buttons
Use these to select patch memories and
effects, for example.
②Parameter knobs
Use these to adjust effect parameters
and make various settings.
③Footswitches
Use these to select patch memories and
turn effects on/off.
④Display
This shows information, including the
names of the selected patch memory
and its effects along with their parame-
ter values.
⑤Expression pedal (G2X FOUR only)
Adjust the depth of pedal effects.
■Left side
①USB (Type-C) port
Use this to connect to a computer,
smartphone or tablet.
This supports
operation on USB bus power.
②PHONES jack
Connect headphones here.
