ZKTeco ZK-D1065S User manual
Contents 1
User Manual
Walk Through Metal Detector: ZK-D1065S
Version: 1.2
Date: December 2019
Contents I
Contents
Notes......................................................................................................... 1
Product Specification.................................................................................2
Installation Environment............................................................................3
Performance and Features.........................................................................5
Application................................................................................................ 7
Parts...........................................................................................................8
Installation................................................................................................. 9
Control Panel........................................................................................... 11
Detection Zones...................................................................................... 12
Operation................................................................................................ 13
Detection Adjustment............................................................................. 16
Brief Maintenance....................................................................................18
Technical Parameters............................................................................... 19
Packing List.............................................................................................. 20
Warranty Card.......................................................................................... 21
ZK-D1065S User Manual 1
Notes
PLEASE READ THE FOLLOWING INSTRUCTION CAREFULLY BEFORE
OPERATION:
1. It's available for both indoor and outdoor use, if need use outdoor,
please use canopy to protect it against rain.
2. Choose the smooth and stable installation place, don't touch the
detector during security checking to avoid false alarm.
3. Make sure there's no big metal object or strong magnetic field
around the detector within 2 meters.
4. Detector probe mustn't install in high temperature or wet
circumstance.
5. Please wait 1 minute for its self-diagnosing when machine starts.
6. Do not disassemble the control units except the professional
technician.
7. Follow the user manual and make sure the right wire connection
when the device starts.
2 ZK-D1065S User Manual
Product Specification
Walk Through Metal Detector is mainly used to check the metal items
hidden on the body. When the passengers pass through the device, if
they carried metals more than preset parameters value, the device
would immediately alarms, and display alarm location, let the security
guard find the people with the prohibited metal articles timely.
ZK-D1065S User Manual 3
Installation Environment
1. Stationary Metallic Items
When installing walk through metal detector, it should stay away from
the stationary or fixed bulk metal items 50cm; otherwise it will affect the
sensitivity, causing false alarm. Metal items such as: aluminum alloy /
stainless steel doors and windows, etc.
2. Movable Metallic Items
The big metal items can be moved, should stay away from the device
about 2 meters to avoid false alarm.
3. Floor Vibration
The floor should be flat and fixed, to avoid false alarm after installation by
the movement of people walking or moving and shaking of metal
objects.
4. Electromagnetic Radiation And Electromagnetic Interference
Because the device uses bilateral transceiver technology, therefore, any
electromagnetic interference sources and electromagnetic radiation
source is not allowed to close the device, the recommended distance is
1 meters. The parameters of the distance are determined by the
installation environment, and different installation environments with
4 ZK-D1065S User Manual
different parameters.
The electromagnetic interference sources and electromagnetic radiation
sources as following:
Electrical Control Box, Radio Equipment, Interphone, High Power Motor,
Power Transformer, Ac Power Lines, Thyristor Control Circuit (High Power
Switching Power Supply, Inverter Welder), Engine, Motor etc.
5. Side-By-Side Using
When installing the devices side by side, the distance between two walk
through metal detectors cannot be less than 50cm and the device work
frequency must be different. Specific distance parameters according to
the actual environment and the selection of the work frequency to
adjust.
ZK-D1065S User Manual 5
Performance and Features
Accurate Positioning: 6 overlapping network detection zone,
bilateral transmit and receive, can be accurately positioned to detect
objects, intuitive display of the target location.
Micro Processor Technology: the scanning electromagnetic wave
generated by the microcomputer control circuit, the scanning rate
can be precisely controlled.
Sensitivity Adjustable: each detection zone has 100 sensitivity
levels (0 ~ 99). Preset metal size, you can exclude the coins, keys,
jewelry, belt buckle etc.
Digital Pulse Technology: digital signal processing and filtering
system, has excellent anti-interference ability.
Password Protection: only the correct password can change the
sensitivity and other parameters. Password with five digital, can be
set by the user.
Count Statistics: pass count and alarm count.
Harmless to human body: harmless to heart pacemaker, pregnant
women, magnetic floppy disk, recording tapes etc.
Power Supply Security: the power supply on the top of the control
box, waterproof.
6 ZK-D1065S User Manual
Waterproof Foot Cover: not only can fixed the device, but also
waterproof.
Waterproof: using PVC synthetic material, special technology,
waterproof, fireproof, shockproof.
Easy to install: the system is integrated design, just 15 minutes to
complete the installation or disassemble.
ZK-D1065S User Manual 7
Application
1. Airport, customs, port, stations and other places for.
2. Security inspection of prohibited metal items in court, public
security, prison and detention center.
3. Entrance inspection for important places, exhibition hall, exhibition,
business event, celebration, stadium and other important public
places.
4. Important industrial and mining enterprises such as hardware,
electronics, jewelry, mint to prevent the loss of precious metal
goods.
5. Nightclubs, theaters, dance hall, bars and other entertainments
where to prevent carrying dangerous metal objects.
6. Banks, postal, hospitals, public buildings, schools, private houses and
other places to prevent carrying dangerous metals.
8 ZK-D1065S User Manual

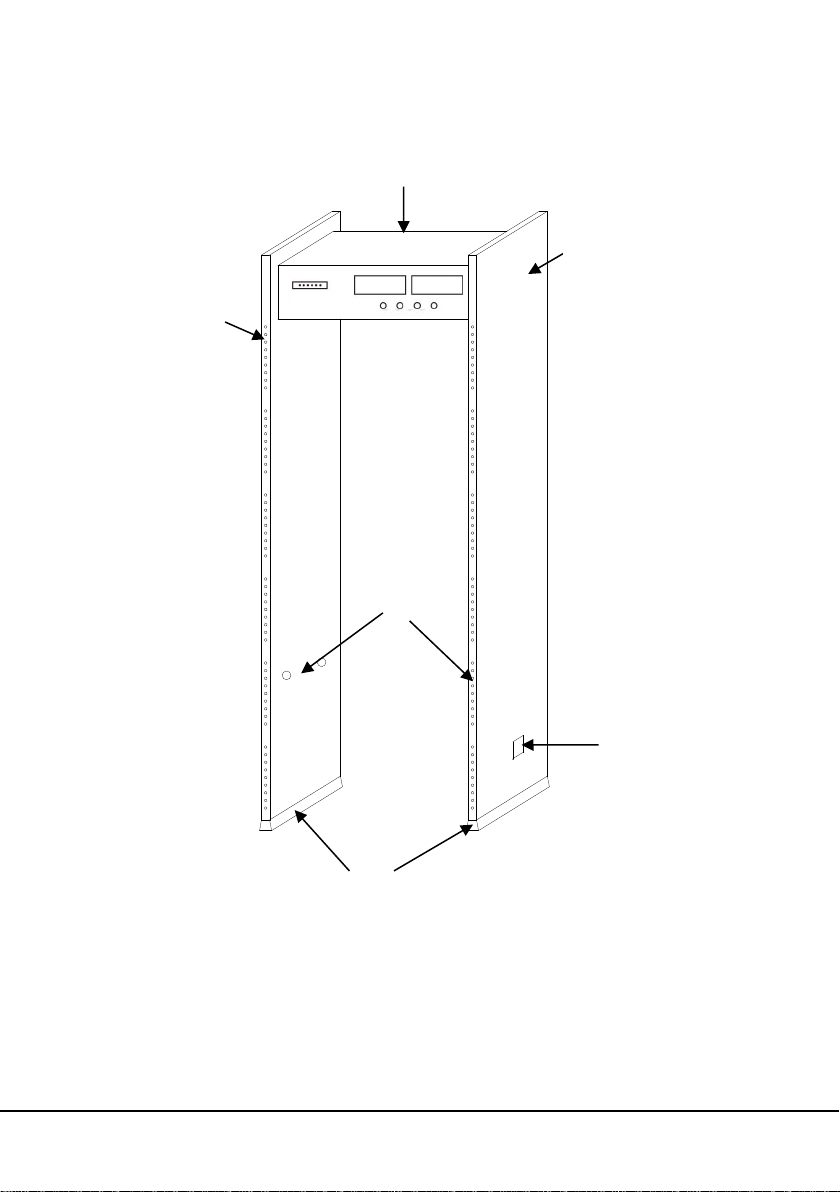

Parts
1. Control Unit Case 2. Alarm zone LED
3. Built-in Probe 4. Infrared Sensors
5. Waterproof Foot Cover 6. Power Line Interface
1
2
4
5
3
6
