Zibro SRE 230 E User manual

SRE 230 E

MANUEL D'UTILISATION

GEBRAUCHSANWEISUNG

BRUGSANVISNING

INSTRUCCIONES DE USO

OPERATING MANUAL

ISTRUZIONI D’USO

GEBRUIKSAANWIJZING

E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E

AFAQ AFNOR CERTIFICATION 11, AVENUE FRANCIS DE PRESSENSE

93571 SAINT-DENIS LA PLAINE CEDEX

FICHE INFORMATIVE

La marque NF garantit

la qualité de cet article

suivant les normes françaises

et Règles de certification

de l’application NF 128

CONFORME A LA NORME NF D 35-300 ET AUX SPECIFICATIONS

COMPLEMENTAIRES DEFINIES PAR LES REGLES

DE CERTIFICATION DE L’APPLICATION NF 128

PRINCIPALES CARACTERISTIQUES CERTIFIEES:

• Sécurité du dispositif d’allumage

• Débit calorifique

• Efficacité des dispositifs de sécurité

• Stabilité

• Contrôle de la teneur en NOxdans les produits de combustion

• Contrôle de la qualité de la combustion (absence de CO)

• Endurance

• Intermittence

CONSEILS D’UTILISATION ET D’ENTRETIEN

Se reporter à la notice jointe à l’appareil et à la plaque de sécurité sur

l’appareil

Référence et numéro de lot ou de série de l’article : se reporter au produit

Distributed in Europe by:

PVG International B.V.

P.O.Box 96, 5340 AB OSS

Pays-Bas Tél.: +31 (0) 412 694670

En cas d’insatisfaction, consultez d’abord :

En France: PVG France SARL

4, Rue Jean Sibélius, B.P. 185

76410 SOTTEVILLE SOUS LE VAL

Tél.: 02.32.96.07.47 – Fax: 02.32.96.07.77

Si une difficulté subsistait, vous pouvez écrire au LNE

LABORATOIRE NATIONAL DE MÉTROLOGIE ET D’ESSAIS

Division Certification plurisectorielle

1, Rue Gaston Boisier - 75724 PARIS CEDEX 15

CHAUFFAGES MOBILES

A COMBUSTIBLE LIQUIDE

NF 128 02 / 02

Dear Sir, Madam,

Congratulations with your purchase of the Zibro, the number one brand among

movable heaters. You have purchased a first-class quality product, which will

serve you for many years to come. This, of course, provided you use the heater

correctly. Please read these Directions for Use first, to ensure maximum lifetime

for your Zibro.

Your heater comes with a 48-month manufacturer’s warranty on all defects in

material or workmanship.

We wish you much warmth and comfort with your Zibro.

Yours sincerely,

PVG International b.v.

Customer Service Department

1READ THE DIRECTIONS FOR USE FIRST.

2IN CASE OF ANY DOUBT,CONTACT YOUR ZIBRO DEALER.

3BEFORE YOU START READING, FOLD OUT THE LAST PAGE. EEEEEEEEEE

GENERAL DIRECTIONS FOR USE

Below you will find the main steps to be taken for

using your Zibro. For more details, please refer to the

MANUAL (pages 45 ff.).

•The first time you ignite your heater it will smell

like ’new’ for a short time.

•Store your fuel in a cool and dark place.

•Fuel has a limited shelf life. Start every heating

season with renewed fuel.

•The right quality of fuel will be assured, when

you use ZibroExtra or Zibro Kristal for your

heater.

•If you change to another brand and/or type of

parrafin oil, you must first finish up all the

remaining fuel in the heater.

MAIN COMPONENTS

Front plate

Grid

Base plate

Lid for removable

tank

Operation panel

Handle

Removable tank

Fuel gauge

removable tank

Air filter

Vent filter

Thermostat

Plug + cord

Information display

key

Childproof lock

Adjustment keys

(time and

temperature)

TIMER

SAVE key

Air quality control

system

EXTENSION key

EEEEEEEEEEEEEEEEEEEEEEE

Remove all packaging materials (Fig. A).

Fill the removable tank 7(refer to Section B, Fig. D).

Insert the plug into the wall-socket.

Ignite the heater using the key N(refer to Section D).

If required, change the temperature using the adjustment keys

(refer to Section E).

Switch offthe heater by pressing the key N.

WHAT YOU NEED TO KNOW IN ADVANCE

ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION

This heater is equipped with an air quality control system S.When there is

insufficient ventilation in the room or when the heater is being used in a room

which is too small, the heater will shut off automatically. For comfortable and safe

heating ensure that there is sufficient ventilation.

Note: To avoid unexpected shut off, we recommend to put a door or window ajar

when the heater is operating.

For each Zibro model the minimum size of space is specified in which you can use

the heater safely, without additional ventilation (refer to Section P).If a particular

room is smaller than the specified space, always leave a window or door slightly

ajar (± 2.5 cm). We also recommend doing this in highly insulated or draught-free

rooms and/or at altitudes above 1,500 metres. Do not use your Zibro in cellars or

other underground areas.

THE RIGHT FUEL

Only use Class C1 paraffin fuel in accordance with BS2869: Part 2, or equivalent.

Your Zibro heater has been designed for use with high-quality water-free pure

paraffin oil, such as Zibro Extra or Zibro Kristal. Only fuels of this kind will ensure

clean and proper burning. Lower quality fuel may result in:

Eincreased possibility of malfunctioning

Eincomplete burning

Ereduced heater lifetime

Esmoke and/or smells

Edeposits on the grid or mantle

Using the right fuel is thereforeessential for safe, efficient, and comfortable use

of your heater.

Always refer to your local Zibro dealer for the right fuel for your heater.

This transportation cap

is packed separately in

the box. Only this cap

ensures trouble-free

transportation of the

heater after use.

Store it well!

Only the use of the

correct fuel will ensure

safe, efficient, and

comfortable use of your

Zibro.

MANUAL

AINSTALLING THE HEATER

Carefully remove your Zibro from the box and check the contents.

Inaddition to the heater you also need to have:

Eamanual fuel pump

Eatransportation cap

Ethese directions for use

Keep the box and the packaging materials (Fig. A) for storage and/or transportation.

Open the lid of the removable tank 4and remove the piece of cardboard.

Fill the removable tank as indicated in Section B.

The floor should be firm and completely level. Reposition the heater, when it

is not level. Do not try to correct the situation by placing books or other

goods under the heater.

Insertthe plug Linto the wall-socket (230 Volts - AC / 50 Hz) and set the

correct time using the adjustment keys P(refer to Section C).

Your Zibrois now ready for use.

BFILLING FUEL

Do not fill the removable tank in the living room, but in a more suitable place

(therecan always be some spillage). Follow the procedurebelow:

Make sure that the heater is switched off.

Open the lid 4and lift the removable tank 7out of the heater (Fig. B).

Note: Some drops may leak from the tank. Put down the removable tank

(cap pointing upwards) and screw off the fuel cap (fig. C).

Take the manual fuel pump and insert the smooth, most rigid tube into the

jerrycan. Make sure that it is in a higher position than the removable tank

(Fig. D). Insert the ribbed hose into the opening of the removable tank.

Lock the switch button on top of the pump (turn clockwise).

Squeeze the pump a few times, until fuel starts flowing into the removable

tank. As soon as this happens, there is no need to press any longer.

Check the removable tank fuel gauge Hwhile filling the tank (Fig. E). Stop

filling by loosening the switch button on top of the pump (turn anti-clock-

wise), once the gauge indicates that the tank is full. Never overfill the tank,

especially not when the fuel is verycold (fuel expands when it heats up).

EEEEEE

empty full

Let the remaining fuel in the pump flow back into the jerrycan and carefully

remove the pump. Carefully screw the fuel cap back on the tank. Clean

off any spilled fuel.

Check whether the fuel cap is straight and tightened properly. Reinstall the

removable tank in the heater (cap down). Close the lid.

CSETTING THE CLOCK

It is only possible to set the correct time, when the heater is connected to the

mains and not burning. Use the adjustment keys Pto set the time. First press

either of the two keys to switch on the function (the 4-digit Mwill start blinking).

Next, set the hours using the key on the left (

hour) and the minutes using the

key on the right (

min.). Press once to increase the value by one step. When you

hold down the key, the value will continue going up, until you release the key

again. After approximately 10 seconds the 4-digit will stop blinking and the

setting will be locked. 5 minutes after switching off the heater, the information on

the display will disappear and the heater will automatically switch into the stand-

by position.

When the heater has been unplugged (or after a power failure), the time needs

to be set again.

DIGNITING THE HEATER

When used for the first time, a new heater may give out a smell for a short while.

You should therefore provide extra ventilation. Always ignite the heater with the

button N

. Never use matches or a cigarette lighter.

Just press the button Nto ignite the heater. The button will start blinking,

indicating that the ignition procedure has started. This will take a short while. Once

the heater is burning, the button Nwill remain lit (red). The information display

Mwill show two numbers. The light next to them indicates that these numbers

refer to the temperatures (Fig. F). The actual room temperature is indicated below

ROOM, while the temperature setting is indicated below SET. The latter can be

changed with the adjustment keys (refer to Section E).

Prior to igniting the heater, always check for sufficient fuel in the removable tank.

ESETTING THE REQUIRED TEMPERATURE

The temperature setting can only be adjusted, when the heater is burning. Use the

adjustment keys Pto adjust the temperature. First press either of the two keys to

switch on the function (the °C mark and 4-digit M will start blinking). Next, adjust

the temperature using the key on the right (

min.) to set the temperature to a

higher setting and the key on the left (

hour) to lower the temperature. Press

once to increase the value one step. After approximately 10 seconds the °C mark

and 4-digit will stop blinking and the setting will be locked (Fig. F).

The available temperature settings range from 6°C minimum to 28°C maximum.

When the heater has been unplugged (or after a power failure), the temperature

will reset to the factory setting of 20°C.

☞

F: The required

temperature on the left,

the measured

temperature on the

right.

E: When the 4-digit stops

blinking, the setting has

been locked to the

indicated value.

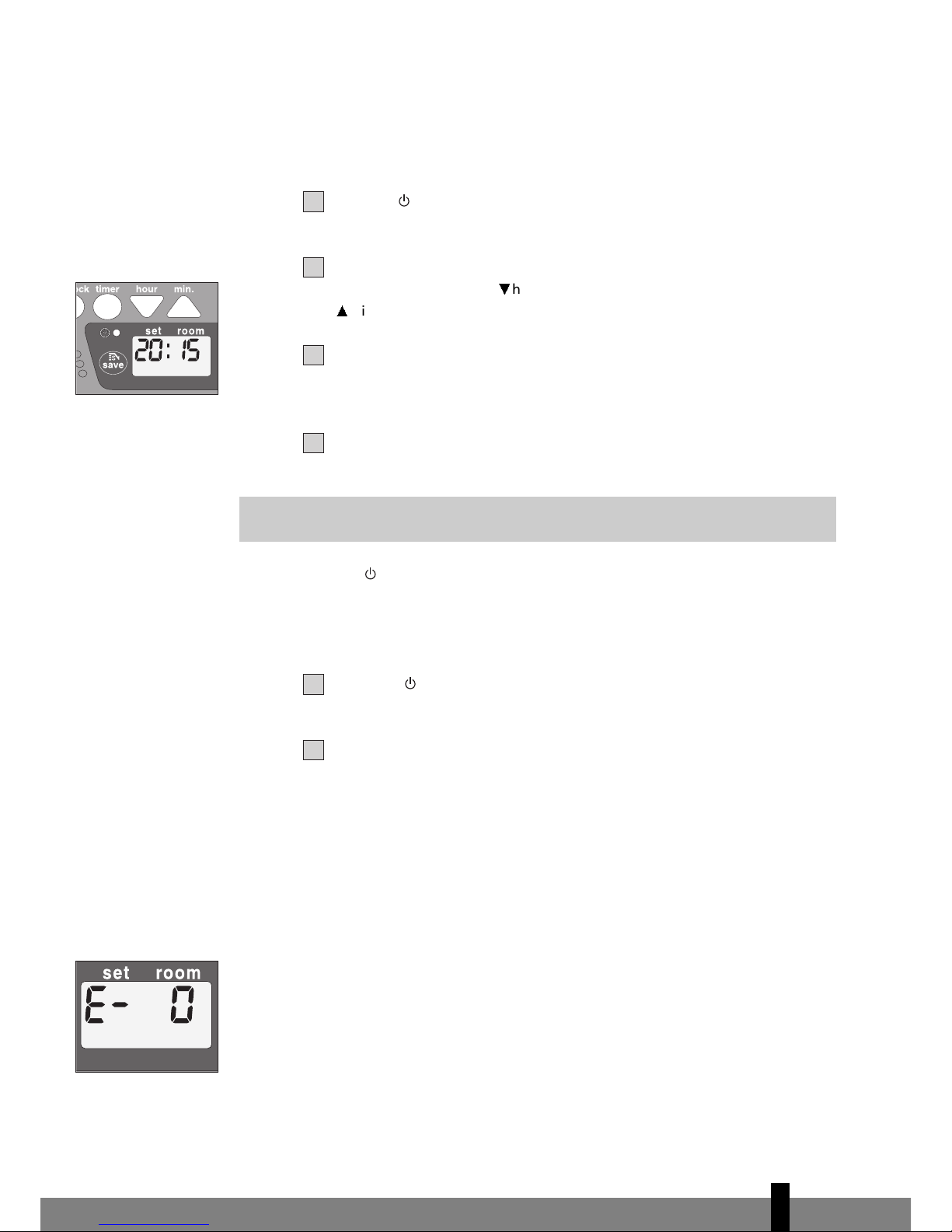

FUSING THE TIMER

The timer allows you to switch on the heater automatically at a preset time.

In order to switch on the timer, the correct time must have been set (refer to

Section C) and the heater should be off. Follow the procedure below:

Press the button Nand then the TIMER key Qimmediately after that.

The TIMER light and the 4-digit Mwill start blinking.

Use the adjustment keys Pto set the time at which the heater must ignite.

Use the key on the left (

hour) to set the hours and the key on the right

(

min.) to set the minutes (interval of 5 minutes).

After approximately 10 seconds the 4-digit will show CLOCK again and the

TIMER indicator light will light up, indicating that the timer function has been

activated (Fig. G).

The timer will ensure that the room will have been heated to approximately

the required temperature at the set time.

When you want to switch off the heater and ignite it again with the timer, all

you have to do is press the TIMER key (refer to Section G).

Press the button Nonce to clear the timer setting.

GSWITCHING OFF THE HEATER

There are two ways to switch off the heater.

Press the button N. The information display will show the CLOCK

signal. Within approximately one minute the flame will have extinguished.

Press the TIMER key Q, when you want to switch off the heater and ignite it

again with the timer the next time. This not only switches off the heater, but

it also activates the timer function. You can change the required time with

the adjustment keys P(refer to Section F).

HTHE INFORMATION DISPLAY

The information display Mnot only serves as an indicator of the (set) time and

temperature (sections C, E, and F), it also indicates any malfunctioning of the

heater. The code on the information display tells you what is the matter:

CODE INFORMATION WHAT TO DO

e - 0 Temperature within the heater too high. Cool-down and re-ignite.

f - 0 Power interrupted. Re-ignite the heater.

e - 1 Faulty thermostat. Contact your dealer.

f - 1 Faulty burner thermistor. Contact your dealer.

e - 2 Starting problems. Contact your dealer.

e - 5 Tipping-over protection. Re-ignite the heater.

e - 6 Poor burning. Contact your dealer.

e - 7 Room temperature If necessary,

above 32°C. re-ignite the heater.

☞

G: The TIMER indicator

light indicates that the

timer function has been

switched on.

In case of any

malfunctioning the

information display will

tell you what is the

matter.

e - 8 Defective booster. Contact your dealer.

e - 9 Air filter dirty; or Clean filter.

Fuel pump dirty. Contact your dealer.

The heater has been in operation

continuously for a period of 65 hours

and has turned itself off automatically. Switch the heater back on.

-- : --

Out of fuel. Refill removable tank.

-- : --

Too little ventilation. Ventilate better.

e- 1 1

Too little ventilation. Ventilate better.

Always contact your dealer for any malfunctioning not listed above.

AUTOMATIC DEACTIVATION

This heater is fitted with a safety system that ensures that it switches off

automatically after 65 hours continuous operation. The following will then appear

in the display: . If desired, you can switch the heater on again by pressing

the button

(see section D).

AUTOMATIC CLEANING MODE

When the heater has been burning continuously for two hours at its highest

setting, the burner will automatically start an autoclean procedure. The display

will show the autocleaningcode cl:05 running back to cl:01. The procedure takes 5

minutes, during which the heater will burn at its lowest setting, while the burner

autocleans. When the burner is clean again, the heater will automatically switch

back to the highest setting again.

ICHILDPROOF LOCK

The childproof lock can be used to prevent children accidentally changing the

heater settings. When the heater is burning and the childproof lock is on, the heater

can only be switched off. Other functions are blocked then. If the heater has already

been switched off, the childproof lock also prevents accidental ignition of the

heater.

Activate the childproof lock by pressing the appropriate key Oand holding it

down for more than 3 seconds. The KEY-LOCK indicator

()

will appear on the

information display (Fig. H), indicating that the childproof lock has been activated.

Switch off the childproof lock by pressing the key Oand holding it down for more

than 3 seconds once again.

JTHE CORRECT USE OF 'SAVE'

The 'SAVE' function allows you to limit the temperature. When this function is activated,

the heater will automatically switch off, when the room temperature exceeds the set

temperature by 3°C. Subsequently, when the room temperature has dropped again to

the set temperature, the heater will automatically switch on again.

Activate the 'SAVE'

setting by pressing the appropriate Rkey. will display on the information display

(Fig. I). Switch off the function by pressing the SAVE key once again.

Without the 'SAVE' setting your heater will maintain the set temperature by

approximation as well, by adjusting its heating capacity. 'SAVE' is an economy

setting, which you can use when, for instance, you are not present in the room

or to keep it frost-free.

☞

H: When the mark

appears, the

childproof lock has been

activated.

I: When the SAVE

function is activated, the

heater will automatically

switch on or off in order

to remain within a

specified temperature

range.

KTHE 'FUEL' INDICATOR LIGHT

When the indicator light FUEL lights up, it means that there is only fuel left for 10

more minutes. The count-down of the remaining heating time can be seen in the

information display M (Fig. J). Now you have two options:

Eyou remove the fuel tank and refill it outside the living room (section B) or

Eyou push the button EXTENSION T. By pushing this button, the remaining

heating time will extend to 60 minutes. The heater will automatically switch

back to its lowest position. In the display the number 60 will appear, which

will decline to 10. At the arrival of 10, you will hear an alarm signal every two

minutes, warning you to refill the removable tank. If you do not react, the

heater will extinguish by itself. The heater will also sound a warning signal,

when it switches off. The fuel indicator light will blink, while four lines (--:--)

are blinking in the information display. You can stop this by pressing the

button N once more.

Once the heater has used up all its fuel and extinguished, it will take some time,

after the refill, before the heater is completely ready for use again.

LTHE 'VENT' INDICATOR

When there is insufficient ventilation in the room, an intermittent buzzer will be

heard (approximately once each 30 seconds) and the VENT indicator will be lit. When

this signal is given, ensure that the ventilation of the room is improved (e.g. by

opening a door or window a little more), to avoid that the heater shuts off. When the

ventilation of the room is improved, the VENT indicator and buzzer will be

deactivated. When there is still insufficient ventilation, the heater shuts off

automatically. When this occurs, e- 1 1 is displayed and the VENT indicator is blinking.

After improving the ventilation of the room (e.g. by opening a door or window a little

more), the heater can be ignited by pushing the button Nagain.

MMAINTENANCE

Switch off the heater and let it cool down, before you start any maintenance

work. Also disconnect the plug from the mains. Your heater needs hardly any

maintenance. It is, however, important that you clean the air filter Iand the vent

filter Jwith a vacuum cleaner and the grid 2 with a damp cloth, both on a

weekly basis. Remove the air filter occasionally (Fig. L) and clean it with soapy

water. Prior to reinstallation, make sure that the air filter cap has fully been dried.

Regularly inspect the fuel filter as well:

Remove the removable tank 7from the heater and remove the fuel filter

(Fig. M). Some drops may leak from the filter; keep a cloth at hand.

Remove the dirt by tapping the fuel filter upside-down against a hard surface.

(Never clean it with water!)

Reinstall the fuel filter into the heater.

We recommend that you remove dust and stains from time to time with a damp

cloth, because otherwise these may cause stains that are hard to remove.

Fuel filter

K: A blinking VENT

indicator is a sign that

you need extra

ventilation.

J: When the FUEL

indicator has appeared,

the information display

will show the number of

minutes of fuel left in

the tank.

Table of contents

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
