Zeta PBTA-200 User manual
PBTA-200 User Manual
Issue #1 Issue Date XX/XX/XXXX Revision #1
User Manual /
PBTA-200
PBTA-200 User Manual
Issue #1 Issue Date XX/XX/XXXX Revision #1
Contents
Section 1 Introduction 3
Section 2 Power Supply 3
Section 3 Typical Wiring Diagram 3
Section 4 Installation 4
Section 5 Technical Specification 5
Contents /
2
PBTA-200 User Manual
Issue #1 Issue Date XX/XX/XXXX Revision #1
1 Introduction
The PBTA-200 push button temporary fire alarm is activated immediately by pressing the
“mushroom” button fixed to the front of the device. Once activated the unit will sound & flash.
It can be used as a standalone alarm or interconnected in series.
2 Power Supply
The unit is powered by 8 AA batteries.

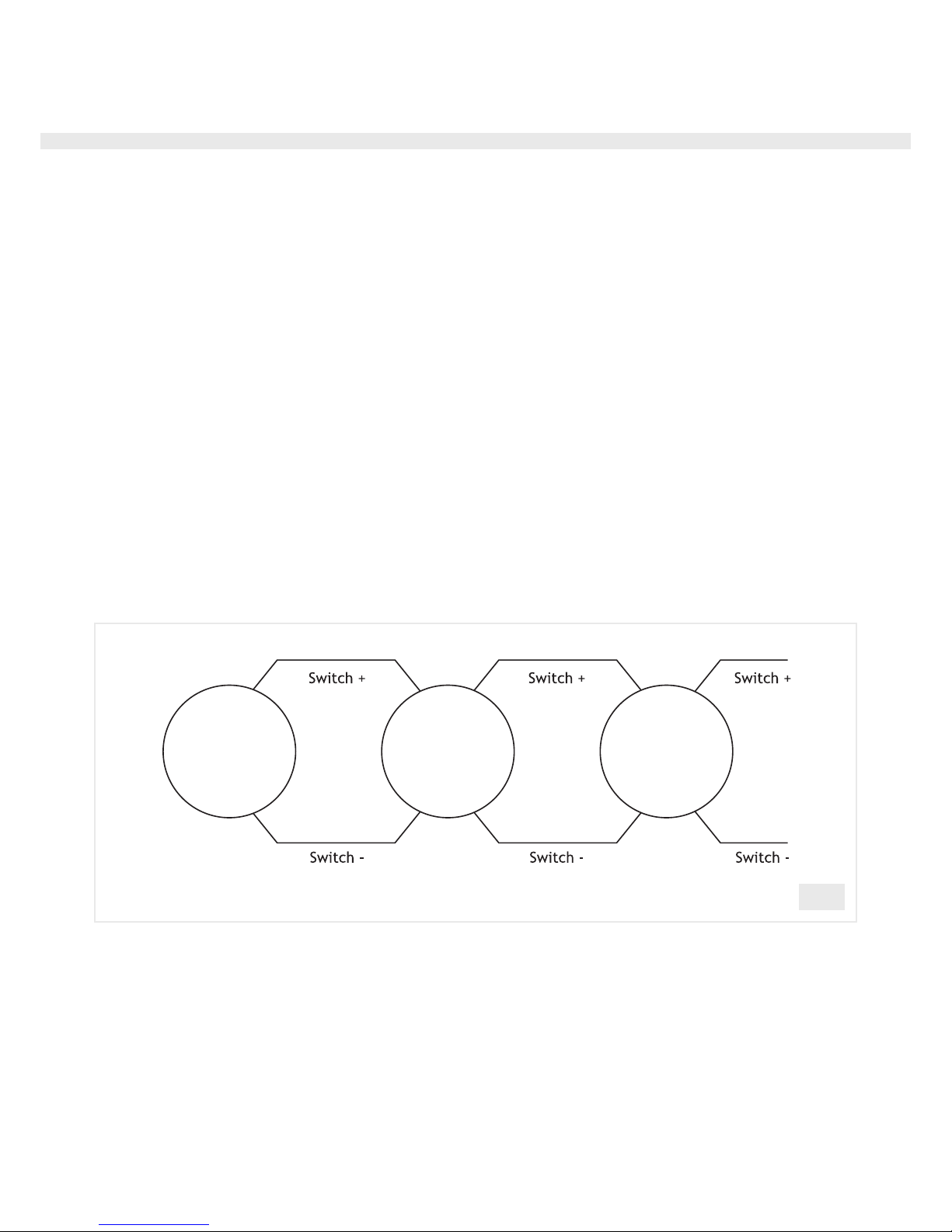

3 Typical Wiring Diagram
The following diagram shows 3 units connected in series where one alarm activation will trigger
all connected units.
Section 1 Introduction / Section 2 Power Supply / Section 3 Typical Wiring Diagram /
Fig.1
3
PBTA-200 User Manual
Issue #1 Issue Date XX/XX/XXXX Revision #1
4 Installation

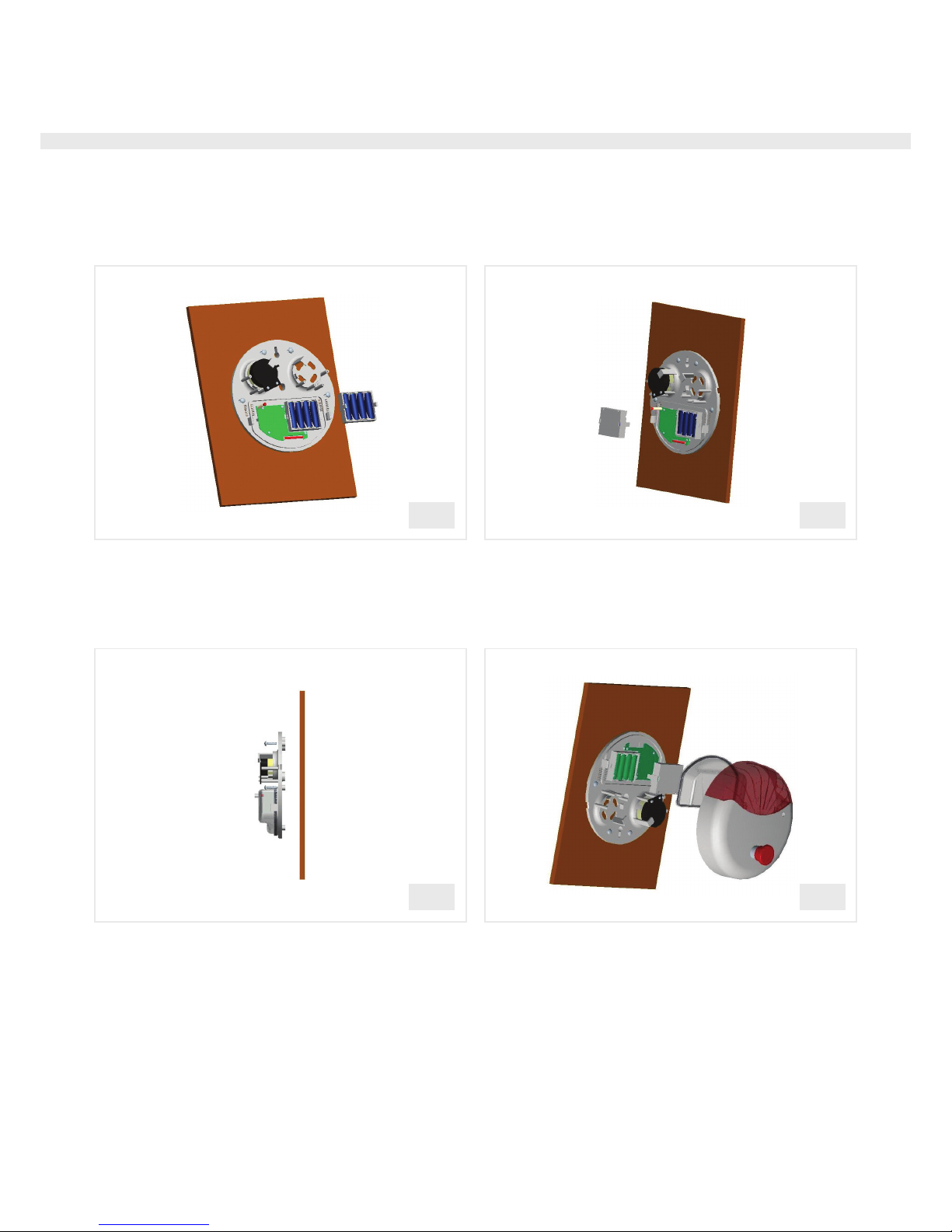

Battery Installation
Install batteries as shown in figures 2 & 3 above (note that the battery sign is shown on battery
box).
Alarm Installation
It can be installed on boards, walls or wherever it can be hung (these should be places where
the unit is easily visible). Fix the screw according to figure 4 and complete the installation
according to figure 5.
Fig.2 Fig.3
Fig.4 Fig.5
4
PBTA-200 User Manual
Issue #1 Issue Date XX/XX/XXXX Revision #1
5 Technical Specification
Operating Voltage 8 x AA batteries (12V DC)
Average Current 10uA
Alarm Current 200mA
Sound Output 95 db @ 3m
Strobe Colour Red
Operating Temperature -10°C to +50°C
Minimum Continuous Temperature 0°C
Maximum Humidity 95% RH Non Condensing
Alarm Activation Manual (press “mushroom” button)
Reset Manual (twist “mushroom” button)
Number of Interlinked Units 32
IP Rating IP35
Size, Width x Height x Diameter 230mm x 230mm x 104mm
Weight (Including Batteries) 650g (850g)
5
