Zephyr Z1C-00VS User manual

customer service

1.888.880.8368

Duct Cover Extension

Z1C-00VS

For use with Layers Wall and Vista Wall range hood

ENGLISH..........................2

FRANÇAIS........................3

Mounting the duct cover

Fixation des cheminees

MOUNTING THE DUCT COVER

1. Install the electrical wiring and test hood for functions prior to installing the

duct covers.

2. If using hood in air recirculating mode make sure

to install the air diverter plate prior to mounting

the duct covers. See the manual included with

the recirculating kit for more instructions.

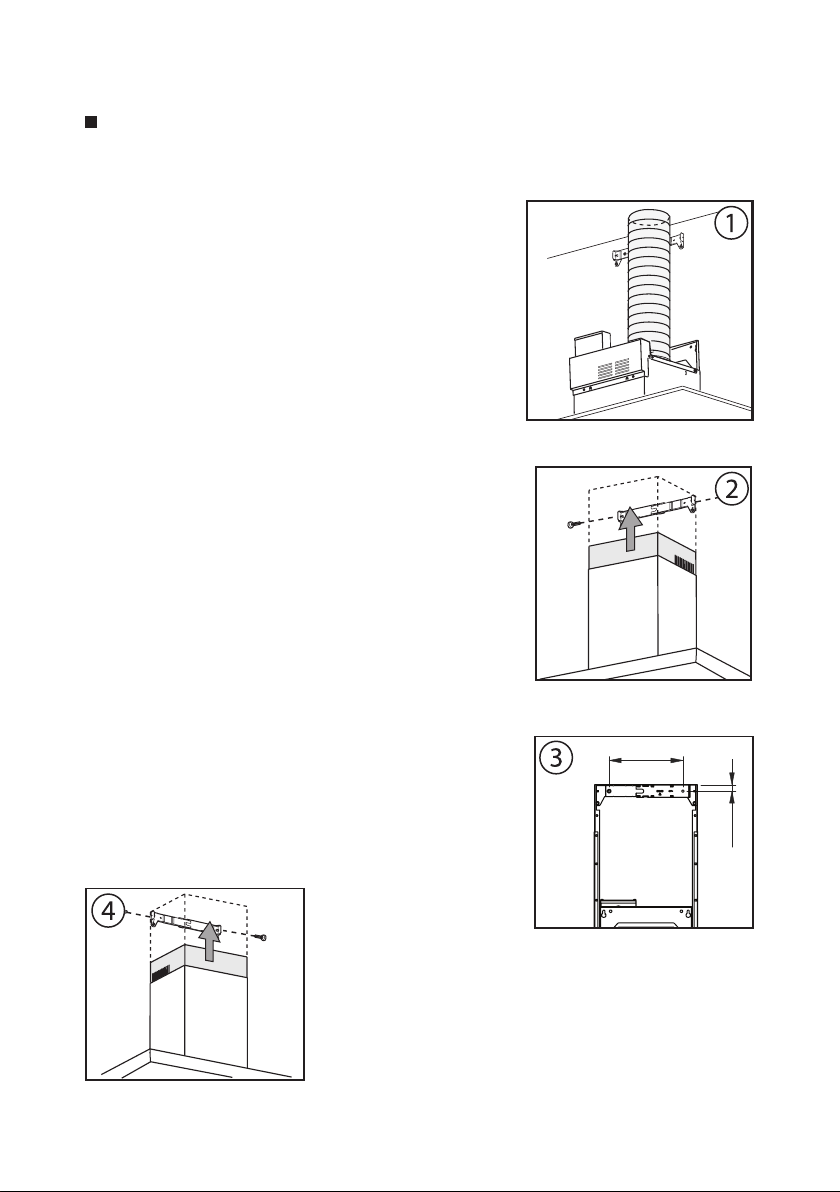

3. Adjust the width of the duct cover support

bracket so that it ﬁts inside the top of the chim-

ney and observing the distance shown in Fig.1

4. Secure duct cover bracket to top of wall just below

the ceiling using (2) screws provided. See Fig. 2

5. Place ducting from ceiling over the collar on top

of the hood and secure using aluminum duct

tape. See Fig. 3

6. Insert top duct cover into bottom duct cover.

Seat the duct covers correctly on the hood.

7. Extend top duct cover up and secure to the duct

cover bracket using (2) screws. See Fig. 4

8”

3/4”

Installation - Mounting the Duct Cover

- 2 -

FIXATION DES CHEMINEES

1. Installez la connexion électrique et essayez le

fonctionnement de la hotte avant d’installer les

cheminées.

2. Si vous utilisez la hotte version recyclage,

assurez-vous d’installer le déviateur d’air avant

d’installer les cheminées. Pour de plus amples

instructions, consultez le manuel fourni avec le

kit de recyclage.

3. Réglez la largeur de l’étrier de support de la

cheminée aﬁn qu’il s’insère à l’intérieur de la

cheminée supérieure et respectez la distance

indiquée dans la ﬁg.1

4. Fixez l’étrier à la paroi à peine sous le plafond en

utilisant les (2) vis A. Fig. 2

5. Reliez le tuyau à partir du trou d’évacuation de

l’air au plafond à l’étrier sur la hotte et ﬁxez-le

en utilisant un ruban aluminium. Fig.3

6. Insérez la cheminée supérieure à l’intérieur de la

cheminée inférieure. Positionnez les cheminées

dans le logement spécial sur la hotte.

7. Extraire le tube supérieur en le portant jusqu’à

l’étrier et le ﬁxer avec les (2) vis. Fig. 4

8”

3/4”

Installation – Fixation De Cheminees

- 3 -

DUCT COVER EXTENSION SPECIFICATION

3011000133100.00

Layers Wall

Vista Wall

35-3/8”, 41-15/16”

27-9/16”

9-15/16”

16-1/2”

22”

3-9/16”

5/8”

1-3/4”

14-1/16”

18-1/8”

16-1/2”

3-1/2” (Ø 6'')

Internal Blower

4-5/16” (Ø 8")

Remote Blower

8”

3/4”

9-3/16”

16-15/16”

STANDARD

min. ducted - 27”

min. recirc. - 31”

max. - 44-1/2”

Z1C-00VS

min. ducted - 43-1/2”

min. recirc. - 47-1/2”

max. - 80”

11-1/8”

(

8")

(

30” or 36”

11-1/4”

ANDARD

min. duc

ted - 25-1/2”

min. recirc. - 29-1/2”

max. - 38-1/2”

Z1C-00VS

min. duc

ted - 42”

min. recirc. - 46”

max. - 78-1/2”

10-1/16”

18-7/8”

17-5/8”

13-9/16”

2-1/8”

18-7/8”

4-1/4”

Remote Blower

3-7/16”

(

Internal Blower

8”

3/4”

9-1/8”

16-7/16”
