OPMI 1FC from ZEISS
Quality is a timeless value
S100 / OPMI 1-FC
2
3
Today, as in the past, quality and precision represent timeless
values in medicine. That is why surgeons around the world
rely on the optics and innovative technologies from ZEISS for
routine examinations and surgical procedures.

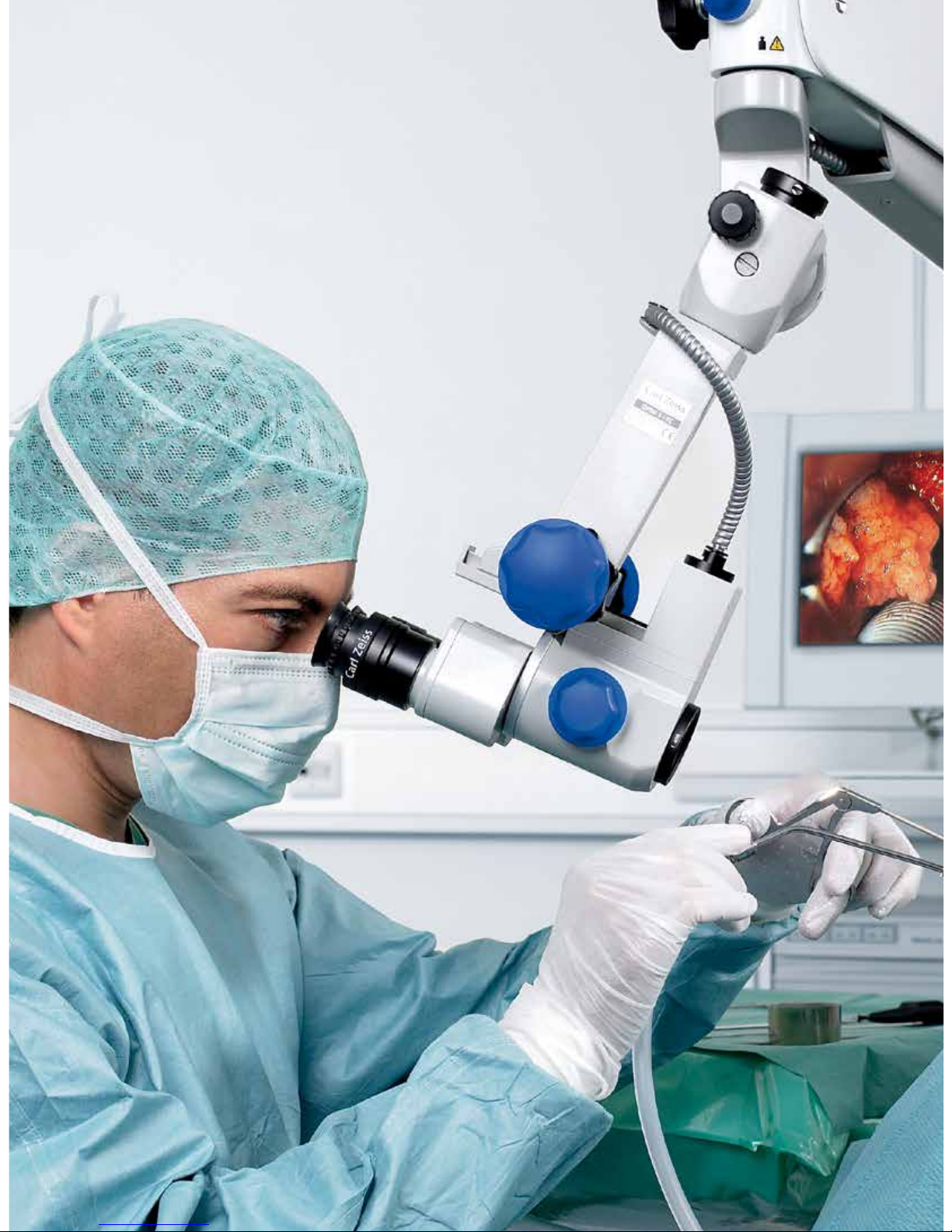

ENT specialists have trusted the time-tested ZEISS OPMI®1FC
surgical microscope for over 50years. By helping to define
the field of microsurgery and aiding the development of new
surgical techniques, the ZEISS OPMI1FC continues to add to
its legacy.
”I have been a regular user of CarlZeiss microscopes since 1981.
Over the years, I have learnt to rely on the ZEISS optics to aid my
surgical work. I am convinced that for precision and perfection,
CarlZeiss is unmatched and is in a class of its own.”
Quality is reliability
Mohan Kameswaran, M.D., Consultant ENT Surgeon,
Madras ENT Research Foundation, Chennai, India
4
ZEISS OPMI1FC delivers high fidelity images, easily
perfected with the fine focus functionality. The images
can be captured and stored digitally for post-operative
documentation using a compact digital camera
attached via the FlexioStill™camera adapter. Add a
MediLive®primo video camera and video sequences
can be displayed live on a monitor during surgery,
allowing the surgical team to view the procedure
in real time. These surgical videos and images can
be quickly recorded with a MEDIALINK™100 video
recorder for further processing.
Designed for flawless product operation, the quick-
action lamp changer allows users to switch to
the spare lamp at the push of a button. Brightness
adjustments are located within the surgeon’s reach for
ease of adjustment. After completing the procedure,
the illumination automatically shuts off when the
suspension arm is moved in its upper park position.
For both routine examinations and surgical procedures,
ZEISS OPMI1FC leaves nothing to be desired. The
5-step magnification changer and the wide range of
objective lens focal distances ranging from 200mm
to 400 mm enable accommodation for virtually every
ear, nose and throat application. The ability to attach

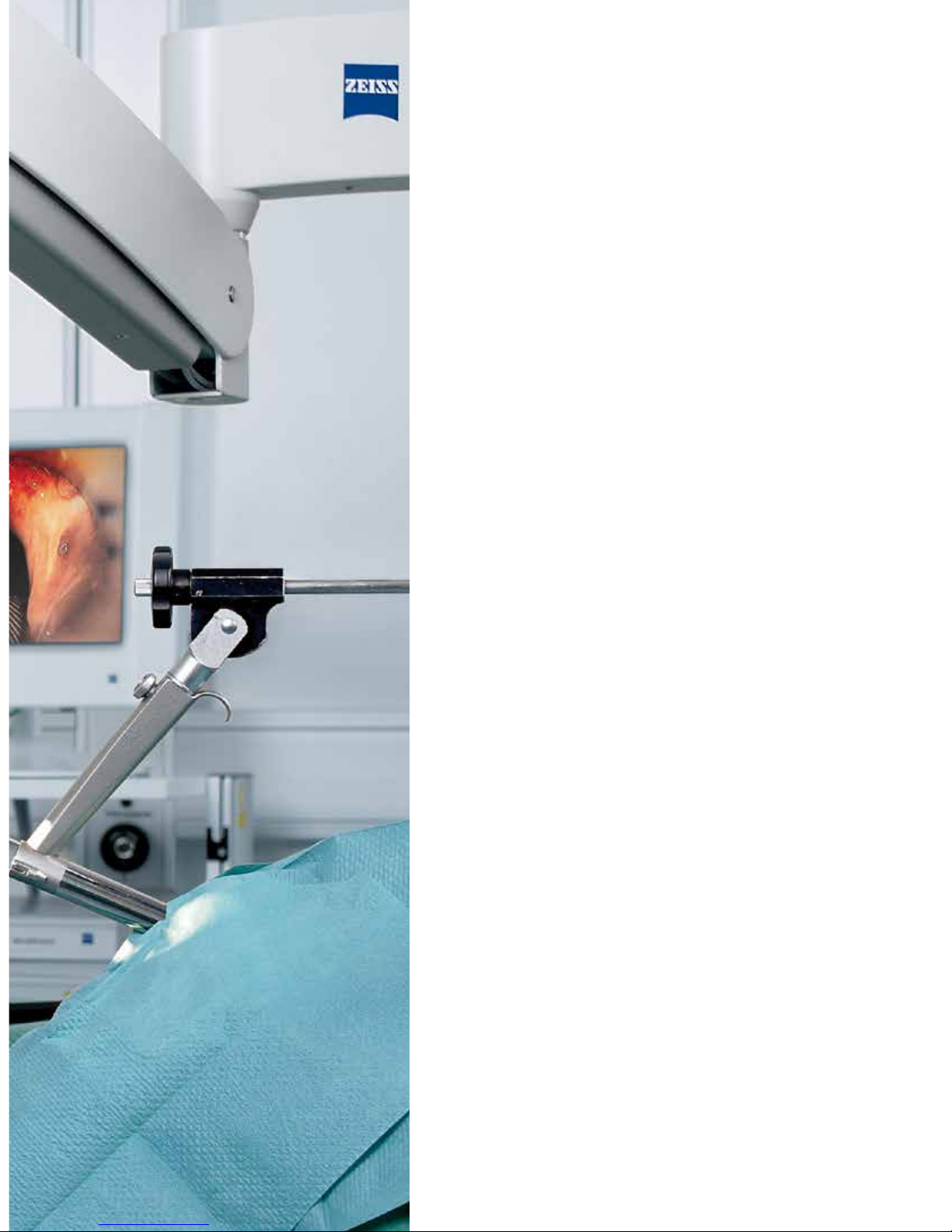

a CO2-laser micromanipulator further widens the
application spectrum of ZEISS OPMI1FC to include
minimally invasive larynx surgery.

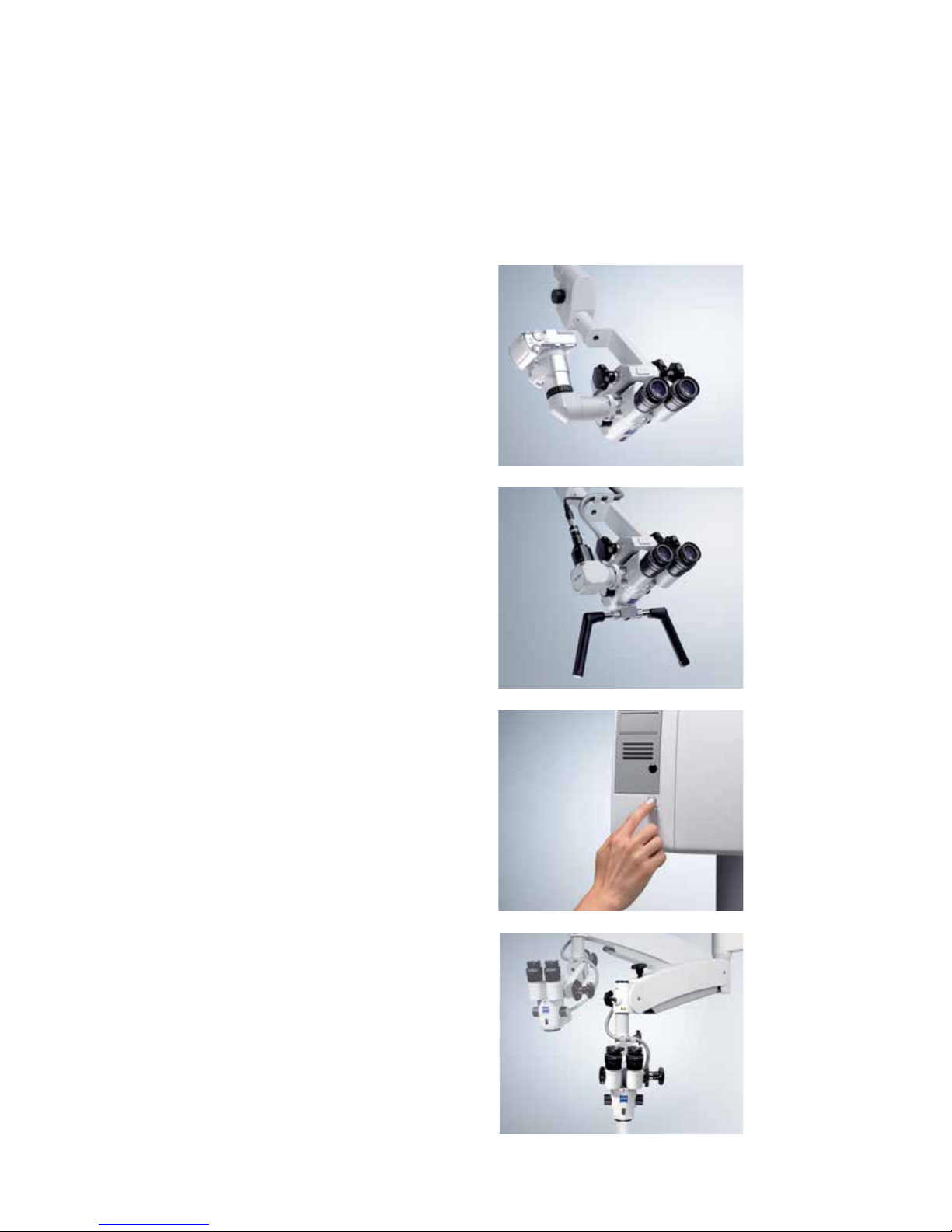

View live video
sequences with the
MediLivePrimo
Switch to backup lamp
at the press of a button
Switch illumination on
and off by moving
the suspension arm up
and down
Get the right image
everytime with the
FlexioStillcamera
adapter
Quality is in the details
5

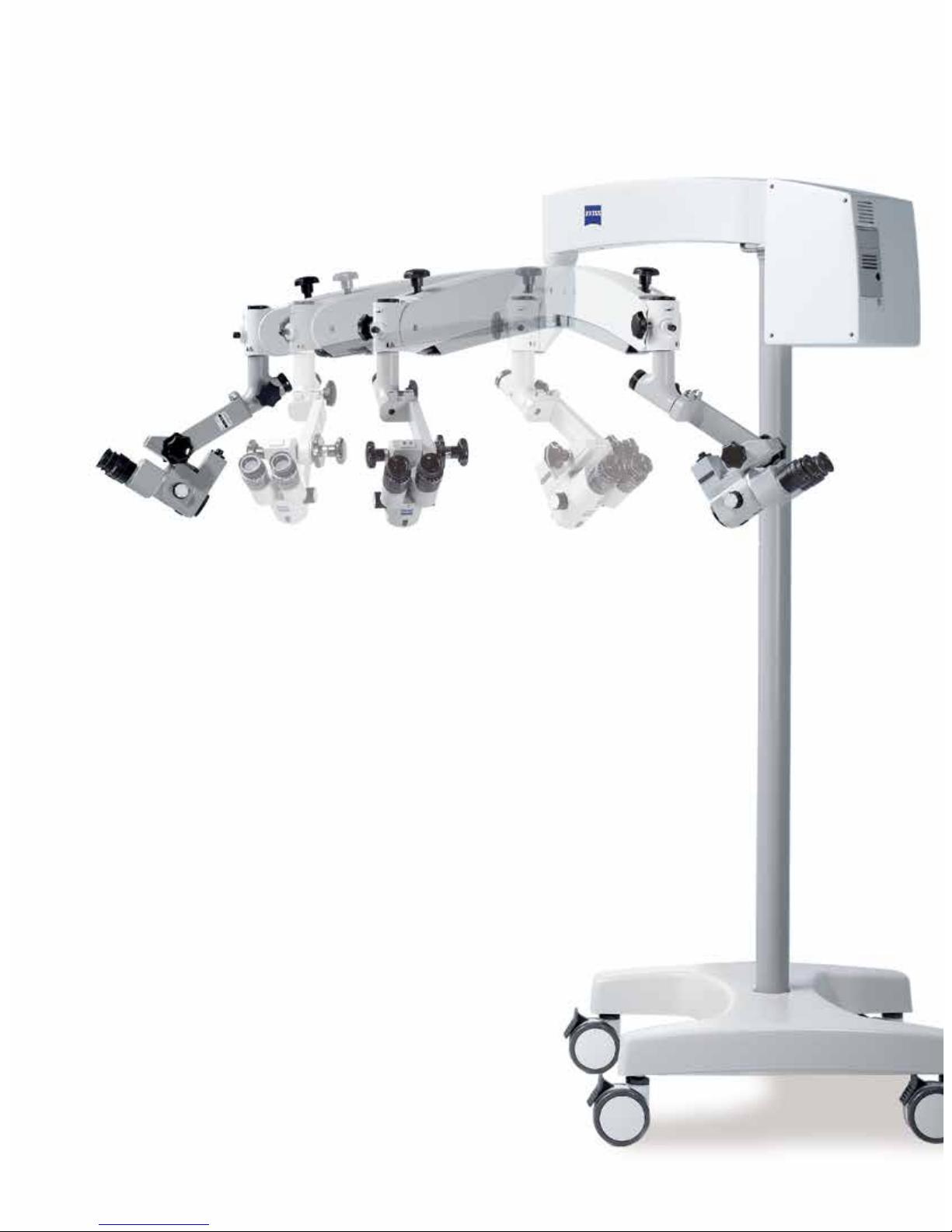

Teamed up with the S100 stands, ZEISS OPMI1FC becomes
a flexible product that is easy to maneuver into virtually
any position. When not in use, the surgical microscope
compactly folds together, providing additional space in
typically crowded operating rooms.
Highly versatile, the product intelligently combines a simple
design with solid operating quality and time-tested ZEISS
technology. Whether used in combination with the S100
floor stand, ceiling mount or wall mount, ZEISS OPMI1FC
seamlessly adapts to the operating room environment large
or small.
Versatility, surgical performance and effortless product
operation all add up to an adaptable, dynamic visualization
armamentarium for ENT applications.
Quality is adaptability
6
Technical Specifications
6
S100 / OPMI 1-FC from ZEISS
Magnification Manual, 5-step magnification changer, magnification factor g = 0.4x – 2.5x
Focusing system Manual, using the focus adjusting knob, focusing range: 40 mm
Objective lenses Different focal lengths from f = 200 mm to f = 400 mm, graded in steps of 50 mm
Tubes, Eyepieces – Straight binocular tube, f = 170 mm, 12.5x widefield eyepieces (option: 10x)
– 45° Inclined tube, f = 170 mm (optional)
– 180° Tiltable tube f = 170 mm or f = 200 mm (optional)
– Foldable Tube f170 / f260, including PROMAG™function
for additional 50% magnification and integrated rotate function (optional)
Illumination Coaxial illumination 100 W halogen lamp, backup lamp in fast-action lamp changer
Rated voltage 115 V/230 V ± 10%
Rated frequency 50 – 60 Hz
Power consumption 115 VAC max. 2.0 A
230 VAC max. 1.0 A
Fuses Fuse link
115 V ~ T 6.3 A/H 250 V
230 V ~ T 3.15 A/H 250 V
Maximum load on suspension arm 2.5 to 7.0 kg (complete microscope equipment including accessories and coupling)
7

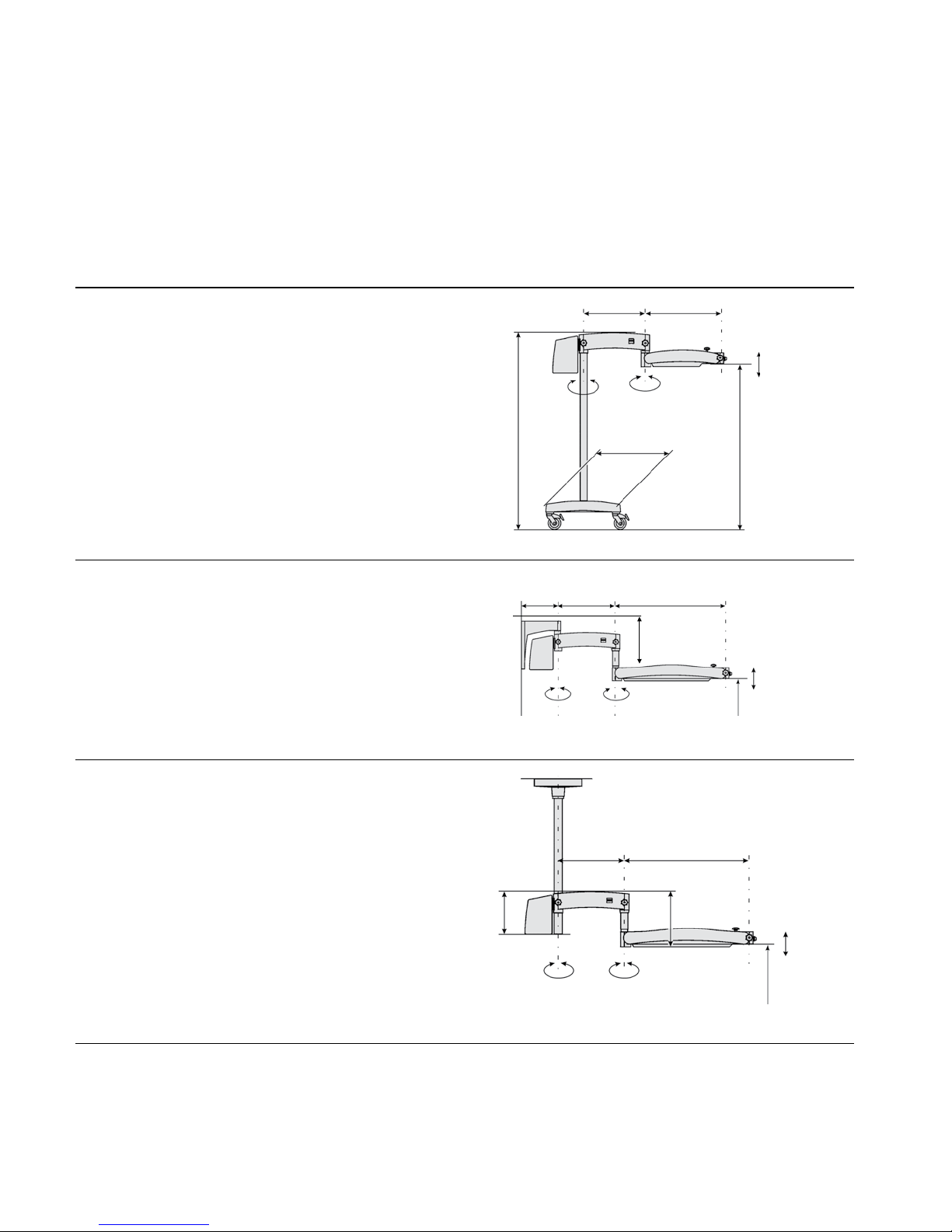

Technical Data
Dimensions base: 625 x 625 mm
Weight: approx. 90 kg
(including microscope)
Weight: approx. 45 kg
(including microscope)
Weight: approx. 55 kg
(including microscope)
S100 Floor Stand
S100 Wall Mount
S100 Ceiling Mount
Suspension systems
500 mm 950 mm
330 mm
425 mm
+
– 163°
+
– 150°
1570 mm
± 400 mm
± 400 mm
320 mm 500 mm 950 mm
520 mm
± 150°± 105°
1570 mm
500 mm 600 mm
± 150°360°
no stop
± 300 mm
625 x 625 mm
1470 mm
1730 mm
7
EN_30_010_0319I SUR.4520 Printed in Germany CZ-XI/2013
The contents of the brochure may differ from the current status of approval of the product in your country. Please contact our regional
representative for more information. Subject to change in design and scope of delivery and as a result of ongoing technical development.
FlexioStill, MEDIALINK, PROMAG, OPMI and MediLive are either trademarks or registered trademarks of Carl Zeiss Meditec AG.
Printed on elemental chlorine-free bleached paper.
© Carl Zeiss Meditec AG, 2013. All copyrights reserved.
Carl Zeiss Meditec AG
Goeschwitzer Strasse 51–52
07745 Jena
Germany
www.meditec.zeiss.com/contacts
www.meditec.zeiss.com/ent
Other manuals for S100
1
This manual suits for next models
1
Table of contents
Other Zeiss Medical Equipment manuals
Zeiss
Zeiss MultiSEM 505 Series User manual
Zeiss
Zeiss S100/OPMI pico User manual
Zeiss
Zeiss GeminiSEM Series User manual
Zeiss

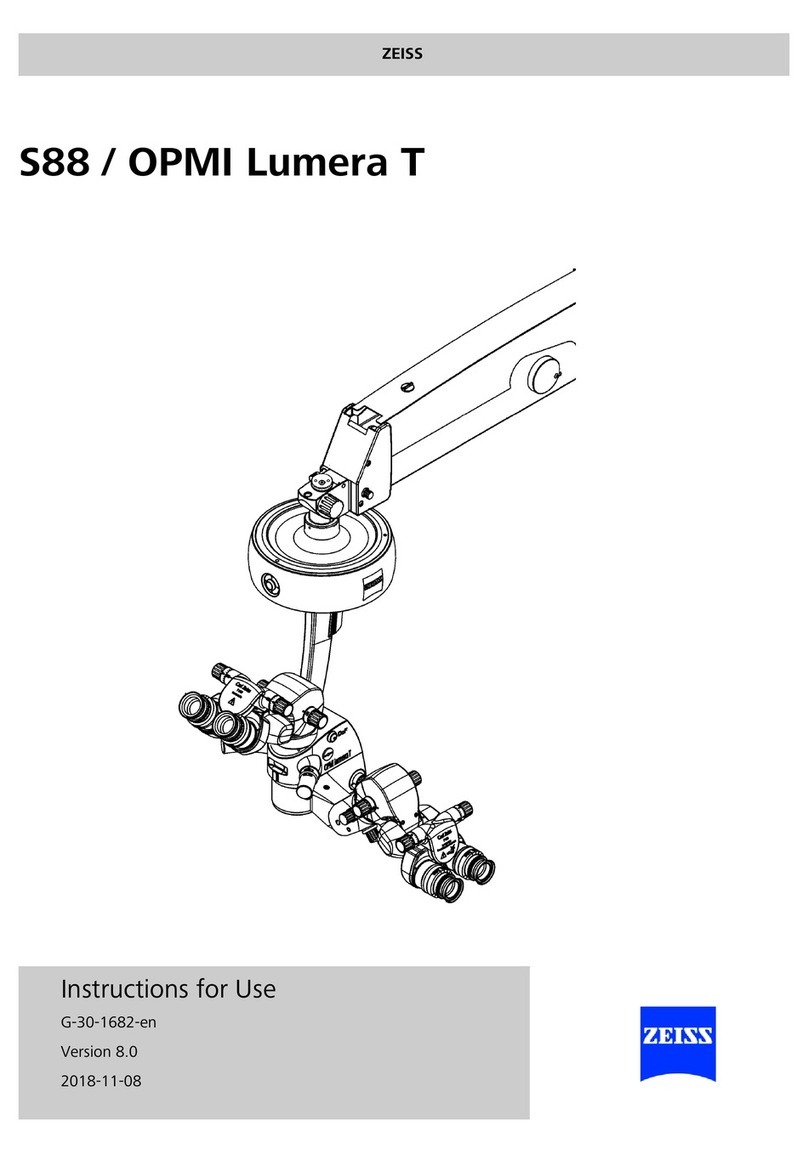

Zeiss OPMI Lumera T User manual
