ZANKER KOB65963XK User manual
KOB65963XK
User Manual
Oven
Benutzerin‐
formation
Backofen
Contents
Safety information 2
Safety instructions 3
Installation 6
Product description 7
Control panel 7
Before first use 8
Daily use 8

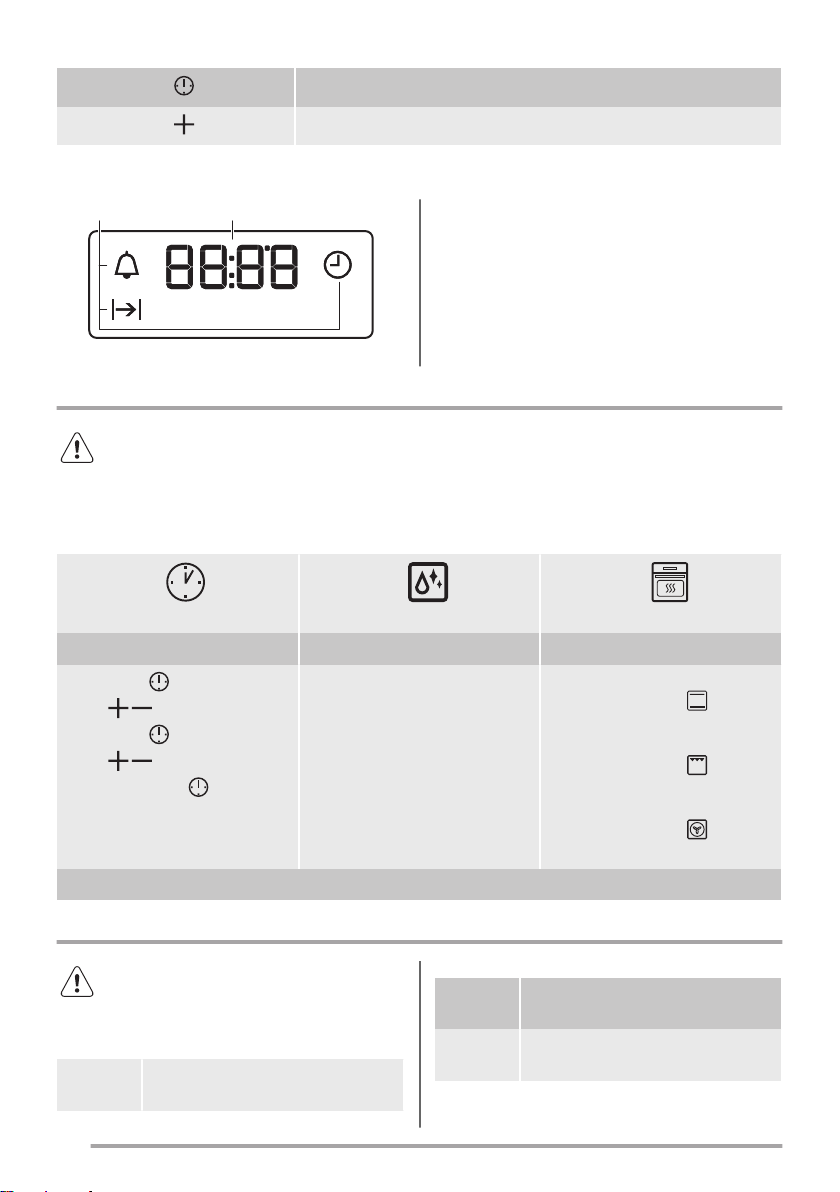

Clock functions 10
Using the accessories 11
Additional functions 12
Hints and tips 12
Care and cleaning 22
Troubleshooting 26
Energy efficiency 26
Subject to change without notice.
VISIT OUR WEBSITE TO:
Get usage advice, brochures, trouble shooter, service and repair information:
www.zanker.de/support
Safety information
Before the installation and use of the appliance, carefully read the supplied
instructions. The manufacturer is not responsible for any injuries or damage
that are the result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe way and
understand the hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall be kept away
from the appliance unless continuously supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it appropriately.
•WARNING: Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts become hot during use.
•If the appliance has a child safety device, it should be activated.
•Children shall not carry out cleaning and user maintenance of the
appliance without supervision.
General Safety
•Only a qualified person must install this appliance and replace the cable.
2
•WARNING: The appliance and its accessible parts become hot during
use. Care should be taken to avoid touching heating elements.
•Always use oven gloves to remove or put in accessories or ovenware.
•Before carrying out any maintenance, disconnect the appliance from the
power supply.
•WARNING: Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
•Do not use the appliance before installing it in the built-in structure.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
glass door since they can scratch the surface, which may result in
shattering of the glass.
•If the mains power supply cable is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly qualified persons
to avoid an electrical hazard.
•To remove the shelf supports first pull the front of the shelf support and
then the rear end away from the side walls. Install the shelf supports in the
opposite sequence.
Safety instructions
Installation
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the
appliance.
• Always take care when moving the appliance as it is
heavy. Always use safety gloves and enclosed
footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable place that
meets installation requirements.
• Keep the minimum distance from other appliances
and units.
• Before mounting the appliance, check if the oven
door opens without restraint.
• The appliance is equipped with an electric cooling
system. It must be operated with the electric power
supply.
Cabinet minimum height
(Cabinet under the work-
top minimum height)
590 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the
appliance
594 mm
Height of the back of the
appliance
576 mm
Width of the front of the
appliance
595 mm
Width of the back of the
appliance
559 mm
Depth of the appliance 569 mm
Built in depth of the appli-
ance
548 mm
Depth with open door 1022 mm
3
Ventilation opening mini-
mum size. Opening placed
on the bottom rear side
560x20 mm
Mains supply cable length.
Cable is placed in the right
corner of the back side
1500 mm
Mounting screws 4x25 mm
Electrical connection
Warning! Risk of fire and electric shock.
• All electrical connections should be made by a
qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the rating plate
are compatible with the electrical ratings of the
mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension
cables.
• Make sure not to cause damage to the mains plug
and to the mains cable. Should the mains cable
need to be replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come near the
appliance door or the niche below the appliance,
especially when it operates or the door is hot.
• The shock protection of live and insulated parts
must be fastened in such a way that it cannot be
removed without tools.
• Connect the mains plug to the mains socket only at
the end of the installation. Make sure that there is
access to the mains plug after the installation.
• If the mains socket is loose, do not connect the
mains plug.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting
cut-outs, fuses (screw type fuses removed from the
holder), earth leakage trips and contactors.
• The electrical installation must have an isolation
device which lets you disconnect the appliance from
the mains at all poles. The isolation device must
have a contact opening width of minimum 3 mm.
• This appliance is supplied with a main plug and a
main cable.
Cable types applicable for installation or replace-
ment for Europe:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-
F (T90), H05 BB-F
For the section of the cable refer to the total power on
the rating plate. You can also refer to the table:
Total power (W) Section of the cable
(mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable) must be 2 cm
longer than phase and neutral cables (blue and brown
cables).
Use
Warning! Risk of injury, burns and
electric shock or explosion.
• This appliance is for household use only.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not
blocked.
• Do not let the appliance stay unattended during
operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while
the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or
when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a
storage surface.
• Open the appliance door carefully. The use of
ingredients with alcohol can cause a mixture of
alcohol and air.
• Do not let sparks or open flames to come in contact
with the appliance when you open the door.
• Do not put flammable products or items that are wet
with flammable products in, near or on the
appliance.
4
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to the enamel:
– do not put ovenware or other objects in the
appliance directly on the bottom.
– do not put aluminium foil directly on the bottom
of cavity of the appliance.
– do not put water directly into the hot appliance.
– do not keep moist dishes and food in the
appliance after you finish the cooking.
– be careful when you remove or install the
accessories.
• Discoloration of the enamel or stainless steel has no
effect on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit juices cause
stains that can be permanent.
• This appliance is for cooking purposes only. It must
not be used for other purposes, for example room
heating.
• Always cook with the oven door closed.
• If the appliance is installed behind a furniture panel
(e.g. a door) make sure the door is never closed
when the appliance operates. Heat and moisture
can build up behind a closed furniture panel and
cause subsequent damage to the appliance, the
housing unit or the floor. Do not close the furniture
panel until the appliance has cooled down
completely after use.
Care and cleaning
Warning! Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk
that the glass panels can break.
• Replace immediately the door glass panels when
they are damaged. Contact the Authorised Service
Centre.
• Be careful when you remove the door from the
appliance. The door is heavy!
• Clean regularly the appliance to prevent the
deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety
instructions on its packaging.
Internal lighting
Warning! Risk of electric shock.
• Concerning the lamp(s) inside this product and
spare part lamps sold separately: These lamps are
intended to withstand extreme physical conditions in
household appliances, such as temperature,
vibration, humidity, or are intended to signal
information about the operational status of the
appliance. They are not intended to be used in other
applications and are not suitable for household room
illumination.
• Use only lamps with the same specifications.
Service
• To repair the appliance contact the Authorised
Service Centre.
• Use original spare parts only.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the
appliance and dispose of it.
• Remove the door catch to prevent children or pets
from becoming trapped in the appliance.
5
Installation
Warning! Refer to Safety chapters. Building in
18
594
589
114
21548
595+-1
min. 550
20
600
min. 560
3
5
60
20
80
520
60
198
523
(*mm)
min. 550
20
595+-1
18
590
min. 560
594
589
114
21548
3
5
70
60 520
60
20
198
523
(*mm)
6
Securing the oven to the cabinet
Product description
General overview
8
7
12
11
5
4
1
2
3
4 631 52
9
10
1Control panel
2Knob for the heating functions
3Power lamp / symbol
4Display
5Control knob (for the temperature)
6Temperature indicator / symbol
7Heating element
8Lamp
9Fan
10 Cavity embossment
11 Shelf support, removable
12 Shelf positions
Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Combi pan
For cakes and biscuits. To bake and roast or as a
pan to collect fat.
Control panel
Retractable knobs
To use the appliance press the knob. The knob comes
out.
Sensor fields / Buttons
To set the time.
7
To set a clock function.
To set the time.
Display
A B
A. Clock functions
B. Timer
Before first use
Warning! Refer to Safety chapters.
Before first use
The oven can emit an odour and smoke during preheating. Make sure that the room is ventilated.
Step 1 Step 2 Step 3
Set the clock Clean the oven Preheat the empty oven
1. Press: .
2. , - press to set the hour.
Press: .
3. , - press to set the mi-
nutes. Press: .
1. Remove all accessories and
removable shelf supports from
the oven.
2. Clean the oven and the acces-
sories with a soft cloth, warm
water and a mild detergent.
1. Set the maximum temperature
for the function: .
Time: 1 h.
2. Set the maximum temperature
for the function: .
Time: 15 min.
3. Set the maximum temperature
for the function: .
Time: 15 min.
Turn off the oven and wait until it is cold. Place the accessories and the removable shelf supports in the oven.
Daily use
Warning! Refer to Safety chapters.
How to set: Heating function
Step 1 Turn the knob for the heating functions
to select a heating function.
Step 2 Turn the control knob to select the tem-
perature.
Step 3 When the cooking ends, turn the knobs
to the off position to turn off the oven.
8

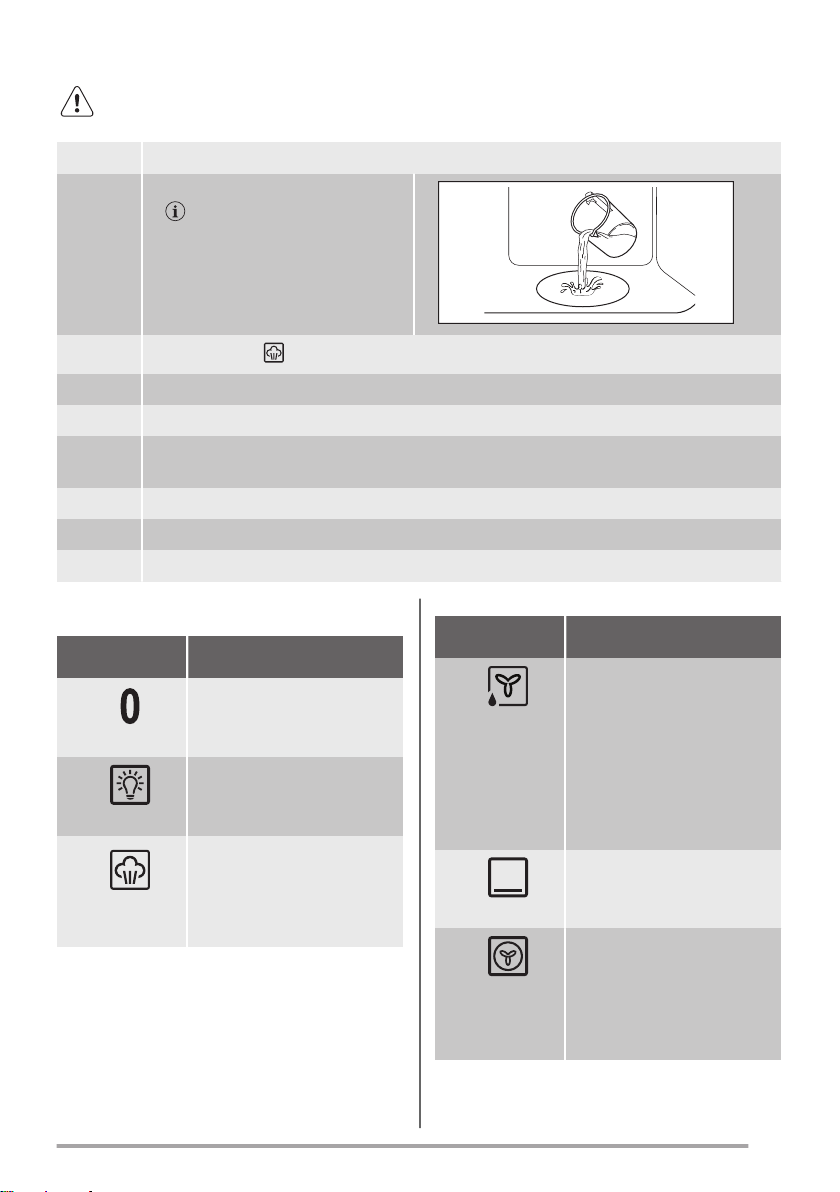

Setting the function: True Fan Cooking PLUS
Warning! Risk of burns and damage to the appliance.
Step 1 Make sure that the oven is cold.
Step 2 Fill the cavity embossment with tap water.
The maximum capacity of the cavity
embossment is 250 ml. Do not refill the
cavity embossment during cooking or
when the oven is hot.
Step 3 Set the function: .
Step 4 Turn the control knob for the temperature to set temperature.
Step 5 Preheat the empty oven for 10 min to create humidity.
Step 6 Put food in the oven.
Refer to "Hints and tips" chapter. Do not open the oven door during cooking.
Step 7 Turn the knob for the heating functions to the off position to turn off the oven.
Step 8 After the function ends, carefully open the door. Released humidity can cause burns.
Step 9 Make sure that the oven is cold. Remove the remaining water from the cavity embossment.
Heating functions
Heating function Application
Off position
The oven is off.
Light
To turn on the lamp.
True Fan Cook-
ing PLUS
To add humidity during the
cooking. To get the right colour
and crispy crust during baking.
To give more juiciness during
reheating.
Heating function Application
Moist Fan Bak-
ing
This function is designed to
save energy during cooking.
When you use this function, the
temperature in the cavity may
differ from the set temperature.
The heating power may be re-
duced. For more information re-
fer to "Daily Use" chapter,
Notes on: Moist Fan Baking.
Bottom Heat
To bake cakes with crispy bot-
tom and to preserve food.
True Fan Cook-
ing
To bake on up to three shelf po-
sitions at the same time and to
dry food.
Set the temperature 20 - 40 °C
lower than for Conventional
Cooking.
9
Heating function Application
Turbo Grilling
To roast large meat joints or
poultry with bones on one shelf
position. To make gratins and to
brown.
Fast Grilling
To grill thin pieces of food in
large quantities and to toast
bread.
Pizza Function
To bake pizza. To make inten-
sive browning and a crispy bot-
tom.
Conventional
Cooking
To bake and roast food on one
shelf position.
Notes on: Moist Fan Baking
This function was used to comply with the energy
efficiency class and ecodesign requirements according
to EU 65/2014 and EU 66/2014. Tests according to EN
60350-1.
The oven door should be closed during cooking so that
the function is not interrupted and the oven operates
with the highest energy efficiency possible.
For the cooking instructions refer to "Hints and tips"
chapter, Moist Fan Baking. For general energy saving
recommendations refer to "Energy Efficiency" chapter,
Energy Saving.
Clock functions
Clock functions
Clock function Application
Time of Day
To set, change or check the time of day.
Duration
To set how long the oven works.
Minute Minder
To set a countdown. This function has no effect on the operation of the oven.
You can set this function at any time, also when the oven is off.
How to set: Clock functions
How to change: Time of Day
- flashes when you connect the oven to the electrical supply, when there was a power cut or when the timer is not
set.
Step 1 - press repeatedly. - starts to flash.
Step 2 , - press to set the time.
After approximately 5 sec., the flashing stops and the display shows the time.
- press repeatedly to change the time of day. - starts to flash.
10
Table of contents
Languages:
Other ZANKER Oven manuals
ZANKER
ZANKER ZKH 7227 User manual
ZANKER
ZANKER KOP37902XK User manual
ZANKER
ZANKER KOU10412XB User manual
ZANKER
ZANKER KOU25723XK User manual
ZANKER
ZANKER KOU20611 User manual
ZANKER
ZANKER ZKB 7613 User manual
ZANKER
ZANKER KOU20612 User manual
ZANKER
ZANKER Built-in oven User manual
ZANKER
ZANKER KOP37904XK User manual
ZANKER
ZANKER KOU10421XK User manual
ZANKER
ZANKER KOU20712XB User manual
ZANKER
ZANKER ZKB 7614 User manual
ZANKER
ZANKER KOU65902XK User manual
ZANKER
ZANKER KOU20601 User manual
ZANKER
ZANKER KOB57602XK User manual
ZANKER
ZANKER KOU10411XB User manual
ZANKER
ZANKER KOU20721XK User manual
ZANKER
ZANKER KOB10401XB User manual
ZANKER
ZANKER KOB25724XK User manual
ZANKER
ZANKER KOB55602 User manual
