YORKVILLE 100KB Power Combo User manual

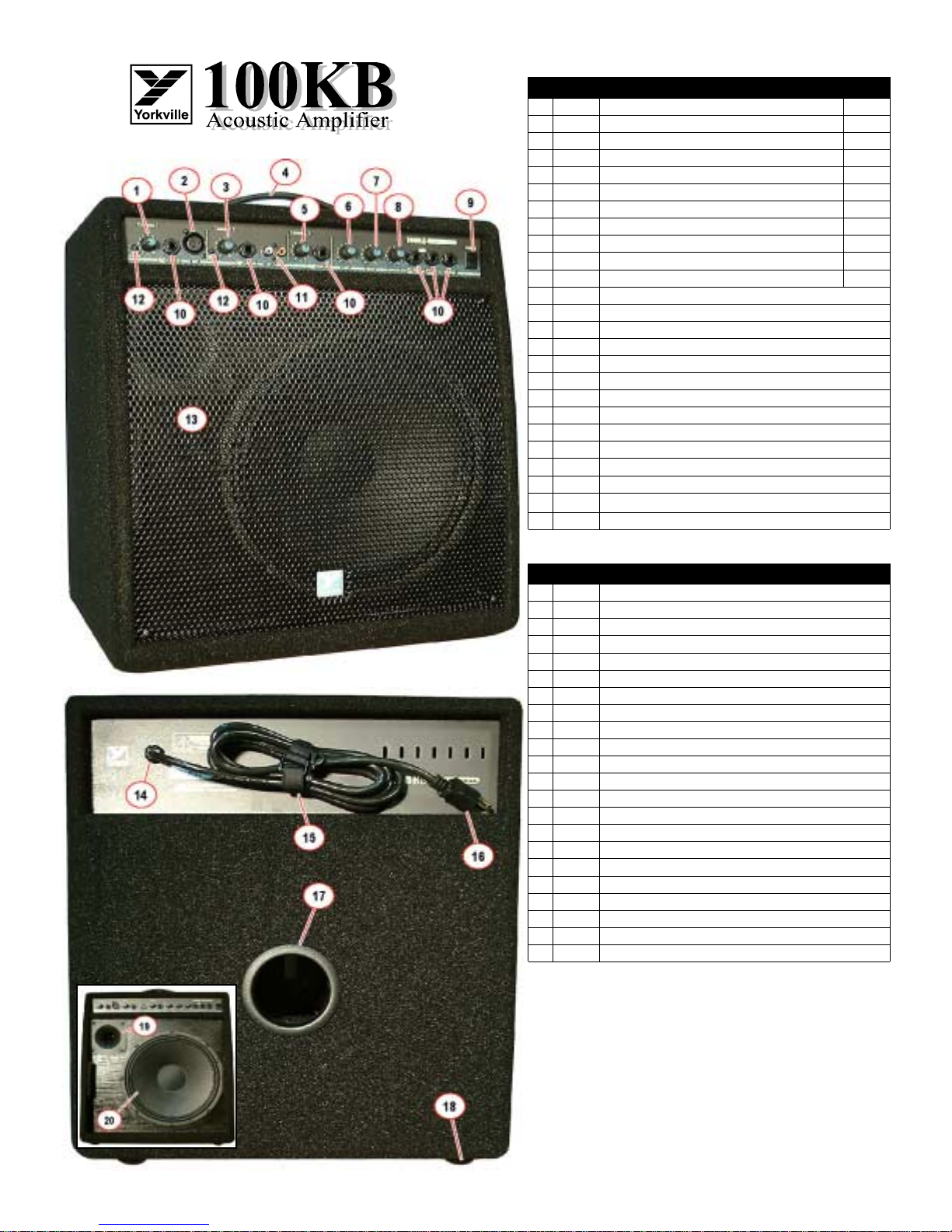

# Part# Description Function

1 4418 _10K 5C R/A 9MM HORIZONTAL P28 Vol 1

2 3660 XLR FEML PCB MT HORZ Jack

3 4417 _10K 5B LIN 9MM HORIZONTAL P28 Vol 2

4 8458 10.5" STRAP HANDLE, PLASTIC COVERS Strap

5 4417 _10K 5B LIN 9MM HORIZONTAL P28 Vol 3

6 4420 _50K B LIN 9MM HORIZONTAL P28 Bass

7 4420 _50K B LIN 9MM HORIZONTAL P28 Treble

8 4417 _10K 5B LIN 9MM HORIZONTAL P28 Reverb

9 3698 SPST ROKR SW QUIK 180" AC PWR BL/BL Power

10 3450 1/4" JCK PCB MT HORZ GOLD Jack

knob 8641 Note: All pots use 8641 Aqua Knob Knob

11 3460 RCA DUAL PCB MT VERT GOLD .475"

12 3425 DPDT PUSH SW PCMT MAKE B4 BREAK

13 Z344 100 KB Grille

(

special order while unit is in production onl

y)

14 3834 HEYCO #1214 STRAIN RELIEF

15 8468 VELCRO STRAP 3/4"X22CM (VELSTRAP)

16 3481 8' 3/18 SJT AC LINE CORD 250 CLIPS

17 8574 3 X 1 ROLLED EDGE TR-PP3X1

18 8547 PLASTIC FOOT BLACK

19 N252XN 8R 30W 1" DRIVER

20 7288 12" 4R 100WPGM SPEAKER

1310 4200 BLOC-80B/100G S120B/100K XFMR

2406 1.6 AMP SLO-BLO .25X1.25 FUSE

2415 5.0 AMP FAST-BLO .25X1.25 FUSE

3563 TRANSISTOR MOUNTING BRACKET

3586 ACC# 1BB1C1C SHORT REVERB

3800 BELLY BUTTON #BB1 CORDS CANADA

3804 SNAP ON 1.5" INSULATING BUSHING

3830 TO218 PREGREASED MICA 56-78-2AP

3914 RCA SNGL PCB MT HORZ

5119 2N5638 TO92 NCH JFET T&R TC

5887 2200U 50V 20%CAP BLK 18X27MM EL

6745 LM13600N IC XCONDUCTANCE AMP

6774 BD139 TO126 NPN TRAN TG

6779 MJH11018(22)TO218 NPN TRAN DARL TI

6798 MC4741CP IC QUAD OP AMP

6802 MJH11017(23)TO218 PNP TRAN DARL TI

6827 1N5402 200V 3A0 DIODE

6840 MC33078P IC DUAL OP AMP

6882 TL072CP IC FET DUAL OP AMP

8898 1/4-20 CAGE NUT C7998142027

Notes:

Labeled Components

Internal Electronic Components

applicable to serial numbers 001xxxx

100KB.xls - 19-03-01 ftp.yorkville.com/parts Instrument Amplifiers
