Yedoo ALLOY WOLFER User manual

ALLOY

WOLFER

WOLFER RS

TREXX

TREXX DISC

User manual

Yedoo

Wolfer 28"/ 20"

Product Number:

12701-Y30

Maximum load:

120 kg / 265 lb

Trexx 26"/ 20"

Product Number:

12702-Y30

Maximum load:

130 kg / 287 lb

Wolfer RS 28"/ 28"

Product Number:

12721

Maximum load:

120 kg / 265 lb

Trexx Disc 26"/ 20"

Product Number:

12722

Maximum load:

150 kg / 330 lb

EN 7

CZ 16

DE 25

RU 34

SK 43

FR 52

ES 61

IT 70

HU 79

SV 88

ET 97

PL 106

SL 115

HR 124

Contents

Visit our website www.yedoo.eu

for more language versions.

Yedoo Wolfer

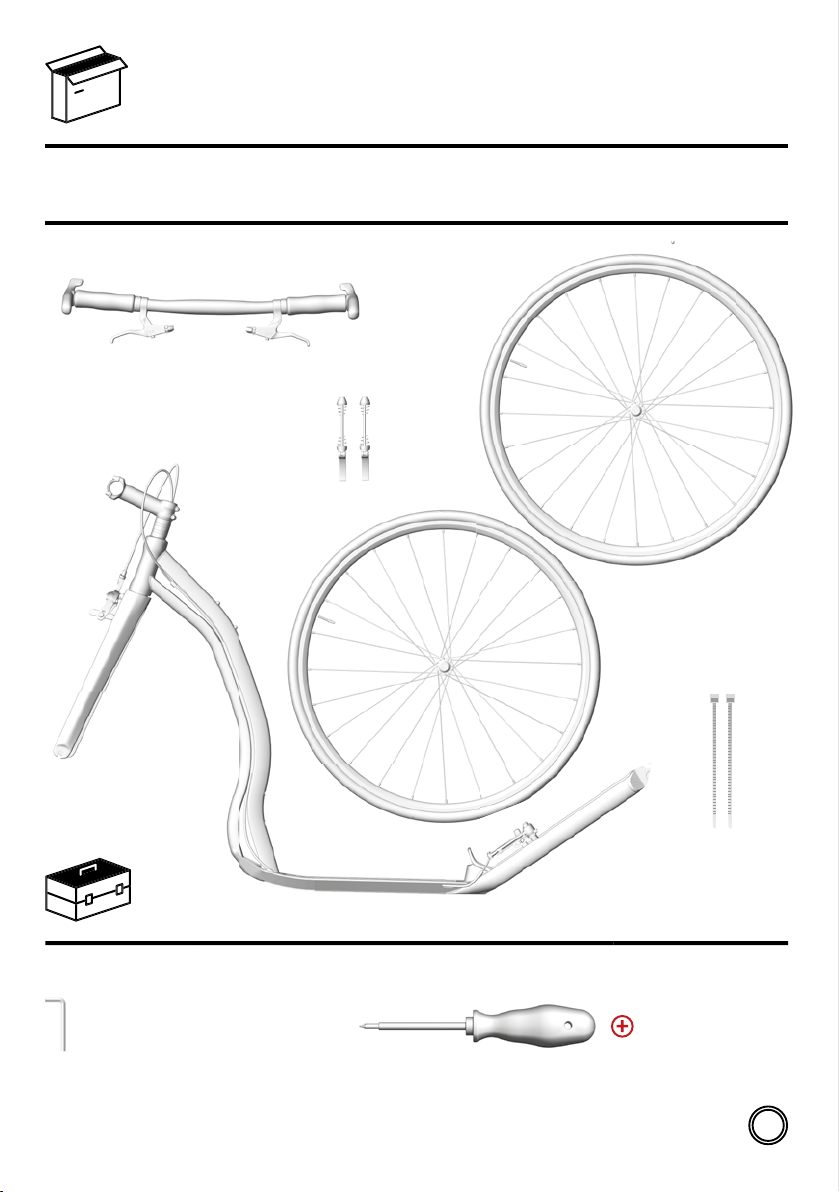

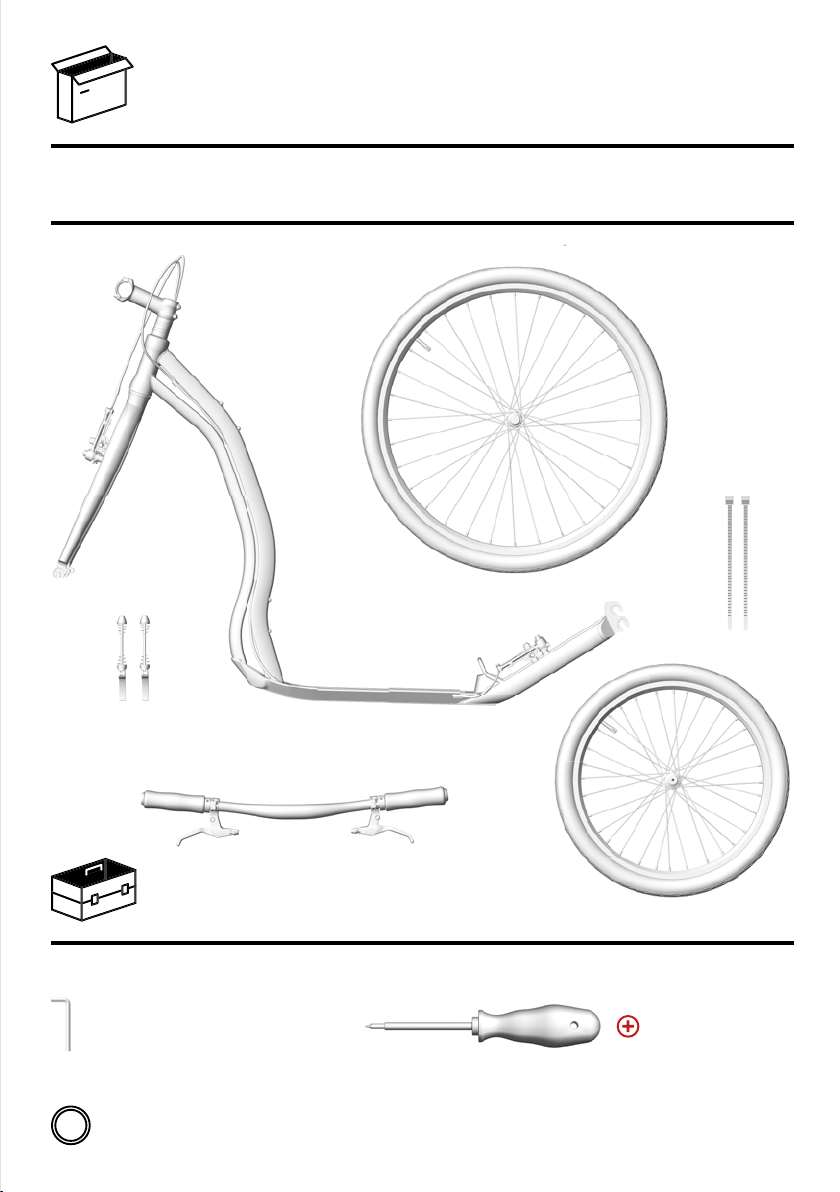

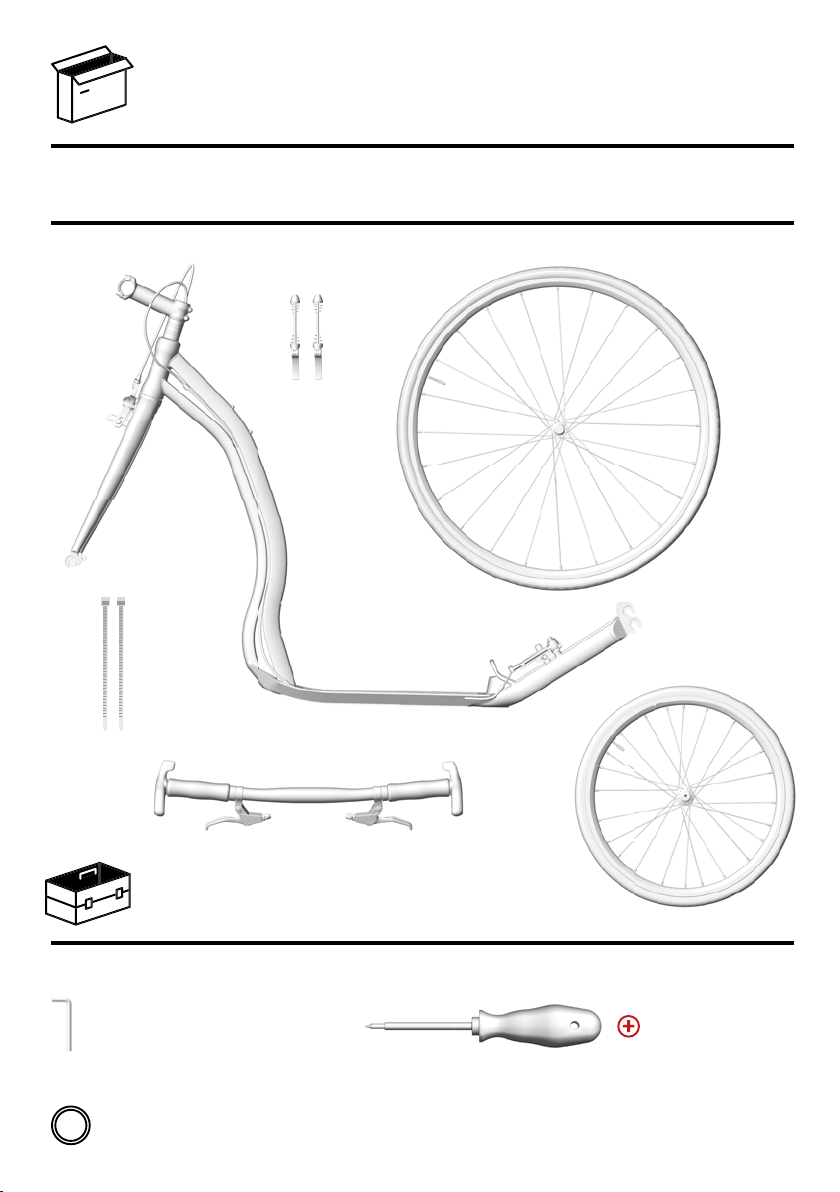

3 mm, 4 mm, 5 mm

Yedoo Wolfer RS

3 mm, 4 mm, 5 mm

Yedoo Trexx

3 mm, 4 mm, 5 mm

Yedoo Trexx Disc

3 mm, 4 mm, 5 mm

Torx

Introduction

We recommend that you entrust the installation, adjustment

and regular maintenance to a specialist bicycle shop. Improper

intervention can lead to damage of the scooter or to an accident

with serious health consequences.

If you are technically capable, do not worry, this manual

contains all the information you need to help you assemble your

new scooter.

Send your questions, comments and suggestions for

improvement of our products by e-mail to: info@yedoo.eu.

Yedoo frames are protected

by a Registered Community

Design(RCD), the commercial

names are protected by

registered trade marks.

More information from the

world of scooters and the list

ofdistributors can be found

at www.yedoo.eu.

4a. 4b.

Installing the wheels

Insert the quick release mechanism into

the wheel ensuring that on both sides of

the wheel the narrow ends of the springs

face the centre of the wheel. In case

the quick-release levers are of dierent

length, use the shorter one for the rear

wheel.

The assembly procedure is

the same for all models, it

only diers in details, see

accompanying pictures.

When tightening the

connections do not

exceed the specified

tightening torque.

First, check if the front fork of the

scooter is turned in the proper direction

(the V-brake arms / wheel holders are

facing forward),

For the Wolfer and Wolfer RS models,

release the brake jaws by slightly turning

the lever. In case of the Trexx model,

release the brake wire from the housing

and release the brake arms.

Insert the wheel into the front fork so it

is exactly in the middle.

Caution:

When

inserting the wheel, ensure that the

arrow on the tyre sidewall points in the

direction of rotation when the scooter

is rolling forwards.

Direction

of rotation

Disc brakes - Trexx Disc

Put the separately packaged brake discs

on wheel hubs. Attach the rotor of the

disc brake so that the arrow on the rotor

would correspond to the rotation of the

wheel. Screw the rotor to the hub using

the attached key (torx).

When fastening the screws, make sure

you follow the sequence according to

the picture.

Installation manual

6a.5.

Tighten the adjustment nut of the

quick release mechanism to the correct

position. When it is in the correct

position you will feel a noticeable

resistance just before you close the

mechanism completely. Close the quick

release lever in a position where it does

not touch the fork and simultaneously

it cannot be opened accidentally

while riding.

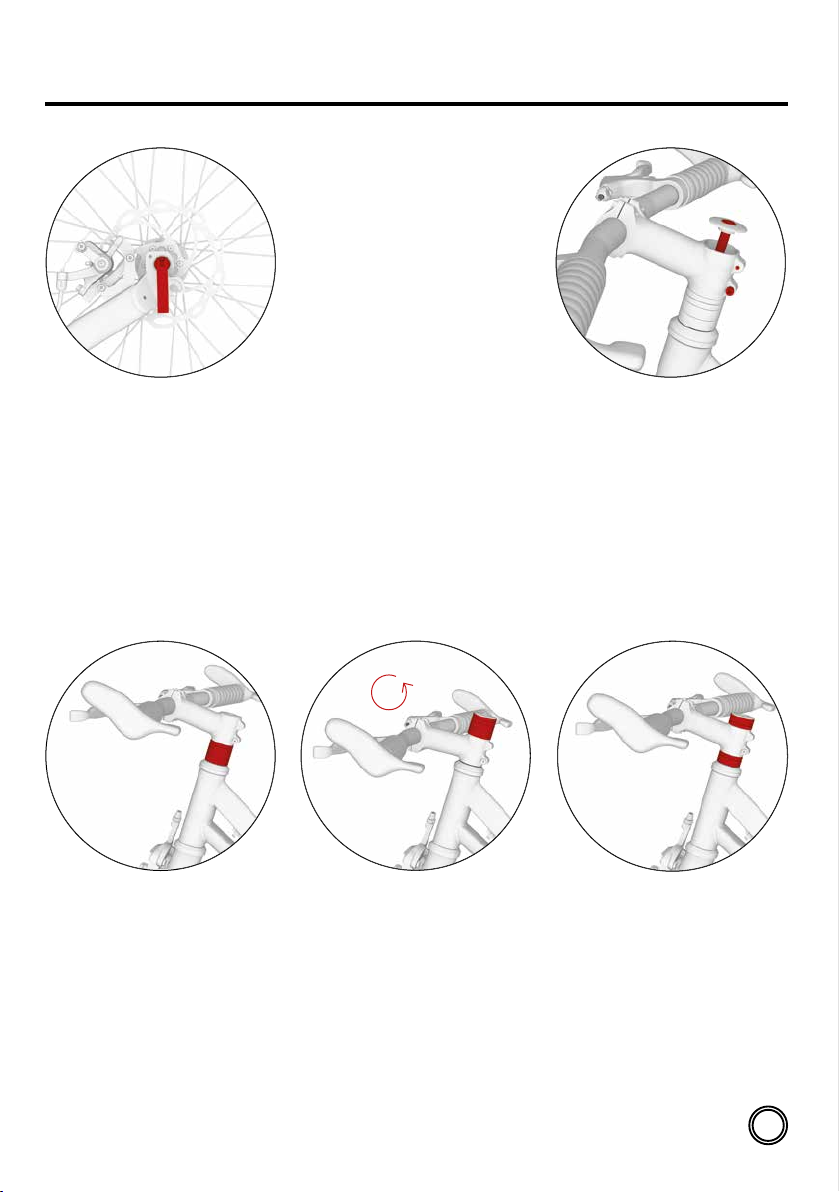

Handlebars installation

Insert the handlebars on the stem

and tighten the screws of the sleeve.

The labels (not shown in a picture)

should be clearly visible from the

front view.

Wolfer,

Wolfer RS

Trexx,

Trexx Disc

7a. 7c.7b.

Installing the rear wheel (V-brake)

Release the brake cable from the guide

(

). Put the wheel in one of the two fork

dropouts (see 7b., 7c.) then centre the

wheel and tighten the quick release

mechanism (

Use the lower position for riding over a

rough terrain. Close the quick release

lever. It should point upwards.

Two-position rear fork enables you to

adjust the height of the footrest above

the ground. The upper fork position,

which reduces the height of the footrest,

is designed for riding on a smooth, flat

surface. Riding will be less physically

demanding. The closed quick release

lever should point downwards.

5–6 Nm 5–6 Nm

6b.

Installation manual

Rear wheel installation (disc brake)

Put the wheel into the upper holder of

the fork, centre the wheel and fasten

the quick-release lever. It is not possible

to use the lower holder with the basic

setup of the scooter.

7d. 8a.

8b. 8d.8c.

Adjusting the height of the handlebars

Loosen the screws on the stem and

adjust the handlebars to the desired

height using spacer rings. To set the

handlebars to the lowest position,

turn the stem so it points downwards,

see fig. 8c.. After adjusting the

handlebar height, first tighten the head-

set screw (

), then the side screws (

5–6 Nm

6–8 Nm
