Yealink EXP40 Expansion Module
!
!
Expansion Module EXP40 is designed for connection to the Yealink T46G and T48G
VoIP phones.
!
Note: Before installation, be sure to unplug the remote Internet connection and/or power
supply as well as the phone stand from the Yealink IP phone. Place the telephone and the
expansion module upside down on a soft surface so that you can read nameplates from the
front. The expansion module must be placed to the left of the telephone.

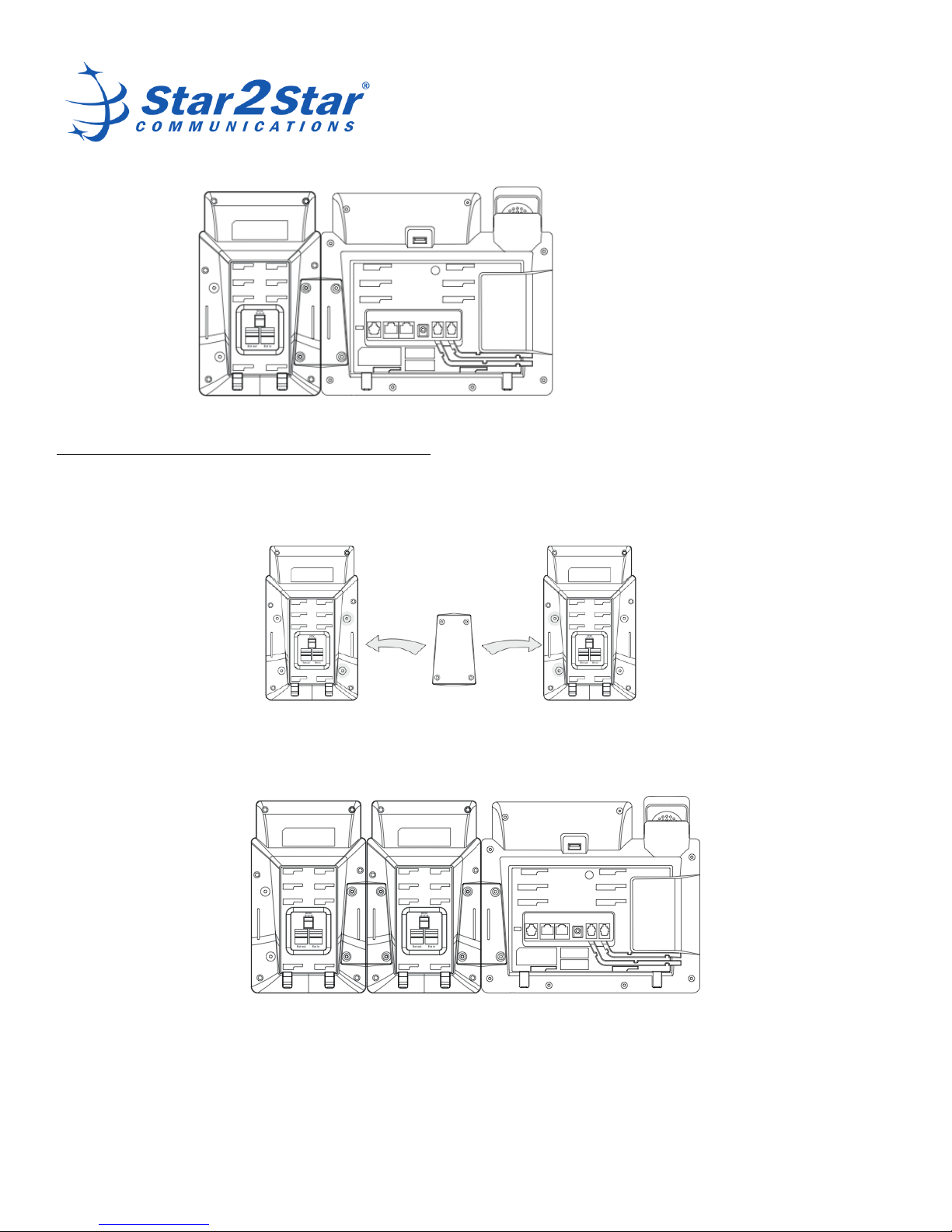

a). Connect to the phone
!
Use the connecting sheet and screw to connect the EXP40 to the IP phone.
!
!
!!! !
!
! ! !
!
Rev 1 Copyright © 2015. Star2Star Communications, LLC. All rights reserved. Star2Star is a registered trademark of Star2Star Communications.
! ! !
!
b). Connect to the next module
!
Follow the same steps to connect the next expansion module
!
!
!!!!!!!!
!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !
!
Note:!The phone can support up to six expansion modules. If you use more than three
expansion modules, you will need to connect an additional power adapter to any one of the
expansion modules.
! ! !
!
Rev 1 Copyright © 2015. Star2Star Communications, LLC. All rights reserved. Star2Star is a registered trademark of Star2Star Communications.
! ! !

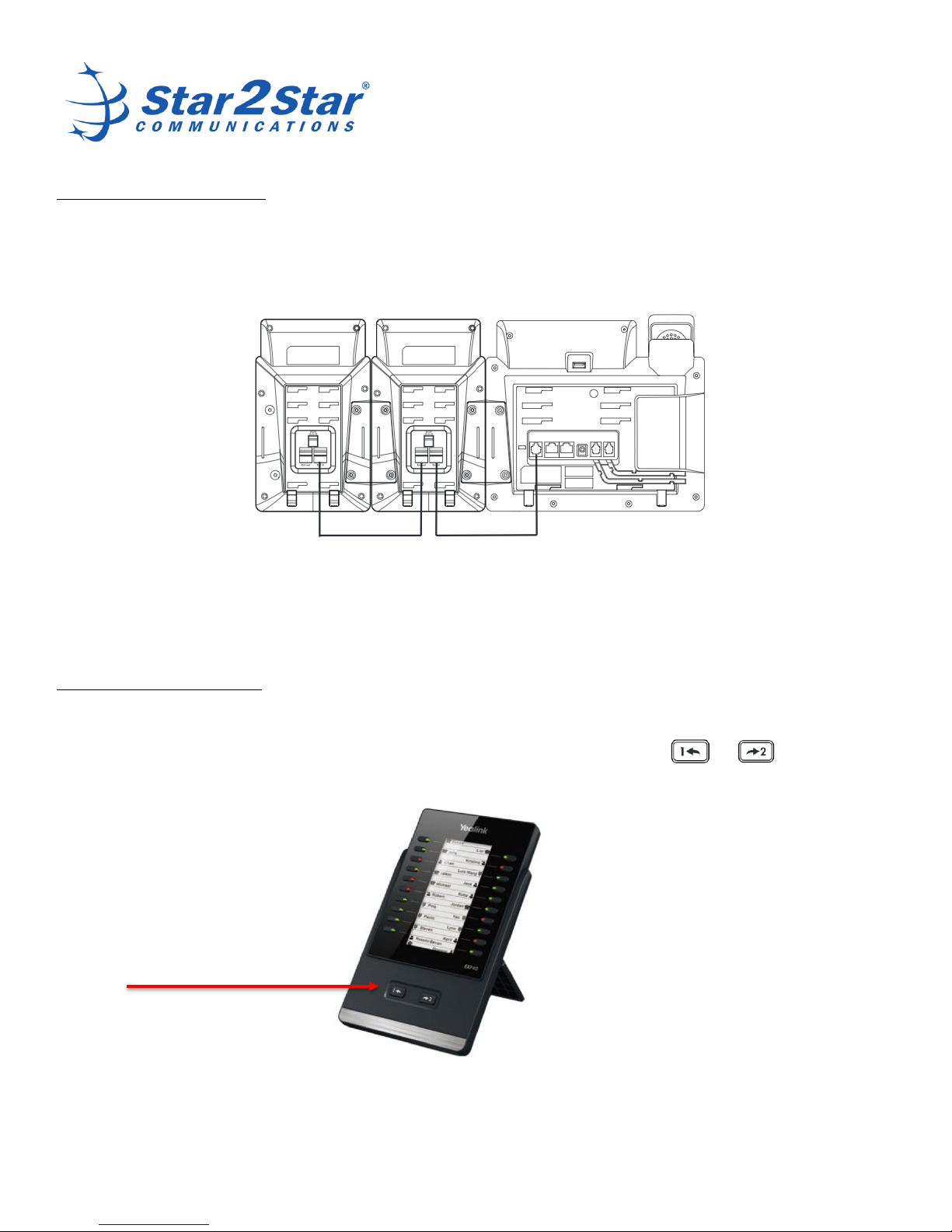

c). Connect cords
!
Plug the connecting cord into the Ext jack of the IP phone (the next port to the Ext in jack of
the first module). To connect more than one module, plug another cord into the Ext out jack
and the other port to the Ext in jack of the second module.
Note: Users can connect up to six modules. Connect the Ext in port of the previous module
and the Ext out port of the next module with a connecting cord.
Attach the stand and power adapter. Connect handset and headset to use.
d). Configuration
!
The expansion module EXP40 has 40 programmable keys that can be configured via the
Star2Star web portal. Each screen displays 20 keys. You may press or to switch
between the two pages.
You may use the Star2Star web portal to configure key functions, i.e. monitor the presence
of local extensions, speed dials, numbers you call on a regular basis.
! ! !
!
Rev 1 Copyright © 2015. Star2Star Communications, LLC. All rights reserved. Star2Star is a registered trademark of Star2Star Communications.
! ! !

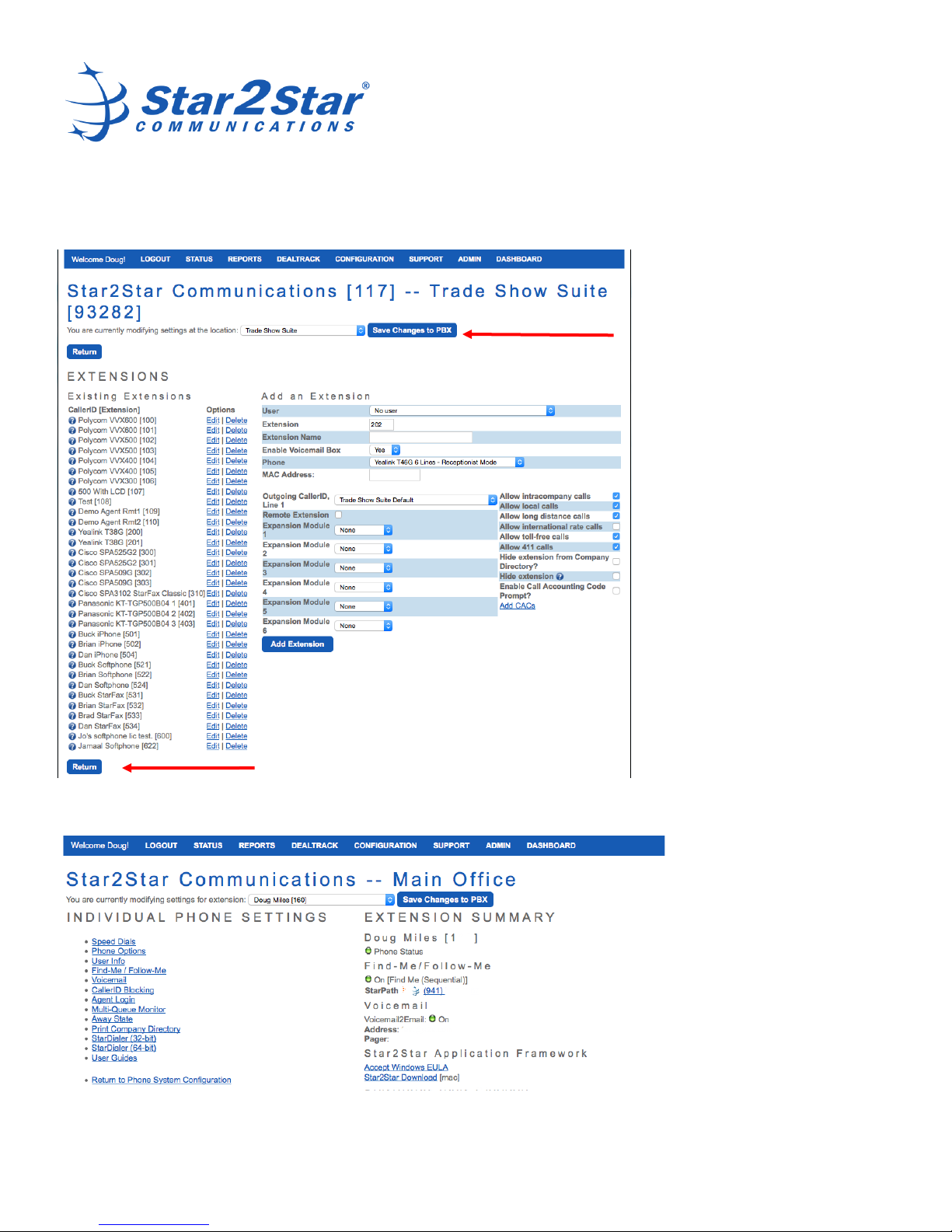

1. Log in to the Star2Star web portal. Click the Configuration tab at the top of the screen.
2. Click Extensions.
! ! !
!
Rev 1 Copyright © 2015. Star2Star Communications, LLC. All rights reserved. Star2Star is a registered trademark of Star2Star Communications.
! ! !
3. Edit the extension and set the number of expansion modules. Click Save Changes to PBX.
4. Click Individual Phone Settings.
! ! !
!
Rev 1 Copyright © 2015. Star2Star Communications, LLC. All rights reserved. Star2Star is a registered trademark of Star2Star Communications.
! ! !
5. Click the Speed Dials option.
6. Use the drop-down lists to point the speed dials to the desired extensions, destinations or custom
dial patterns.
7. Click Save Changes to PBX.
8. Once the Save Changes has completed, reboot the phone.
